Diagnostic Procedure

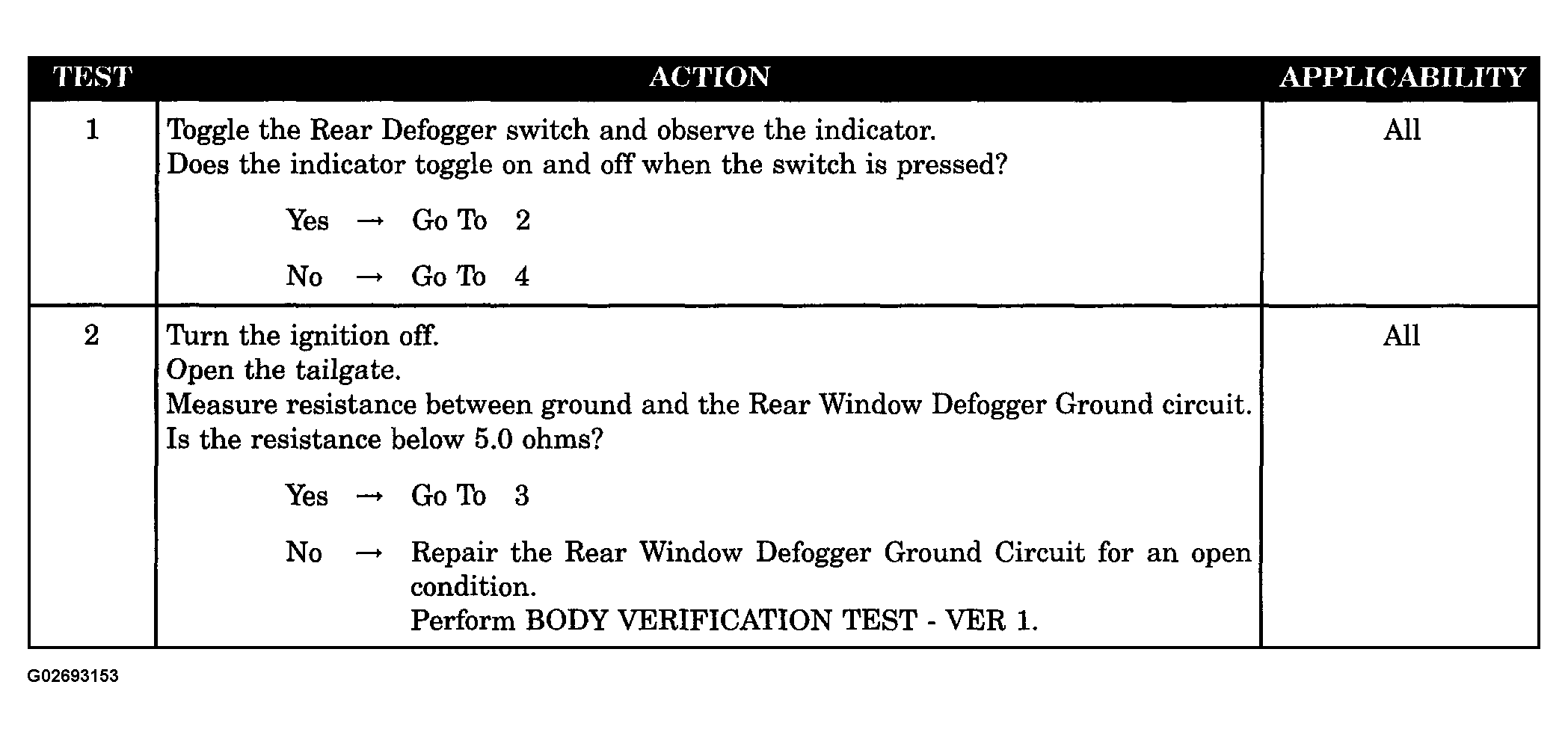

Fig 1: Diagnosis Procedure For Symptom: Rear Window Defogger Grid Inoperative (1 Of 4)
G02693153Courtesy of DAIMLERCHRYSLER CORP.

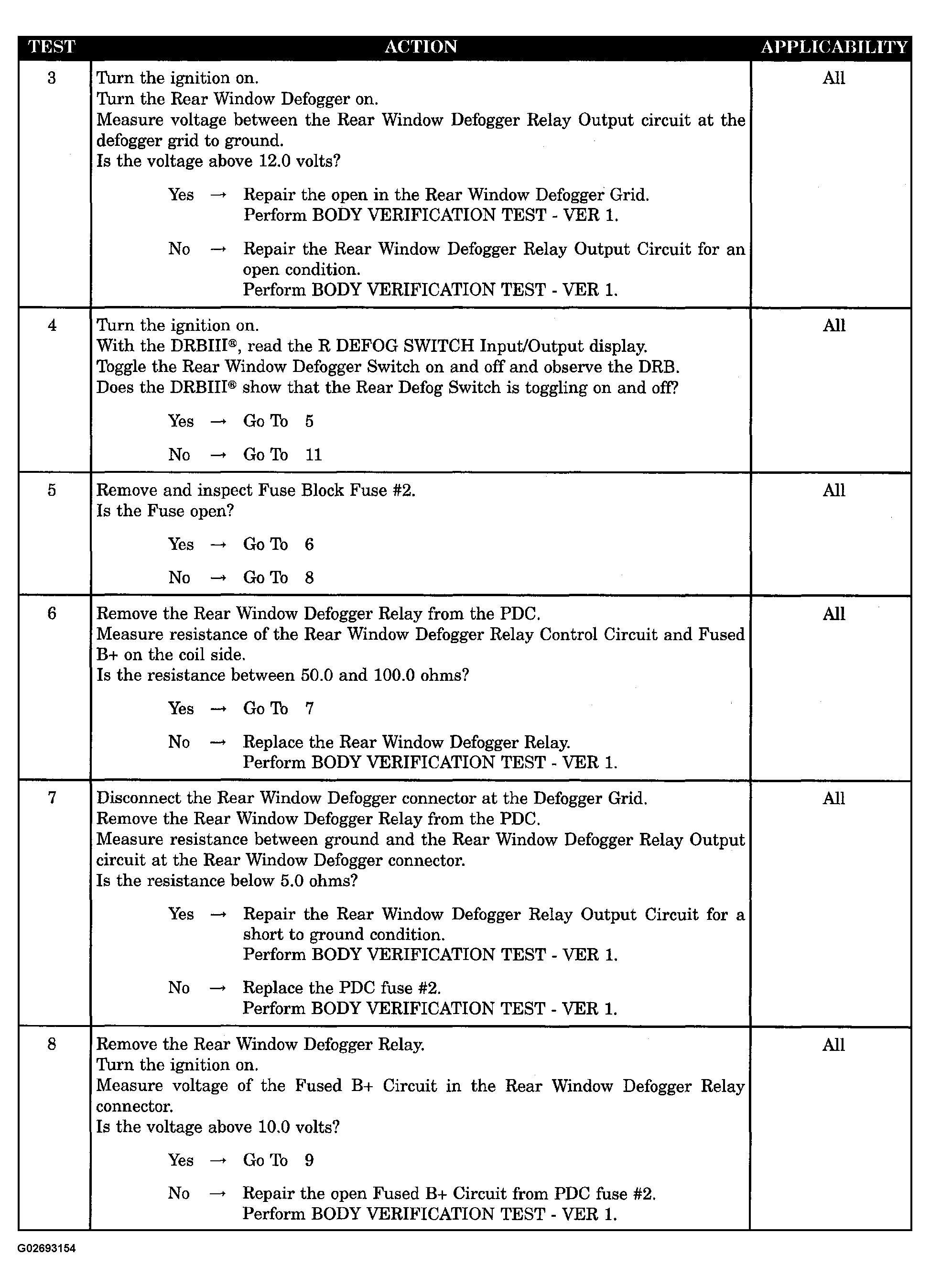

Fig 2: Diagnosis Procedure For Symptom: Rear Window Defogger Grid Inoperative (2 Of 4)
G02693154Courtesy of DAIMLERCHRYSLER CORP.

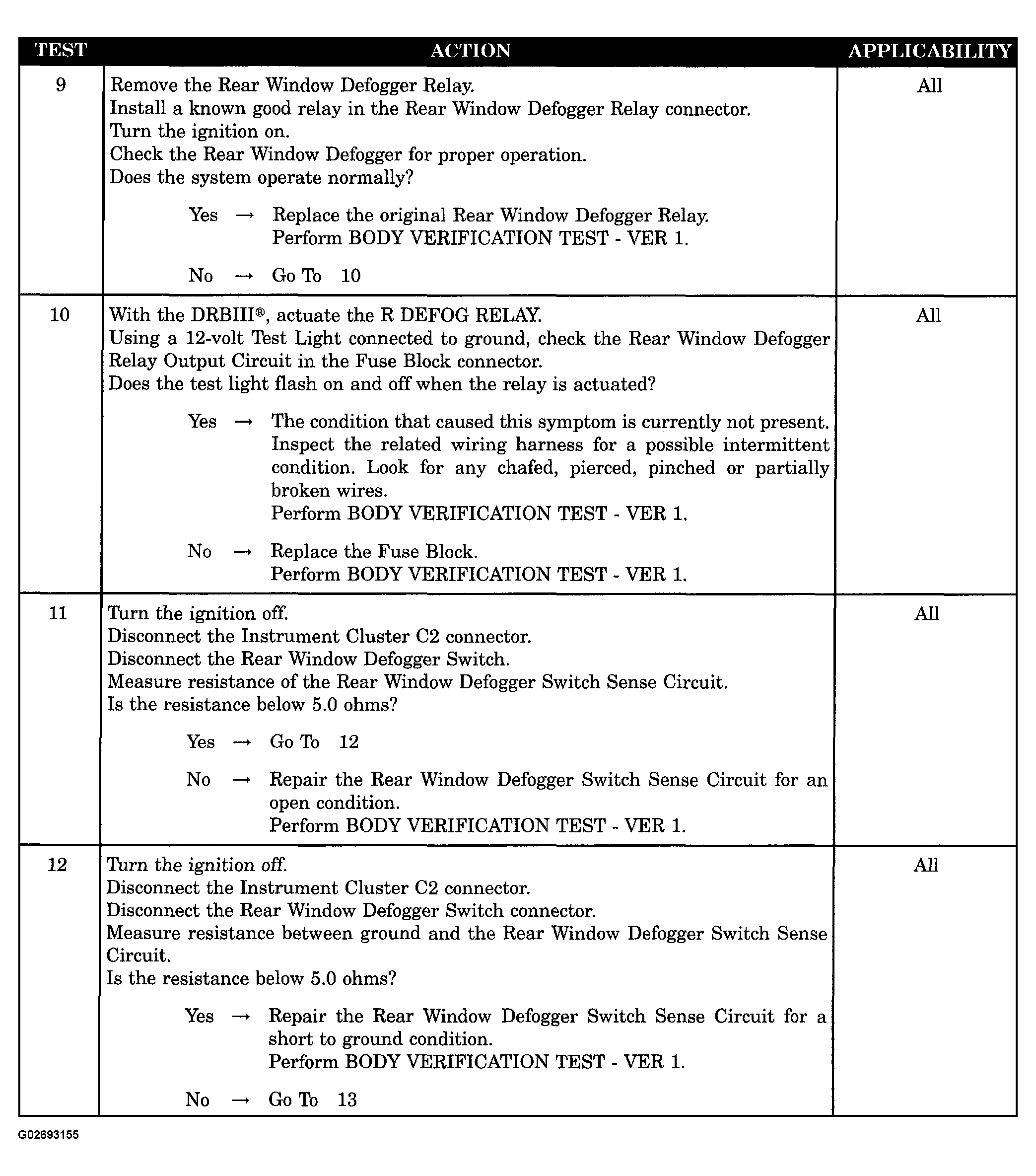

Fig 3: Diagnosis Procedure For Symptom: Rear Window Defogger Grid Inoperative (3 Of 4)
G02693155Courtesy of DAIMLERCHRYSLER CORP.

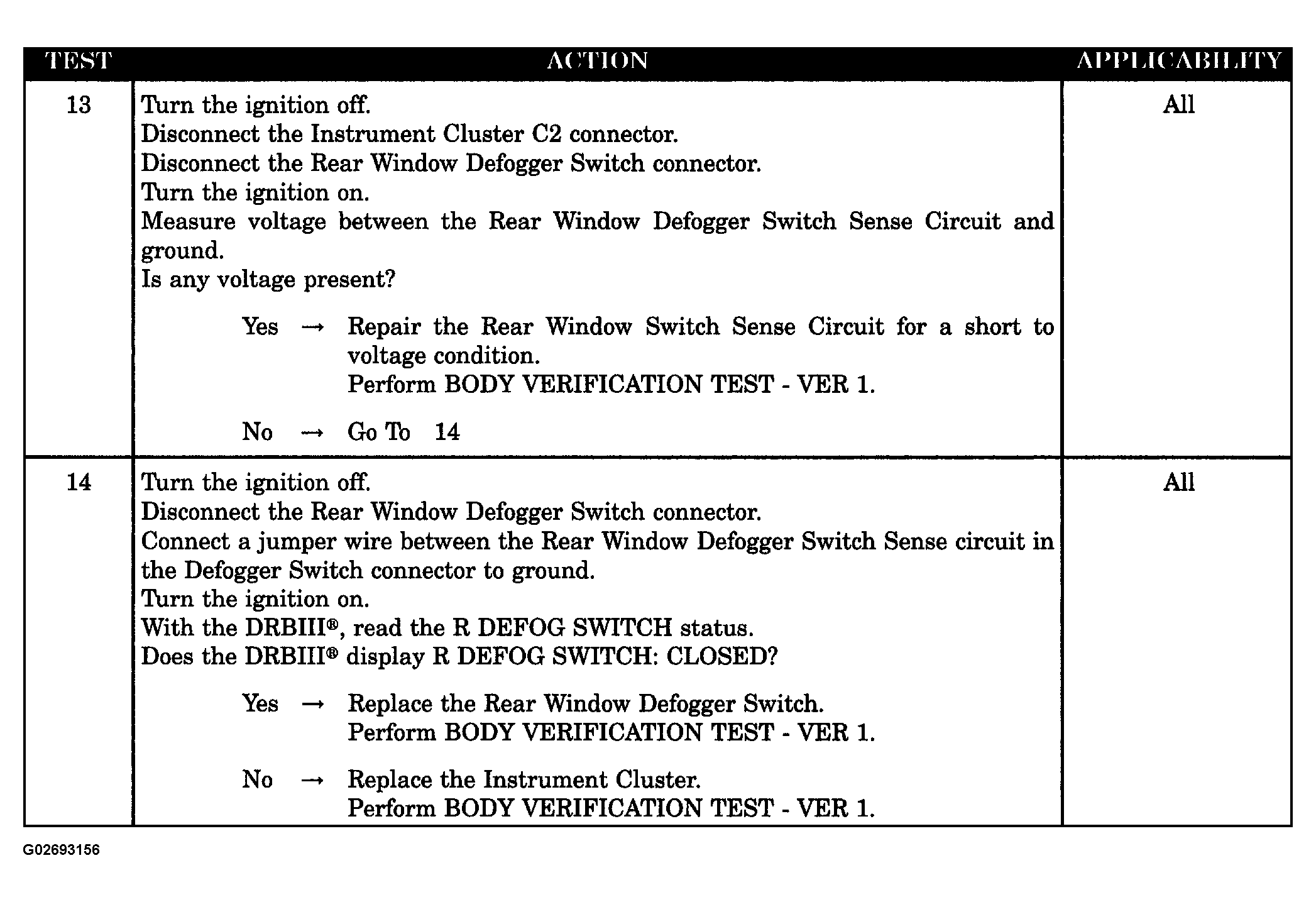

Fig 4: Diagnosis Procedure For Symptom: Rear Window Defogger Grid Inoperative (4 Of 4)
G02693156Courtesy of DAIMLERCHRYSLER CORP.
