Diagnostic Procedure

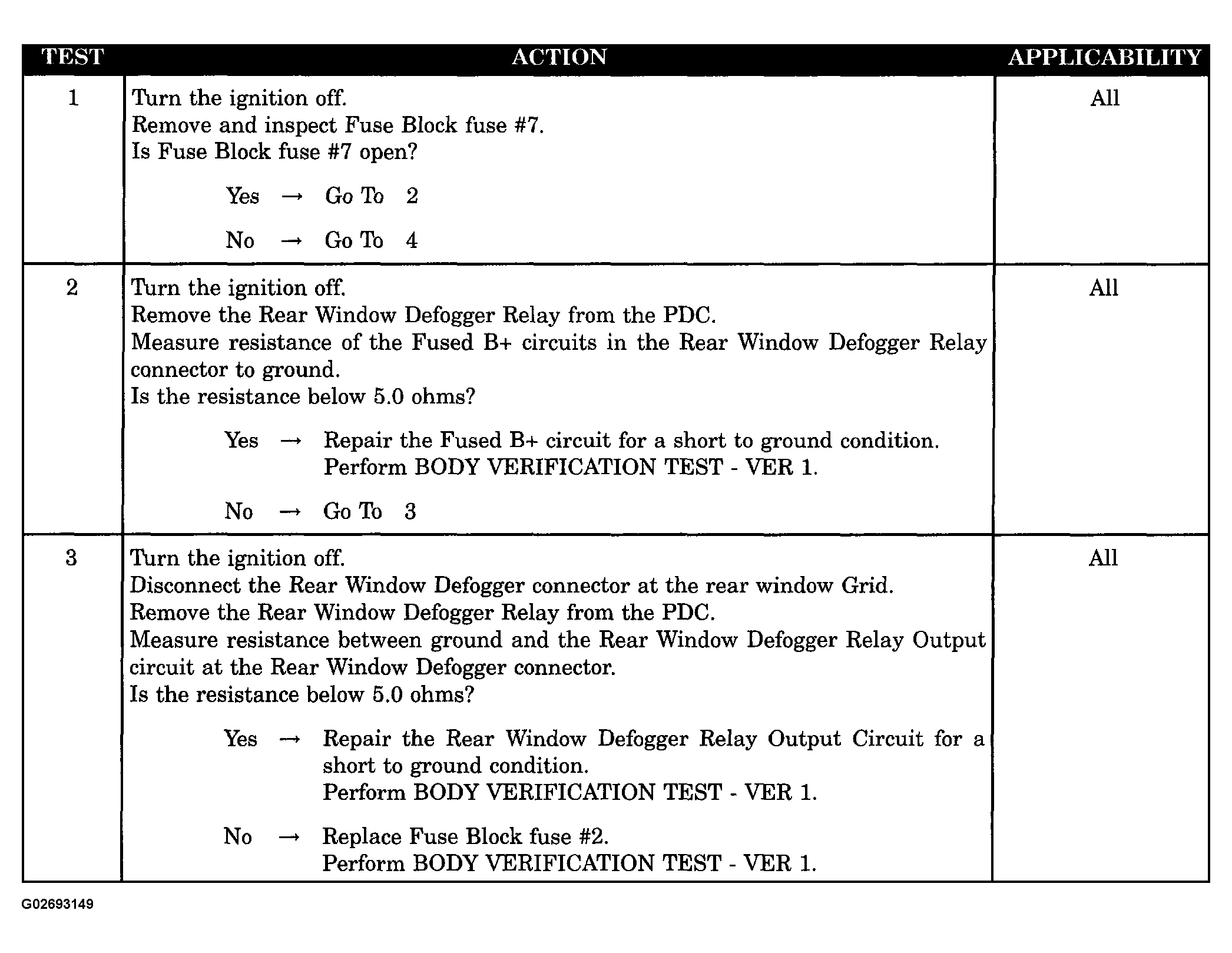

Fig 1: Diagnosis Procedure For Symptom: Rear Defogger Relay Open (1 Of 2)
G02693149Courtesy of DAIMLERCHRYSLER CORP.

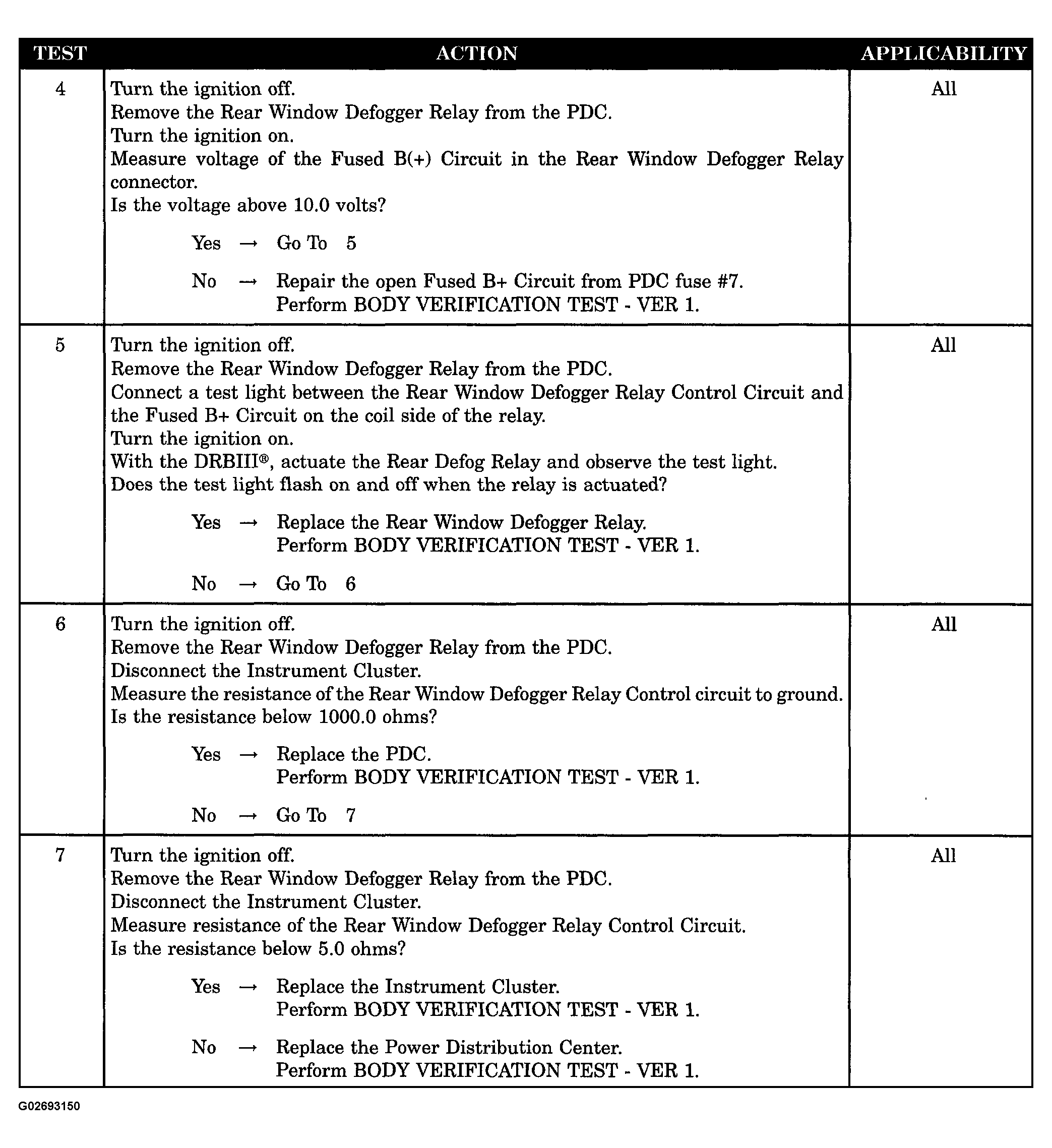

Fig 2: Diagnosis Procedure For Symptom: Rear Defogger Relay Open (2 Of 2)
G02693150Courtesy of DAIMLERCHRYSLER CORP.
