Diagnostic Procedure

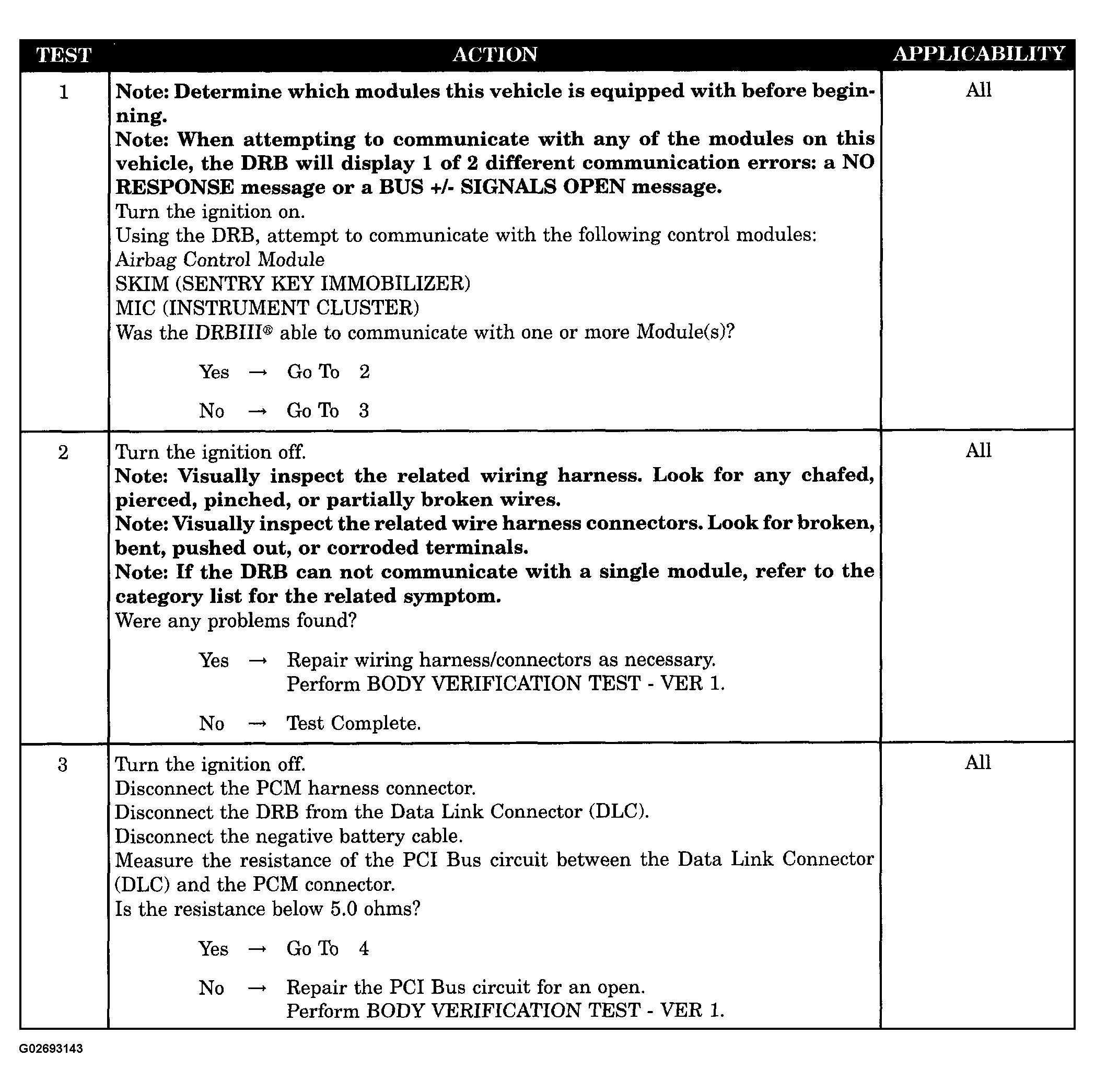

Fig 1: Diagnosis Procedure For Symptom: PCI Bus Communication Failure (1 Of 2)
G02693143Courtesy of DAIMLERCHRYSLER CORP.

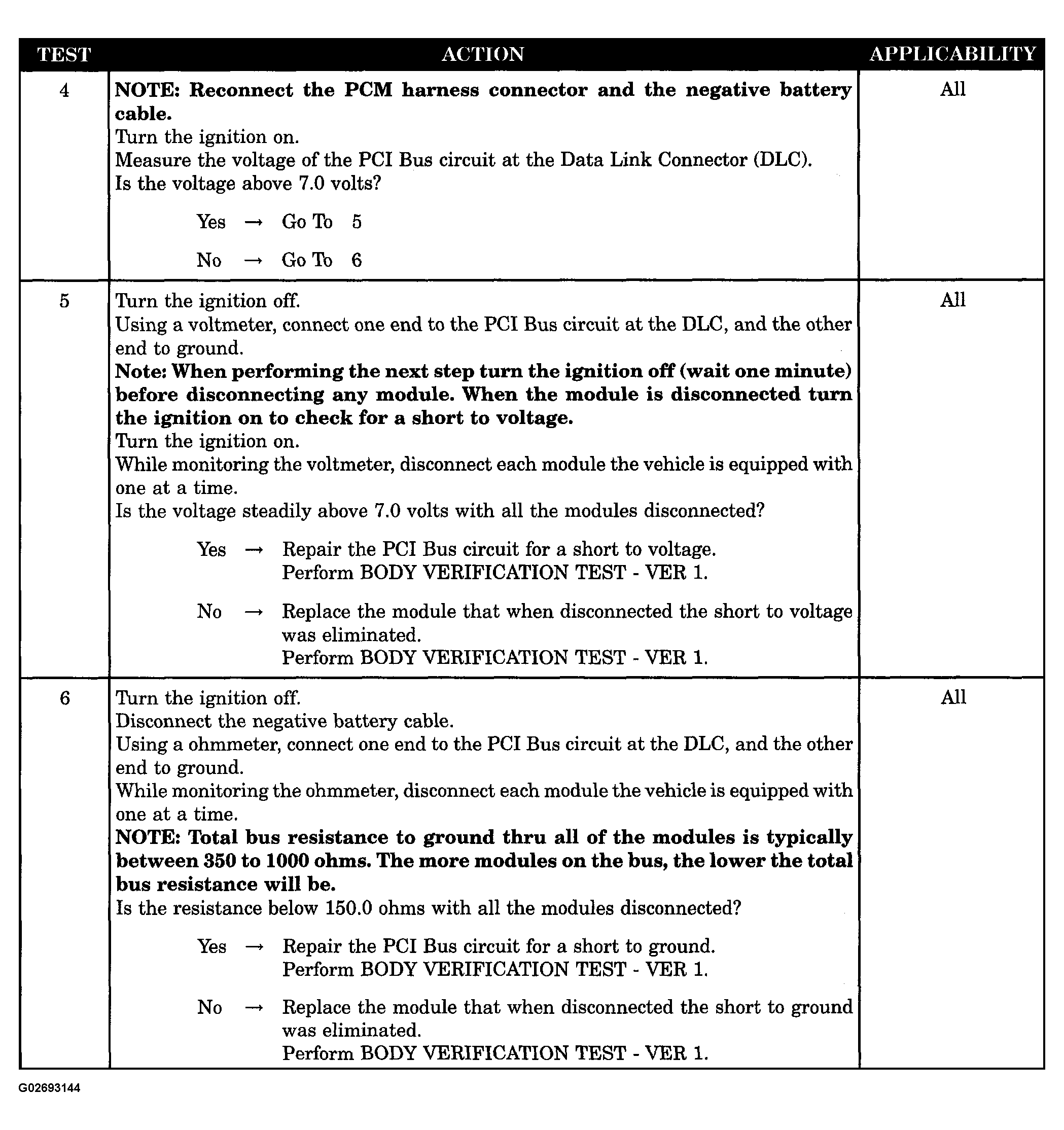

Fig 2: Diagnosis Procedure For Symptom: PCI Bus Communication Failure (2 Of 2)
G02693144Courtesy of DAIMLERCHRYSLER CORP.
