Diagnostic Procedure

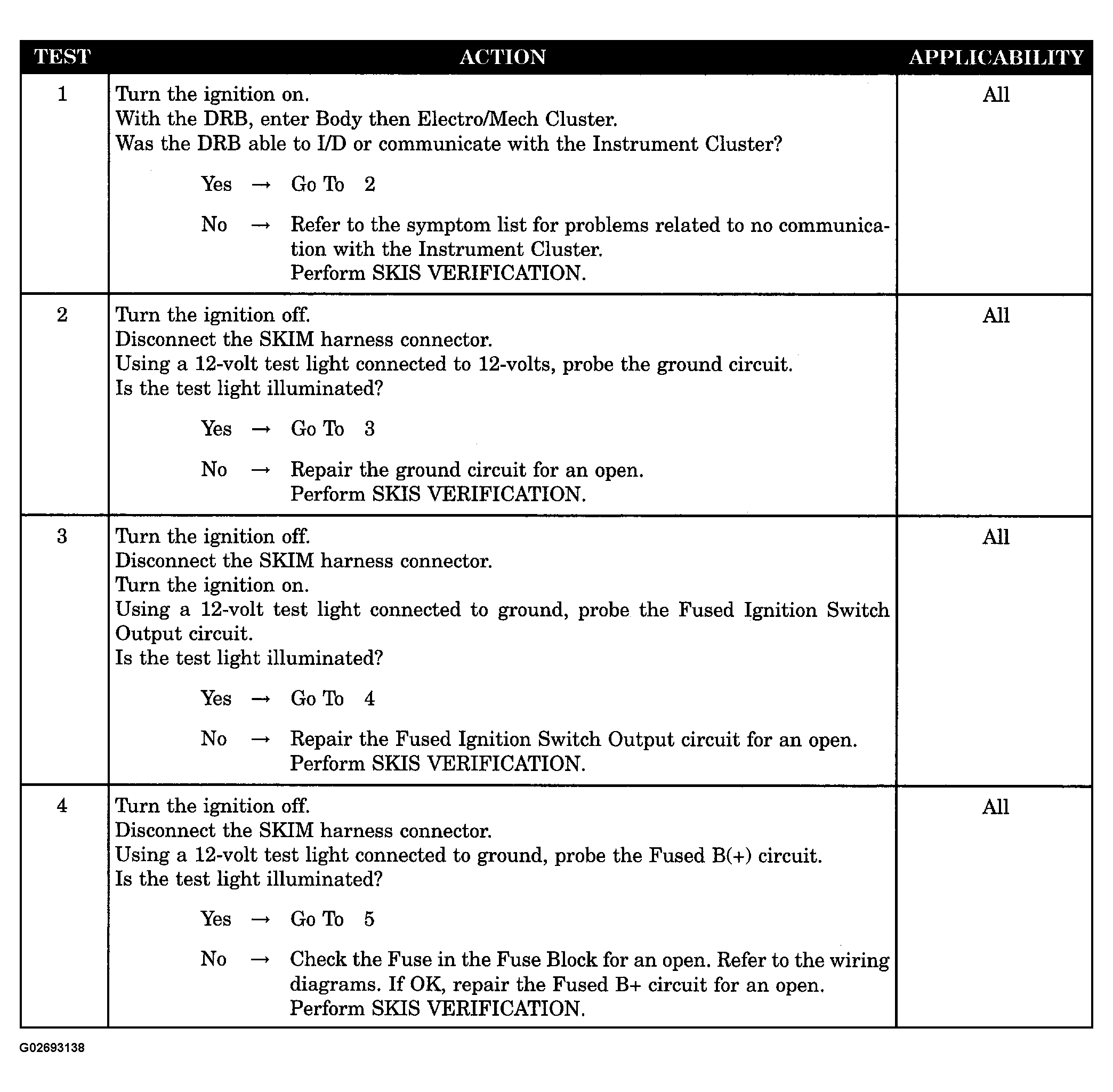

Fig 1: Diagnosis Procedure For Symptom: No Response From Sentry Key Immobilizer Module (1 Of 2)
G02693138Courtesy of DAIMLERCHRYSLER CORP.

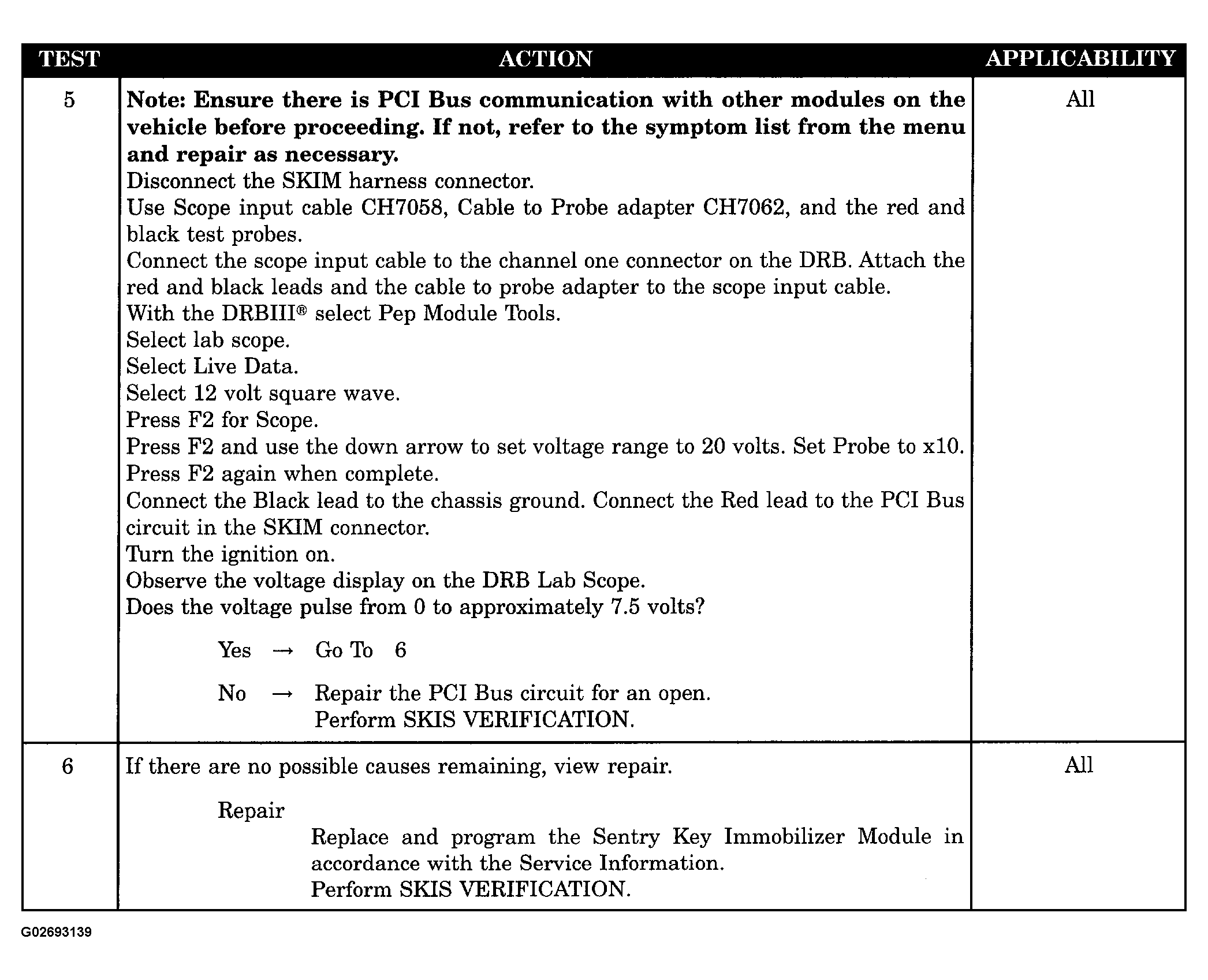

Fig 2: Diagnosis Procedure For Symptom: No Response From Sentry Key Immobilizer Module (2 Of 2)
G02693139Courtesy of DAIMLERCHRYSLER CORP.
