Diagnostic Procedure

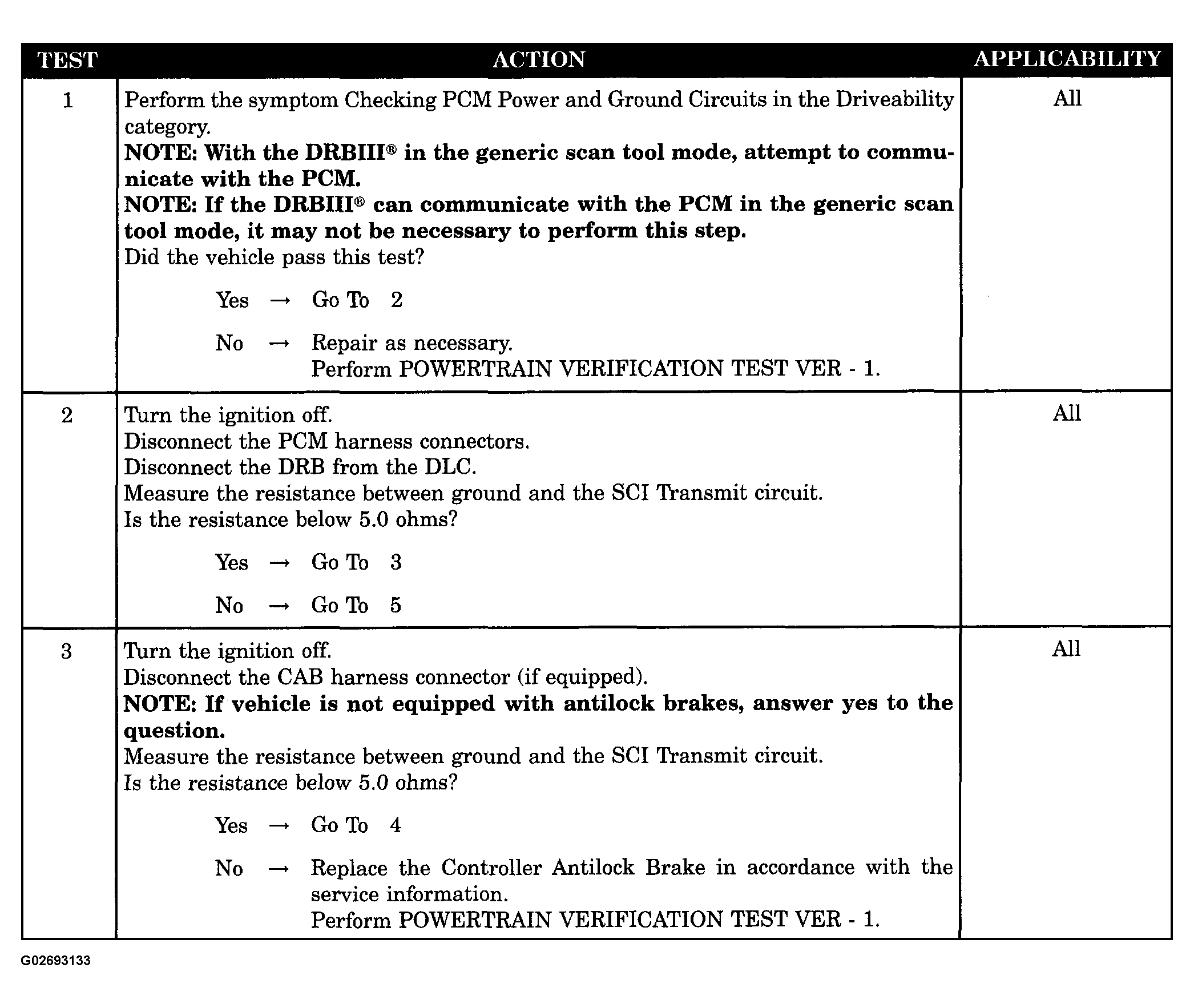

Fig 1: Diagnosis Procedure For Symptom: No Response From PCM (SCI Only) (1 Of 3)
G02693133Courtesy of DAIMLERCHRYSLER CORP.

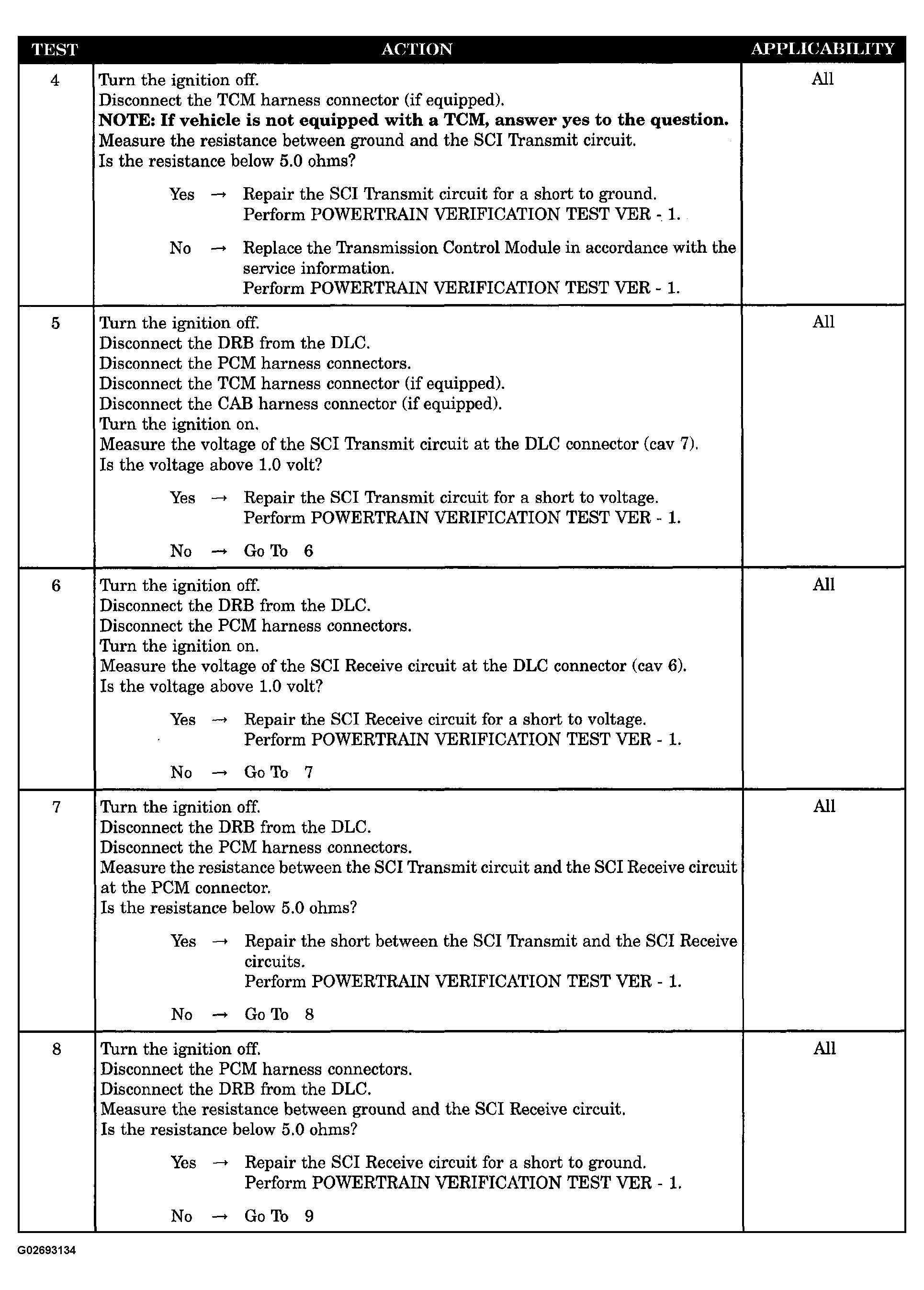

Fig 2: Diagnosis Procedure For Symptom: No Response From PCM (SCI Only) (2 Of 3)
G02693134Courtesy of DAIMLERCHRYSLER CORP.

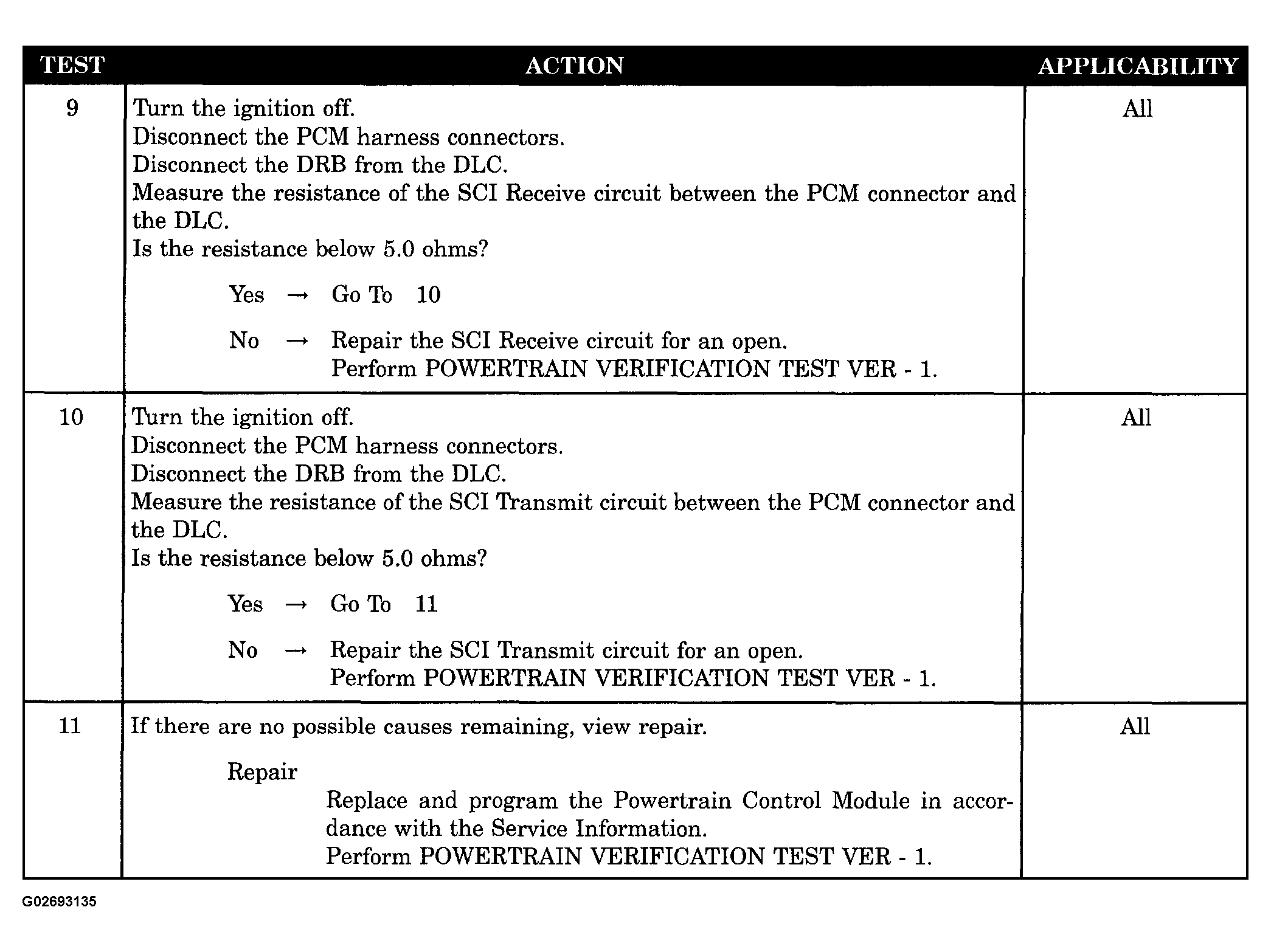

Fig 3: Diagnosis Procedure For Symptom: No Response From PCM (SCI Only) (3 Of 3)
G02693135Courtesy of DAIMLERCHRYSLER CORP.
