Diagnostic Procedure

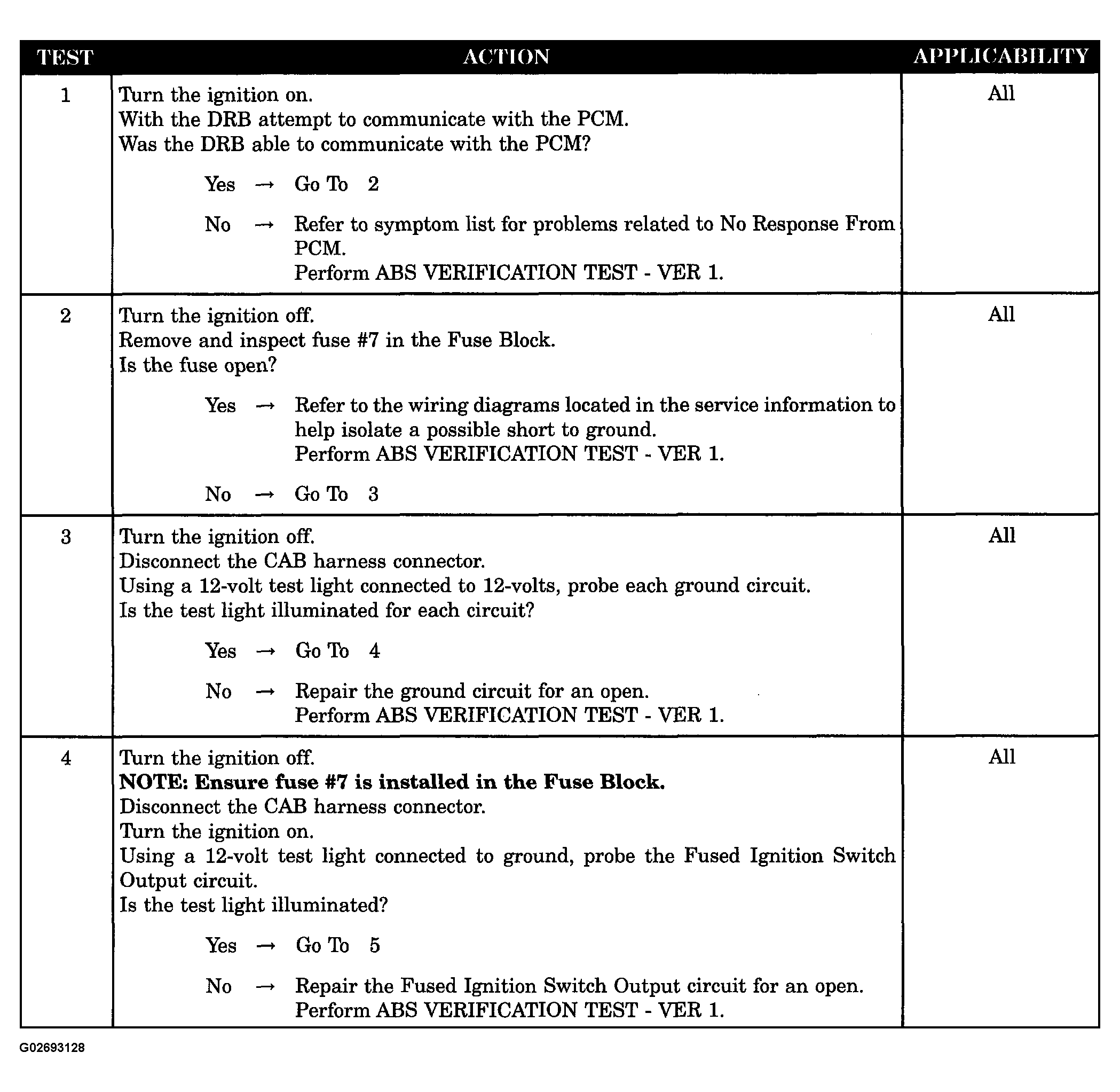

Fig 1: Diagnosis Procedure For Symptom: No Response From Controller Antilock Brake (1 Of 2)
G02693128Courtesy of DAIMLERCHRYSLER CORP.

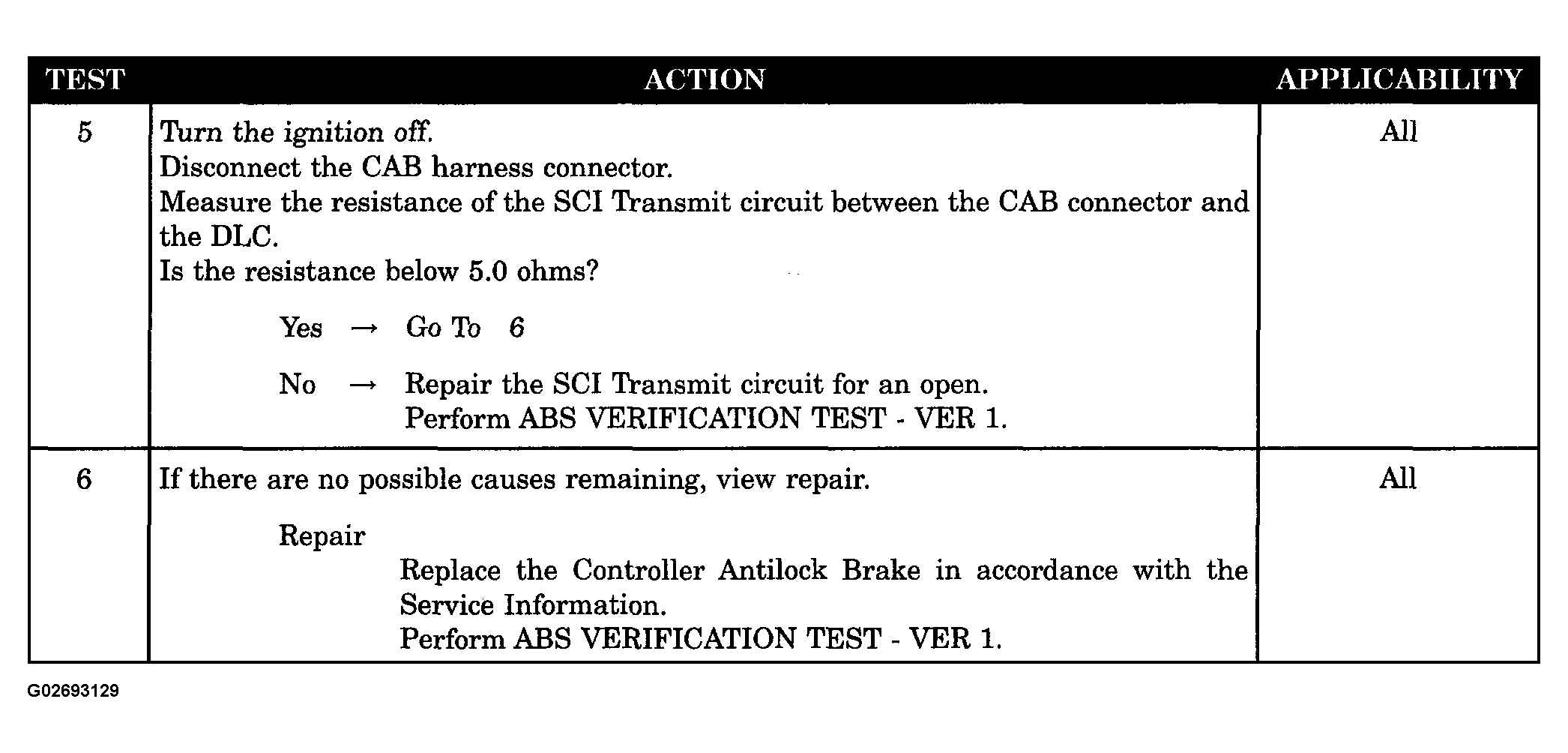

Fig 2: Diagnosis Procedure For Symptom: No Response From Controller Antilock Brake (2 Of 2)
G02693129Courtesy of DAIMLERCHRYSLER CORP.
