Diagnostic Procedure

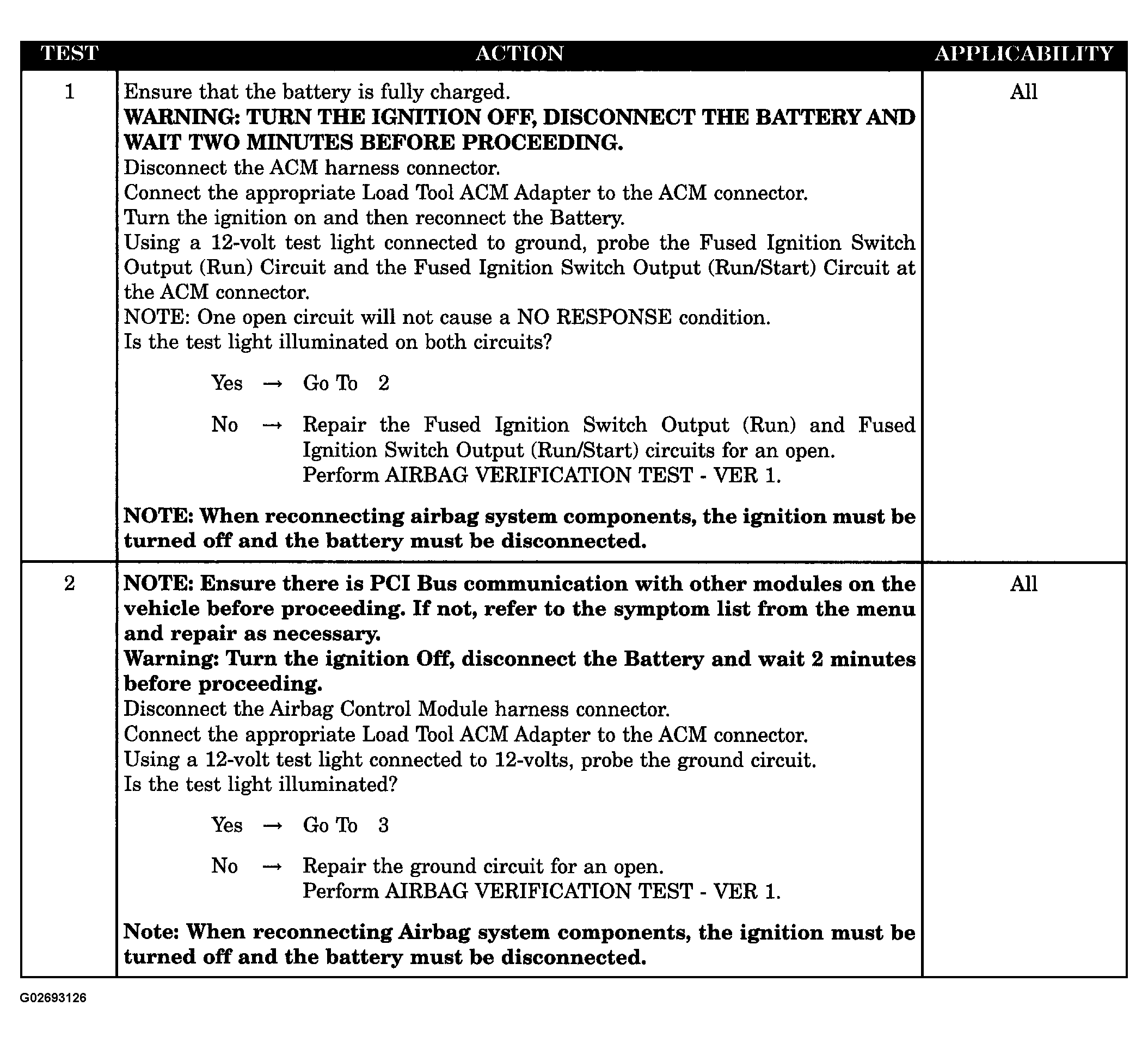

Fig 1: Diagnosis Procedure For Symptom: No Response From Airbag Control Module (1 Of 2)
G02693126Courtesy of DAIMLERCHRYSLER CORP.

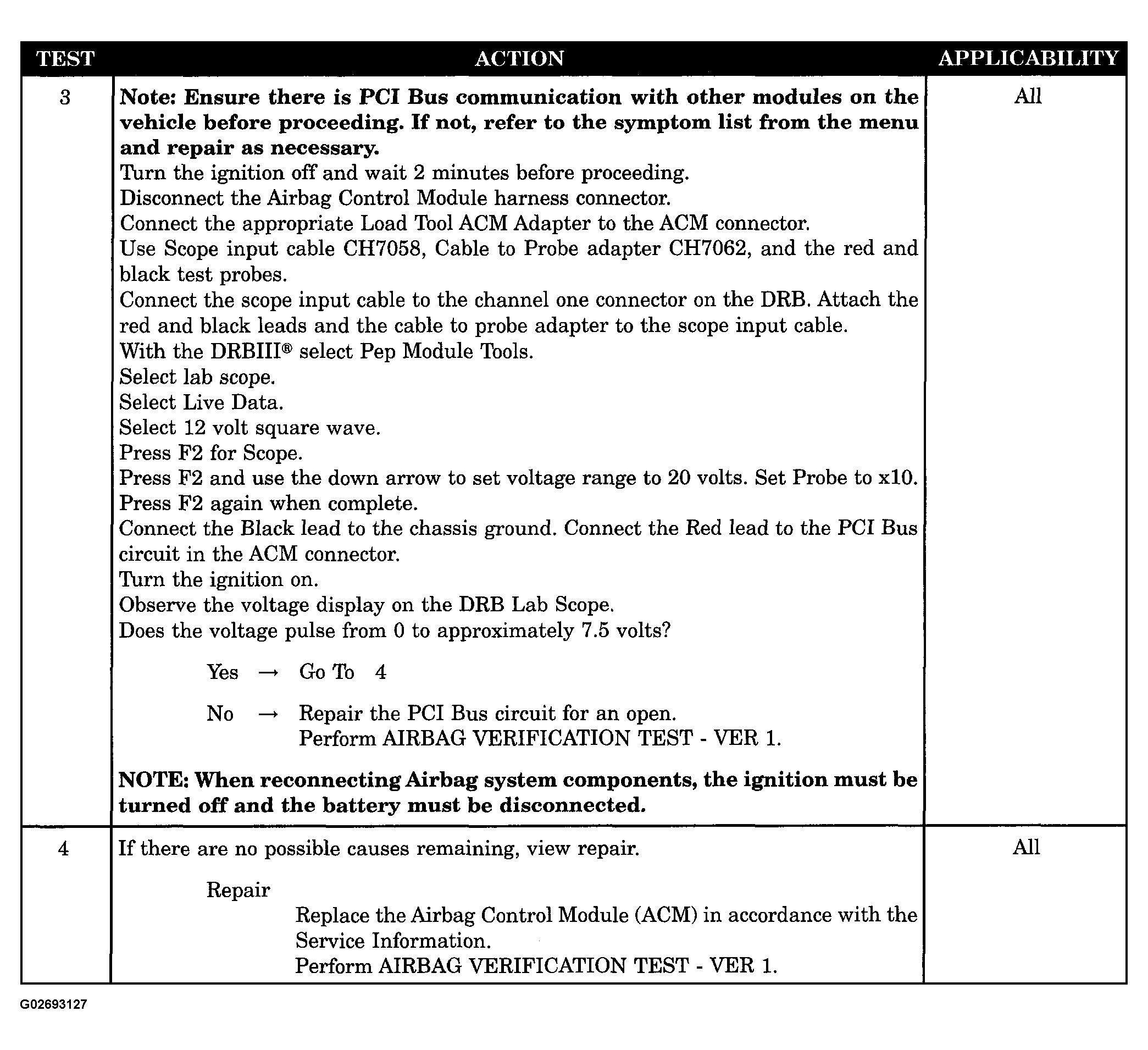

Fig 2: Diagnosis Procedure For Symptom: No Response From Airbag Control Module (2 Of 2)
G02693127Courtesy of DAIMLERCHRYSLER CORP.
