Diagnostic Procedure

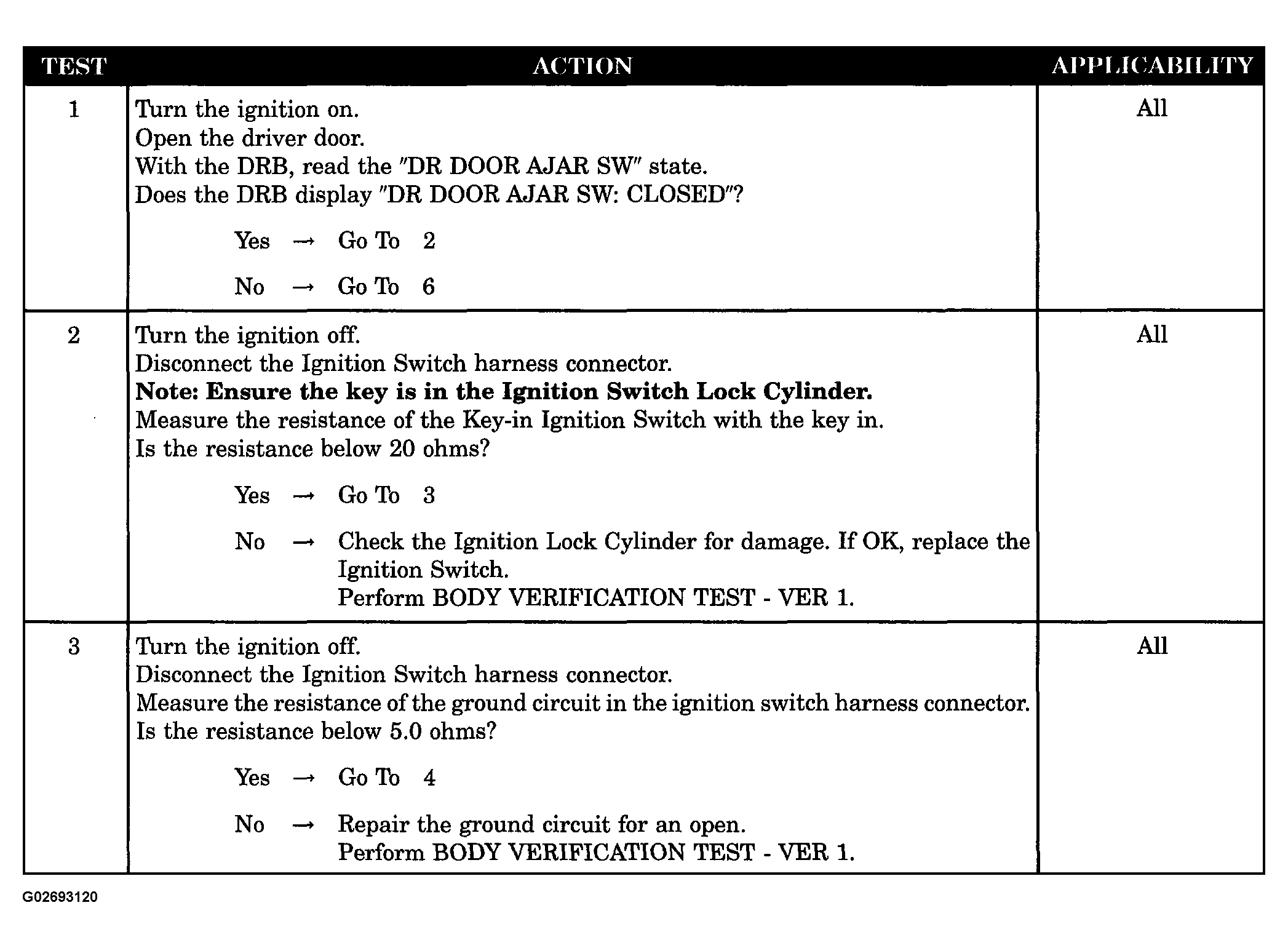

Fig 1: Diagnosis Procedure For Symptom: Chime Inoperative With Key In Ignition, Driver's Door Open (1 Of 3)
G02693120Courtesy of DAIMLERCHRYSLER CORP.

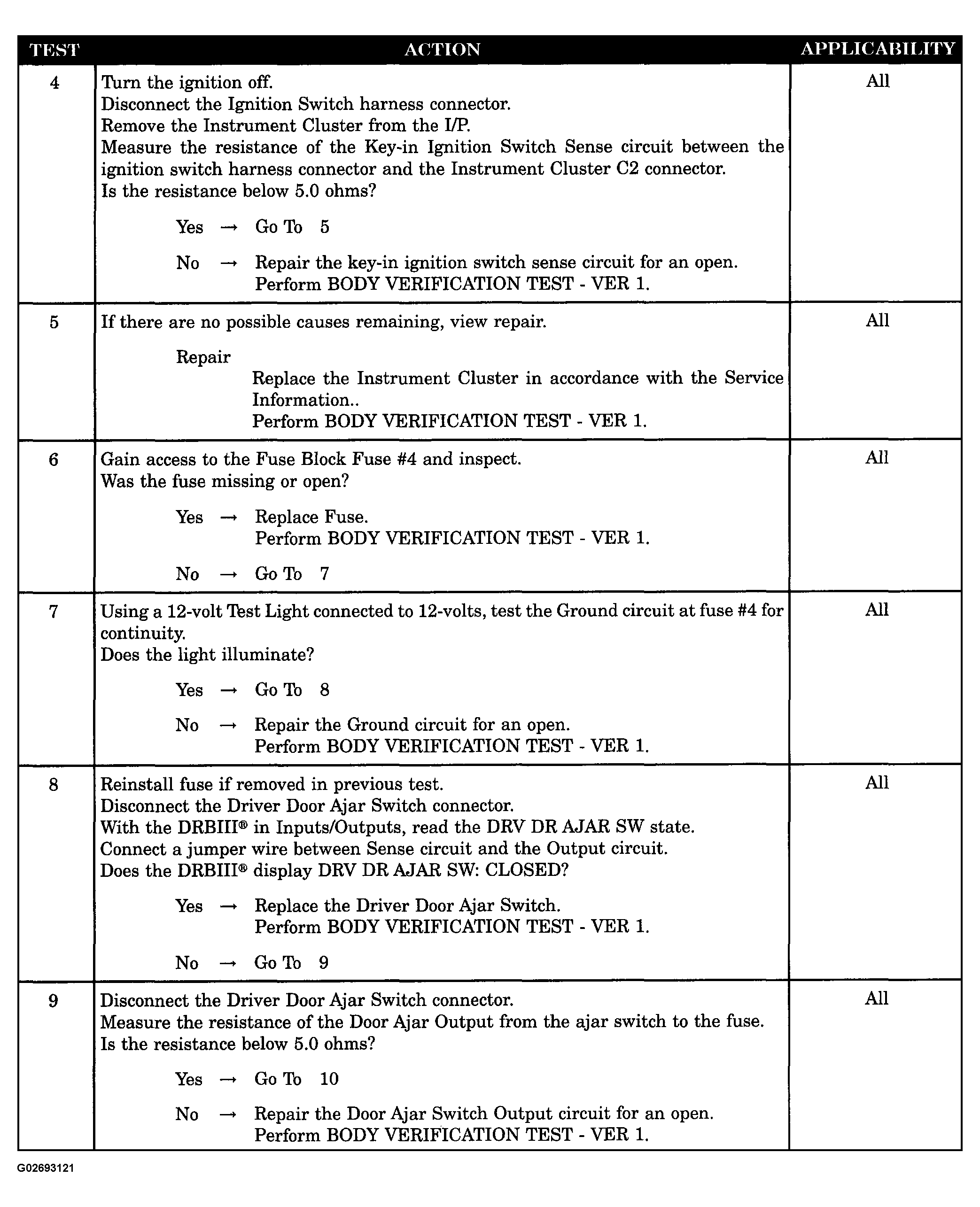

Fig 2: Diagnosis Procedure For Symptom: Chime Inoperative With Key In Ignition, Driver's Door Open (2 Of 3)
G02693121Courtesy of DAIMLERCHRYSLER CORP.

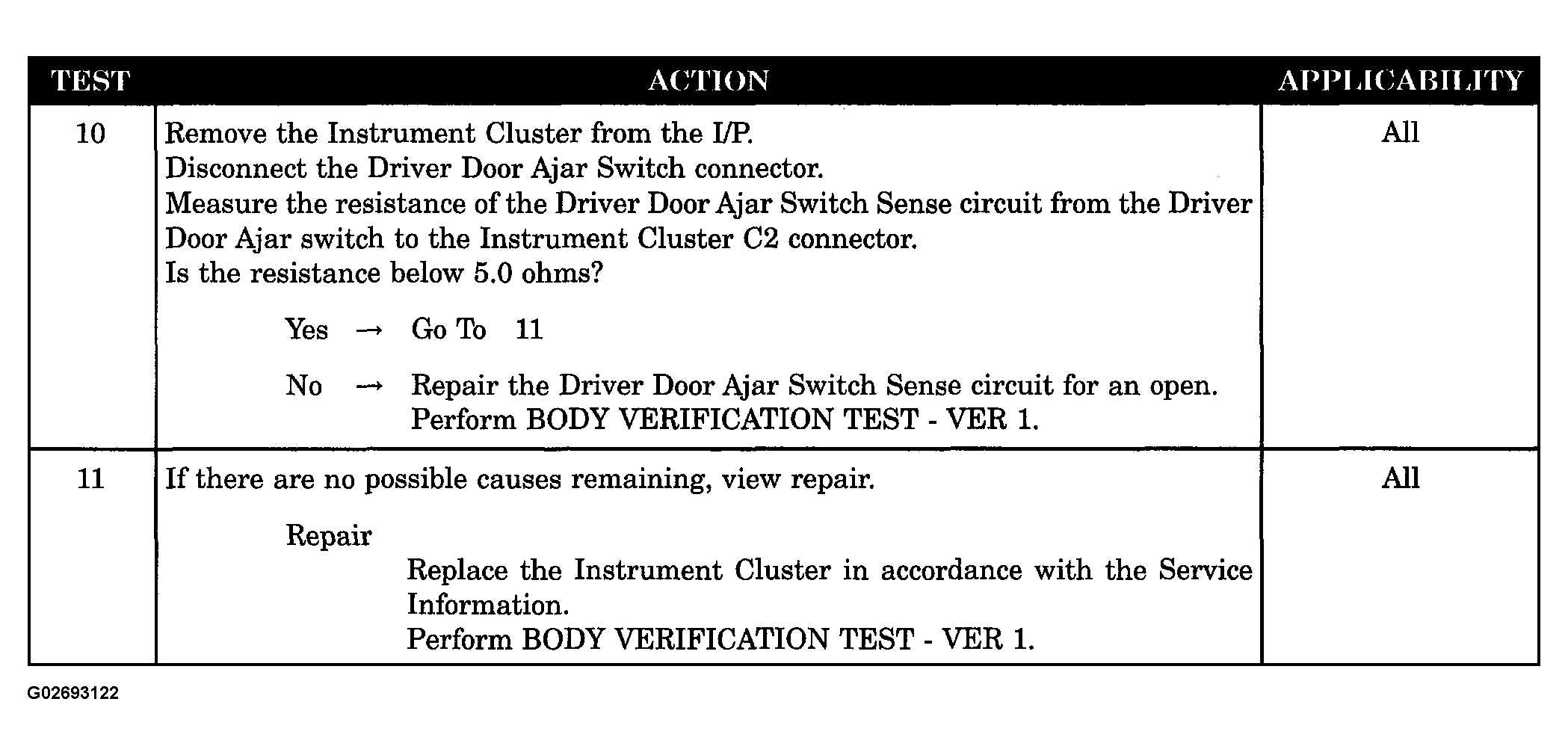

Fig 3: Diagnosis Procedure For Symptom: Chime Inoperative With Key In Ignition, Driver's Door Open (3 Of 3)
G02693122Courtesy of DAIMLERCHRYSLER CORP.
