Diagnostic Procedure

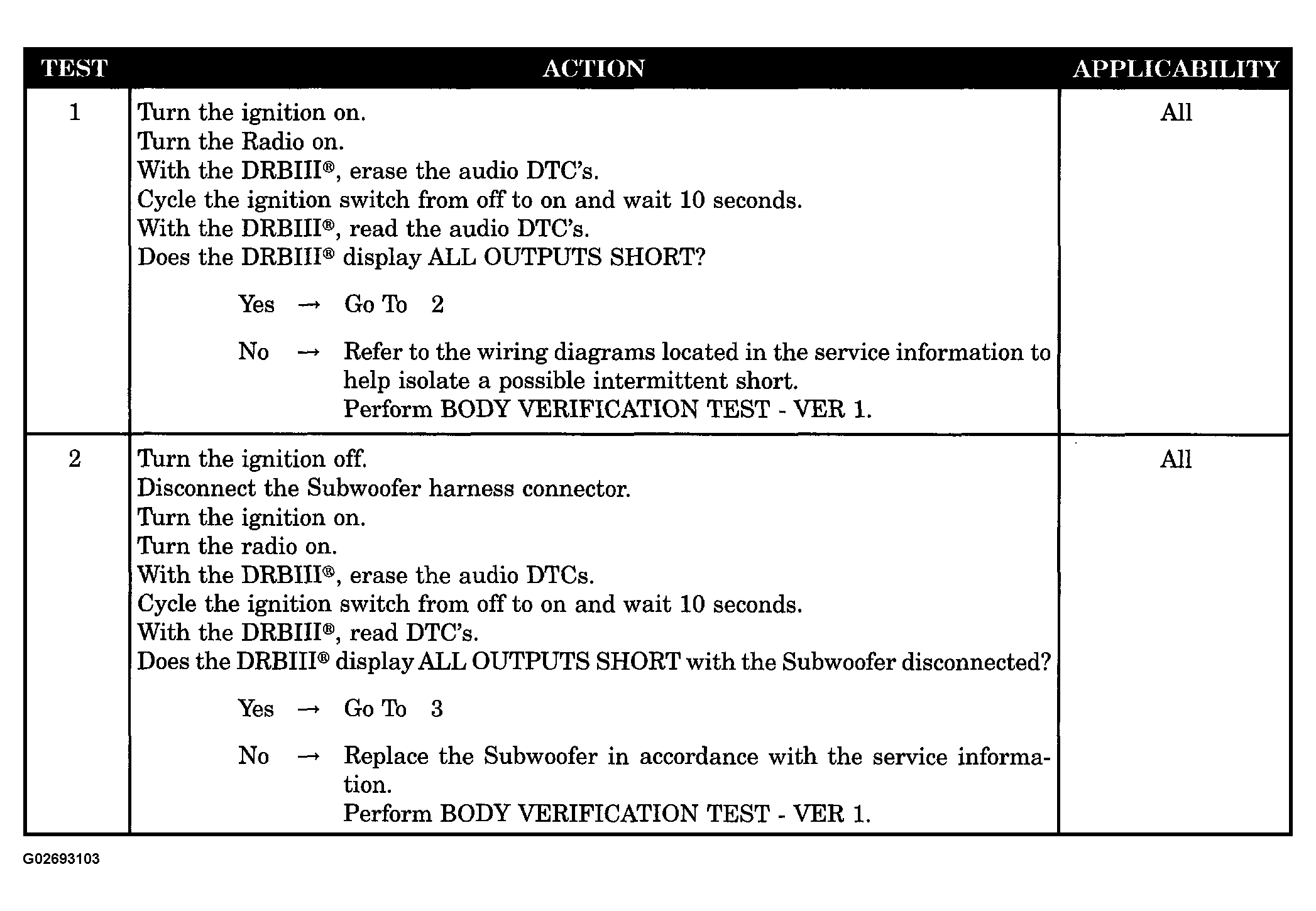

Fig 1: Diagnosis Procedure For Symptom: All Outputs Short - Premium Audio System (1 Of 3)
G02693103Courtesy of DAIMLERCHRYSLER CORP.

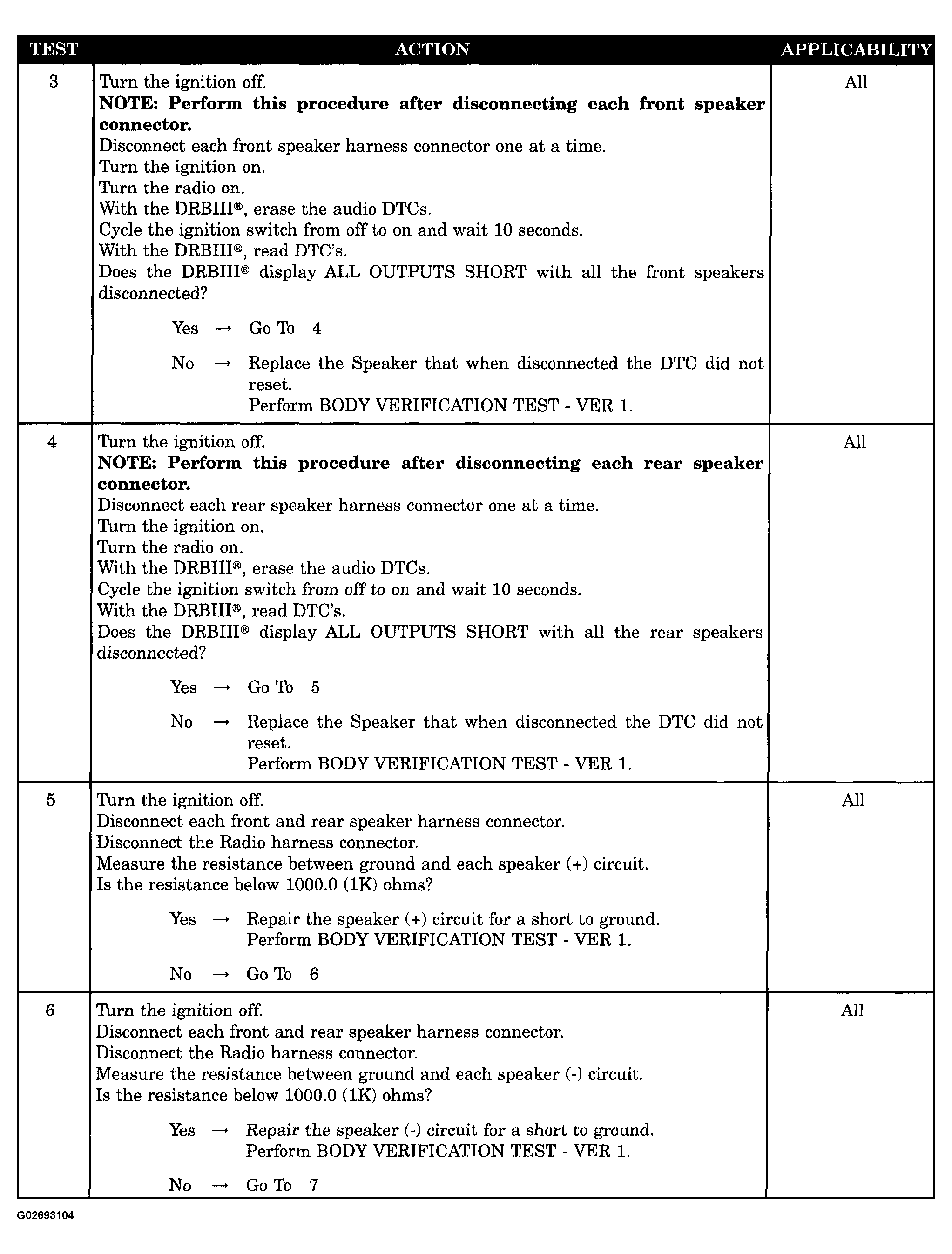

Fig 2: Diagnosis Procedure For Symptom: All Outputs Short - Premium Audio System (2 Of 3)
G02693104Courtesy of DAIMLERCHRYSLER CORP.

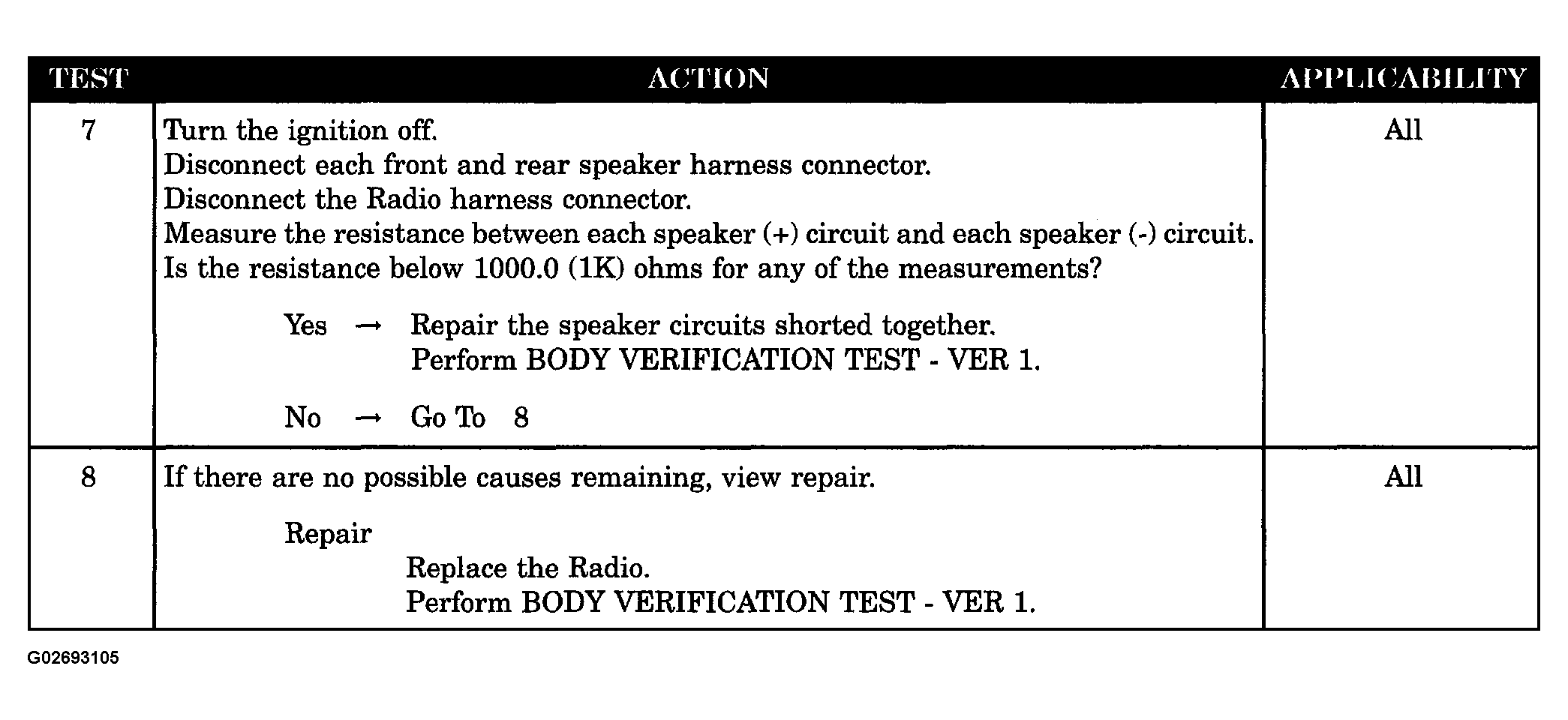

Fig 3: Diagnosis Procedure For Symptom: All Outputs Short - Premium Audio System (3 Of 3)
G02693105Courtesy of DAIMLERCHRYSLER CORP.
