Diagnostic Procedure

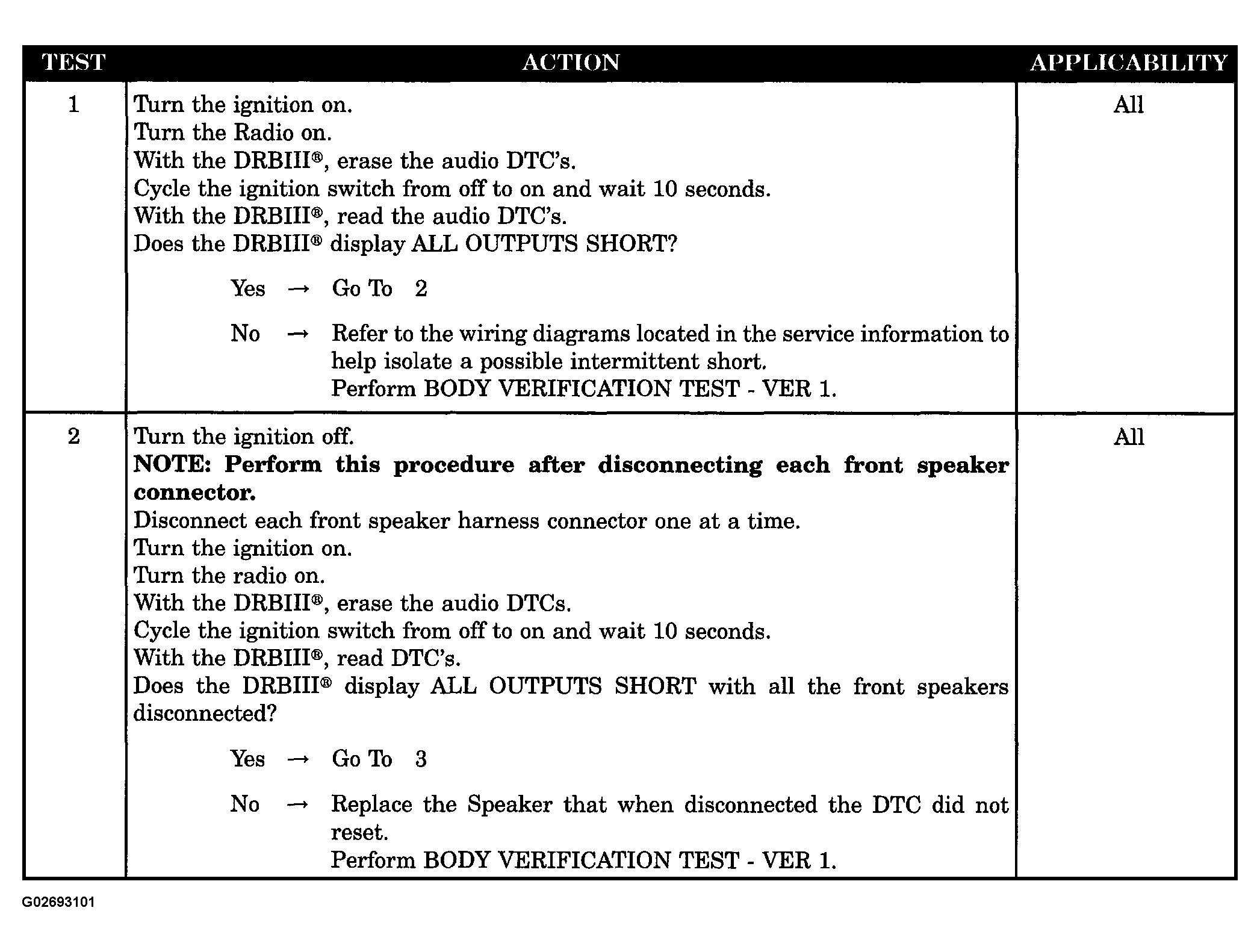

Fig 1: Diagnosis Procedure For Symptom: All Outputs Short - Base Audio System (1 Of 2)
G02693101Courtesy of DAIMLERCHRYSLER CORP.

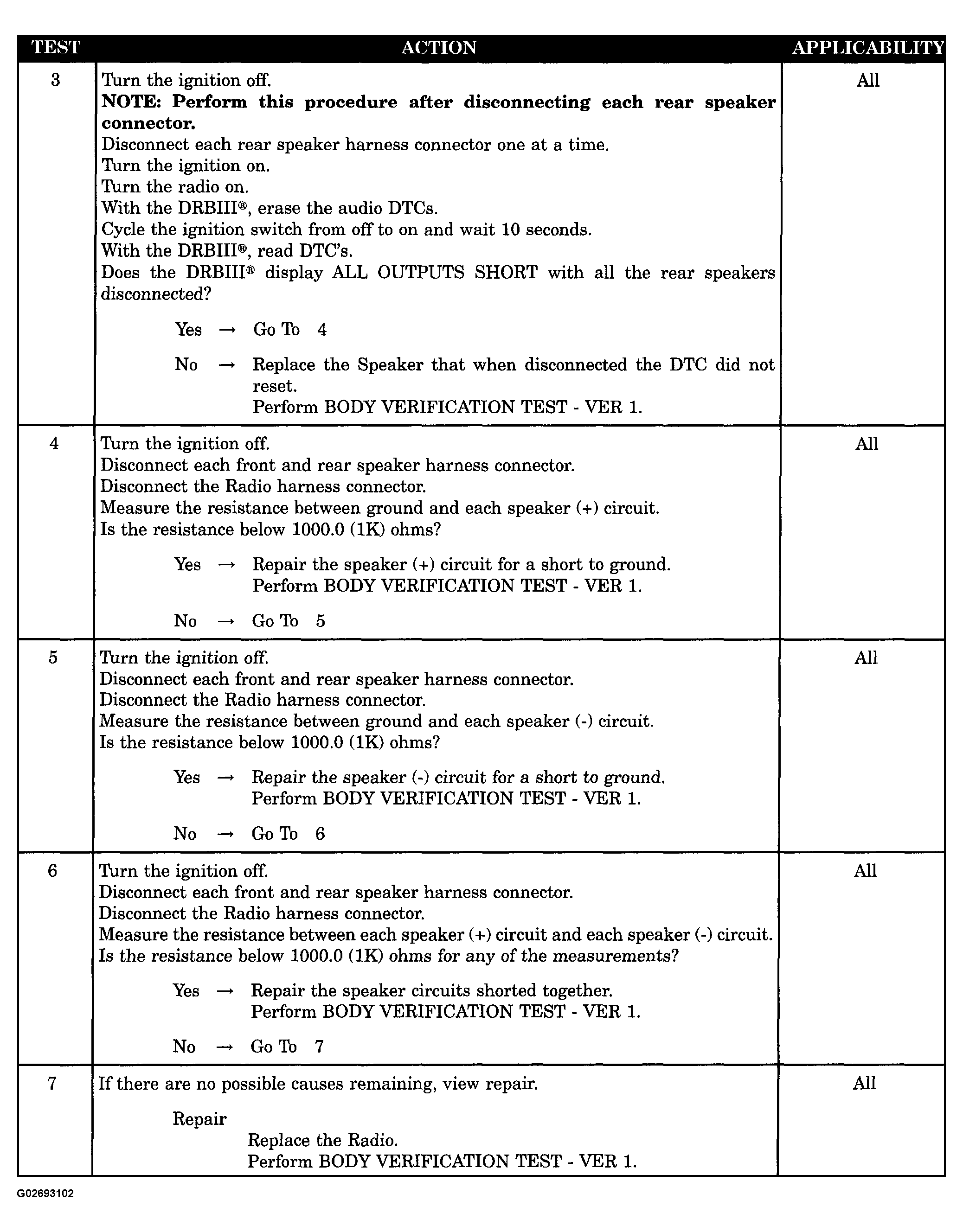

Fig 2: Diagnosis Procedure For Symptom: All Outputs Short - Base Audio System (2 Of 2)
G02693102Courtesy of DAIMLERCHRYSLER CORP.
