Diagnostic Procedure

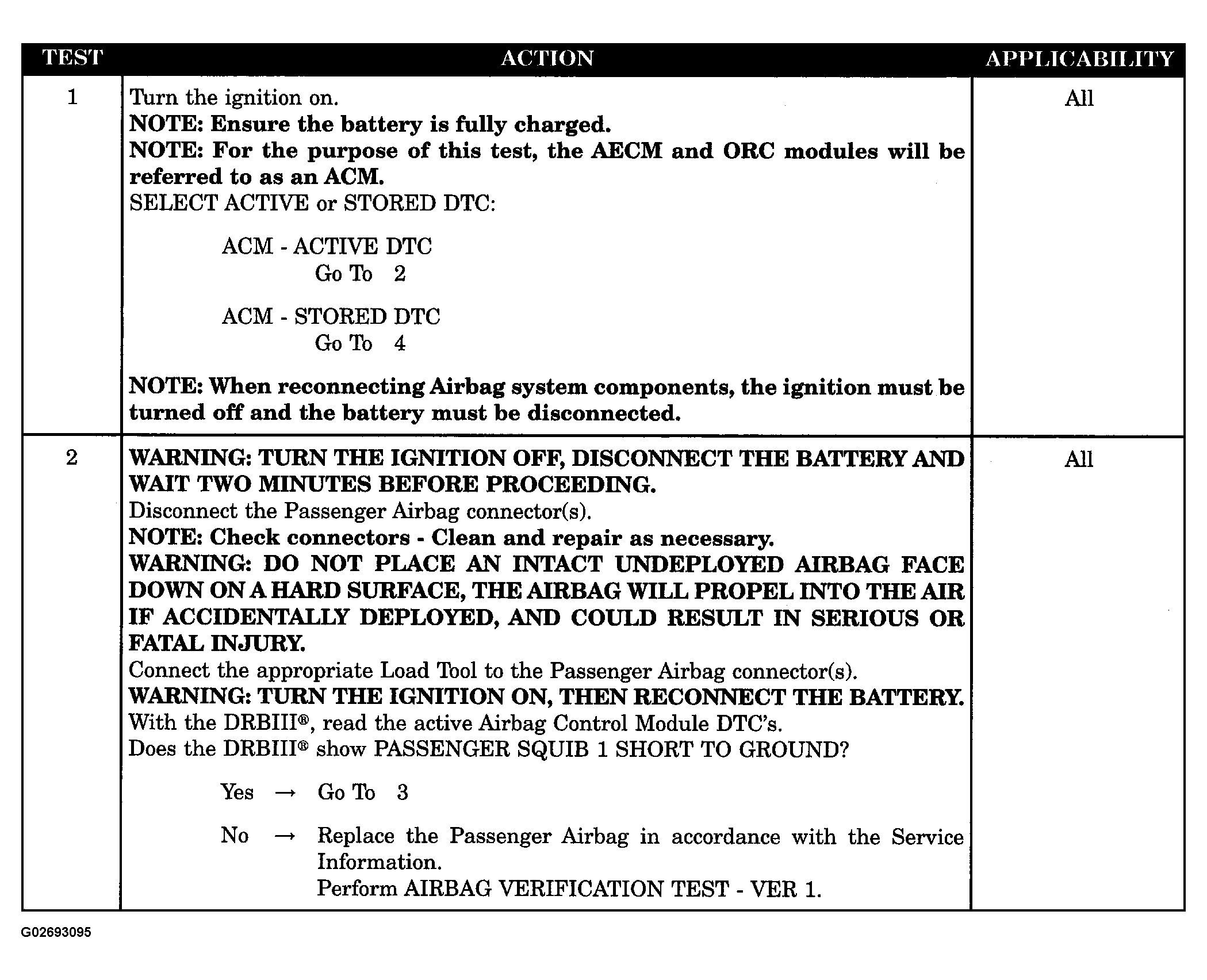

Fig 1: Diagnosis Procedure For Symptom: Passenger Squib 1 Short To Ground (1 Of 2)
G02693095Courtesy of DAIMLERCHRYSLER CORP.

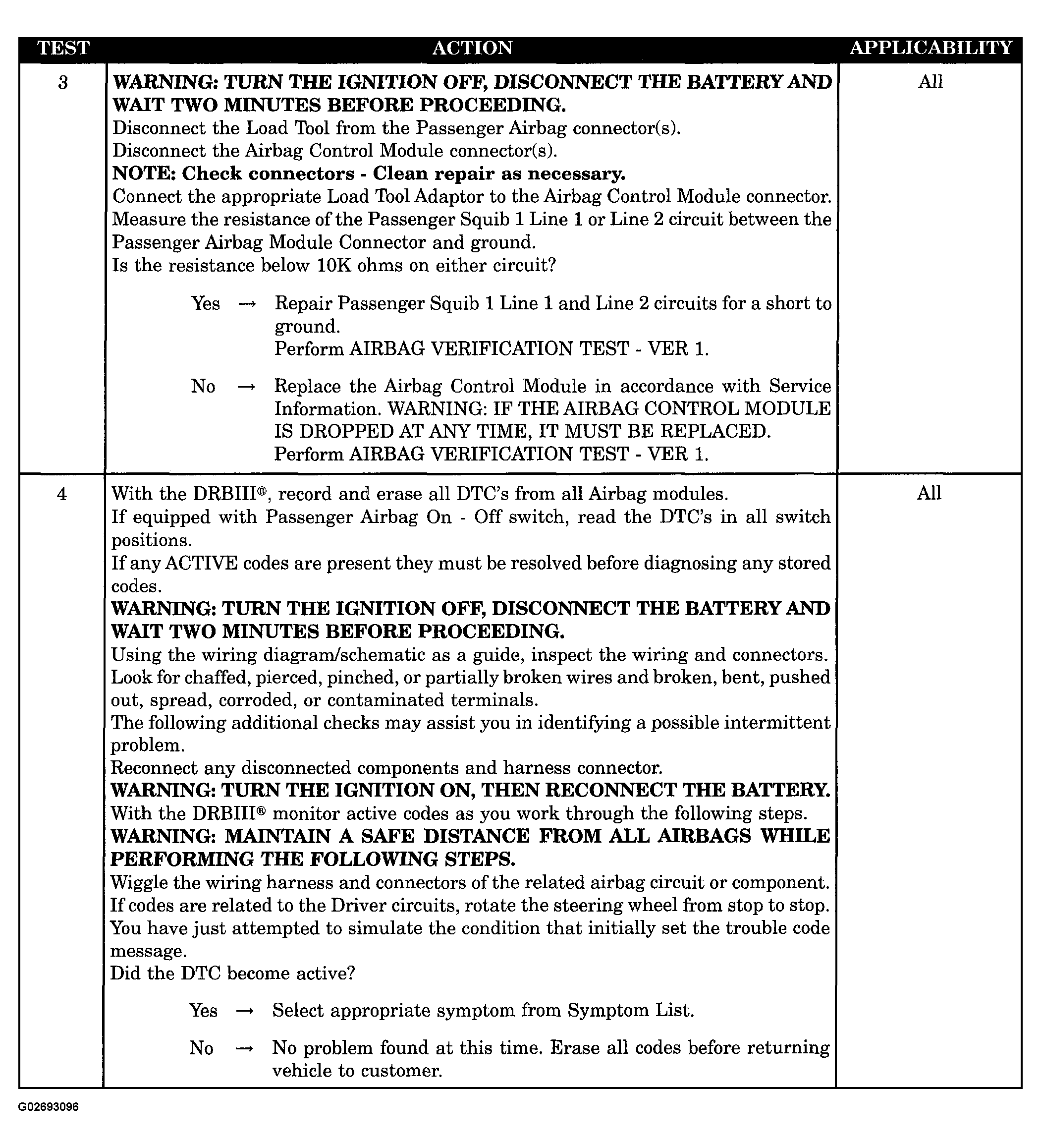

Fig 2: Diagnosis Procedure For Symptom: Passenger Squib 1 Short To Ground (2 Of 2)
G02693096Courtesy of DAIMLERCHRYSLER CORP.
