Diagnostic Procedure

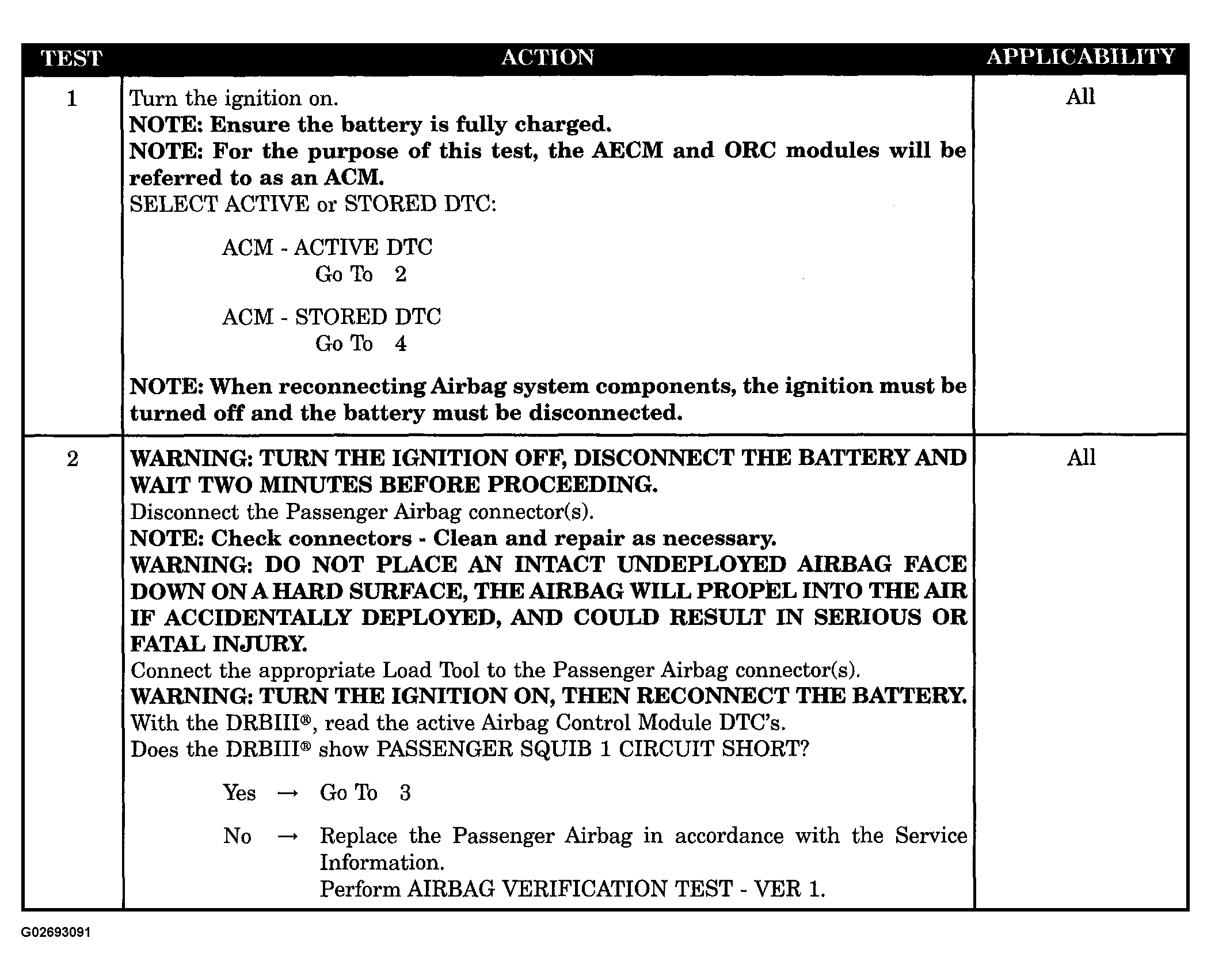

Fig 1: Diagnosis Procedure For Symptom: Passenger Squib 1 Circuit Short (1 Of 2)
G02693091Courtesy of DAIMLERCHRYSLER CORP.

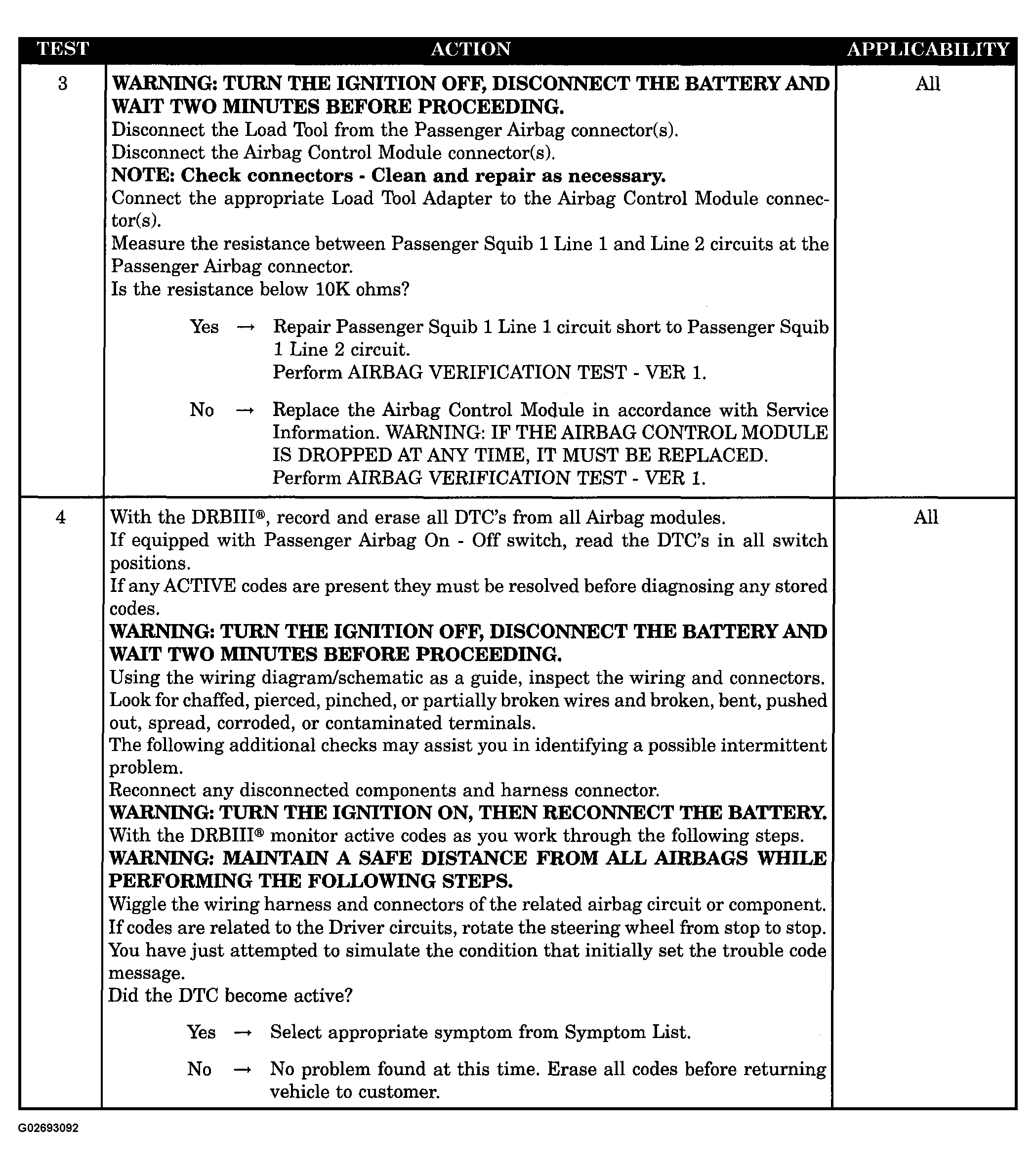

Fig 2: Diagnosis Procedure For Symptom: Passenger Squib 1 Circuit Short (2 Of 2)
G02693092Courtesy of DAIMLERCHRYSLER CORP.
