Diagnostic Procedure

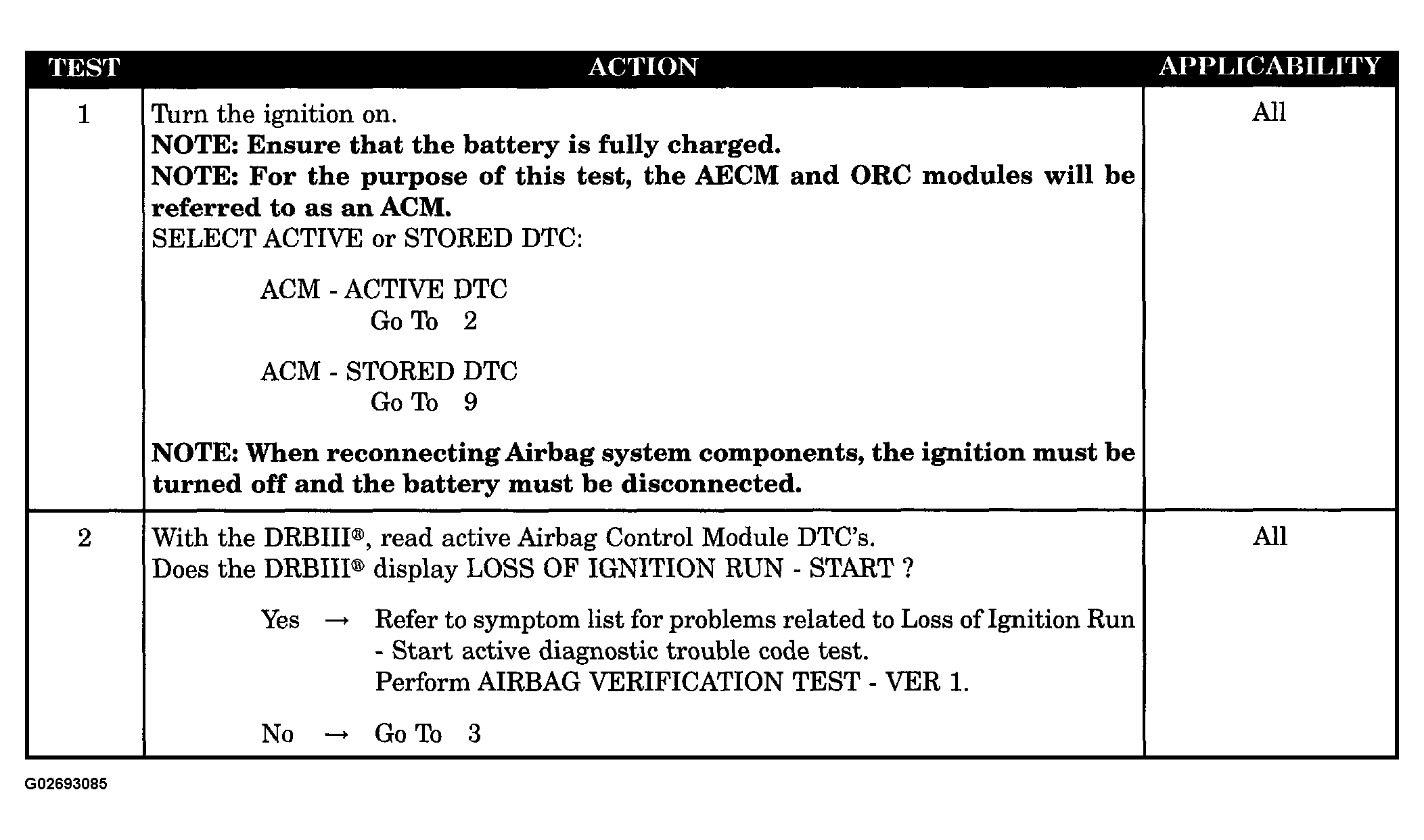

Fig 1: Diagnosis Procedure For Symptom: Passenger Off Indicator Circuit Short To Ground (1 Of 3)
G02693085Courtesy of DAIMLERCHRYSLER CORP.

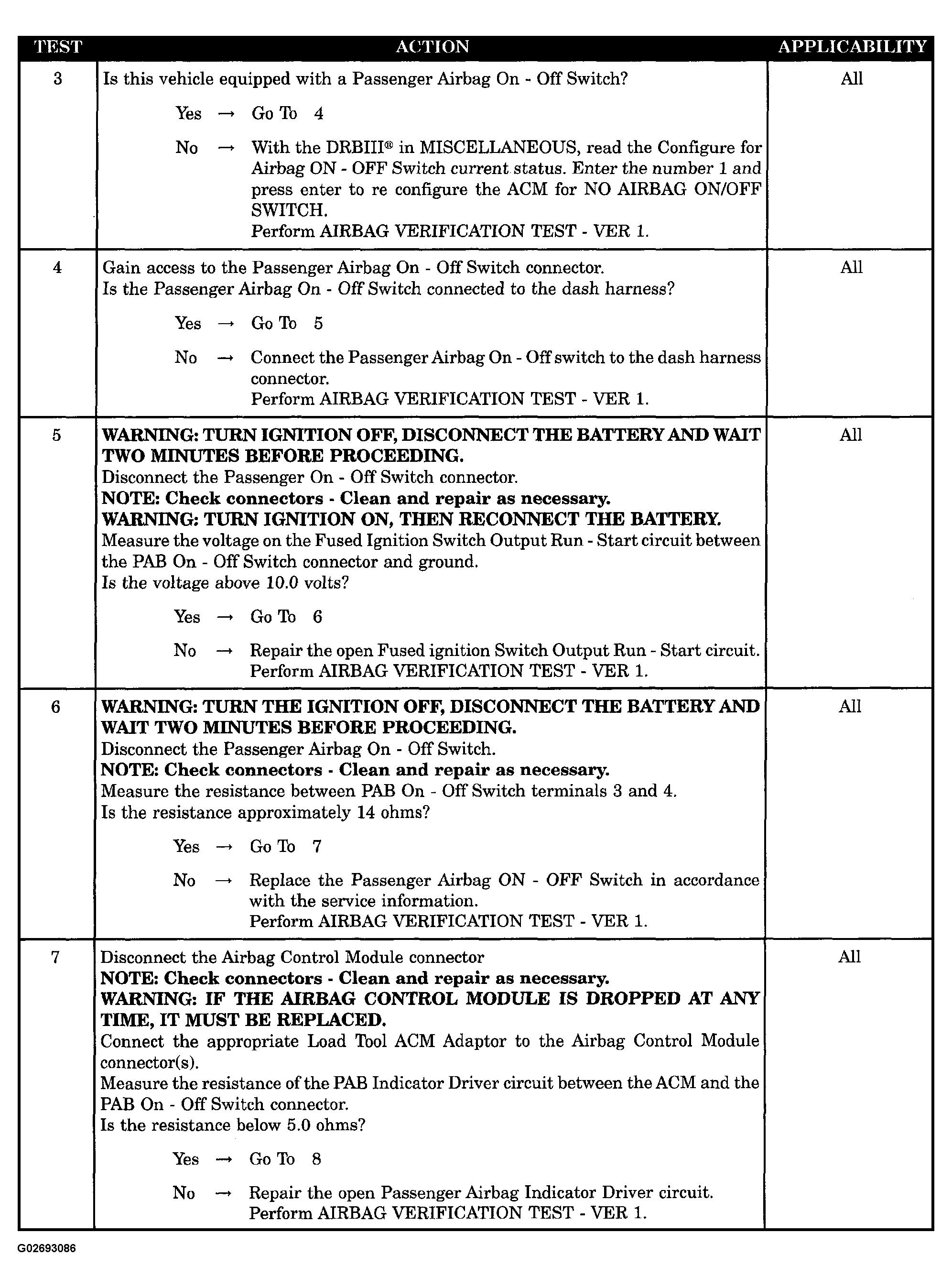

Fig 2: Diagnosis Procedure For Symptom: Passenger Off Indicator Circuit Short To Ground (2 Of 3)
G02693086Courtesy of DAIMLERCHRYSLER CORP.

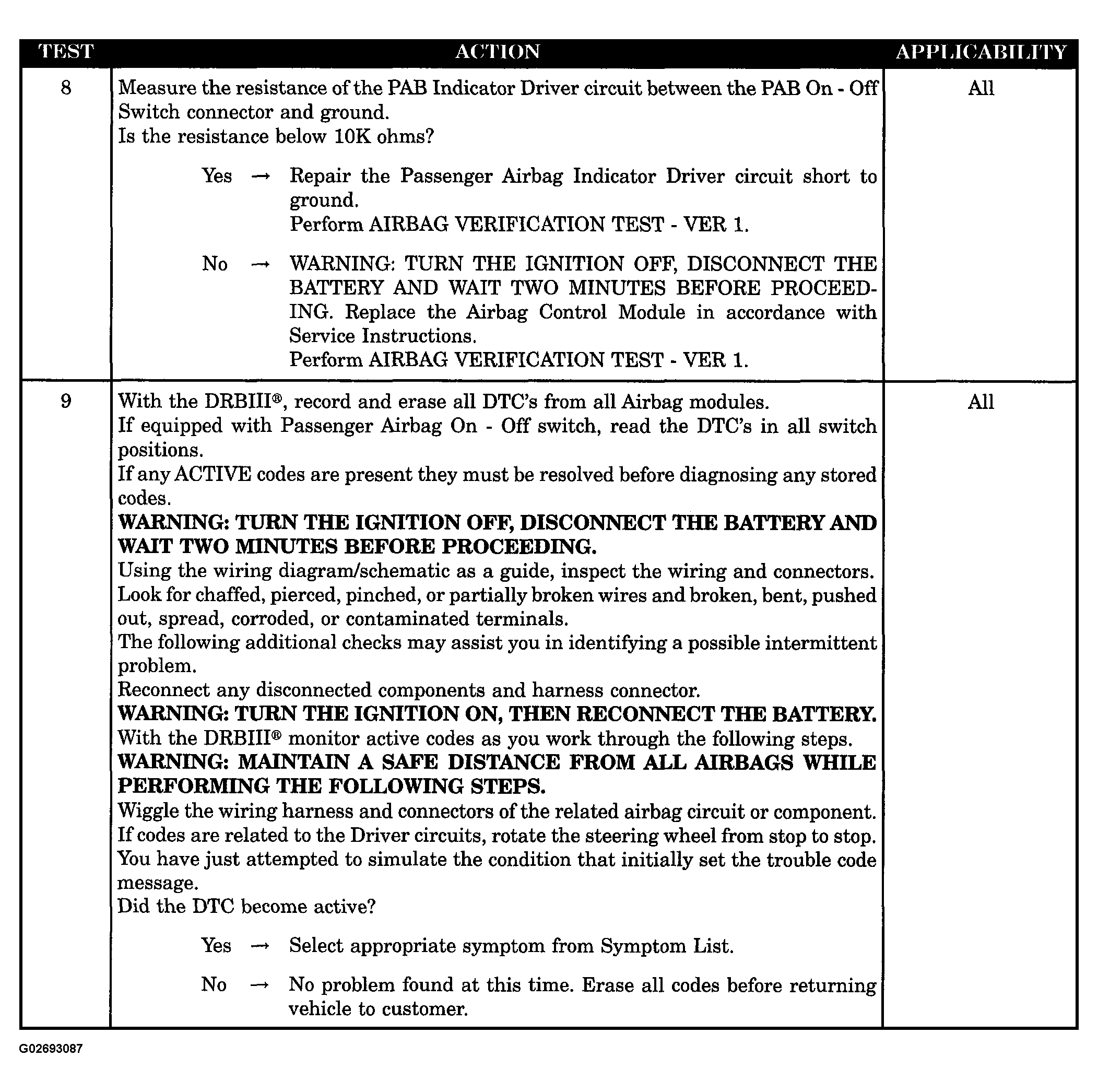

Fig 3: Diagnosis Procedure For Symptom: Passenger Off Indicator Circuit Short To Ground (3 Of 3)
G02693087Courtesy of DAIMLERCHRYSLER CORP.
