Diagnostic Procedure

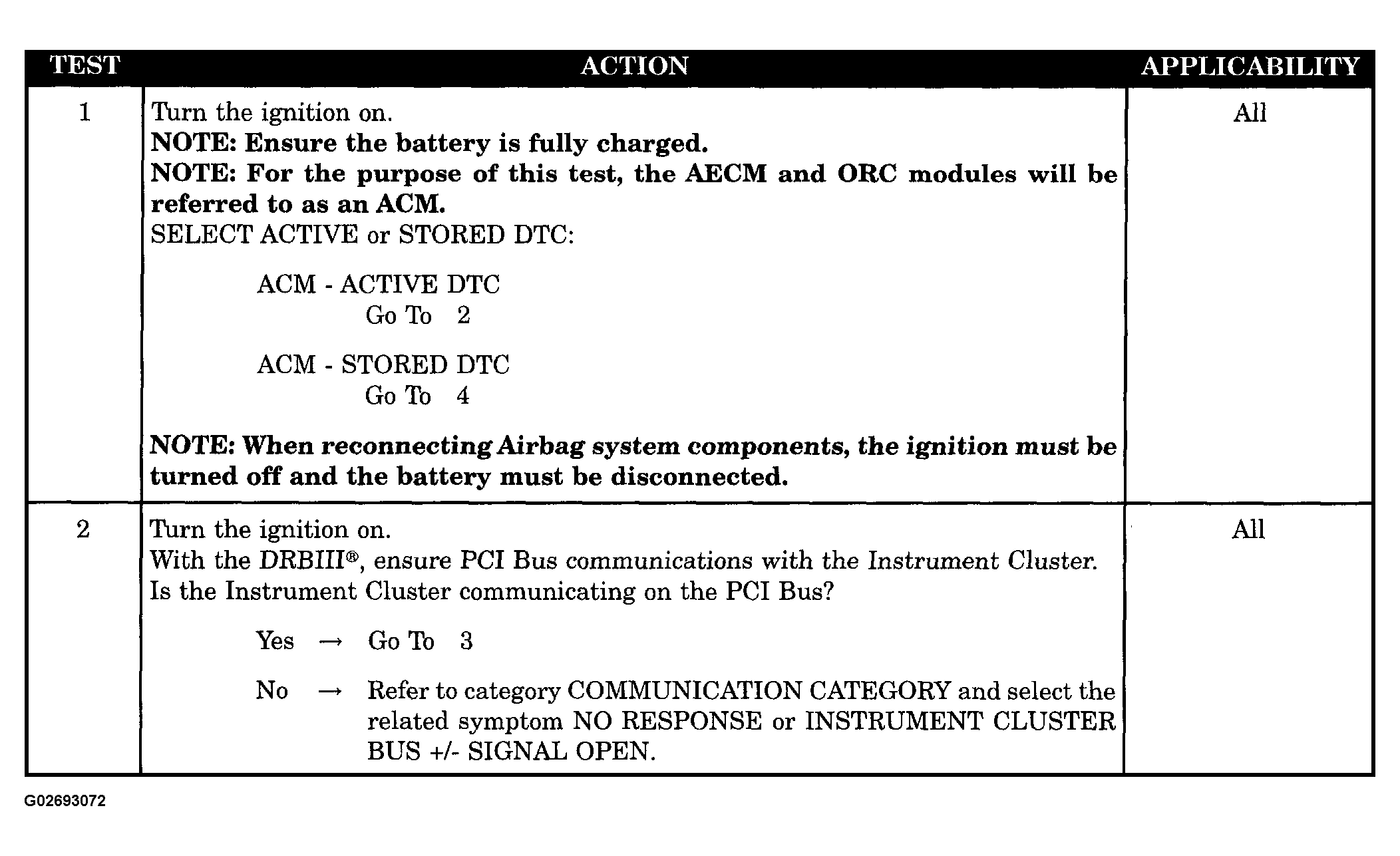

Fig 1: Diagnosis Procedure For Symptom: No Cluster Message (1 Of 2)
G02693072Courtesy of DAIMLERCHRYSLER CORP.

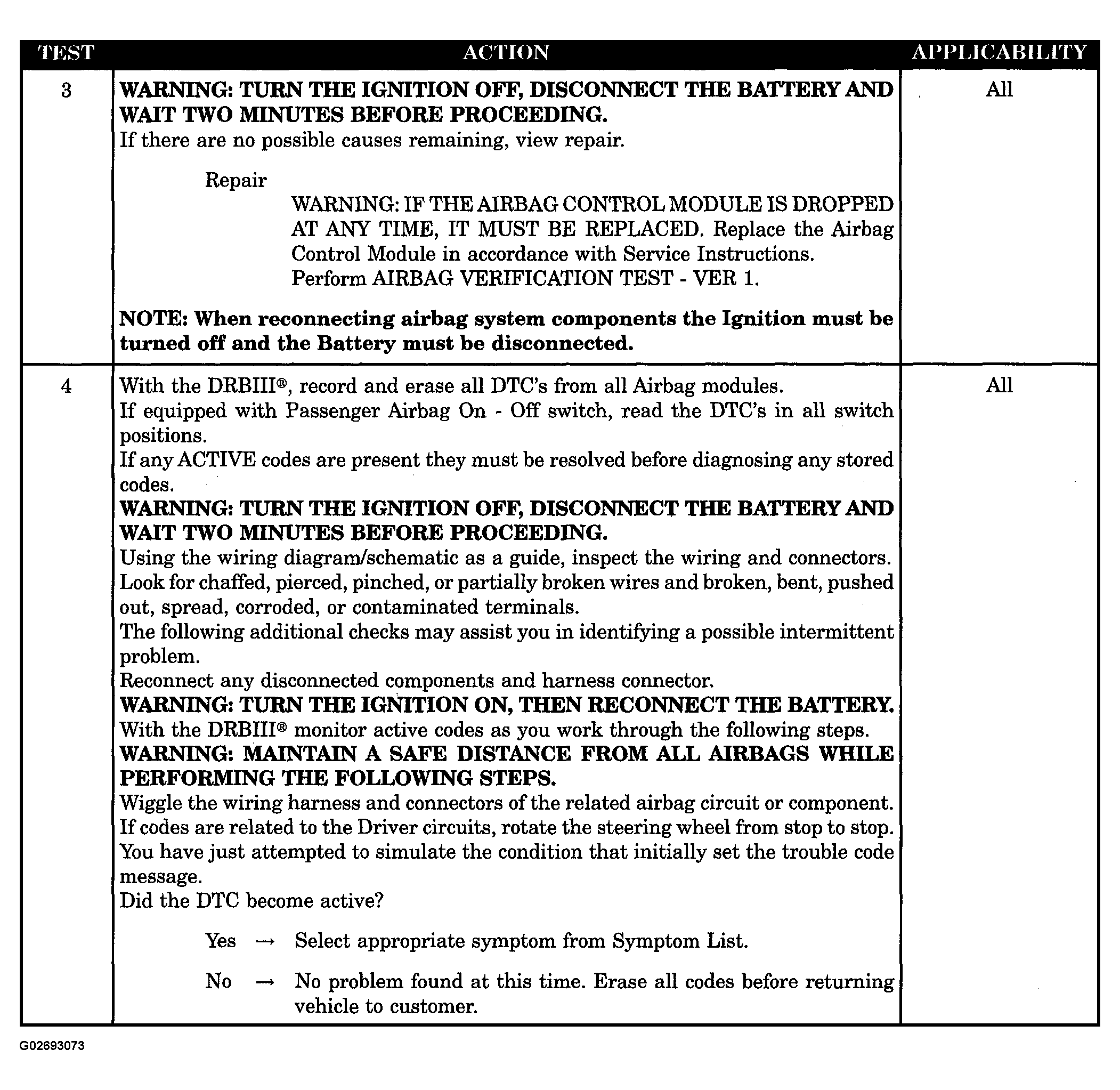

Fig 2: Diagnosis Procedure For Symptom: No Cluster Message (2 Of 2)
G02693073Courtesy of DAIMLERCHRYSLER CORP.
