Diagnostic Procedure

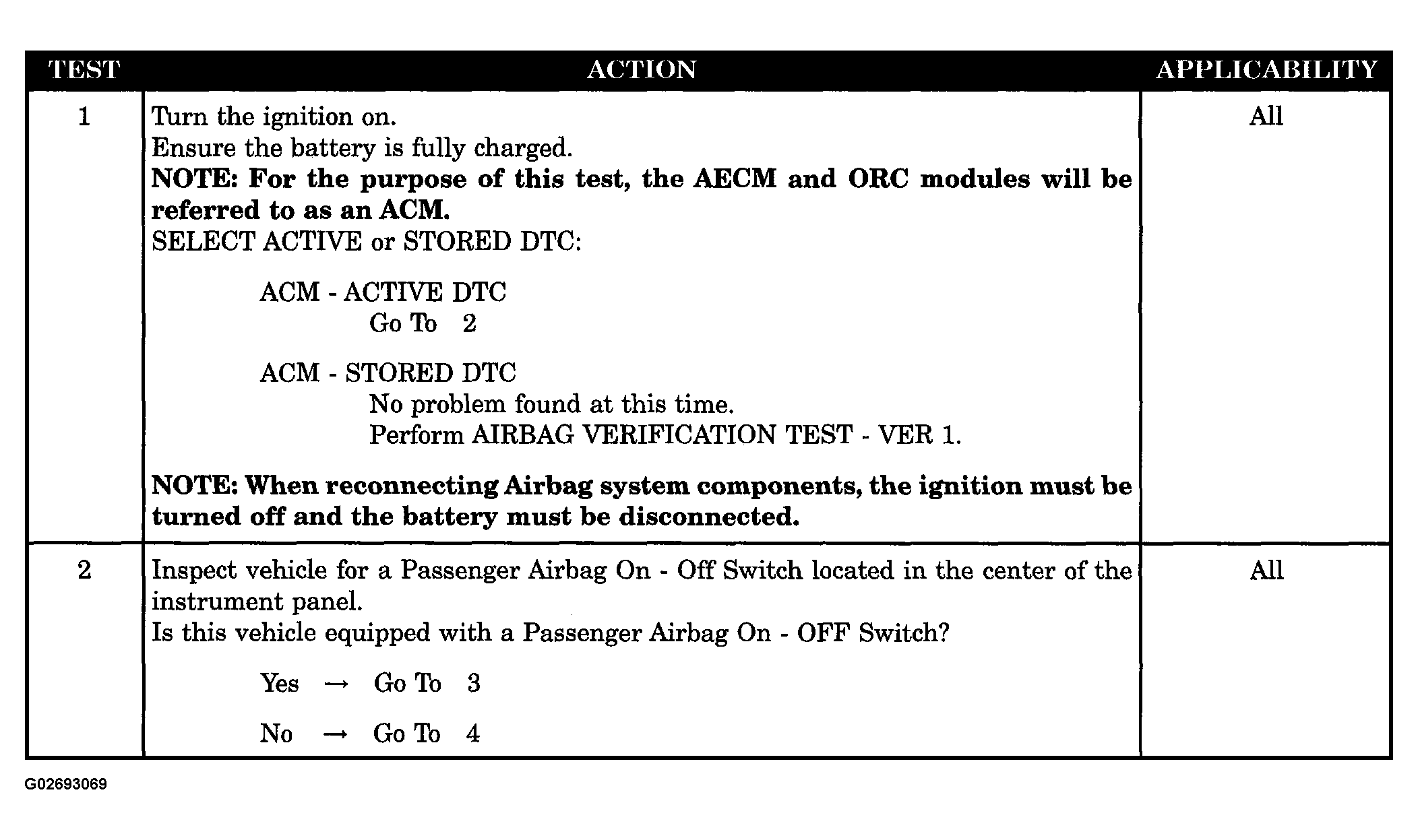

Fig 1: Diagnosis Procedure For Symptom: Module Not Configured For PAB Off Switch (1 Of 3)
G02693069Courtesy of DAIMLERCHRYSLER CORP.

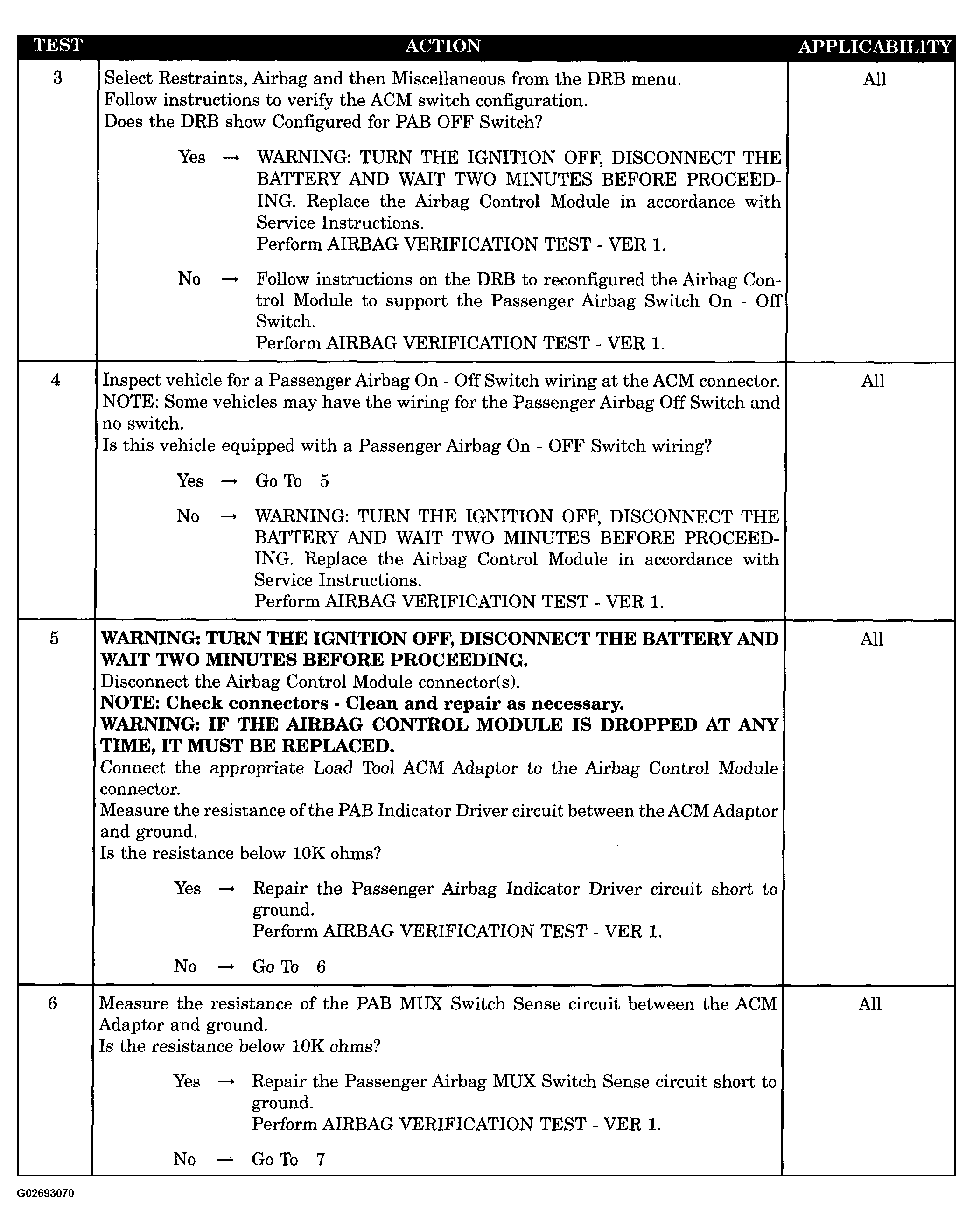

Fig 2: Diagnosis Procedure For Symptom: Module Not Configured For PAB Off Switch (2 Of 3)
G02693070Courtesy of DAIMLERCHRYSLER CORP.

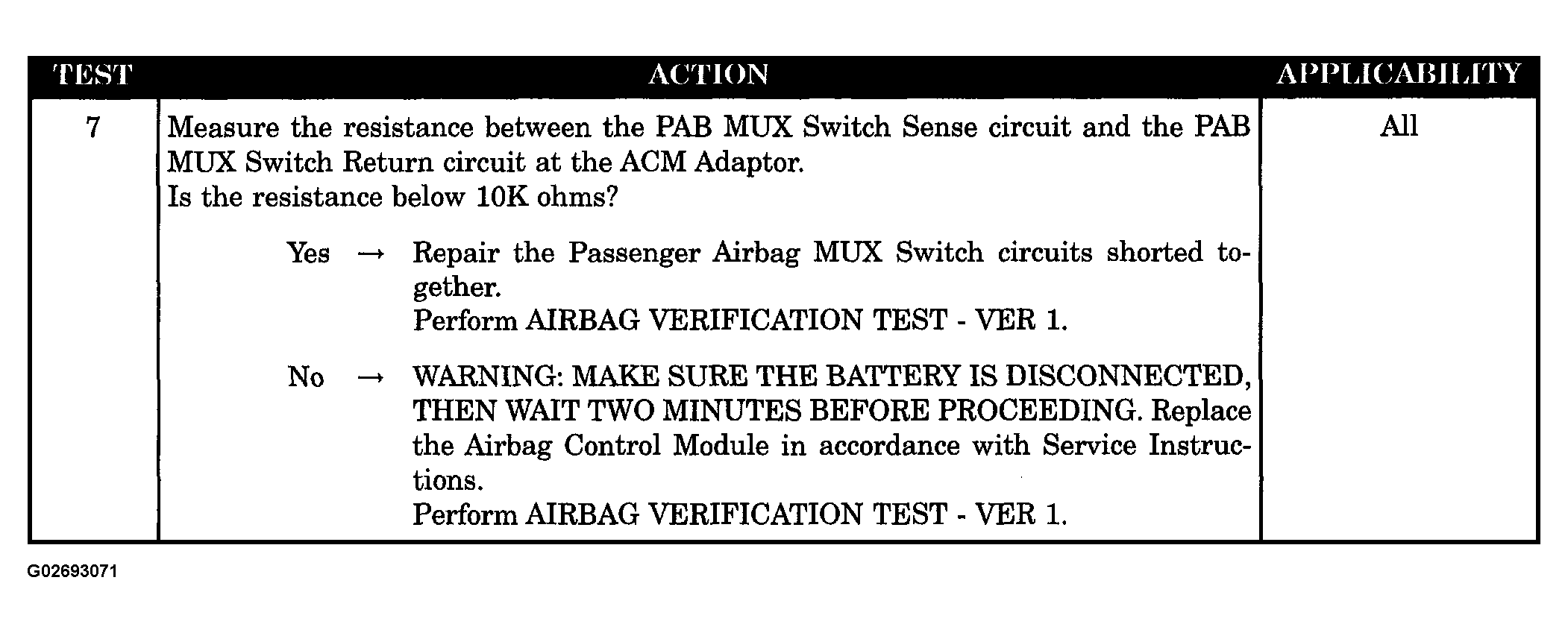

Fig 3: Diagnosis Procedure For Symptom: Module Not Configured For PAB Off Switch (3 Of 3)
G02693071Courtesy of DAIMLERCHRYSLER CORP.
