Diagnostic Procedure

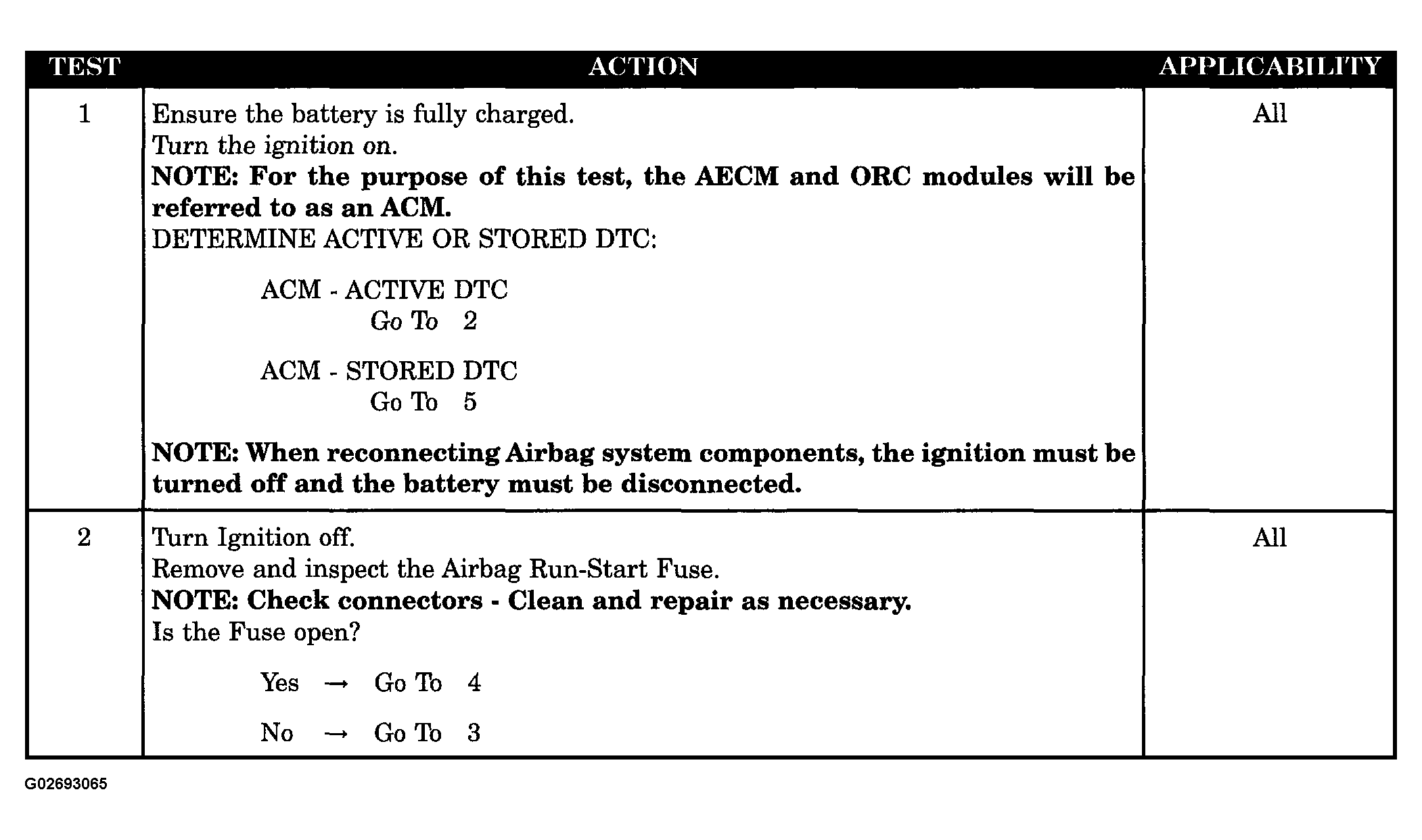

Fig 1: Diagnosis Procedure For Symptom: Loss Of Ignition Run - Start (1 Of 2)
G02693065Courtesy of DAIMLERCHRYSLER CORP.

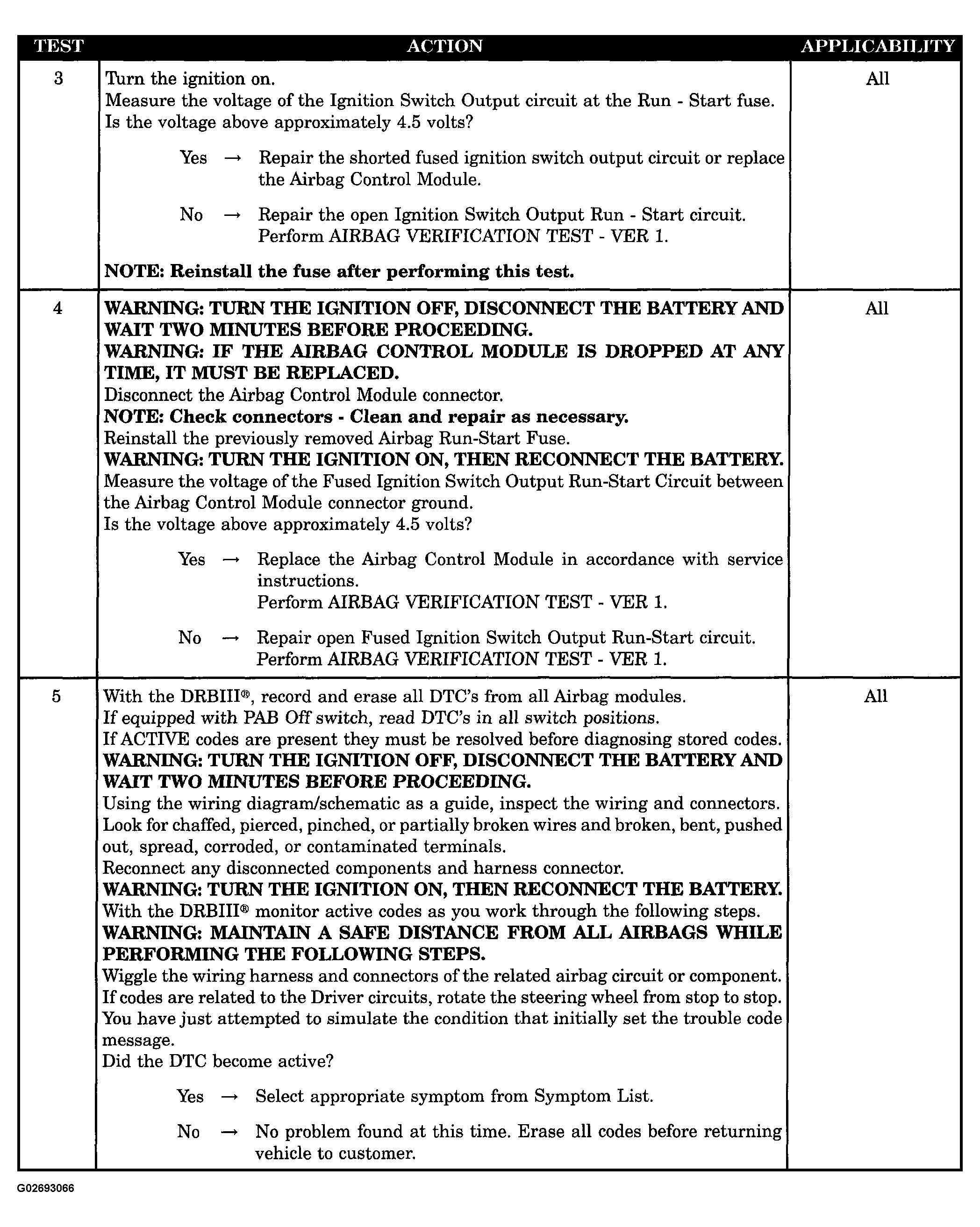

Fig 2: Diagnosis Procedure For Symptom: Loss Of Ignition Run - Start (2 Of 2)
G02693066Courtesy of DAIMLERCHRYSLER CORP.
