Diagnostic Procedure

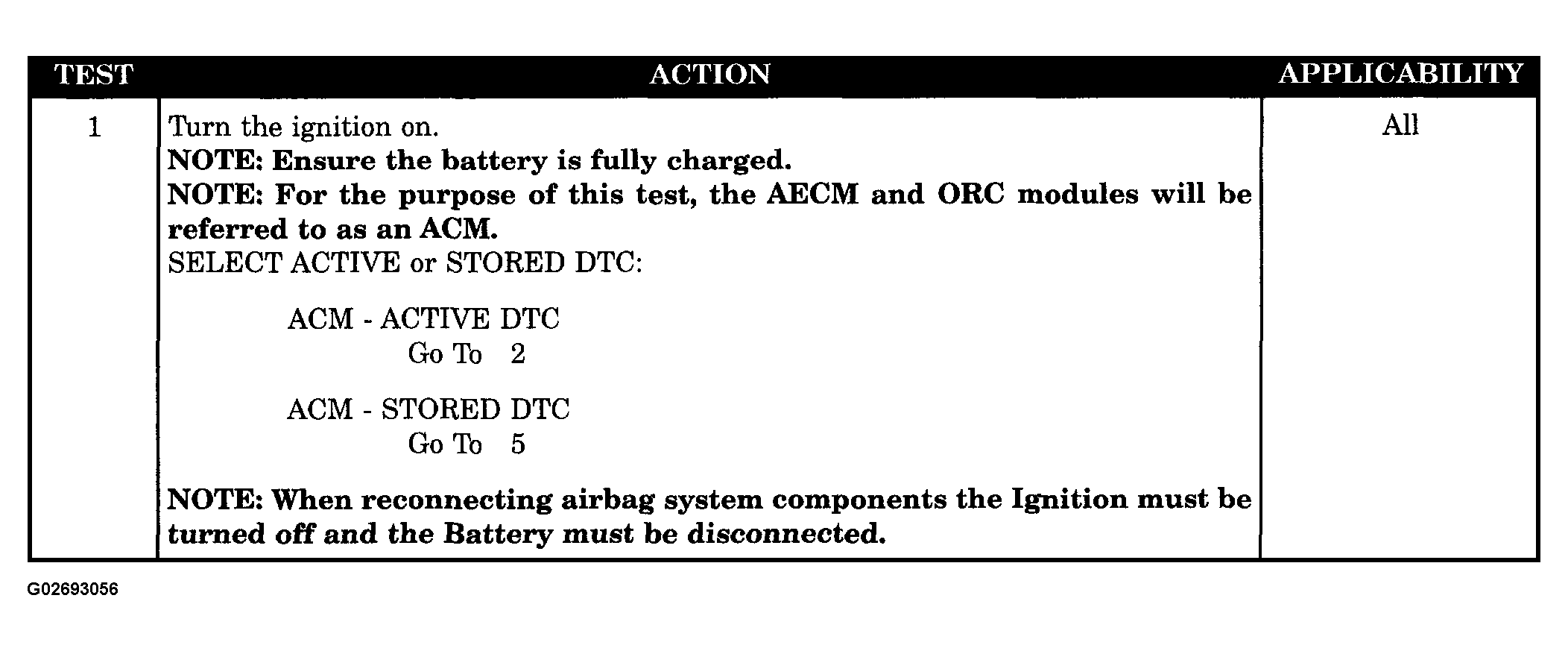

Fig 1: Diagnosis Procedure For Symptom: Driver Squib 1 Circuit Short (1 Of 3)
G02693056Courtesy of DAIMLERCHRYSLER CORP.

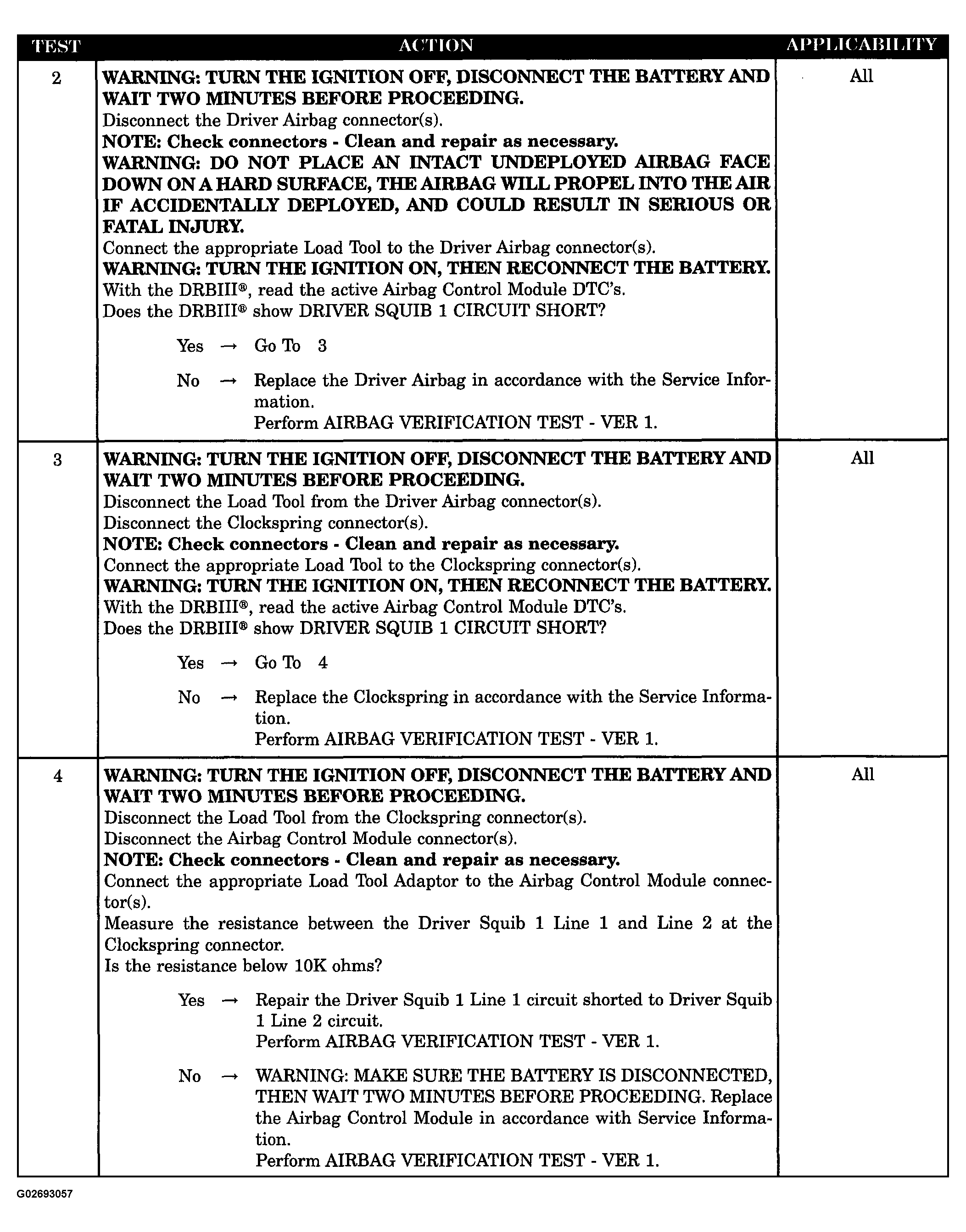

Fig 2: Diagnosis Procedure For Symptom: Driver Squib 1 Circuit Short (2 Of 3)
G02693057Courtesy of DAIMLERCHRYSLER CORP.

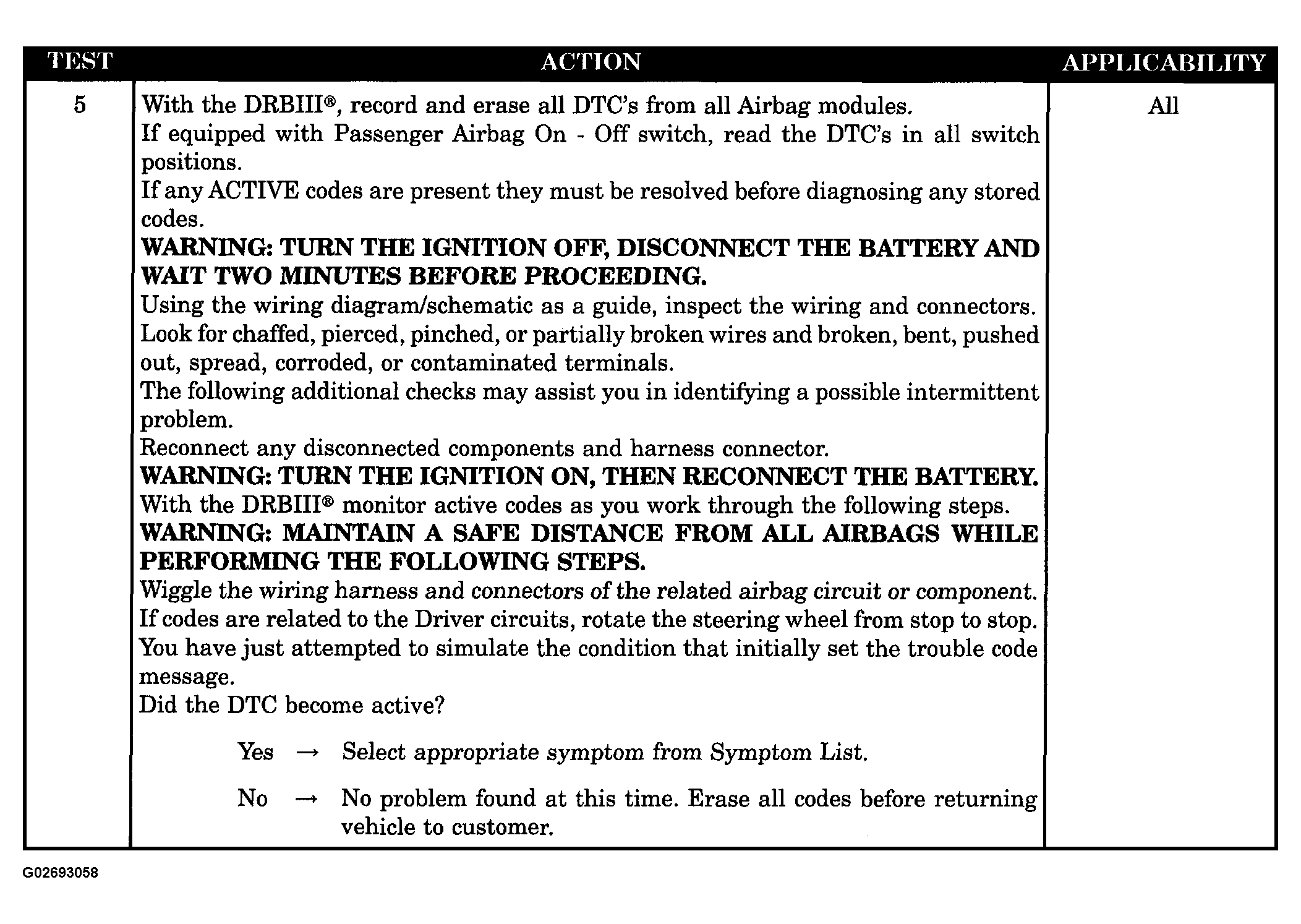

Fig 3: Diagnosis Procedure For Symptom: Driver Squib 1 Circuit Short (3 Of 3)
G02693058Courtesy of DAIMLERCHRYSLER CORP.
