Diagnostic Procedure

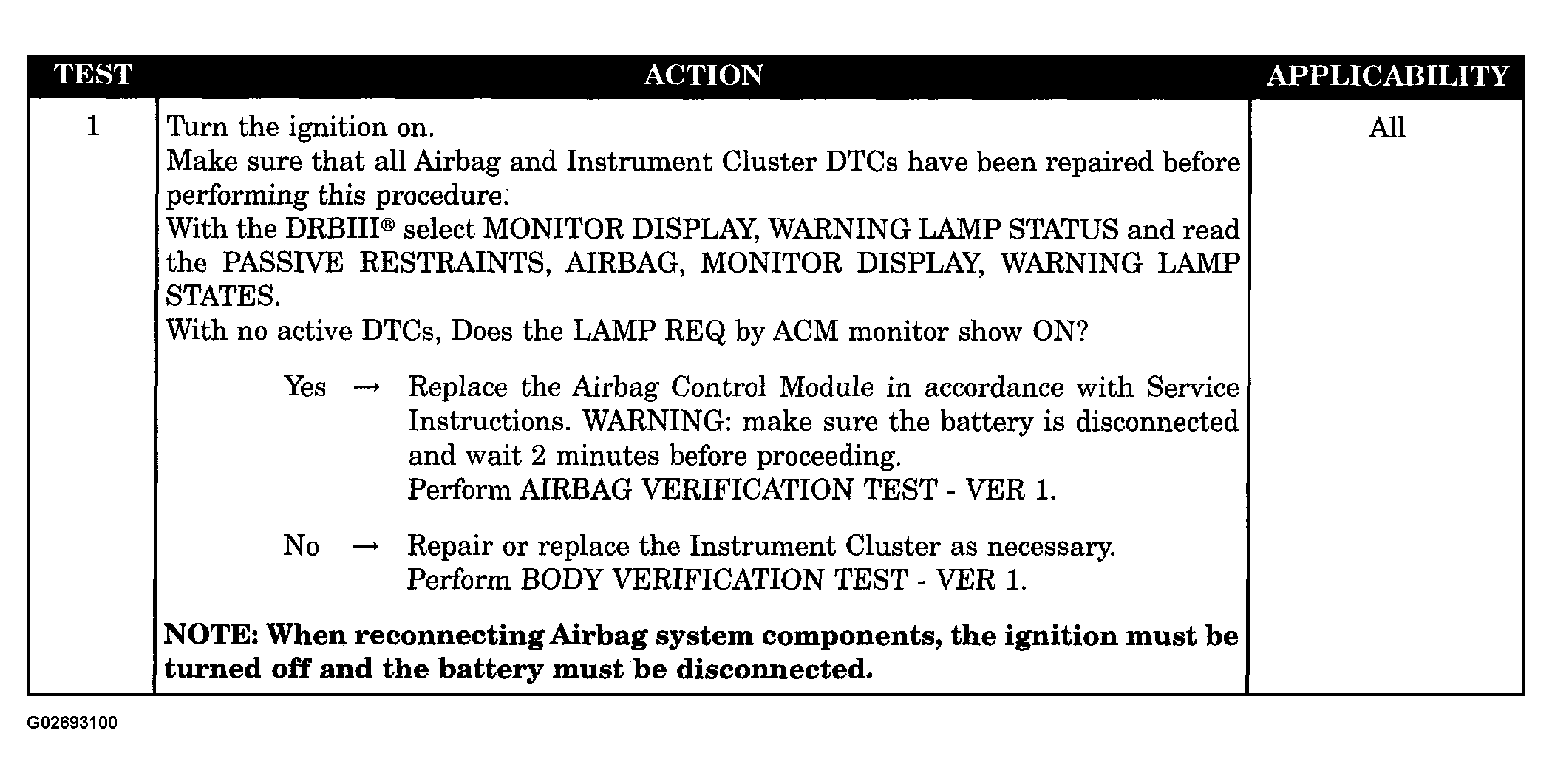

Fig 1: Diagnosis Procedure For Symptom: Airbag Indicator On Without Active Trouble Codes
G02693100Courtesy of DAIMLERCHRYSLER CORP.
