Home >> Jeep >> 2003 >> Wrangler X, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures >> Diagnostic Information And Procedures >> Airbag - Symptoms >> Symptom: PASSENGER AIRBAG ON - OFF SWITCH SHORT TO GROUND >> Diagnostic Procedure

Diagnostic Procedure

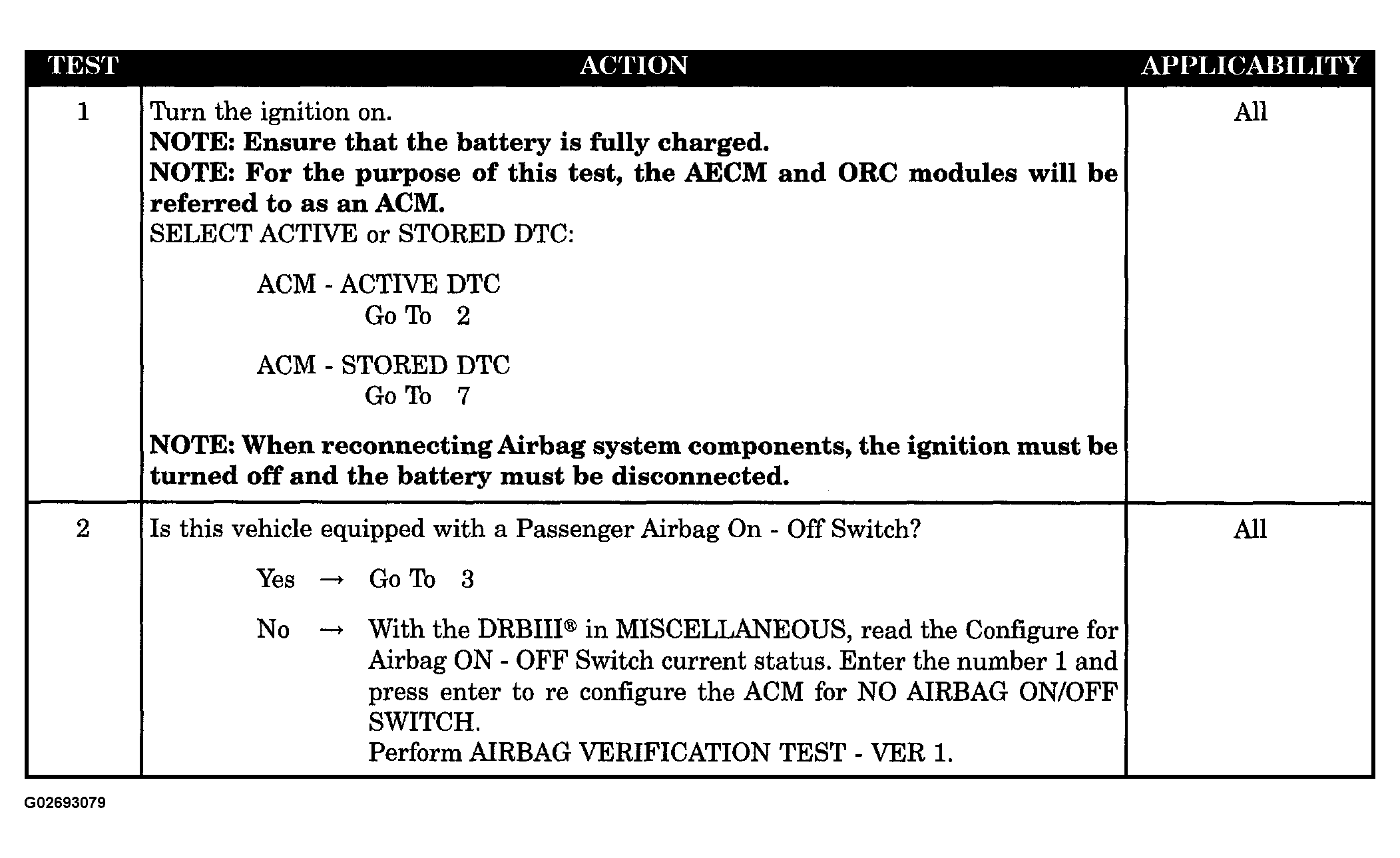

Fig 1: Diagnosis Procedure For Symptom: Passenger Airbag On - Off Switch Short To Ground (1 Of 3)
G02693079Courtesy of DAIMLERCHRYSLER CORP.

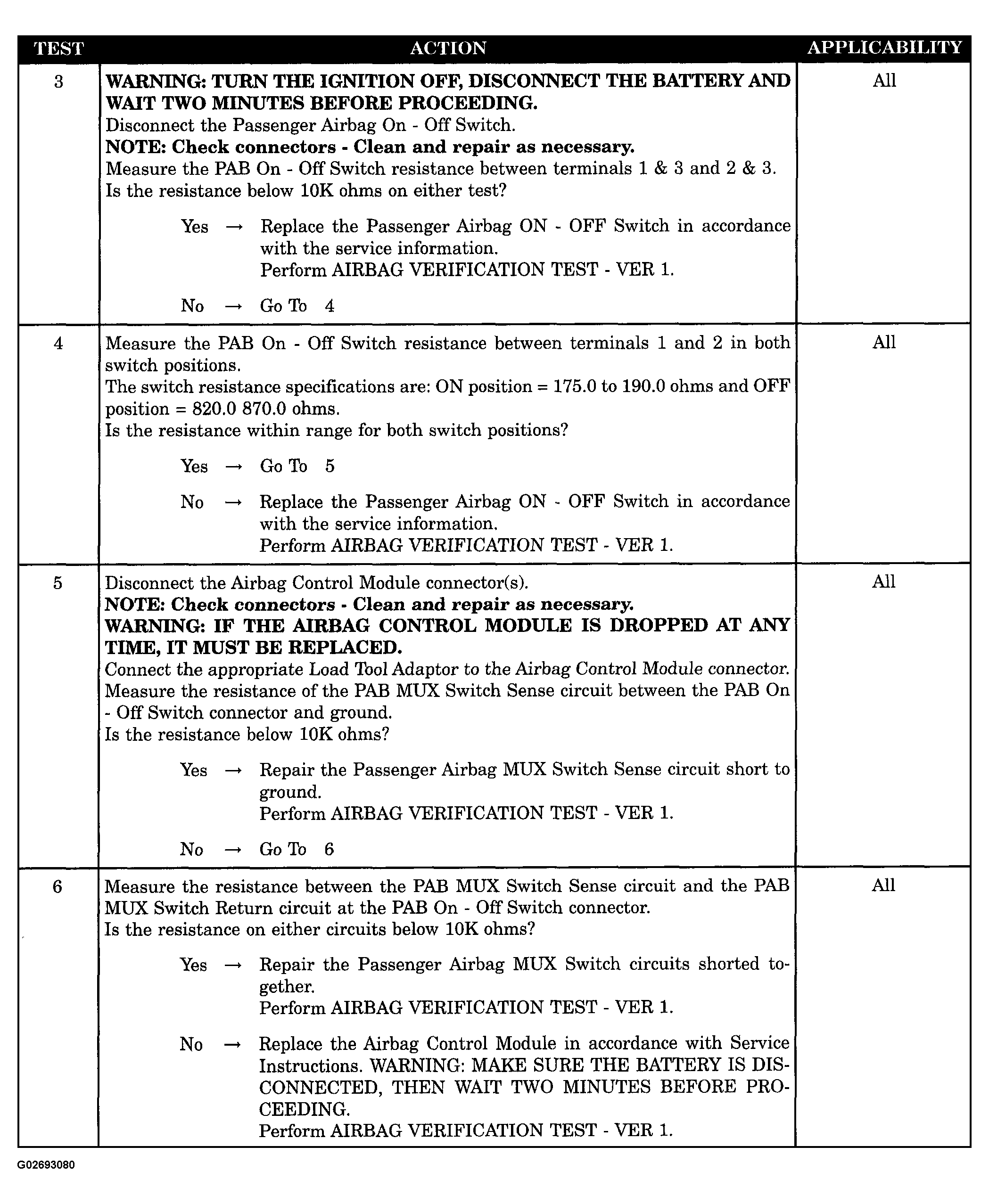

Fig 2: Diagnosis Procedure For Symptom: Passenger Airbag On - Off Switch Short To Ground (2 Of 3)
G02693080Courtesy of DAIMLERCHRYSLER CORP.

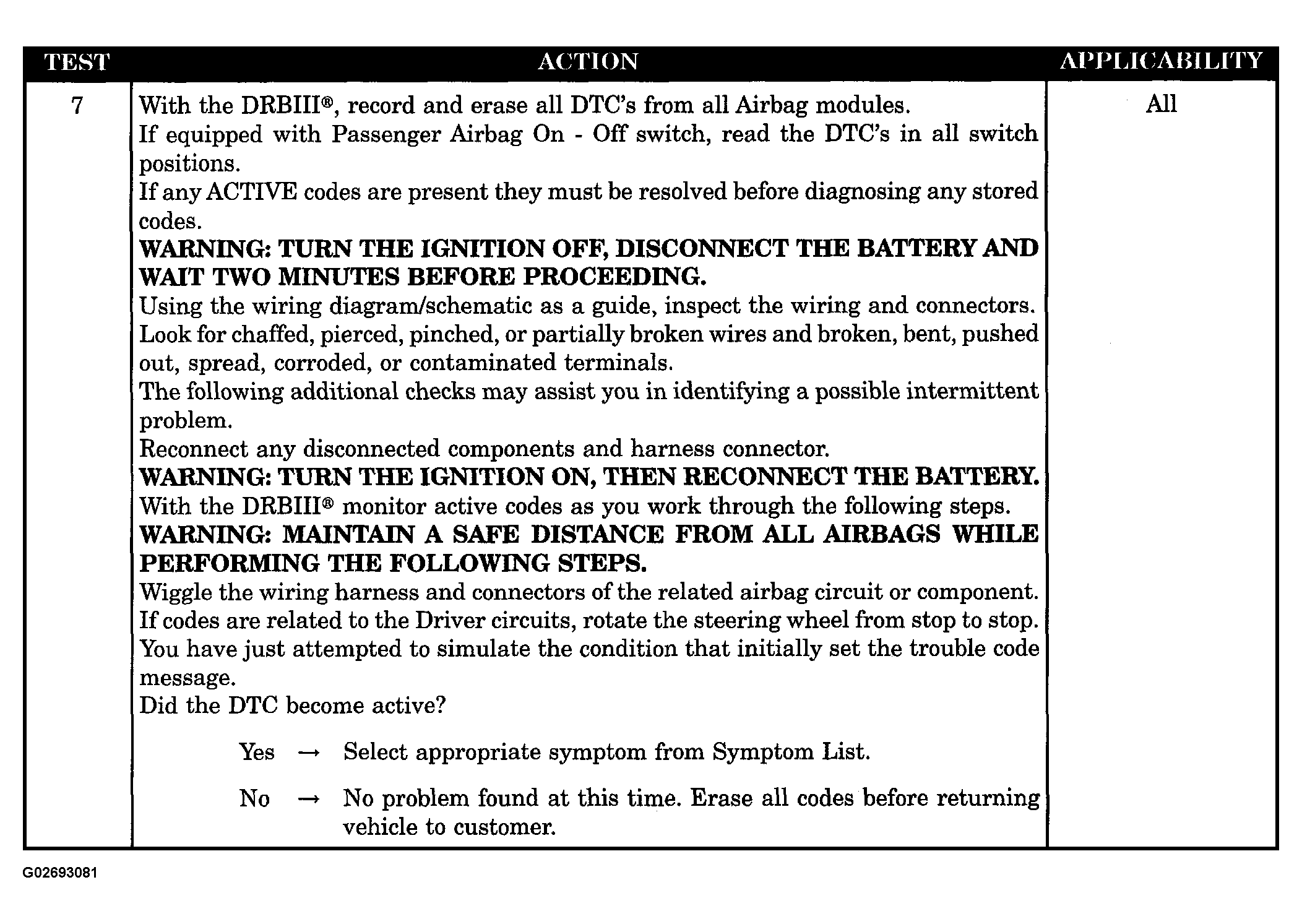

Fig 3: Diagnosis Procedure For Symptom: Passenger Airbag On - Off Switch Short To Ground (3 Of 3)
G02693081Courtesy of DAIMLERCHRYSLER CORP.
