Diagnostic Procedure

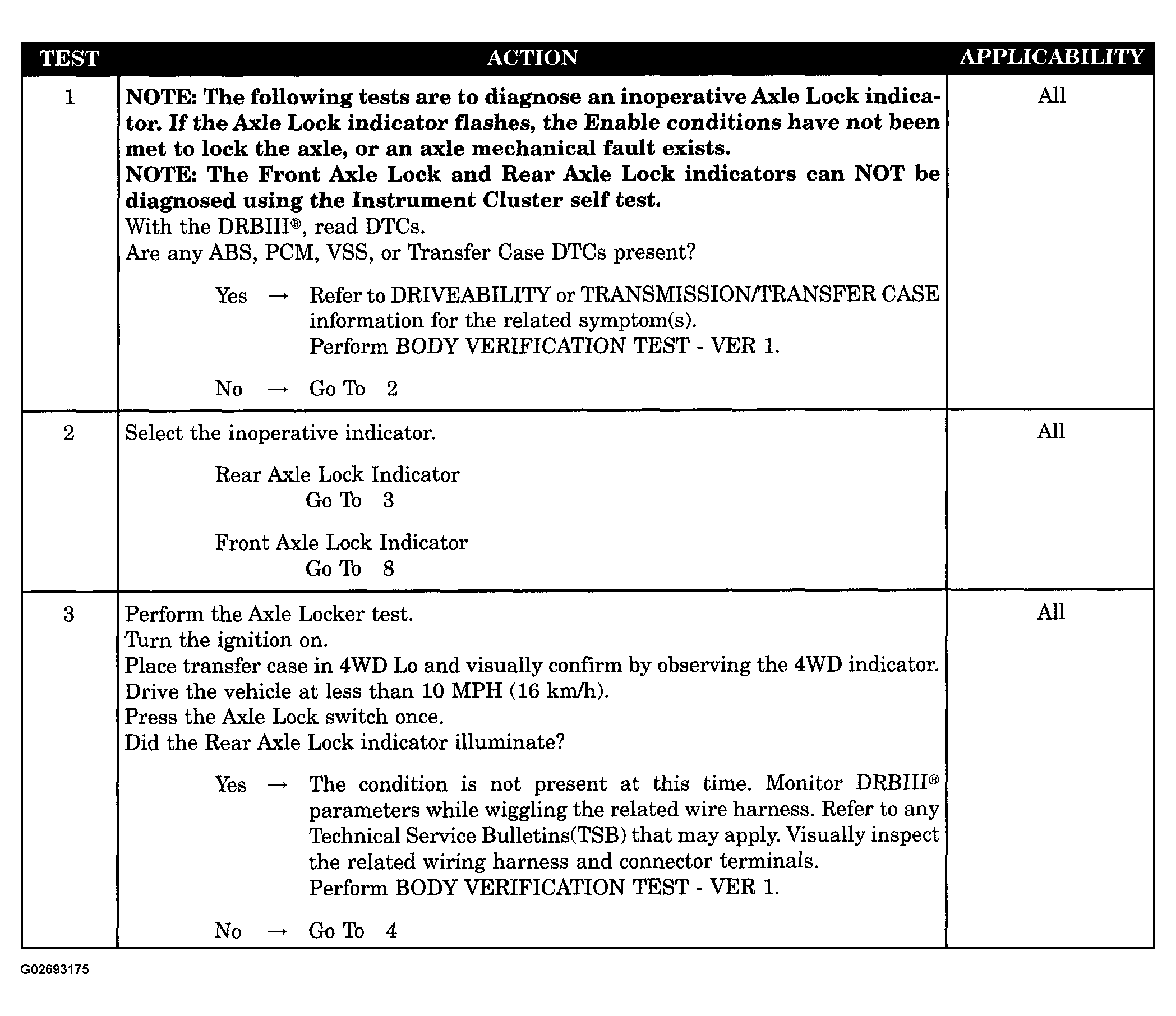

Fig 1: Diagnosis Procedure For Symptom: Axle Lock Indicator Problems (1 Of 3)
G02693175Courtesy of DAIMLERCHRYSLER CORP.

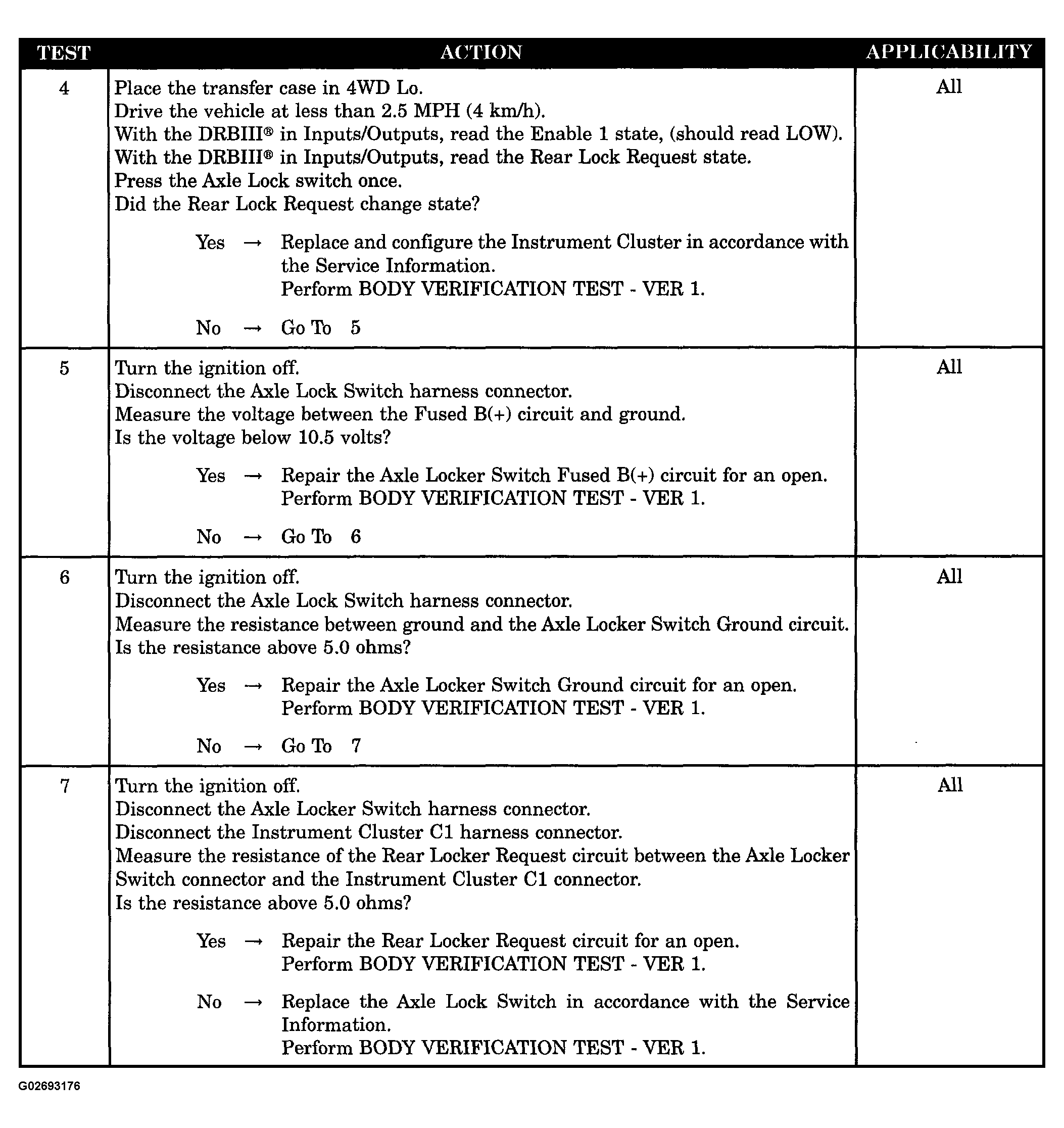

Fig 2: Diagnosis Procedure For Symptom: Axle Lock Indicator Problems (2 Of 3)
G02693176Courtesy of DAIMLERCHRYSLER CORP.

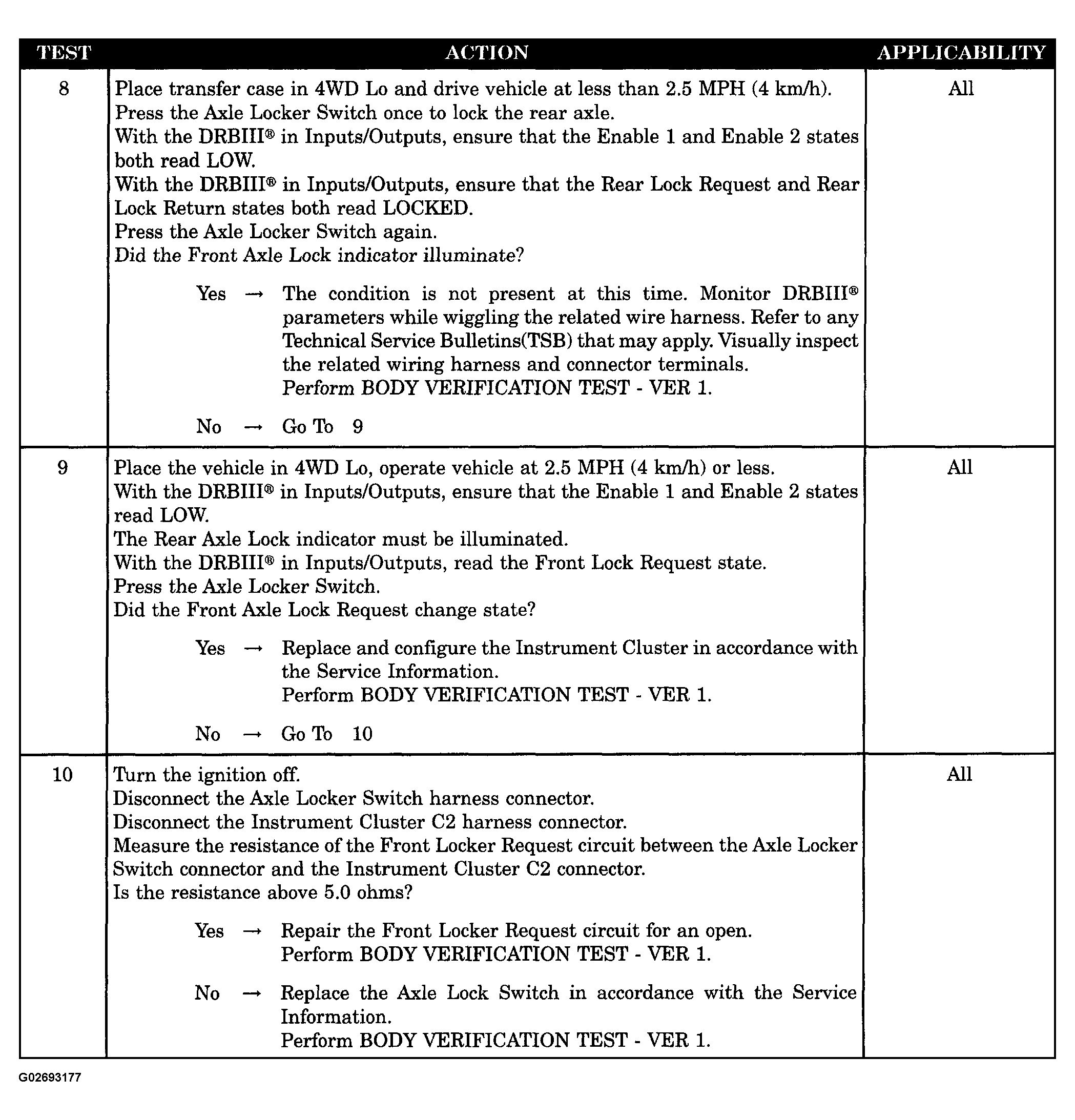

Fig 3: Diagnosis Procedure For Symptom: Axle Lock Indicator Problems (3 Of 3)
G02693177Courtesy of DAIMLERCHRYSLER CORP.
