Verification Tests

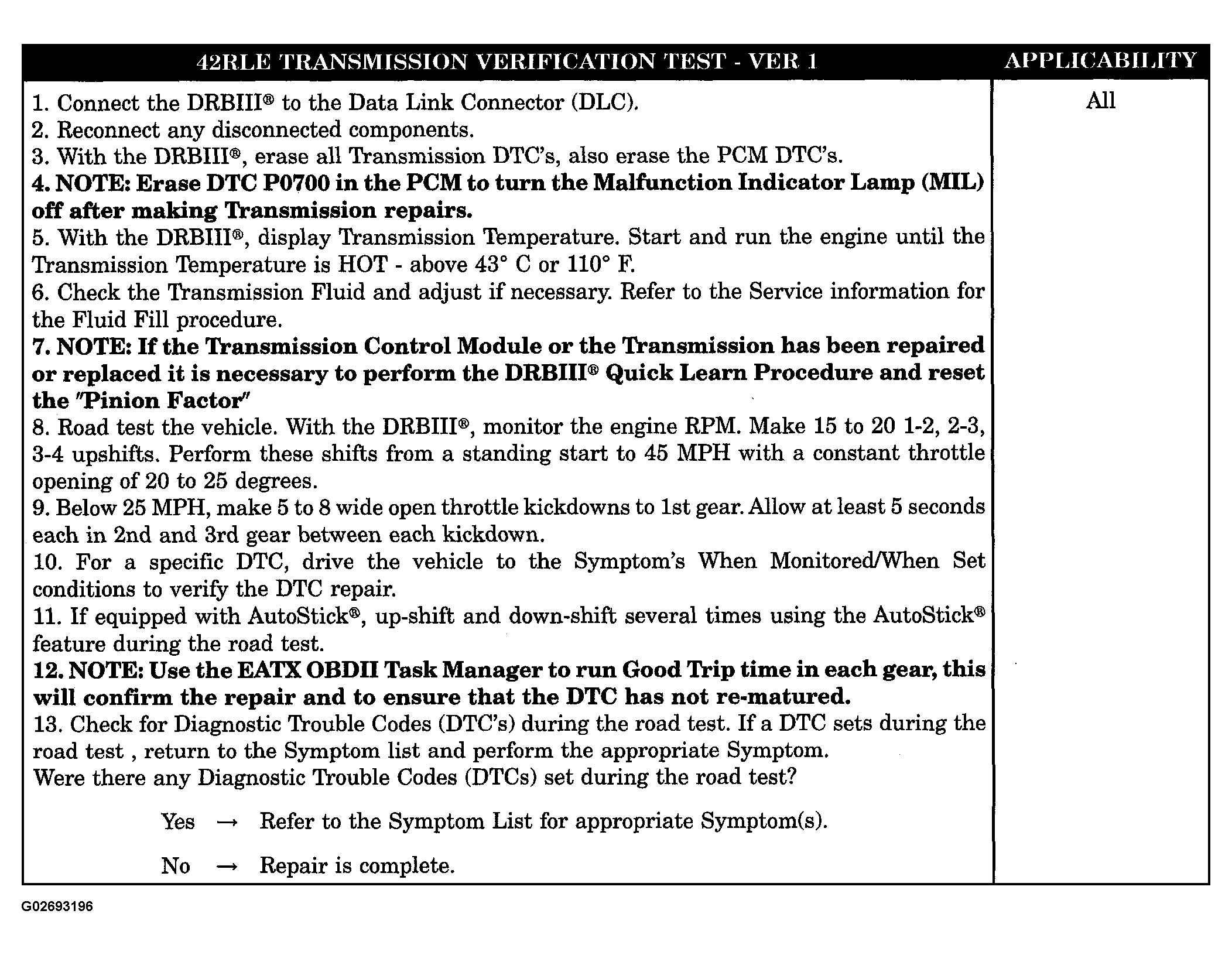

Fig 1: 42RLE Transmission Verification Test-Ver 1
G02693196Courtesy of DAIMLERCHRYSLER CORP.

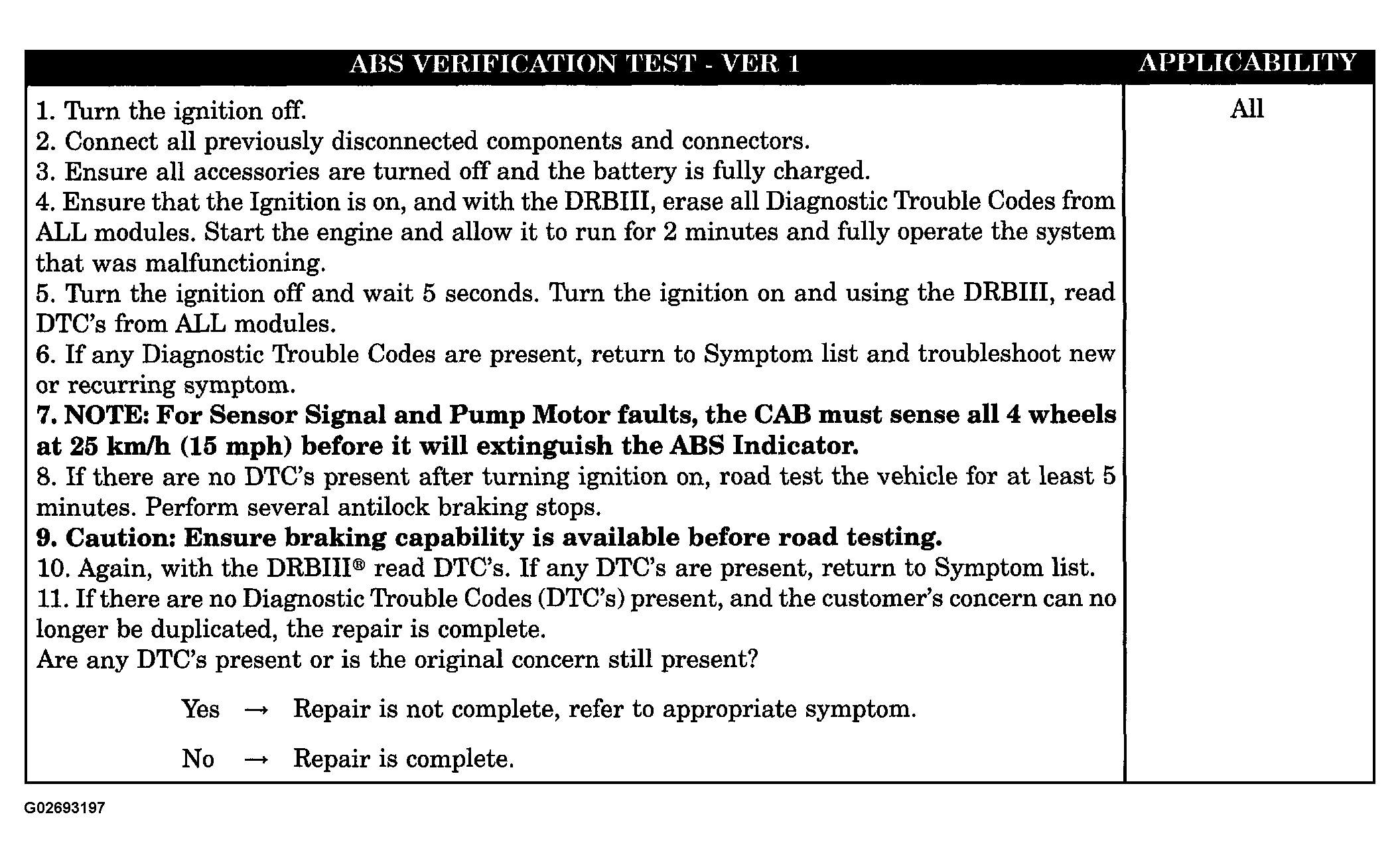

Fig 2: ABS Verification Test-Ver 1
G02693197Courtesy of DAIMLERCHRYSLER CORP.

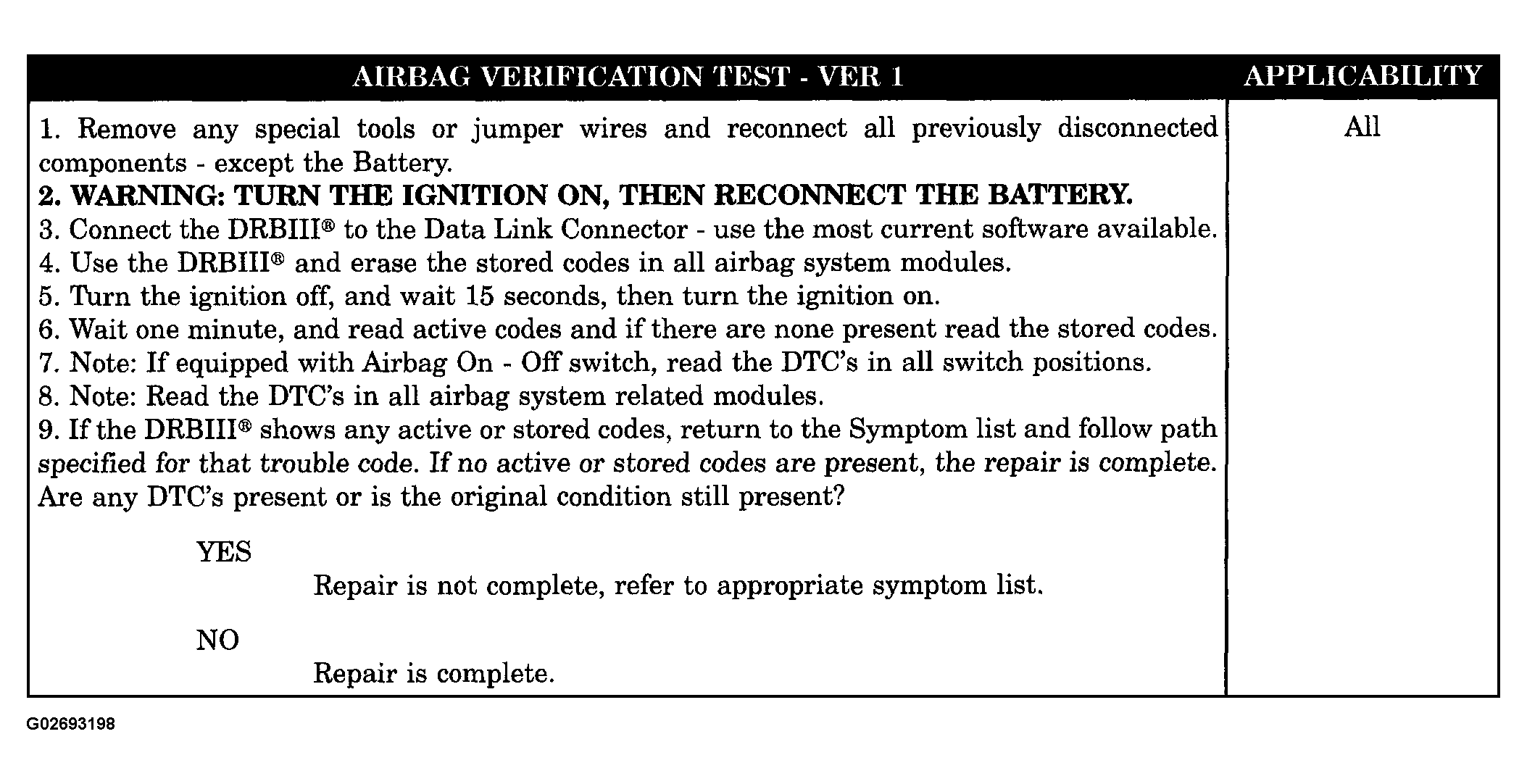

Fig 3: Airbag Verification Test-Ver 1 (1 Of 2)
G02693198Courtesy of DAIMLERCHRYSLER CORP.

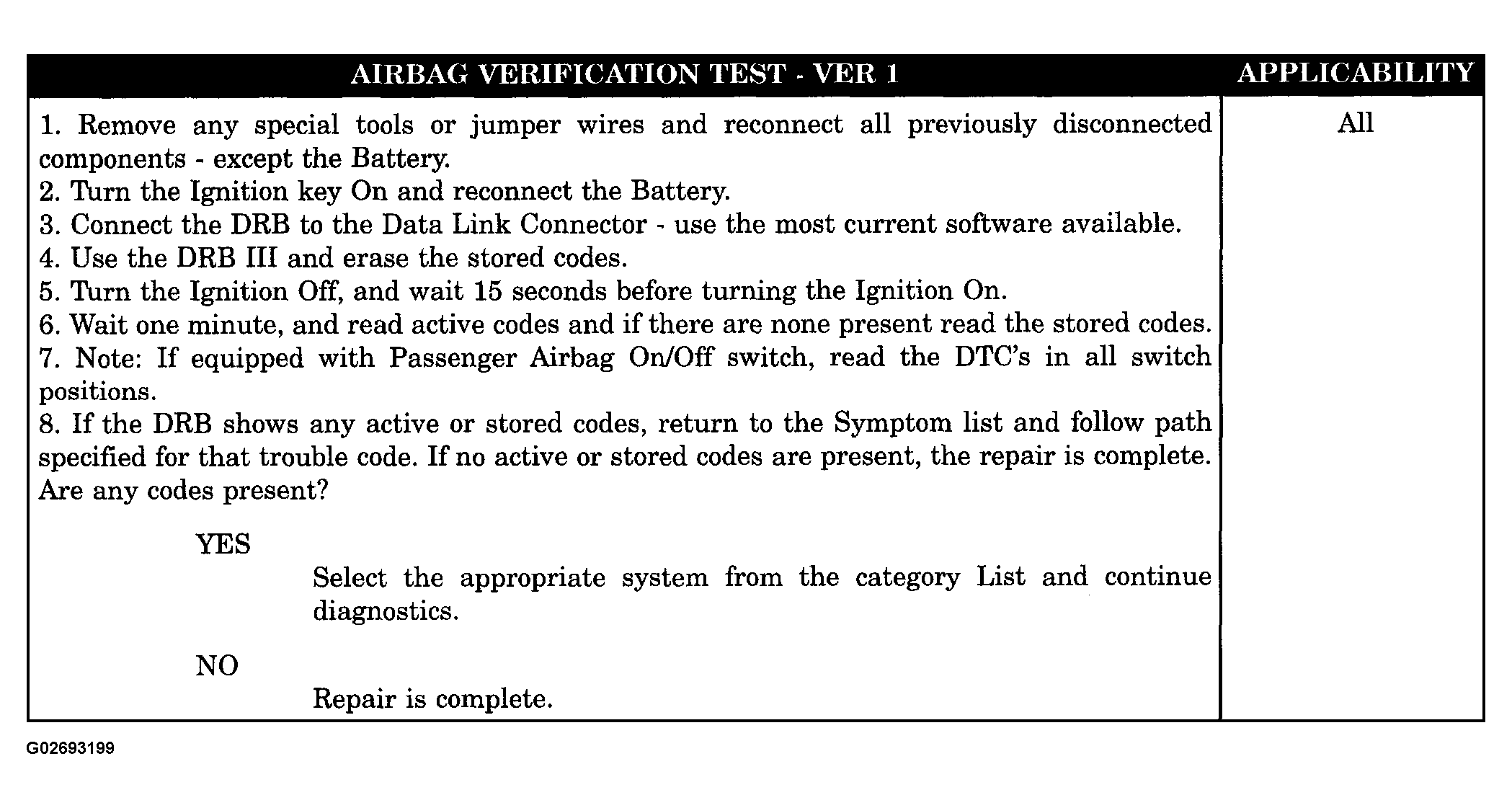

Fig 4: Airbag Verification Test-Ver 1 (2 Of 2)
G02693199Courtesy of DAIMLERCHRYSLER CORP.

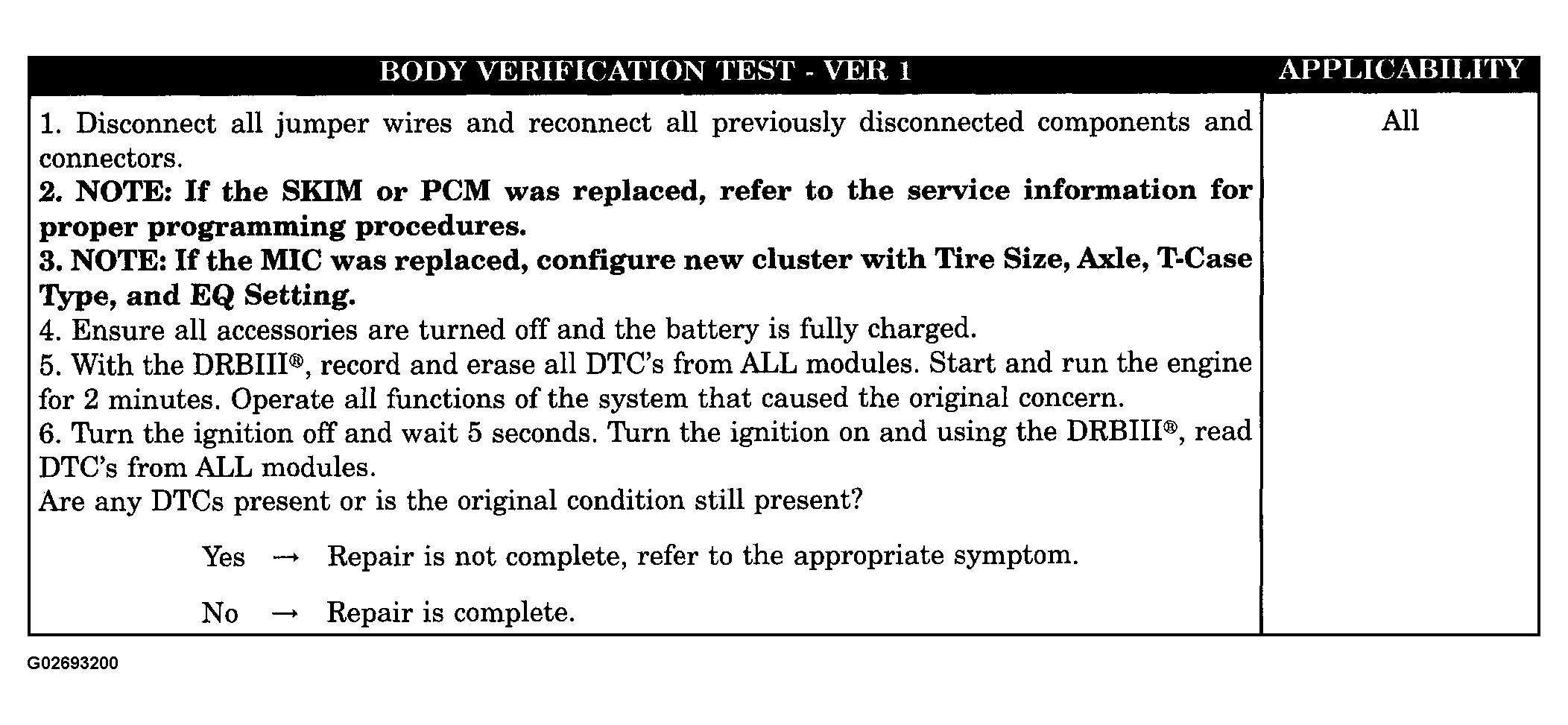

Fig 5: Body Verification Test-Ver 1
G02693200Courtesy of DAIMLERCHRYSLER CORP.

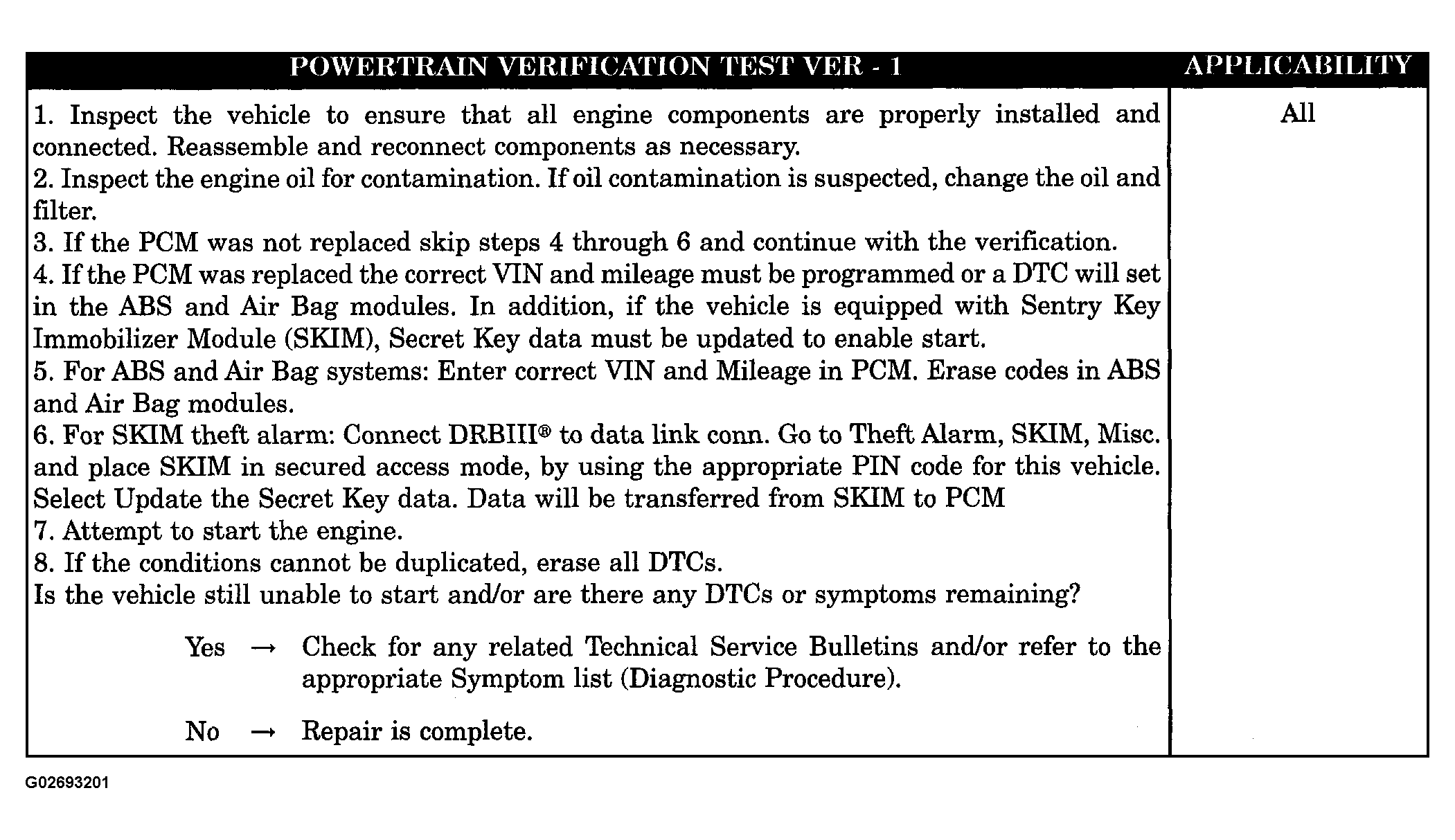

Fig 6: Powertrain Verification Test-Ver 1
G02693201Courtesy of DAIMLERCHRYSLER CORP.

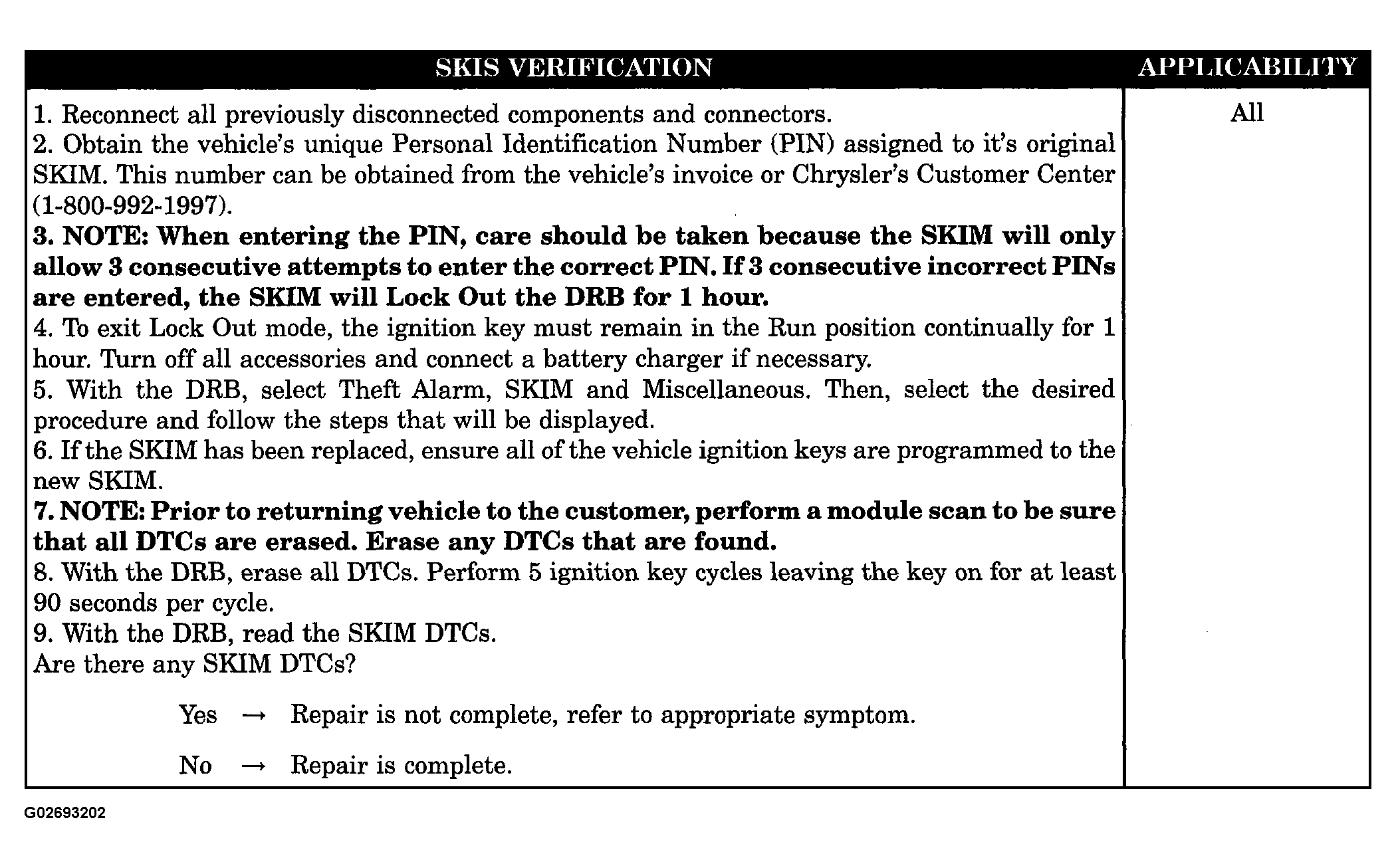

Fig 7: Skis Verification Test
G02693202Courtesy of DAIMLERCHRYSLER CORP.
