Front Output Shaft Seal

FRONT OUTPUT SHAFT SEAL

REMOVAL
1. Raise vehicle on hoist.
2. Remove front propeller shaft.
3. Remove front output shaft companion shaft.

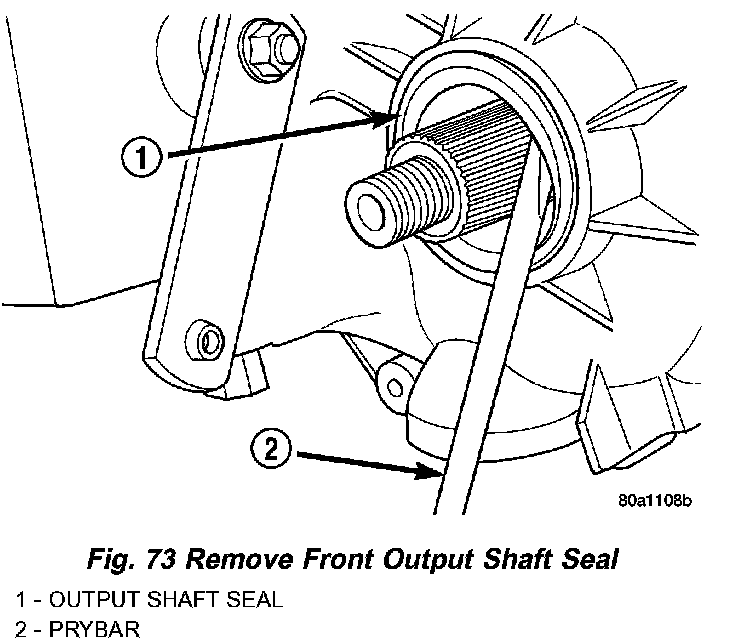

4. Remove seal from front case with pry tool (Fig. 73).

INSTALLATION
1. Install new front output seal in front case with Installer Tool 6952-A as follows:
a. Place new seal on tool. Garter spring on seal goes toward interior of case.

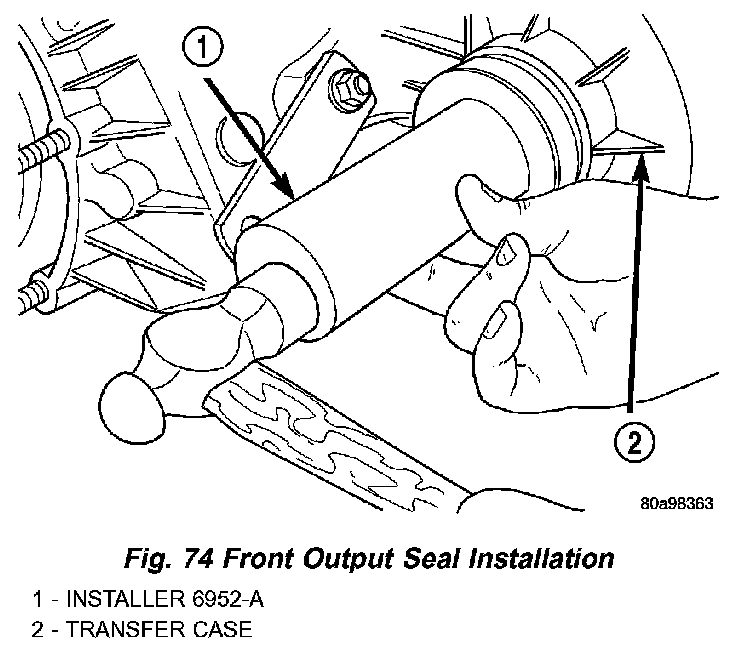

b. Start seal in bore with light taps from hammer (Fig. 74). Once seal is started, continue tapping seal into bore until installer tool seats against case.
2. Install companion flange and torque nut to 122 - 176 Nm (90 - 130 ft. lbs.).
3. Install front propeller shaft.
