Differential Case Bearings

DIFFERENTIAL CASE BEARINGS - VARI-LOK

REMOVAL
1. Remove differential case from housing.

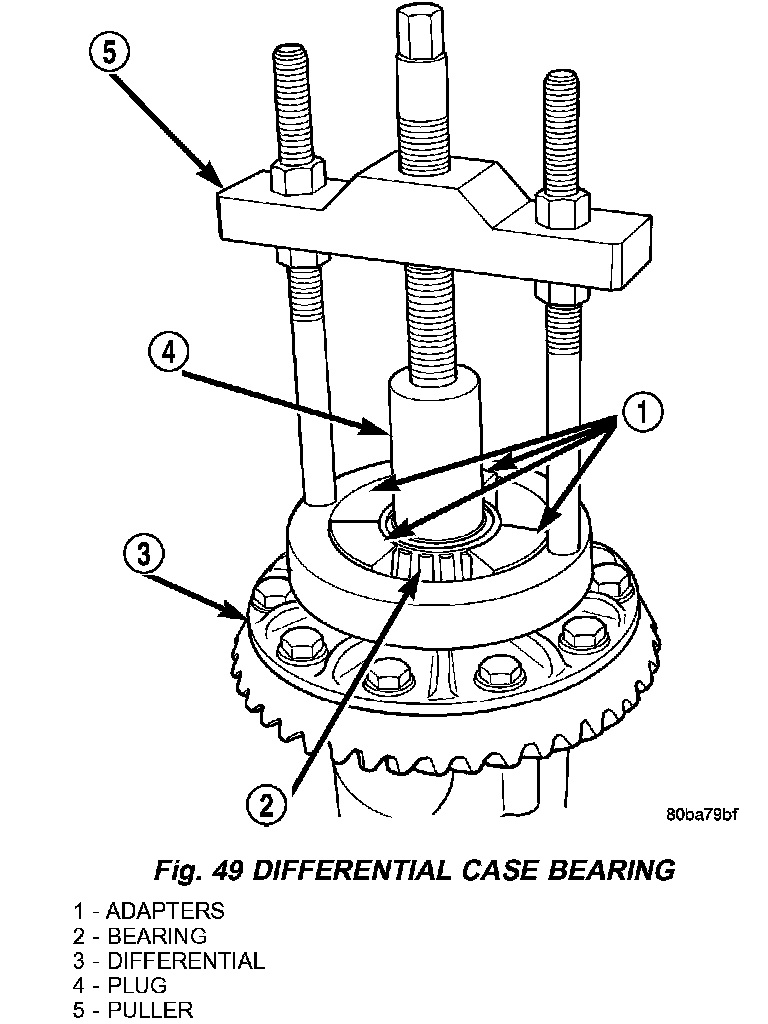

2. Remove bearings from the differential case with Puller C-293-PA, Adapters 8352 and Plug SP-3289 (Fig. 49).

INSTALLATION

NOTE: If replacement differential side bearings or differential case are being installed, differential side bearing shim requirements may change. Refer to Adjustments (Differential Bearing Preload and Gear Backlash) to determine the proper shim selection.

CAUTION: Vari-Lok plenum must be fully seated against the differential case prior to installing the ring gear side differential bearing.





1. Install differential side bearings with Handle C-4171 and Installer C-3716-A (Fig. 50).
2. Install differential in housing.
