Engine Cranks But Does Not Start

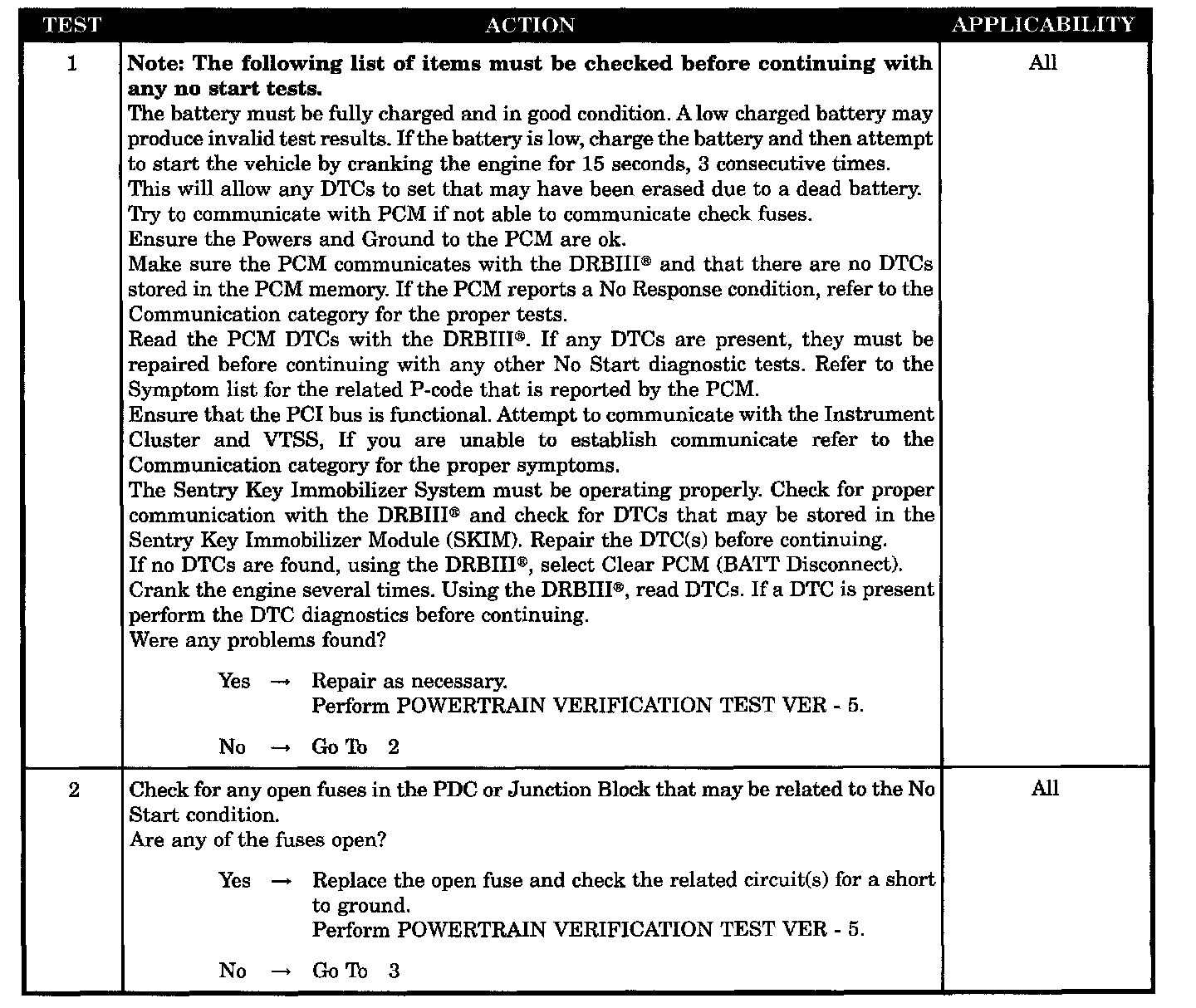

Test 1 - 2:

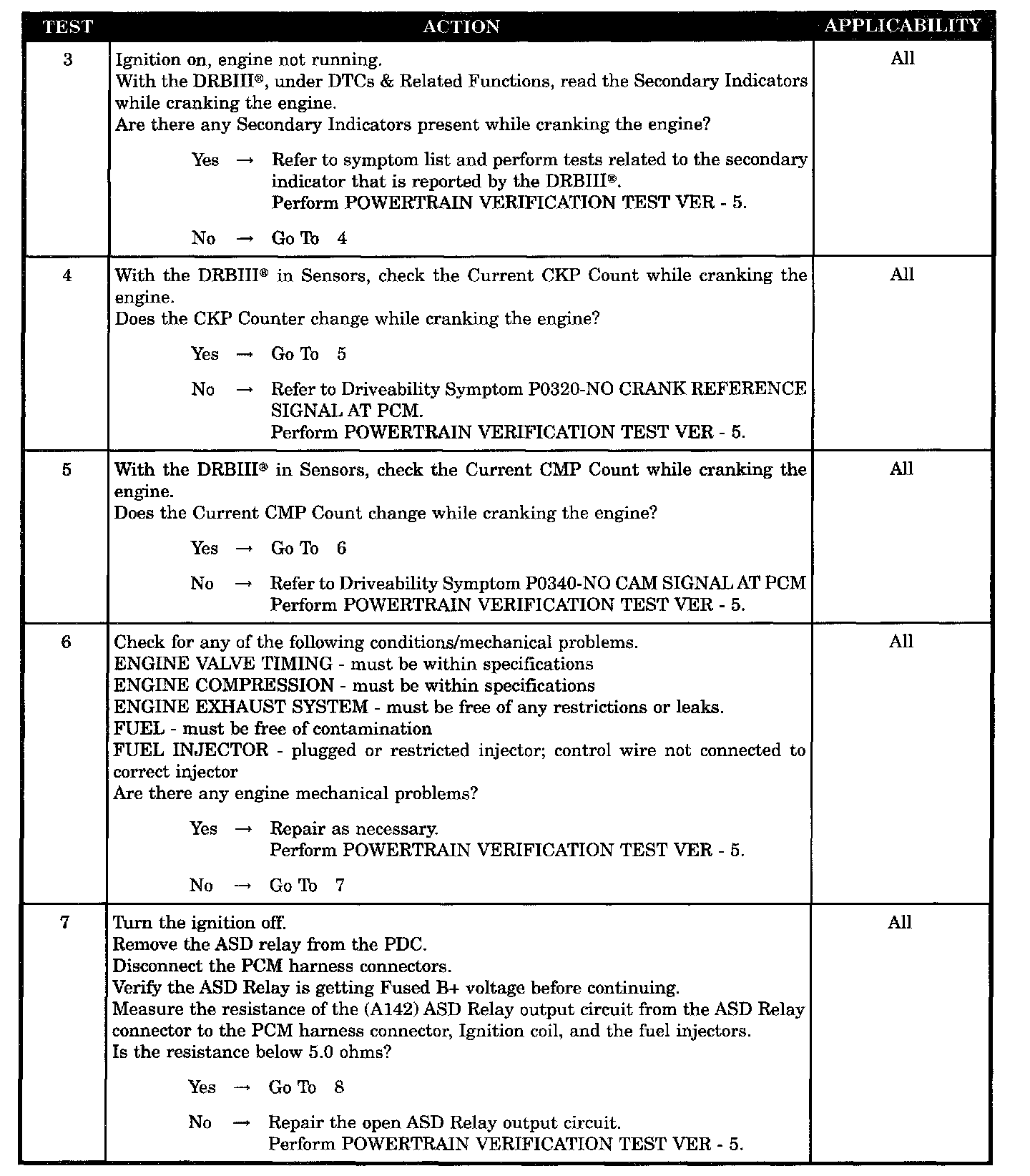

Test 3 - 7:

Test 8:

SYMPTOM
ENGINE CRANKS DOES NOT START

POSSIBLE CAUSES
- No start pre-test
- Powertrain fuses open
- Secondary indicators present
- No CKP sensor signal when cranking engine
- No CMP sensor signal when cranking engine
- Engine mechanical problem
- (A142) ASD relay output circuit open
- Fuel contamination
