Front Door Weatherstrip

FRONT DOOR WEATHERSTRIP

REMOVAL

1. Remove A-pillar trim. Refer to Trim Panel.
2. Remove B-pillar upper trim. Refer to Trim Panel.
3. Remove B-pillar lower trim. Refer to Trim Panel.
4. Pull weatherstrip from door opening flange.

INSTALLATION

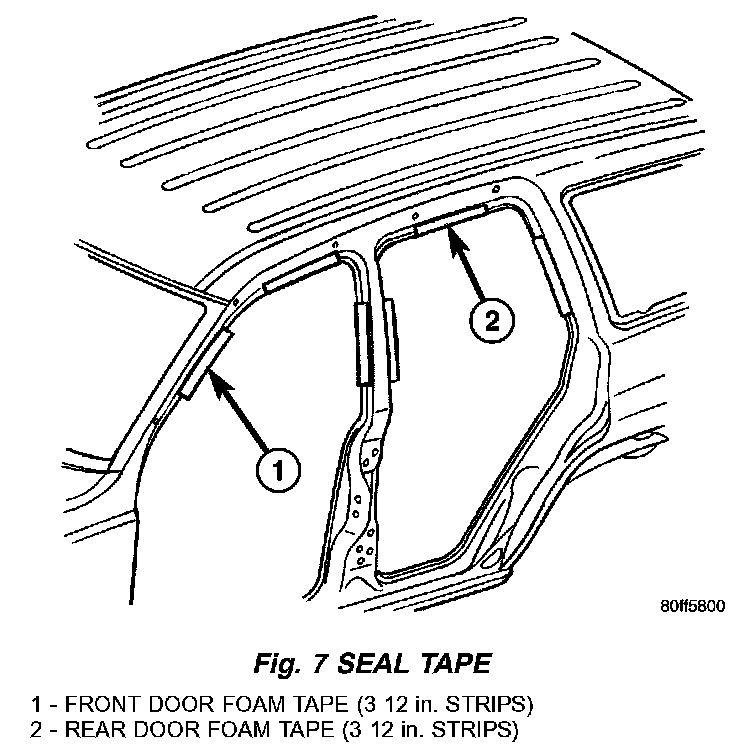

Fig. 7:

1. Apply three 12 inch strips of foam tape to the flange in the areas shown. (Fig. 7)
2. Position weatherstrip at corners.

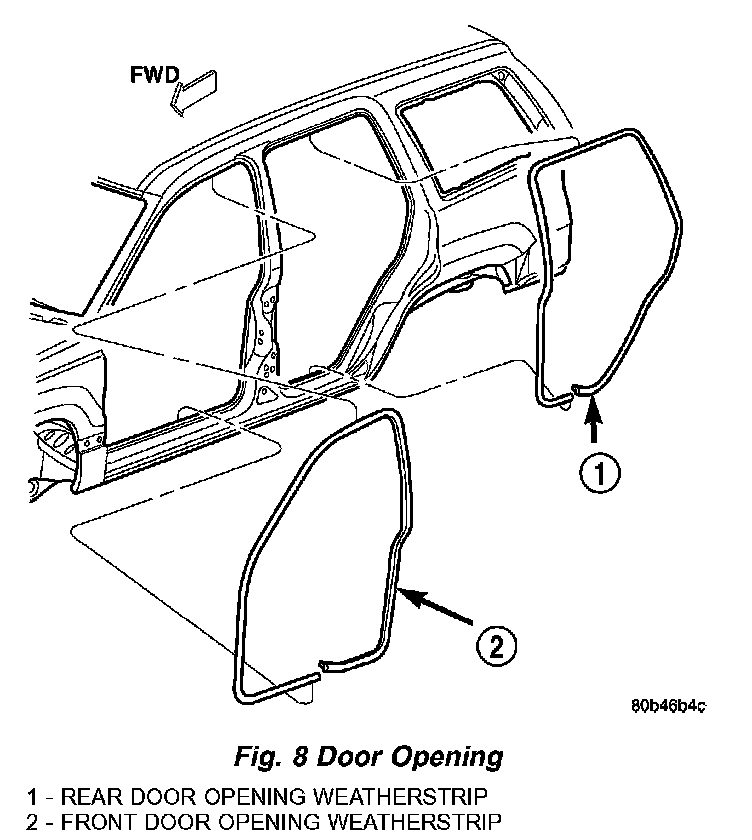

Fig. 8:

3. Move upward and around edge of door opening seating weatherstrip onto flange (Fig. 8).
4. Engage connector plug with each end of weatherstrip at bottom of door opening.
5. Install B-pillar lower trim.
6. Install B-pillar upper trim.
7. Install A-pillar trim.
