Front Door Glass Run Weatherstrip

FRONT DOOR GLASS RUN WEATHERSTRIP

REMOVAL

1 .Remove the front door glass.

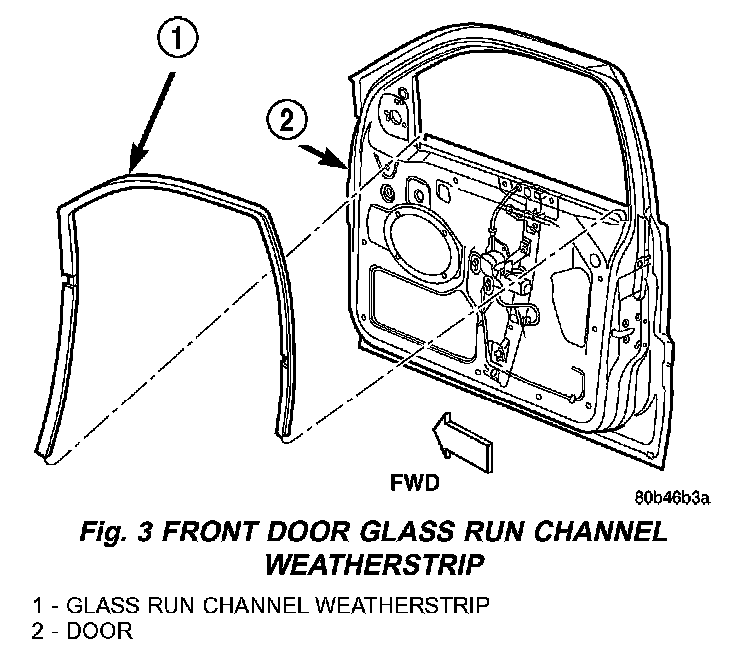

Fig. 3:

2. Grasp seal from upper run channel corner and firmly pull weatherstrip from flange and run channel (Fig. 3).
3. Remove the glass run from below the belt channels & separate from the door.

INSTALLATION

NOTE: Soapy water may be used to aid in installation.

1. Position weatherstrip in channel aligning upper rear corner.
2. Press weatherstrip into position.
3. Press weatherstrip into lower glass run channels.
4. Install front door speaker.
5. Install the door glass.
