Differential Case Bearings
DIFFERENTIAL CASE BEARINGSREMOVAL
1. Remove differential case from axle housing.

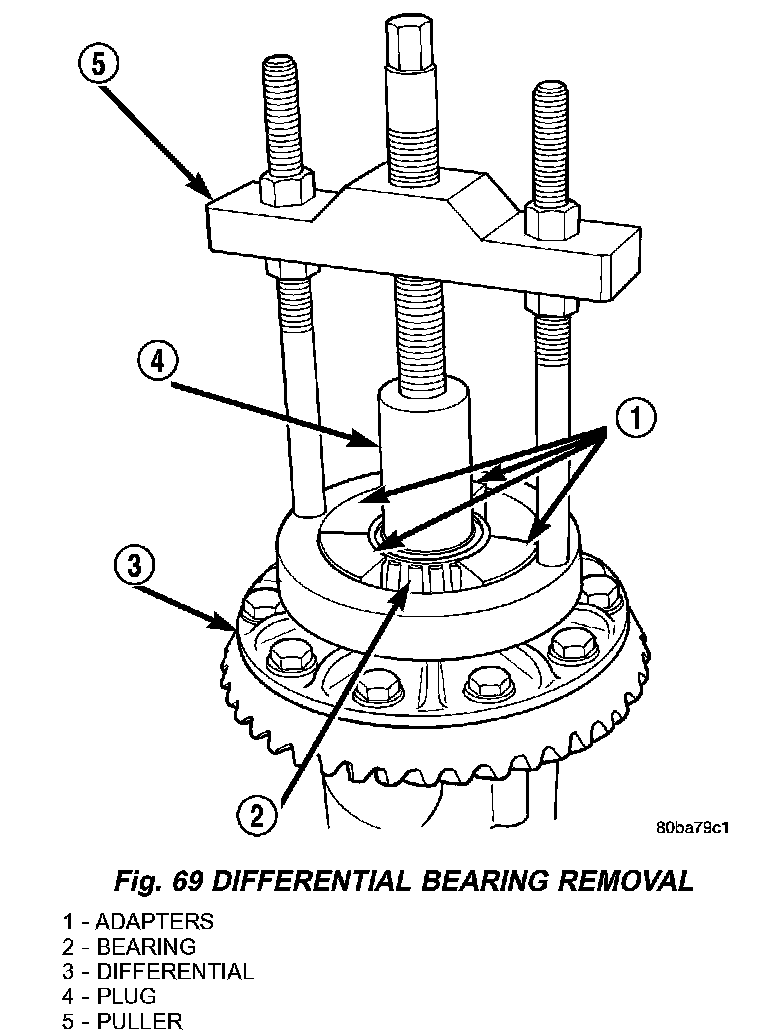

2. Remove side bearings from the differential case with Puller/Press C-293-PA, Adapters 8353 and Plug C-293-3 (Fig. 69).
INSTALLATION
NOTE: If differential side bearings or differential case are replaced, differential side bearing shim requirements may change. Refer to Adjustments (Differential Bearing Preload and Gear Backlash) for procedures.
CAUTION: Vari-Lok plenum must be seated against the differential case prior to installing the ring gear side differential bearing.
1. Install differential side bearings with Installer C-4340 and Handle C-4171 (Fig. 70).
2. Install differential case into the housing.
3. Remove support and lower vehicle.
