Output Speed Sensor

REMOVAL
1. Raise vehicle.
2. Place a suitable fluid catch pan under the transmission.

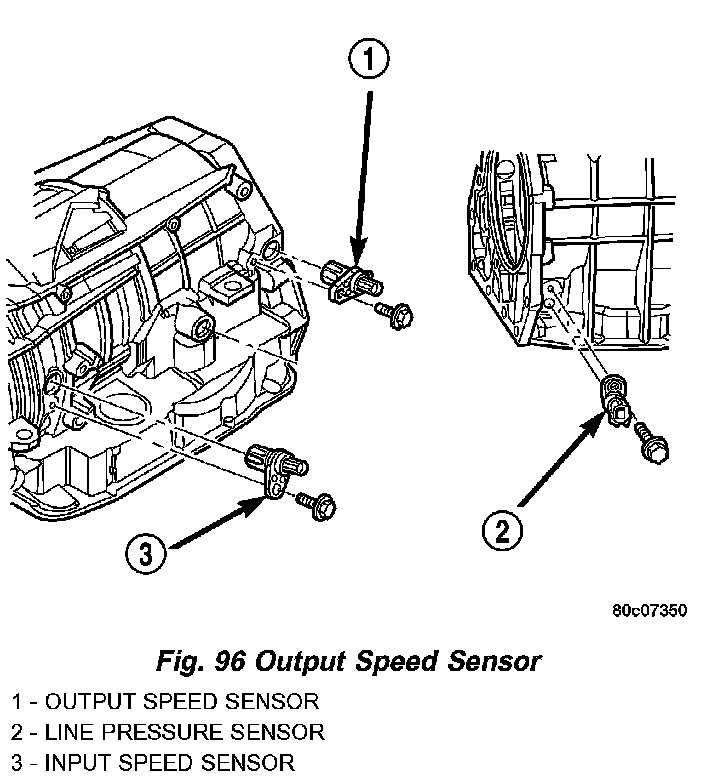

3. Remove the wiring connector from the output speed sensor (Fig. 96).
4. Remove the bolt holding the output speed sensor to the transmission case.
5. Remove the output speed sensor from the transmission case.

INSTALLATION
1. Install the output speed sensor into the transmission case.
2. Install the bolt to hold the output speed sensor into the transmission case. Tighten the bolt to 11.9 Nm (105 in. lbs.).
3. Install the wiring connector onto the output speed sensor
4. Verify the transmission fluid level. Add fluid as necessary.
5. Lower vehicle.
