A/C - HVAC Sub-Assembly Part Availability
NUMBER: 24-002-10GROUP: Heating & Air Conditioning
DATE: January 13, 2010
THIS BULLETIN SUPERSEDES SERVICE BULLETIN 24-001-04, DATED JANUARY 20, 2004, WHICH SHOULD BE REMOVED FROM YOUR FILES. ALL REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS** AND INCLUDE THE RELEASE OF NEW AUTO ZONE CONTROL, MID-CASE BLEND ASSEMBLIES.
SUBJECT:
New HVAC Sub-Assembly Replaces Blend Or Recirc Door Components
MODELS:
1999-2004 (WJ) Grand Cherokee
1999 - 2004 (WG) Grand Cherokee (International Markets)
DISCUSSION:

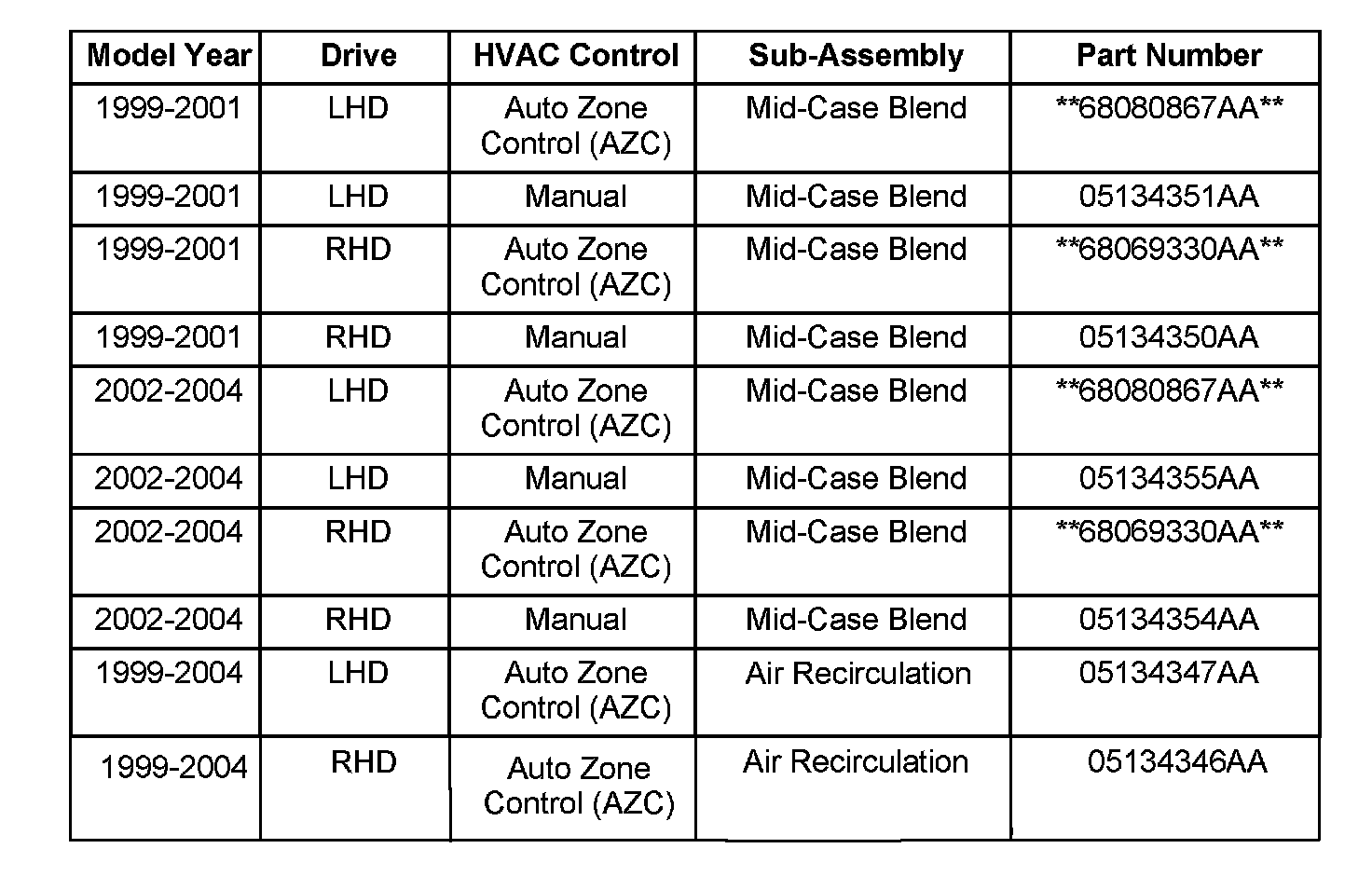

New HVAC sub-assemblies are now available in the Mopar Parts system. Each new sub-assembly consists of several individual components. These new sub-assemblies improve component reliability. It is recommended that the respective sub-assembly be installed if a blend air door(s), a recirculation door, a door link, or a sub-assembly housing requires replacement. The following table provides the part numbers for the new HVAC sub-assemblies.
POLICY:
Information Only
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
