Lower Ball Joint

LOWER BALL JOINT

REMOVAL
Ball stud service procedures below require removal of the hub bearing and axle shaft. Removal and installation of upper and lower ball studs require the use of Tool Kit 6289.

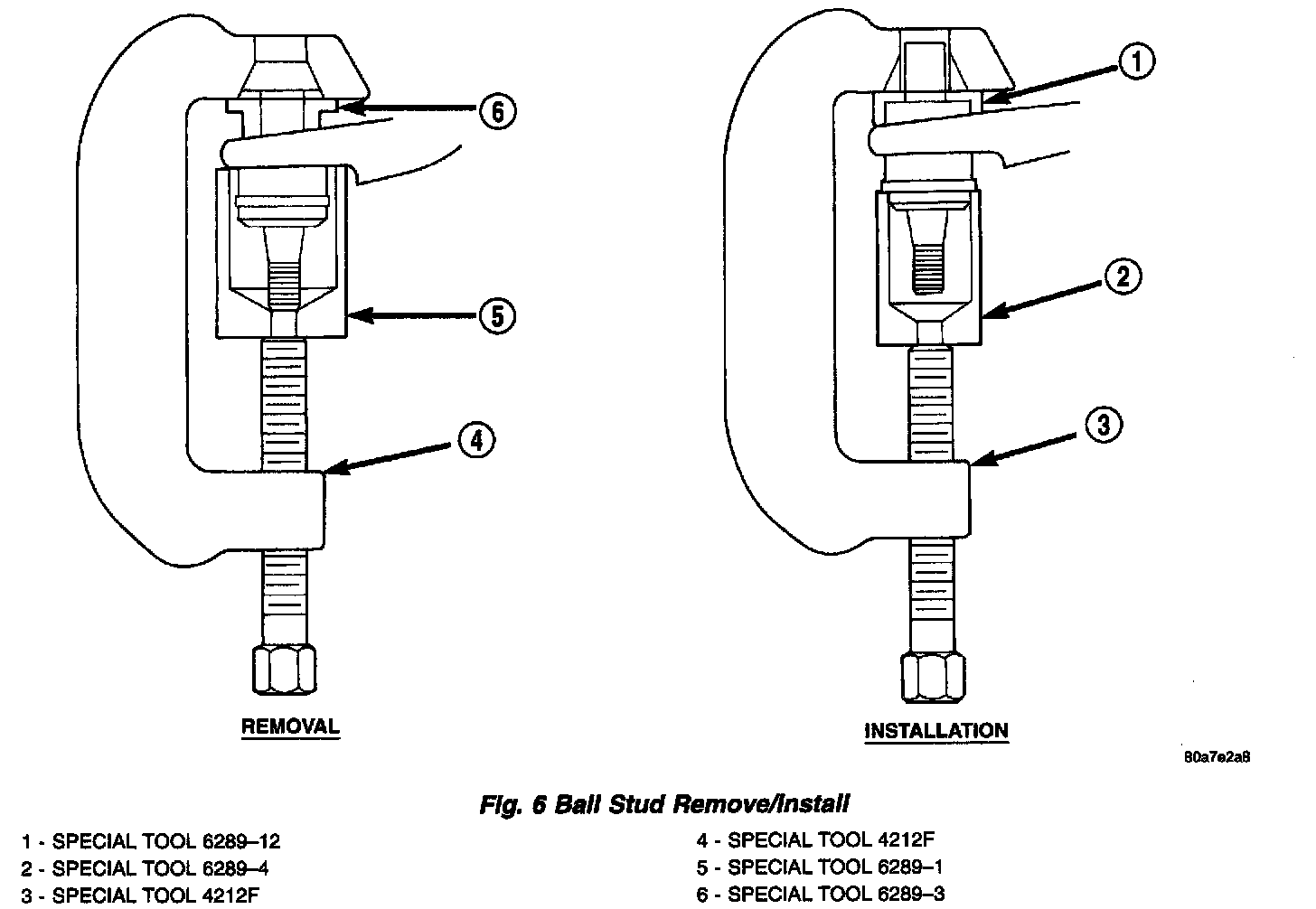

1. Position tools as shown to remove and install ball stud.
