Power Steering Pump: Testing and Inspection

DIAGNOSIS AND TESTING - PUMP LEAKAGE

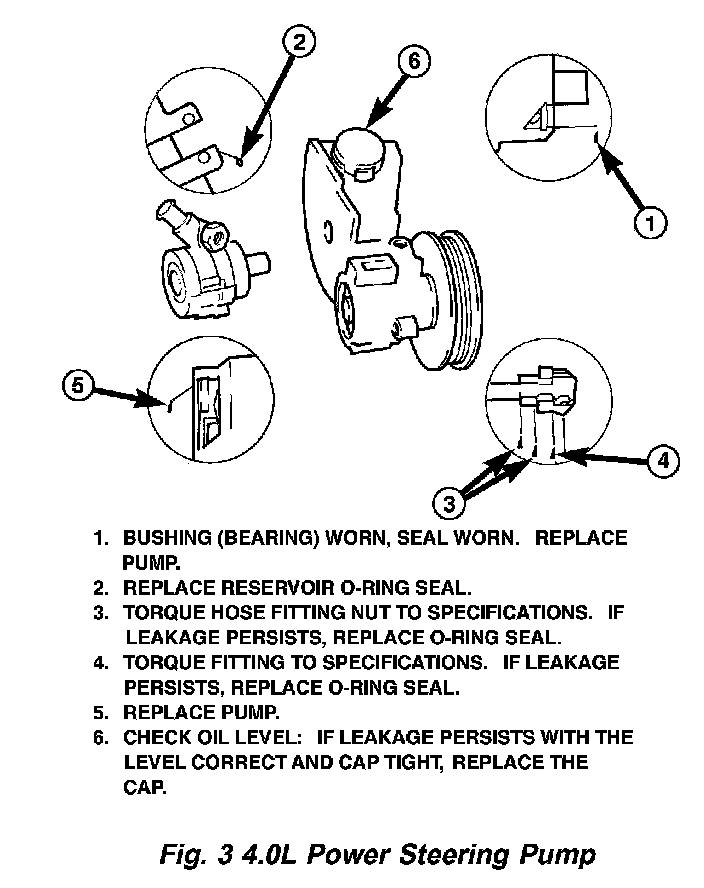

1. Possible areas of pump leakage.
