Checking Park/Neutral Switch Operation

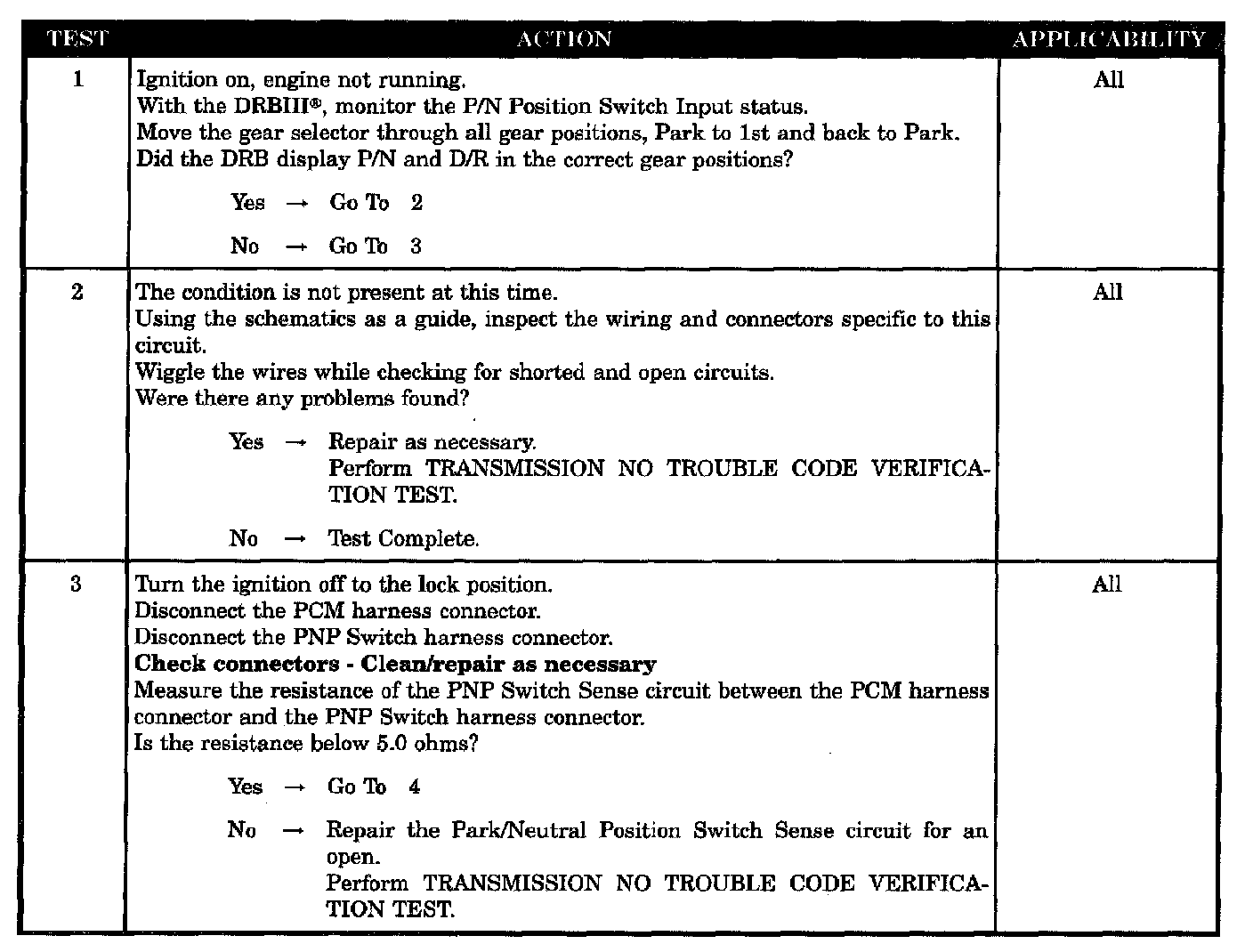

Test 1-3:

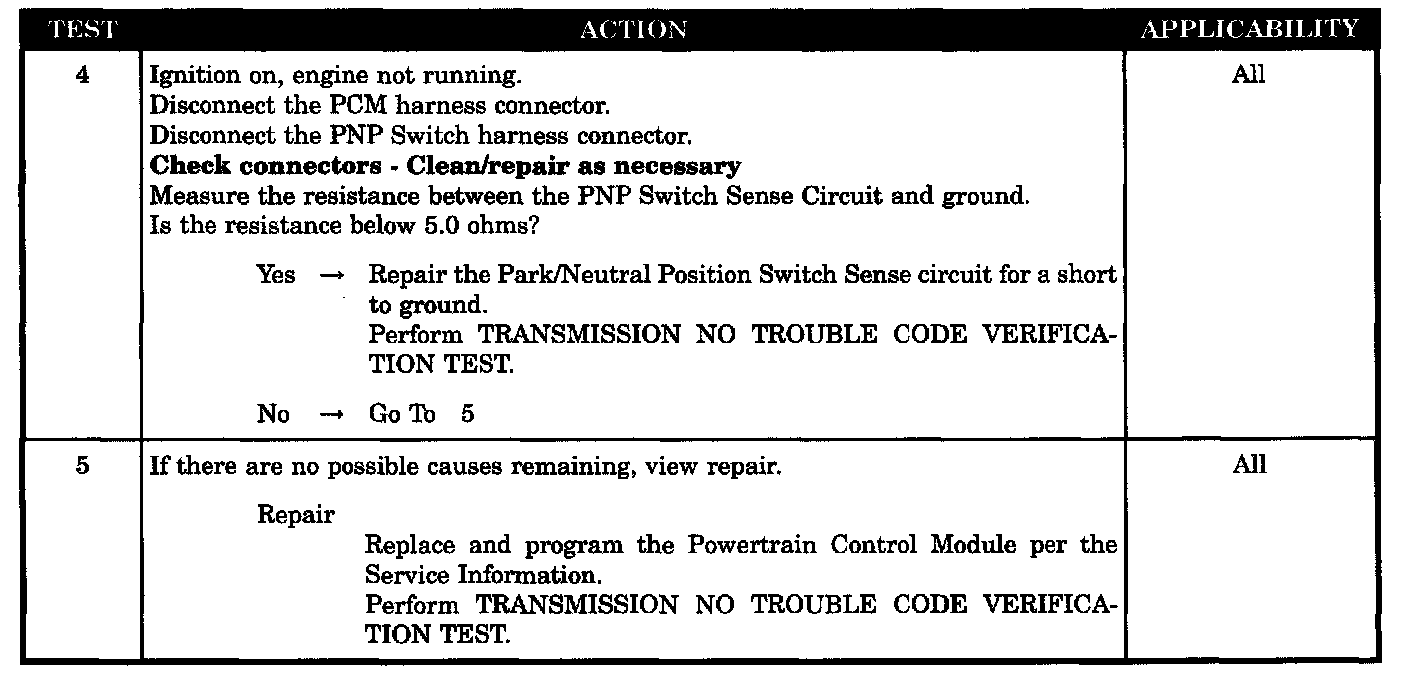

Test 4-5:

SYMPTOM
*CHECKING PARK/NEUTRAL SWITCH OPERATION

POSSIBLE CAUSES
- PARK/NEUTRAL POSITION SWITCH SENSE CIRCUIT OPEN
- PARK/NEUTRAL POSITION SWITCH SENSE CIRCUIT SHORT TO GROUND
- POWERTRAIN CONTROL MODULE
- INTERMITTENT WIRING AND CONNECTORS
