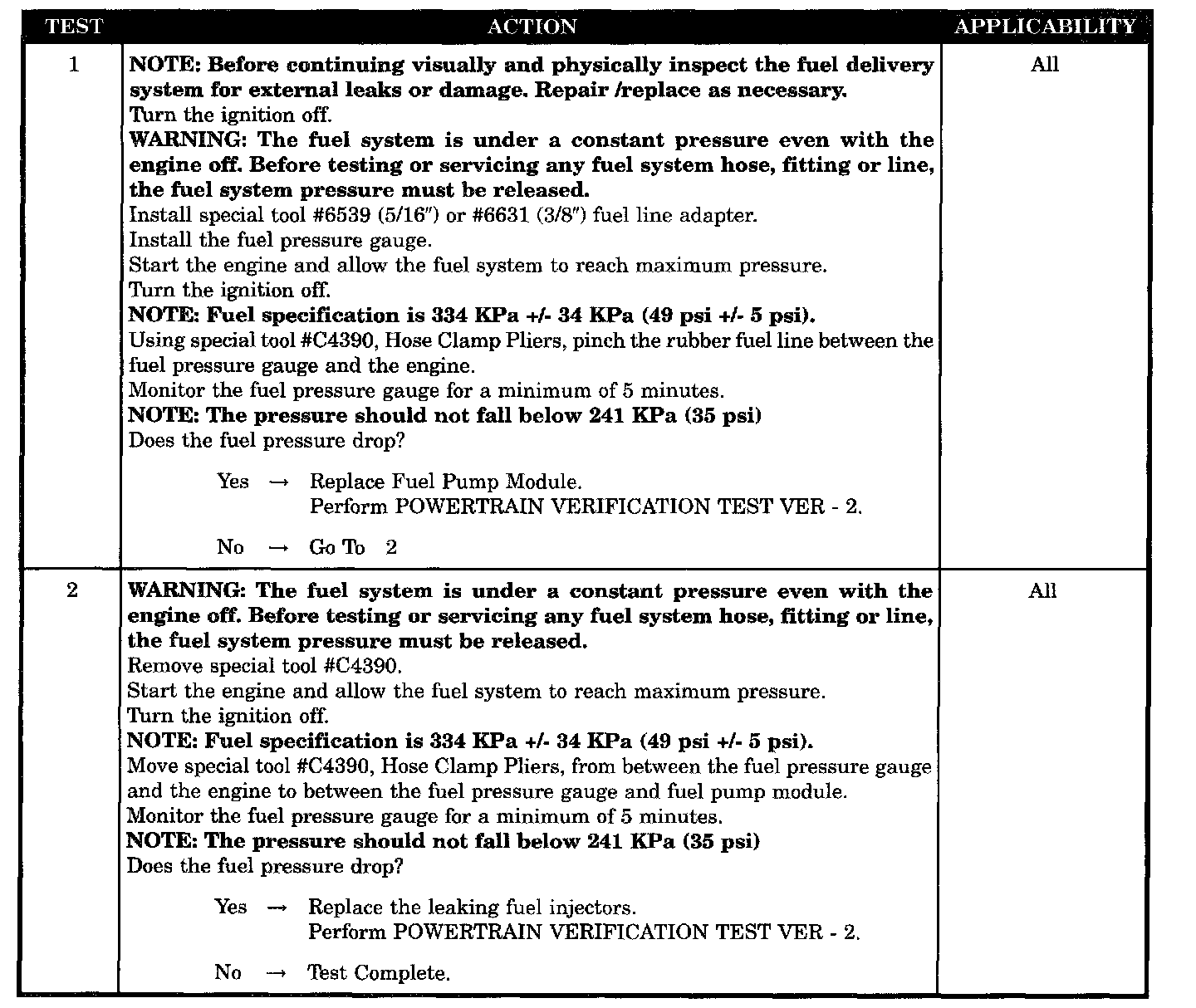

Checking Fuel Pressure Leak Down

Test 1 - 2:






SYMPTOM
FUEL PRESSURE LEAK DOWN

POSSIBLE CAUSES
- Faulty fuel pump module
- Fuel injector(s)
