Home >> Jeep >> 2003 >> Grand Cherokee 2WD V8-4.7L >> Repair and Diagnosis >> Locations >> Ground Locations >> Figure 30

Figure 30

Driver Door LHD:

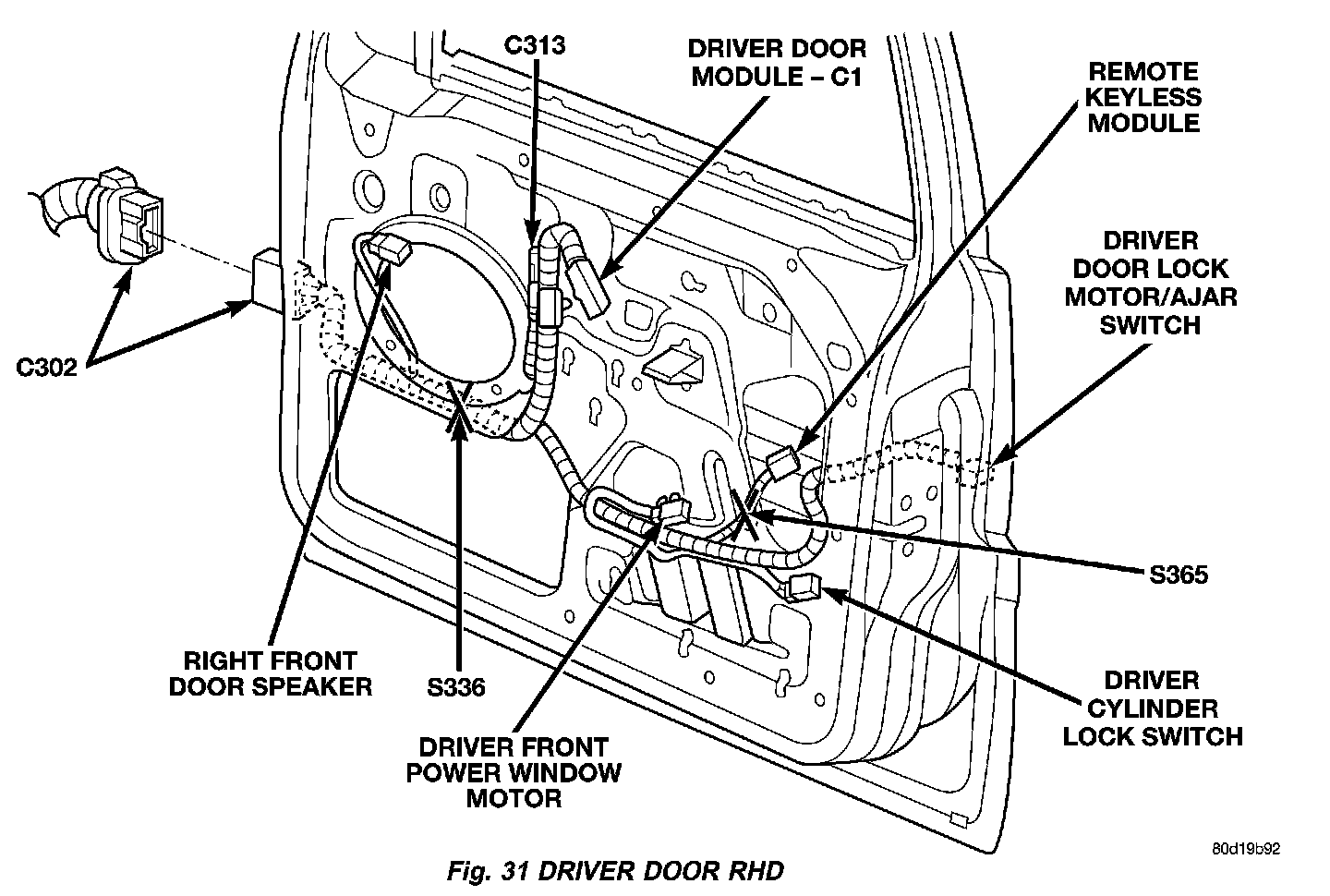

Driver Door RHD:

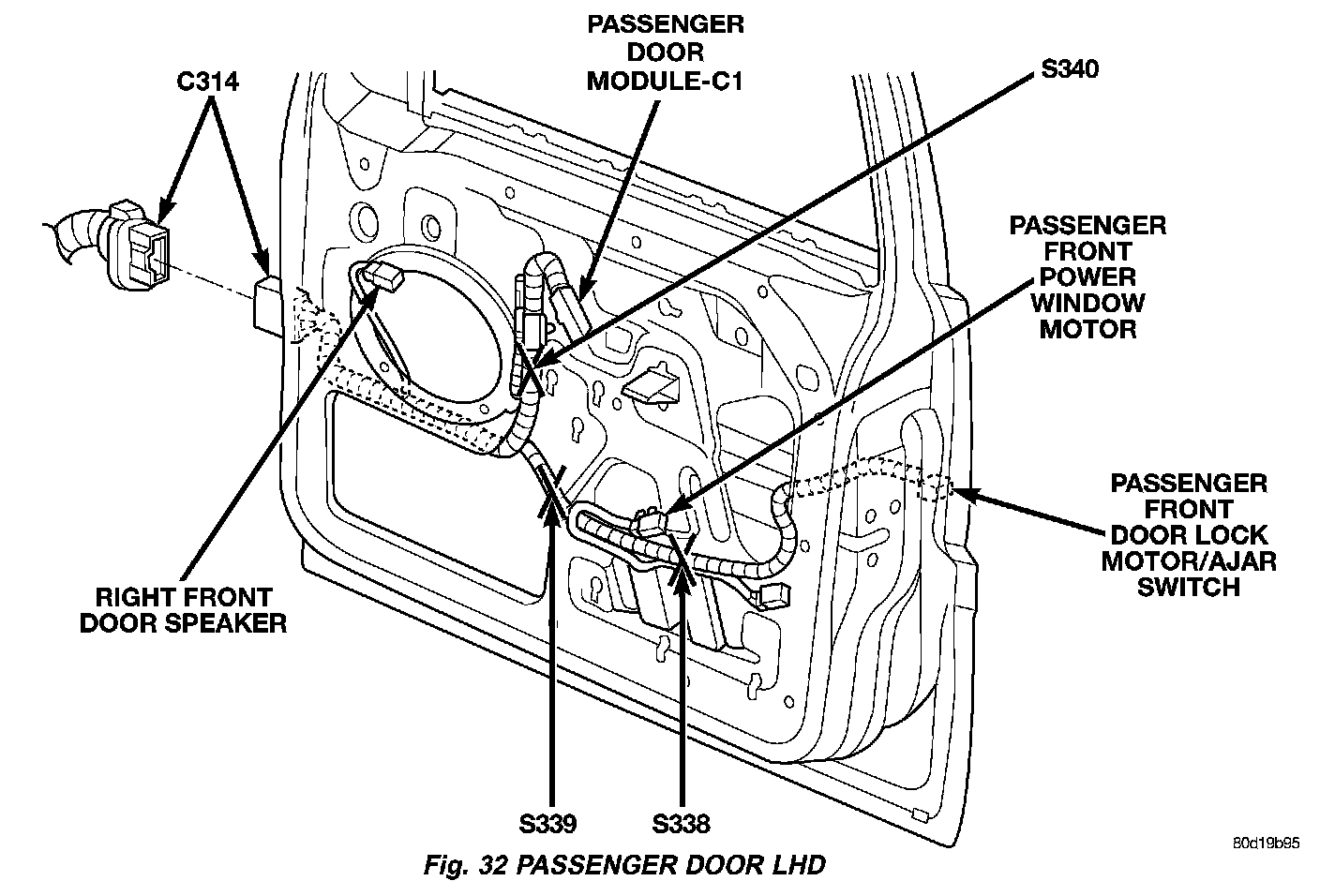

Passenger Door LHD:
