Tail Lamp: Service and Repair

REMOVAL
Bulbs
The brake, turn signal, back-up, and side marker lamp bulbs are incorporated into the tail lamp.
1. Remove the tail lamp.
2. Rotate the bulb socket counterclockwise.
3. Separate the socket from the lamp

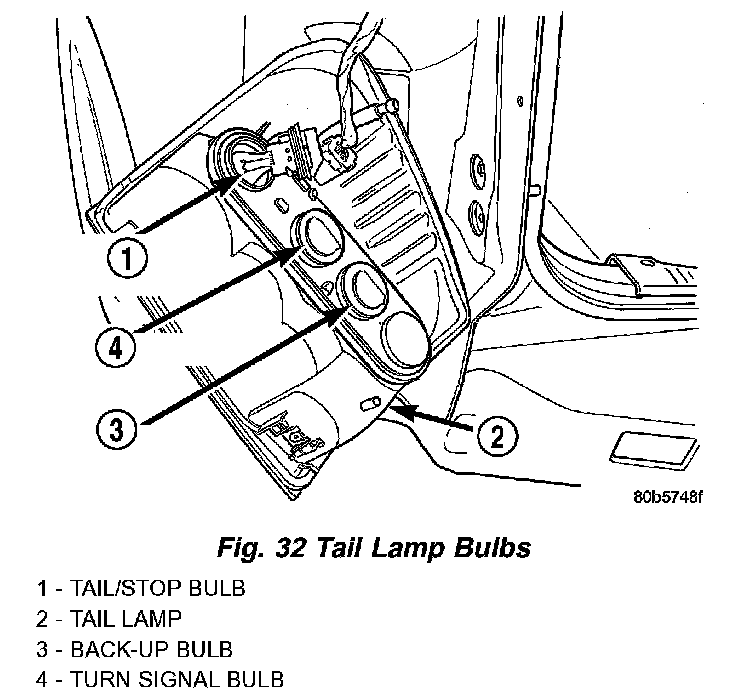

Fig.32 Tail Lamp Bulbs:

4. Remove the bulb from the socket (Fig. 32).

Lamp
The brake, turn signal, back-up, and side marker lamps are incorporated in the tail lamp.

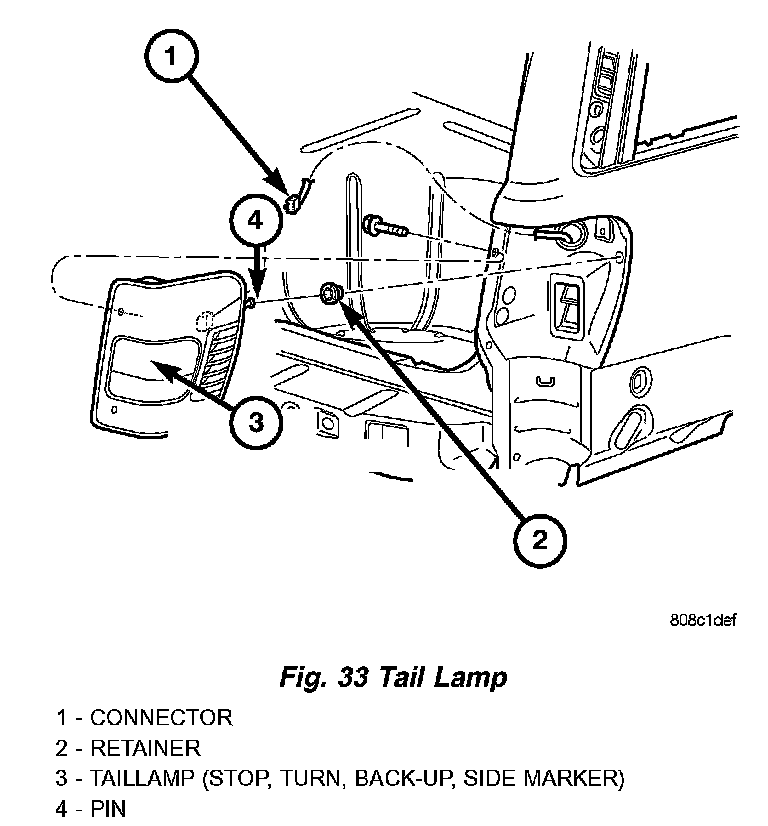

Fig.33 Tail Lamp:

1. Remove the screws attaching the lamp to body (Fig. 33).
2. Disengage the lamp from the alignment pin.
3. Disconnect lamp wire harness connector.
4. Separate lamp from vehicle.

INSTALLATION
Bulbs
1. Position the bulb in socket and push into place.
2. Position the bulb socket in the lamp and rotate clockwise.
3. Install the lamp.

Lamp
The brake, turn signal, back-up, and side marker lamps are incorporated in the tail lamp.
1. Position the lamp.
2. Connect the lamp wire harness connector.
3. Align the pin with the retainer and press the lamp inward to engage.
4. Install the screws attaching the lamp to body.
