Headlamp Replacement

REMOVAL
Bulb
1. Remove the headlamp.
2. Turn the bulb socket one quarter turn counter clockwise.

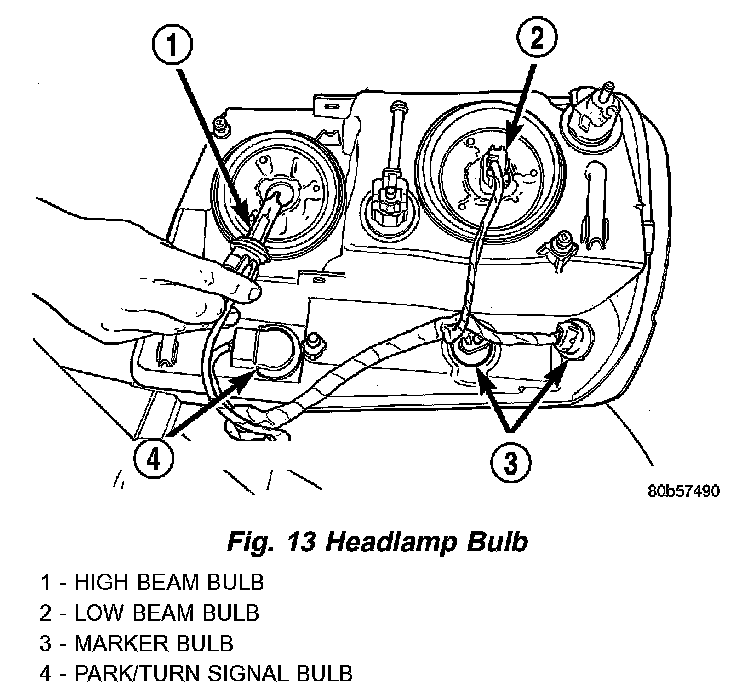

Fig.13 Headlamp Bulb:

3. Remove the socket from lamp.
4. Remove the bulb from socket.

INSTALLATION
Bulb

CAUTION: Do not touch the bulb glass with fingers or other oily surfaces. Reduced bulb life will result.

1. Position the bulb into socket and push into place.
2. Position the bulb socket in headlamp and turn the bulb socket one quarter turn clockwise.
3. Install the headlamp.
