Fog/Driving Lamp: Adjustments

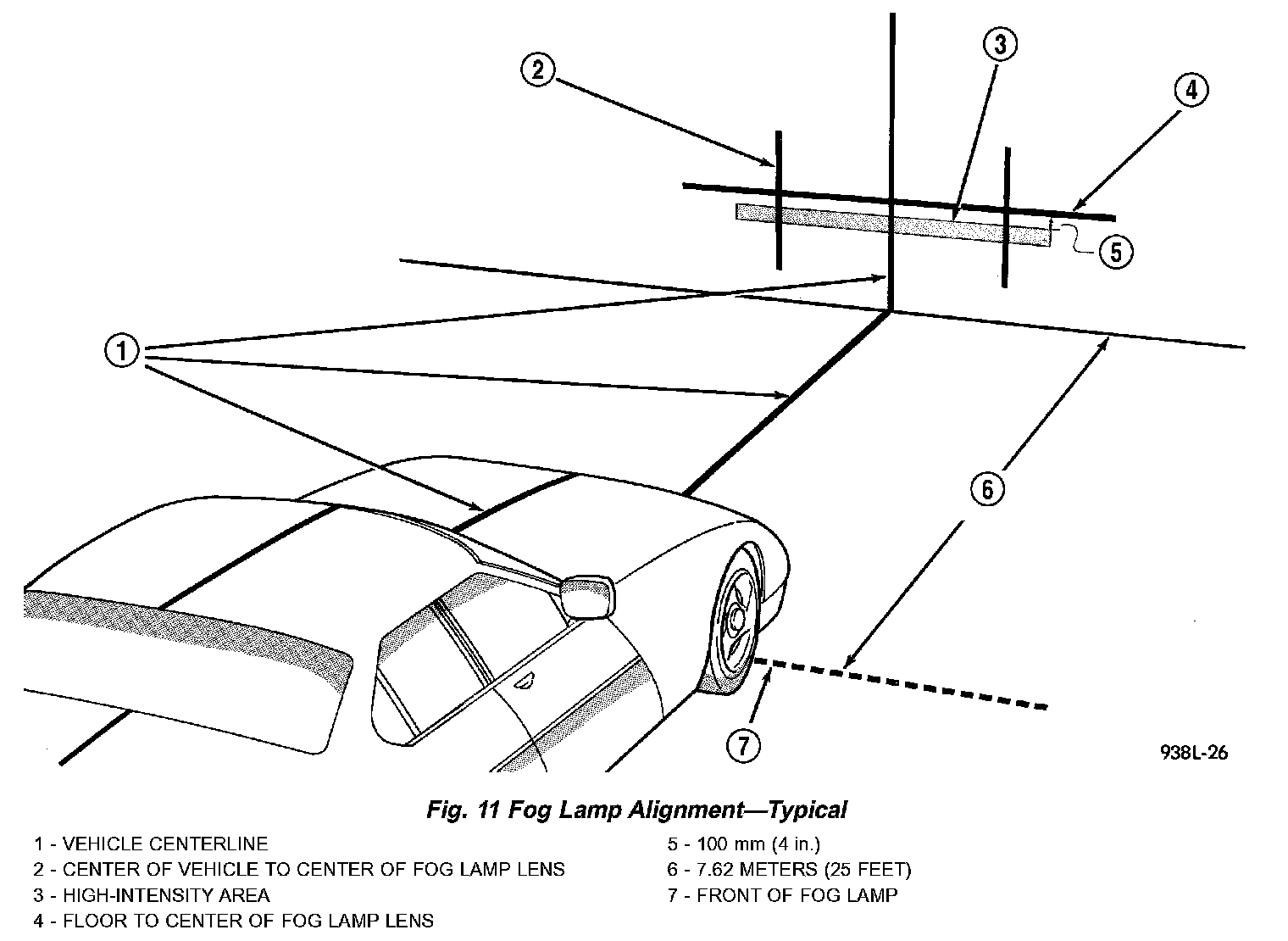

Fig.11 Fog Lamp Alignment - Typical:

Prepare an alignment screen. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp centerline and straight ahead.

Fig.13 Fog Lamp Adjustment:

Rotate the adjustment screw to adjust beam height.
