Instrument Panel Ducts Replacement

REMOVAL
1. Remove the instrument panel top pad from the vehicle.

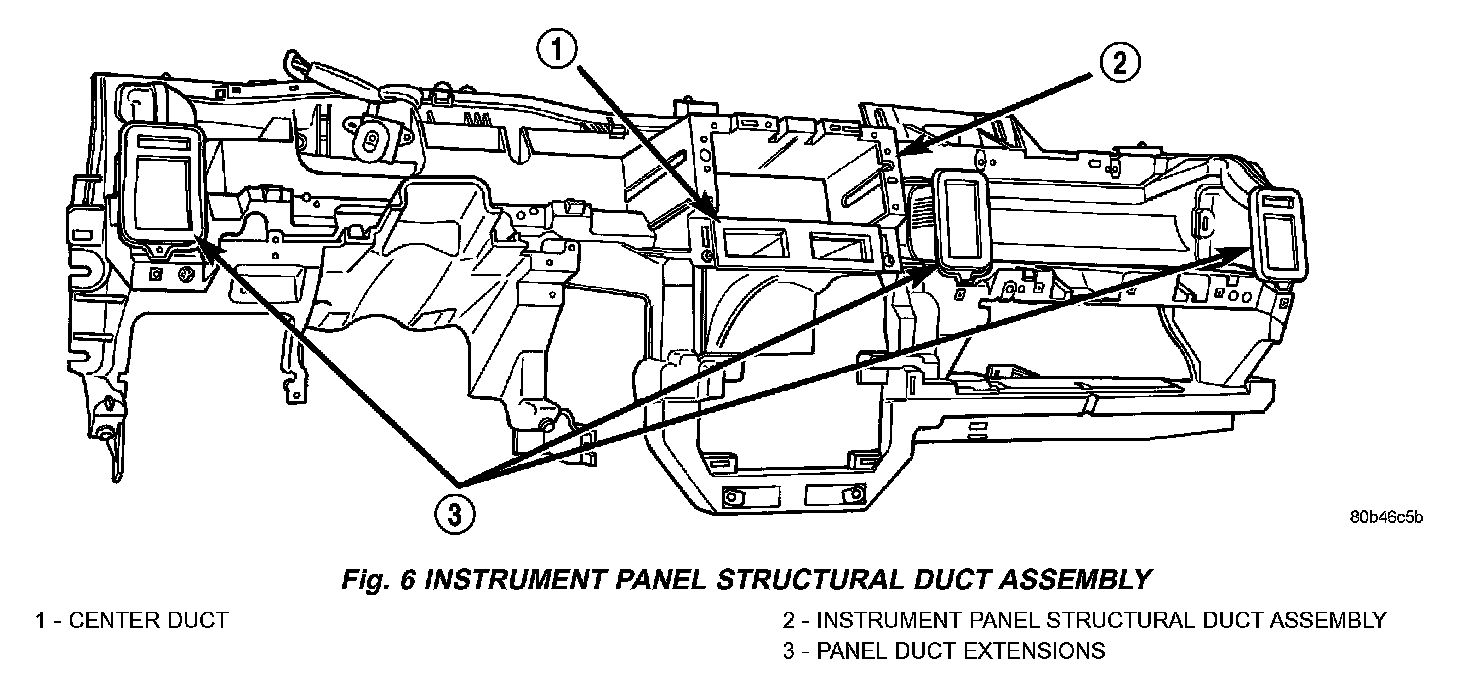

Fig.6 Instrument Panel Structural Duct Assembly:

2. Unsnap the duct extension(s) from the instrument panel structural duct assembly.

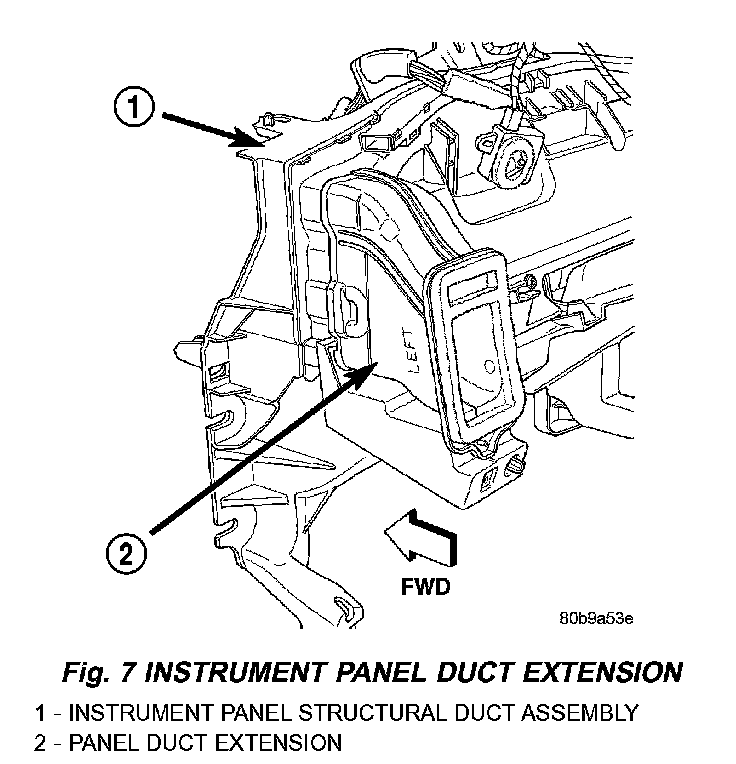

Fig.7 Instrument Panel Duct Extension:

3. Remove the duct extension(s) from the instrument panel.

INSTALLATION
1. Connect the duct extension(s) to the instrument panel.
2. Snap the duct extension(s) to the instrument panel structural duct assembly.
3. Install the instrument panel top pad in the vehicle.
