DIAGNOSIS AND TESTING - SERPENTINE DRIVE BELT

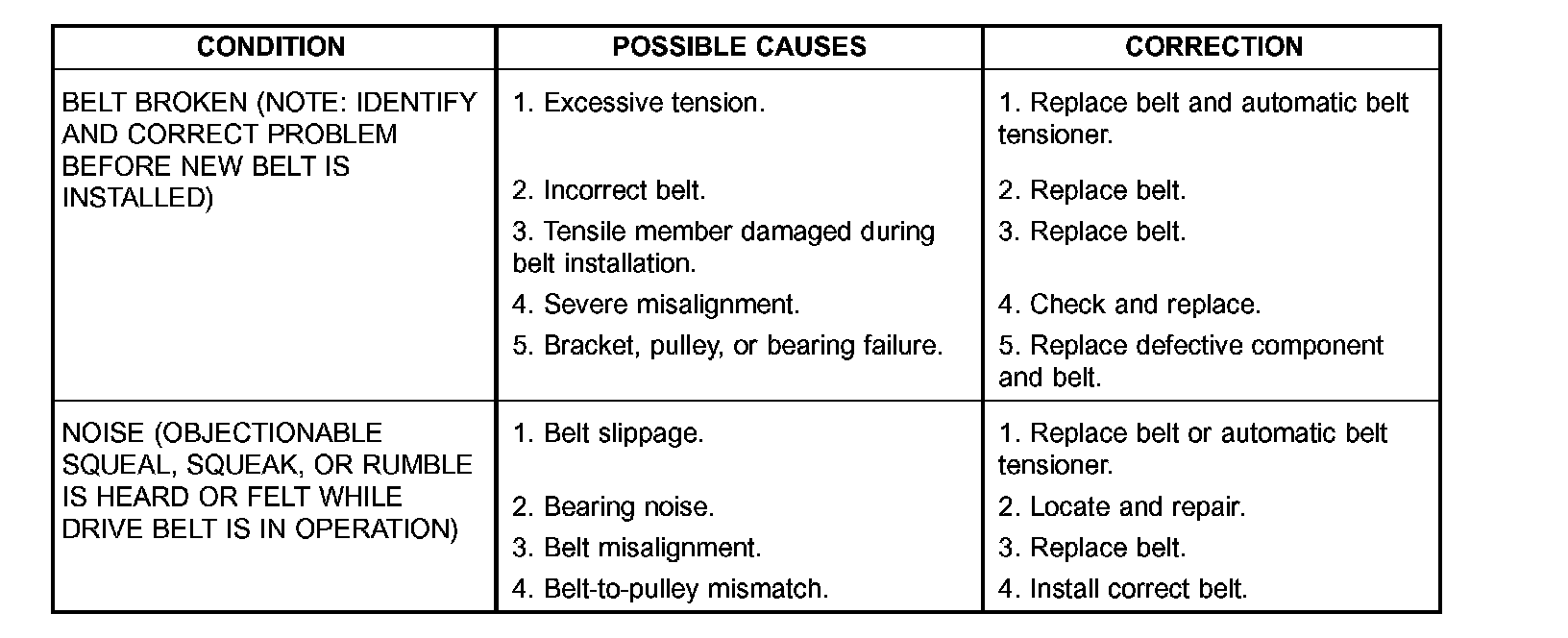

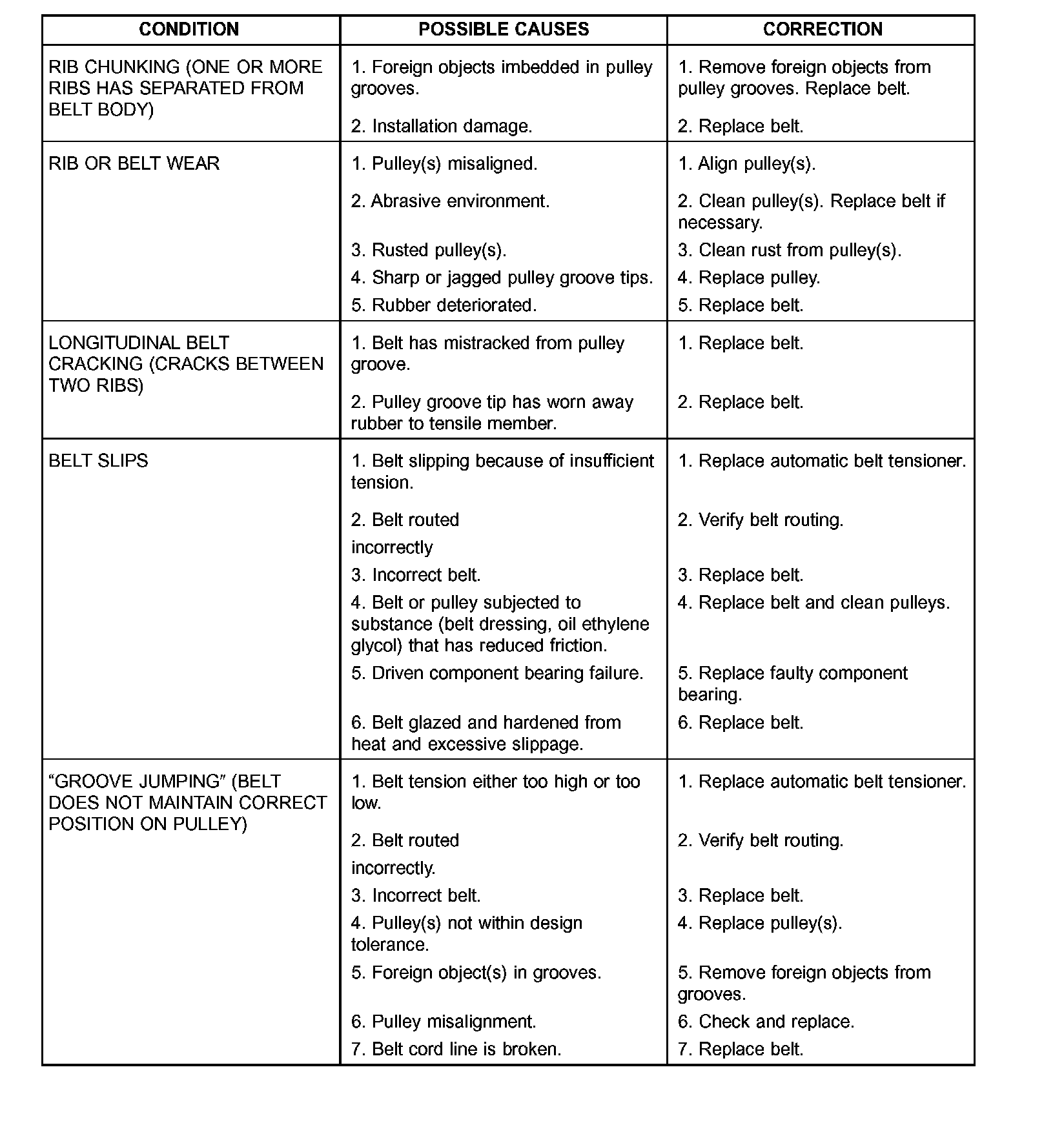

SERPENTINE DRIVE BELT DIAGNOSIS CHART

When diagnosing serpentine drive belts, small cracks that run across ribbed surface of belt from rib to rib (Fig. 6), are considered normal. These are not a reason to replace belt. However, cracks running along a rib (not across) are not normal. Any belt with cracks running along a rib must be replaced (Fig. 6). Also replace belt if it has excessive wear, frayed cords or severe glazing.
Refer to SERPENTINE DRIVE BELT DIAGNOSIS CHART for further belt diagnosis.
