Rear Mount

REAR MOUNT

REMOVAL
1. Raise vehicle on hoist.
2. Using a suitable jack, support transmission.
3. Remove the lock nut from the insulator mount through bolt and the four insulator-to-transmission mounting bolts.

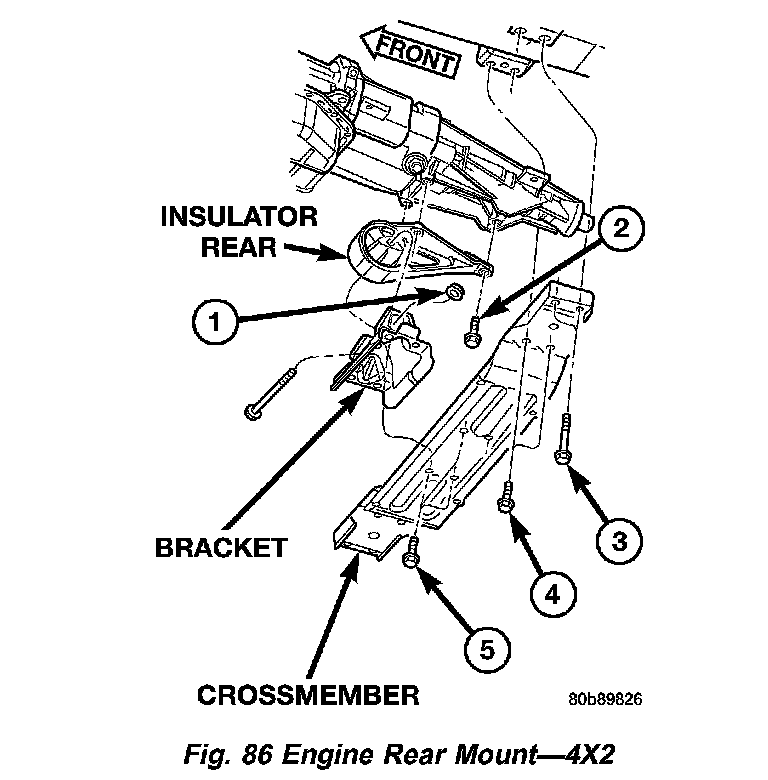

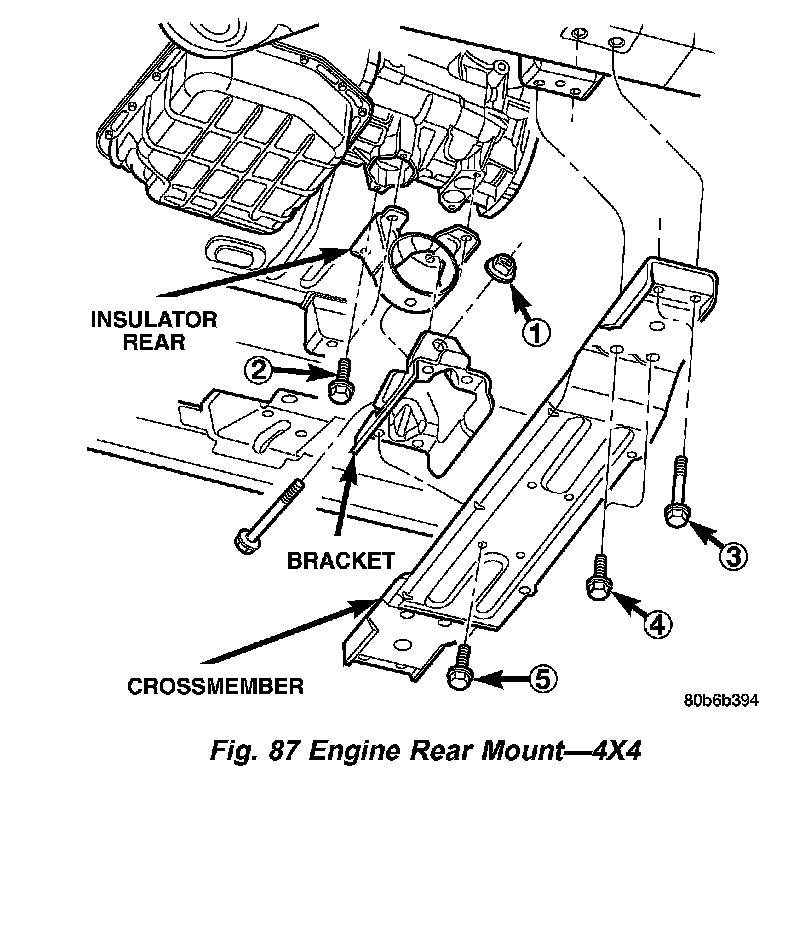

4. Raise the transmission enough to remove the through bolt and insulator mount (Fig. 86) (Fig. 87).





INSTALLATION
1. Position the insulator mount and install the through bolt.
2. Lower the transmission enough to install the four insulator-to-transmission mounting bolts. Torque the bolts to 46 Nm (34 ft. lbs.).
3. Install the through bolt lock nut. Torque nut to 68 Nm (50 ft. lbs.).
4. Remove jack, lower vehicle.
