Front Mount

FRONT MOUNT

REMOVAL
1. Disconnect the negative cable from the battery.

CAUTION: Remove the fan blade, fan clutch and fan shroud before raising engine. Failure to do so may cause damage to the fan blade, fan clutch and fan shroud.

2. Remove the engine oil filter.
3. Support the engine with a suitable jack and a block of wood across the full width of the engine oil pan.

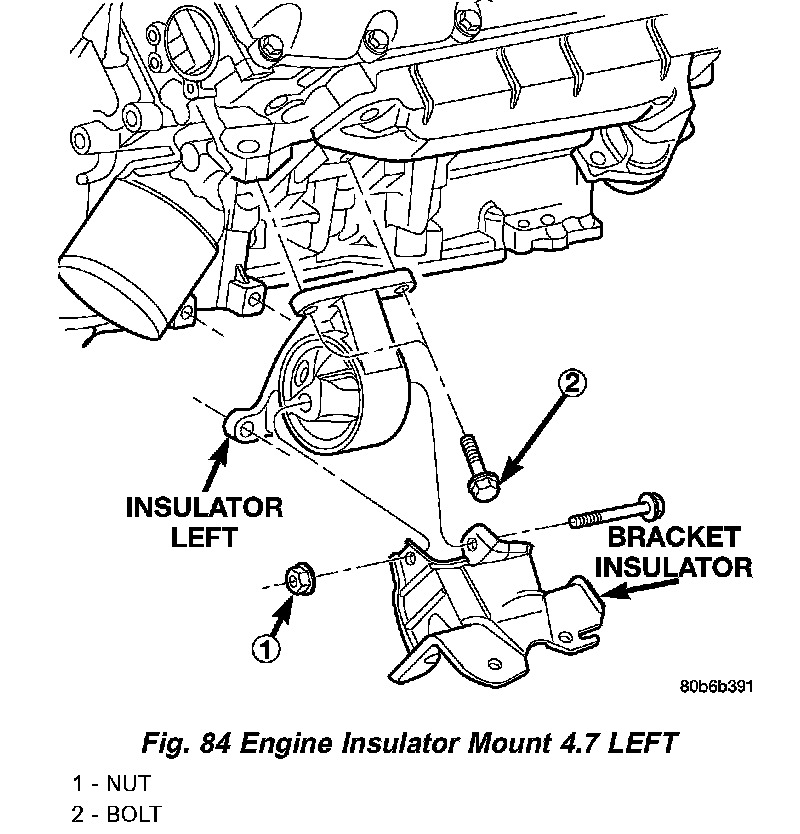

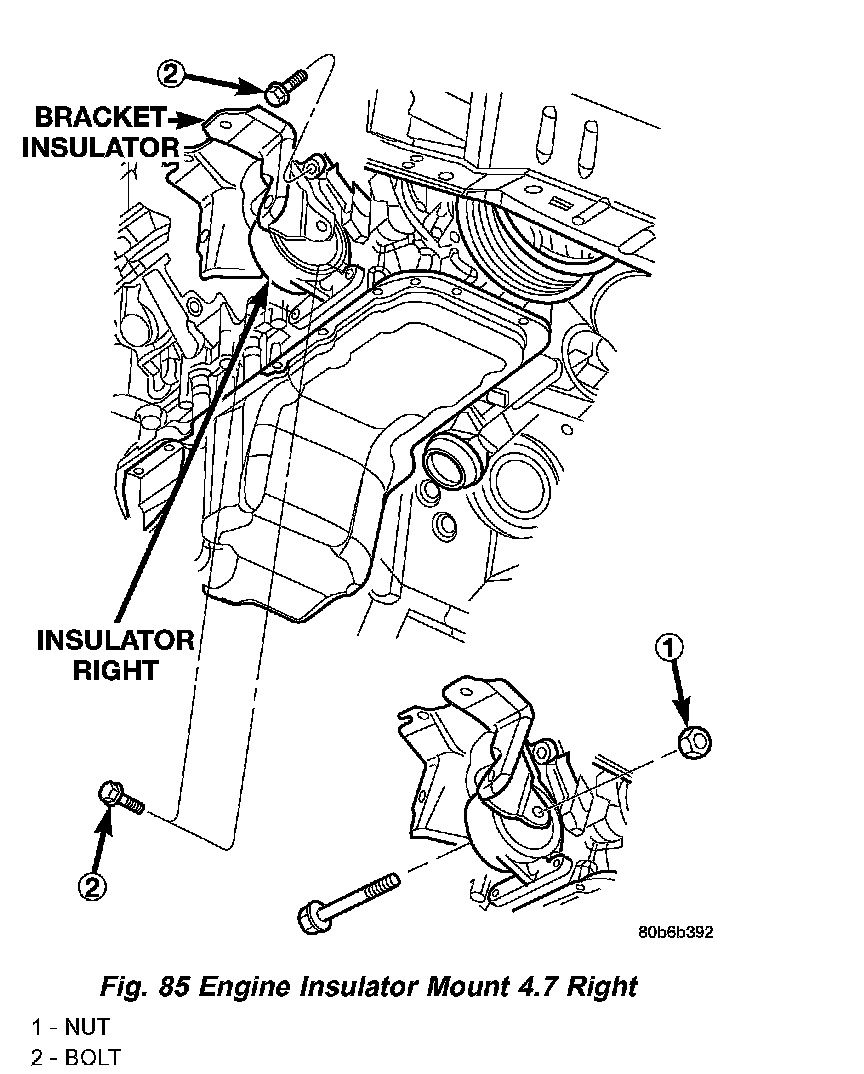

4. Remove the four cylinder block-to-insulator mount bolts and the nut form the engine insulator mount through bolt (Fig. 84) (Fig. 85)
5. Using the jack, raise the engine high enough to remove the engine insulator mount through bolt and the insulator mount.

INSTALLATION
1. Position the insulator mount and install the insulator mount through bolt.
2. Lower the engine until the four cylinder block-to-insulator mount bolts can be installed.
3. Remove the jack and block of wood.
4. Torque the cylinder block-to-insulator mount bolts to 61 Nm (45 ft. lbs.).
5. Install and torque the through bolt retaining nut to 61 Nm (45 ft. lbs.).
