Diagnosis By Symptom

DIAGNOSIS AND TESTING - COOLING SYSTEM DIAGNOSIS CHART

COOLING SYSTEM DIAGNOSIS CHART

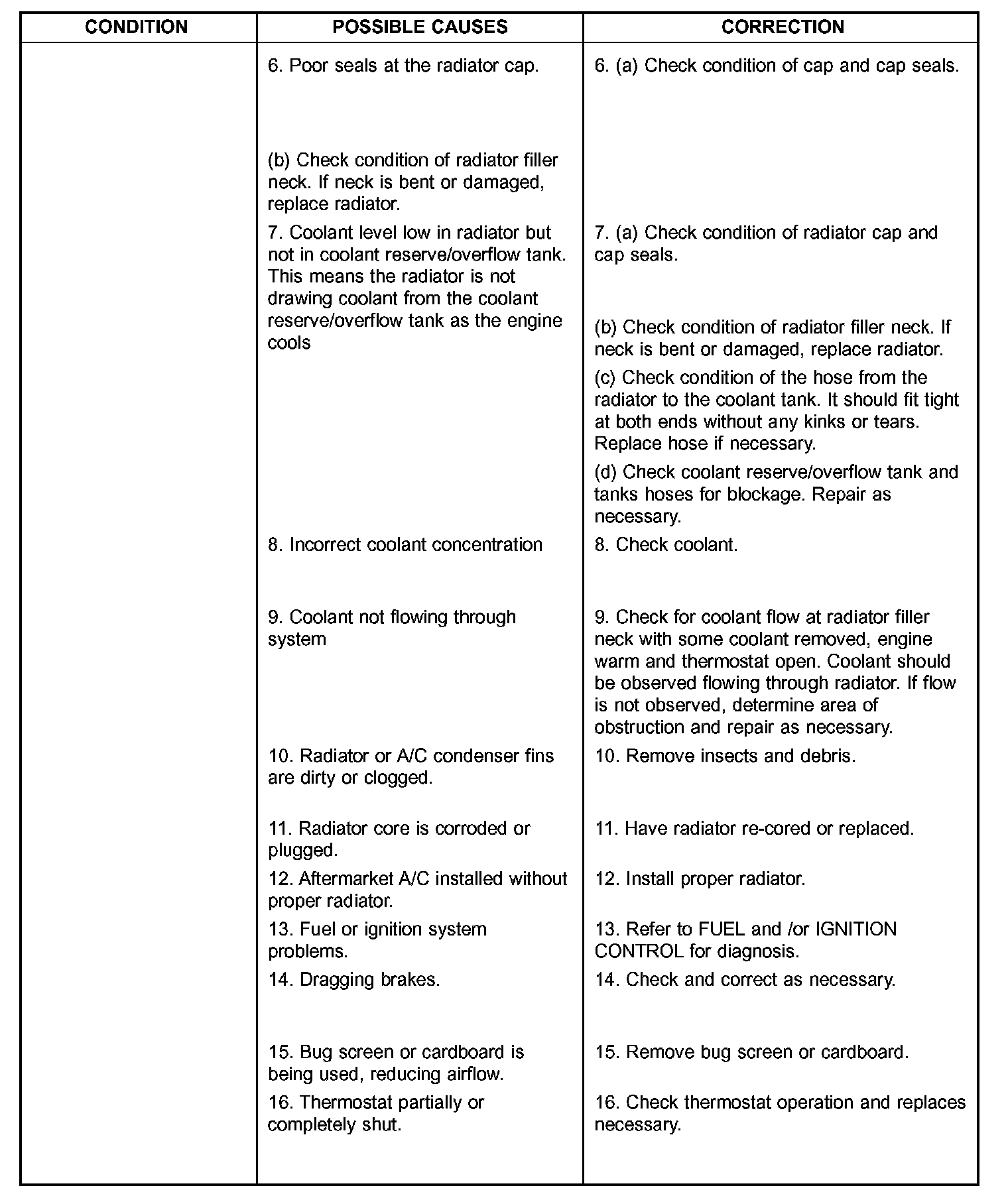

Part 1 of 6

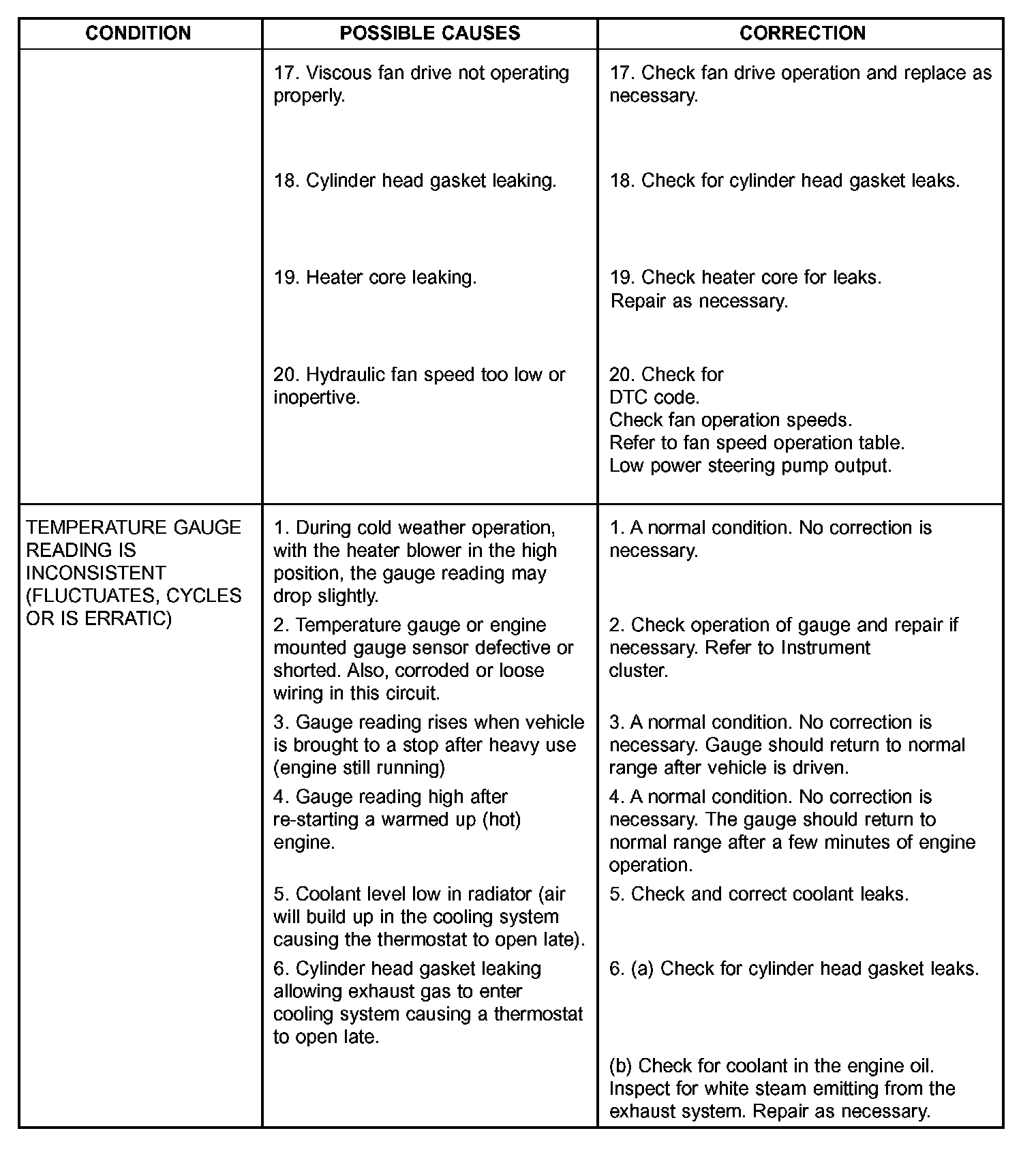

Part 2 of 6

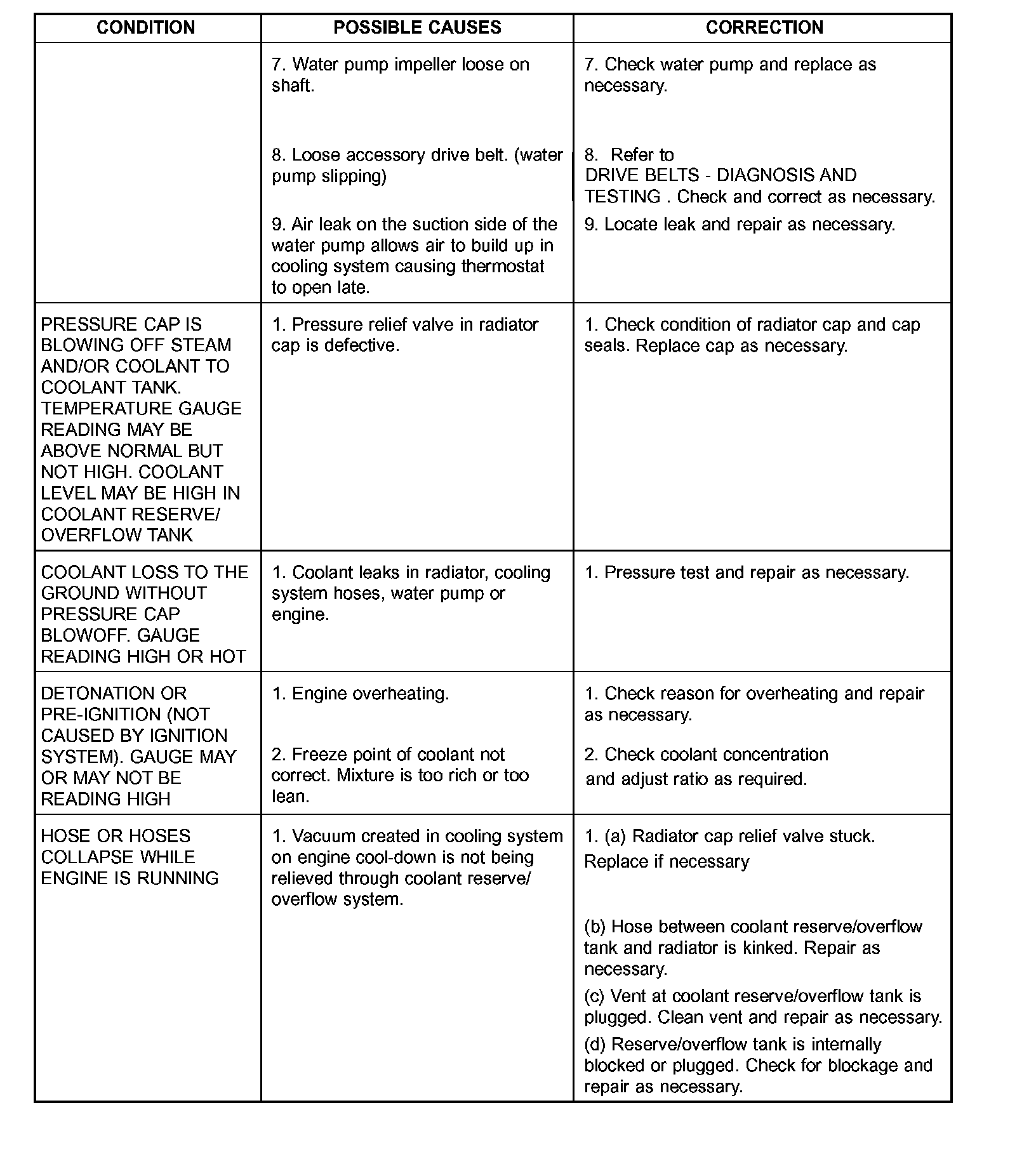

Part 3 of 6

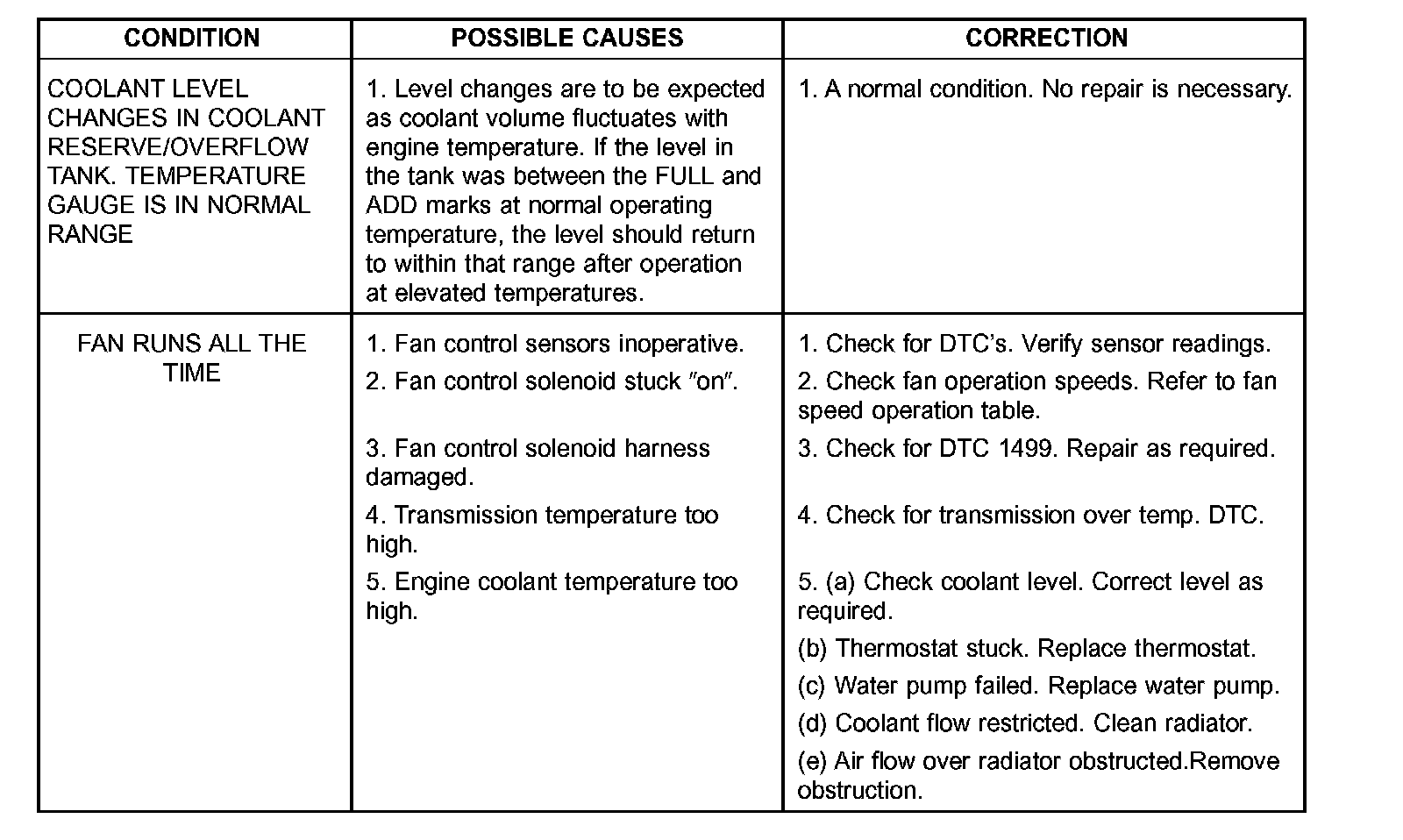

Part 4 of 6

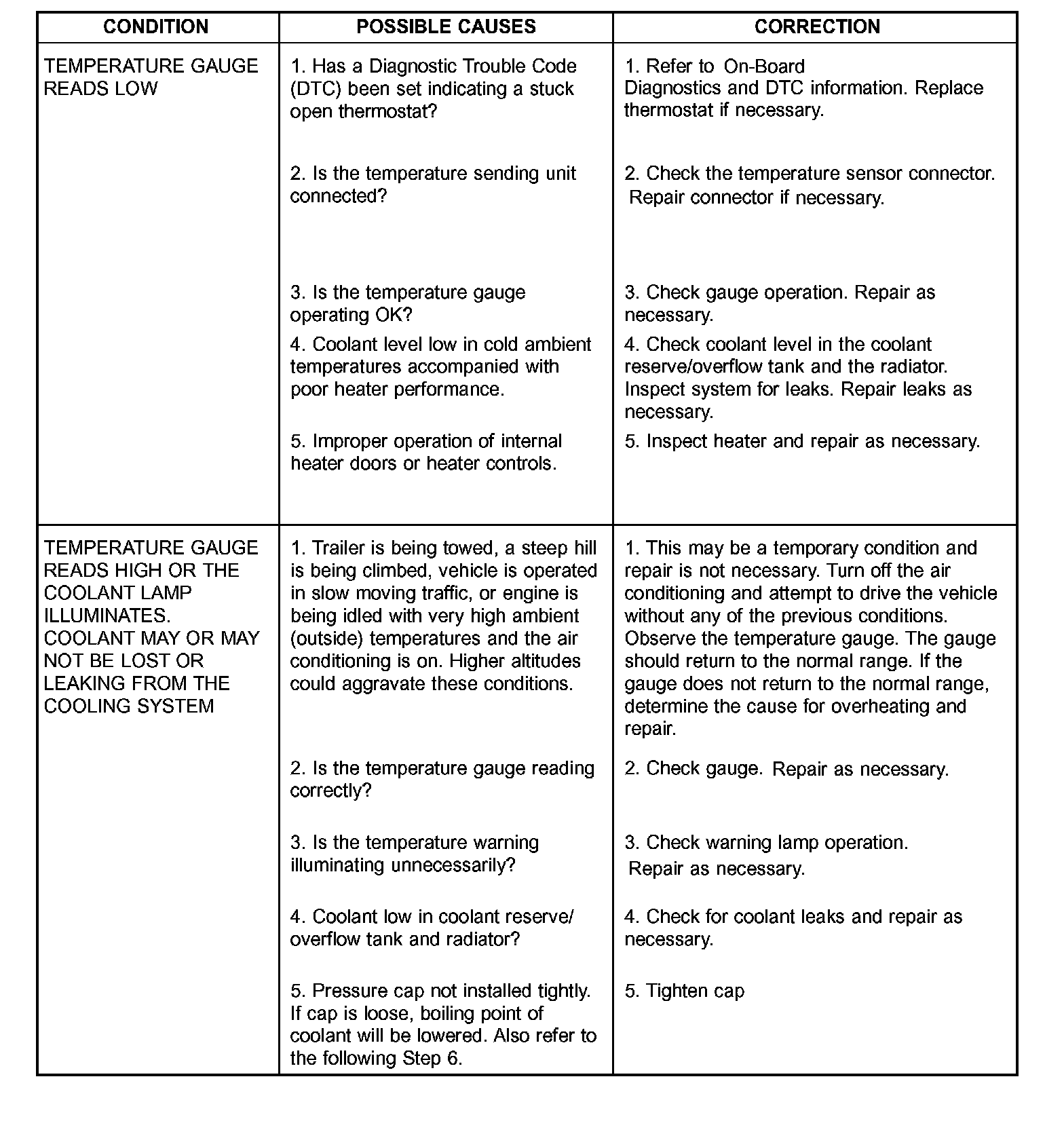

Part 5 of 6

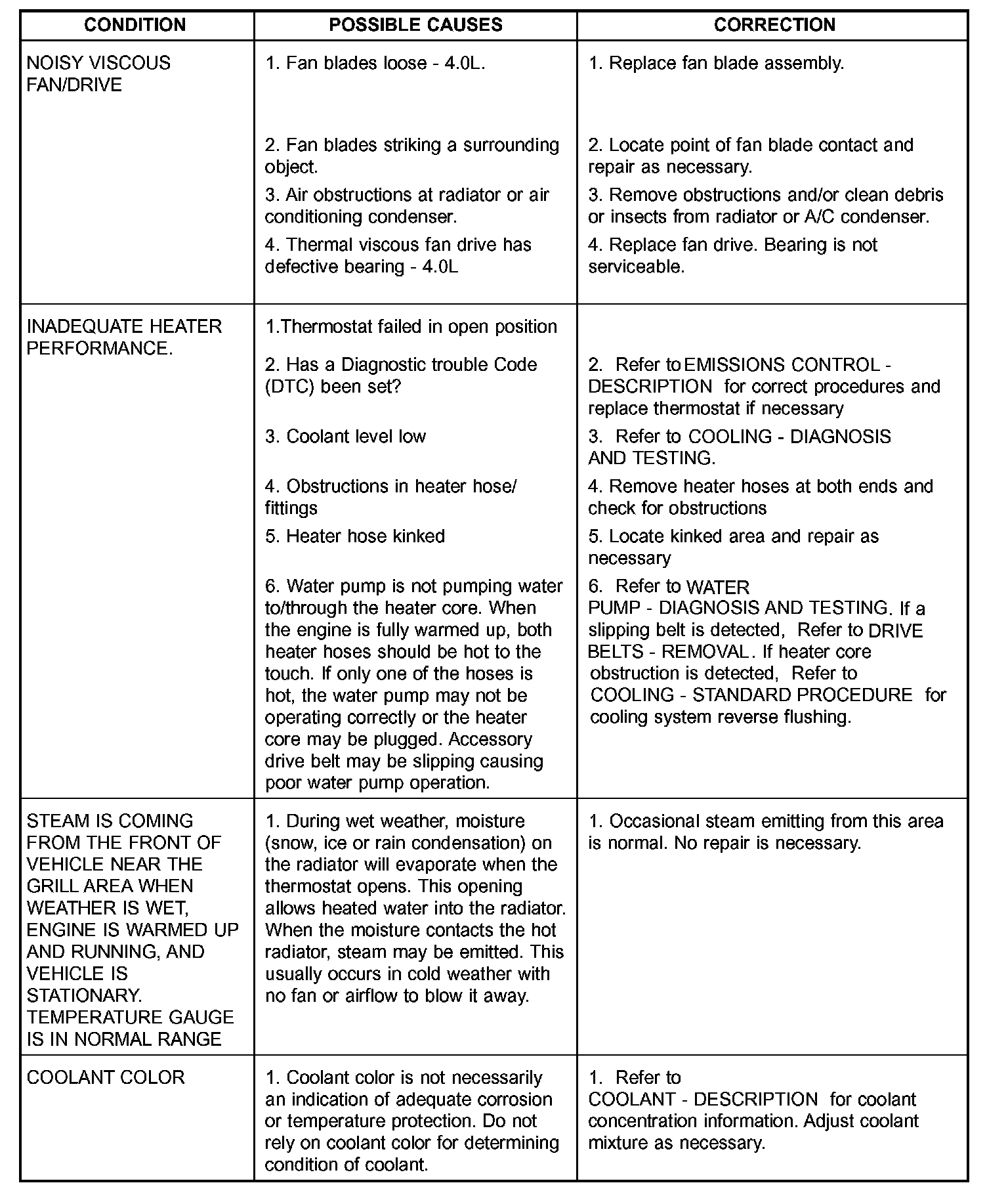

Part 6 of 6
