Home >> Jeep >> 2003 >> Grand Cherokee 2WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Splices >> Figure 6

Figure 6

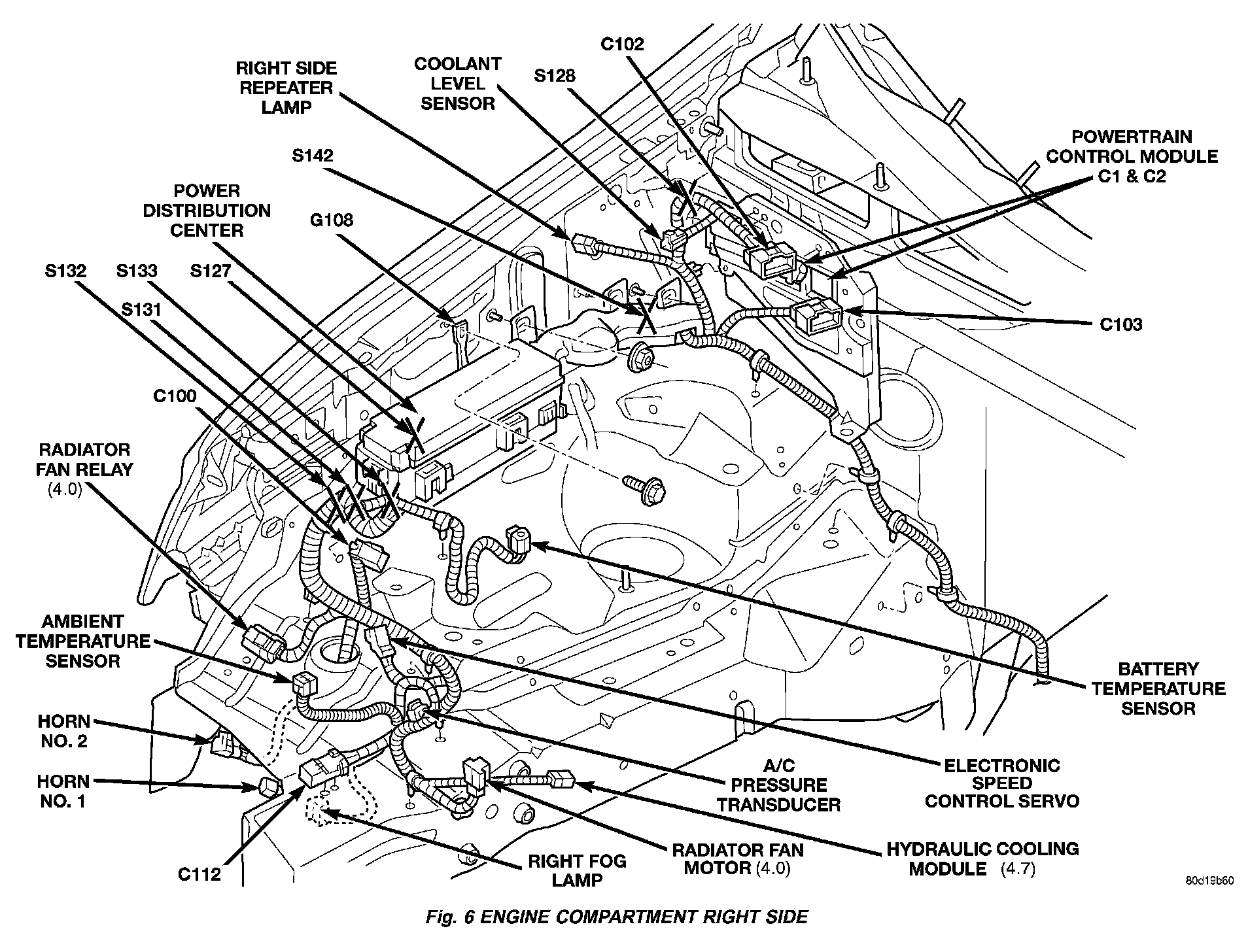

Fig. 6 Engine Compartment Right Side:
