Automatic Transmission/Transaxle

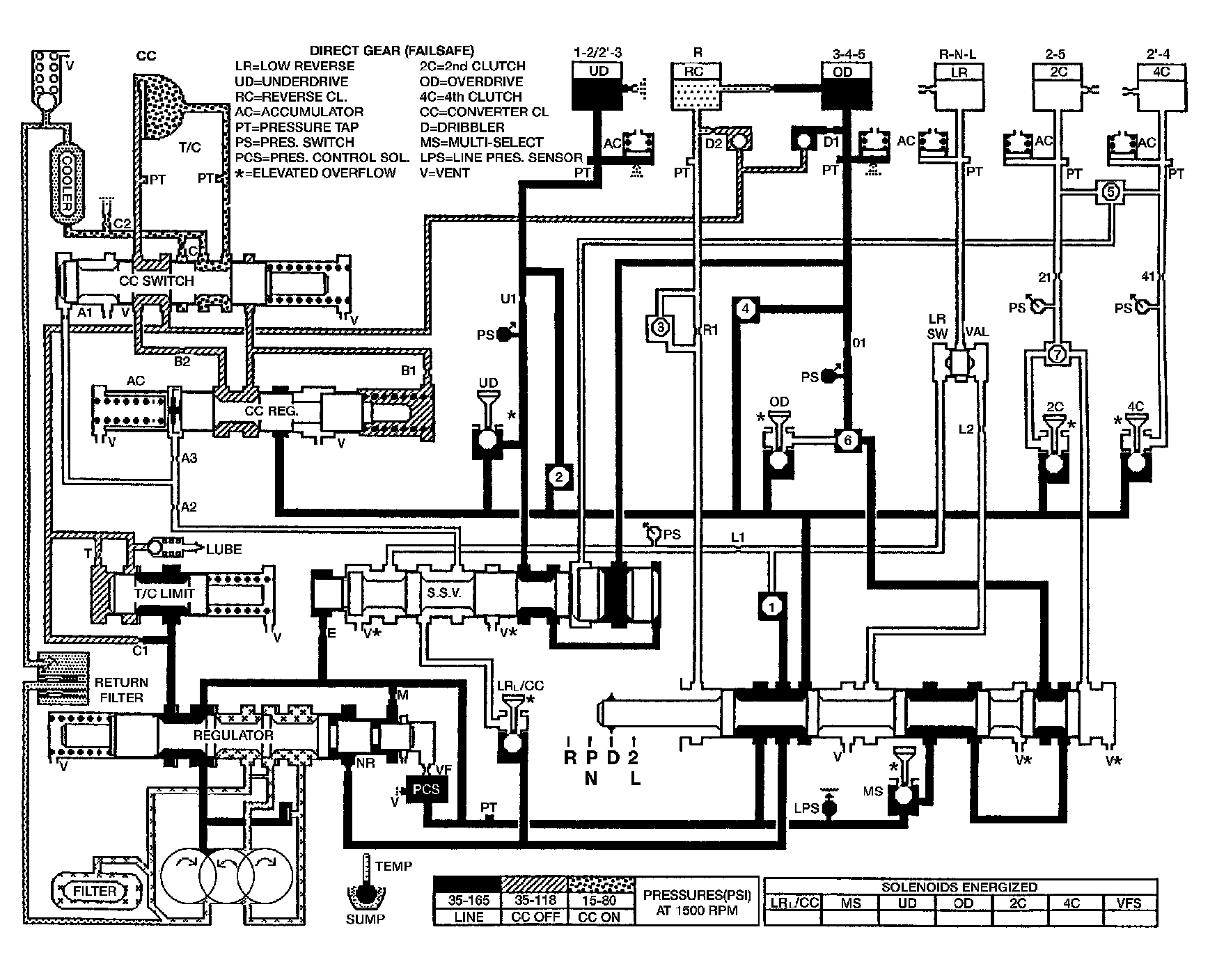

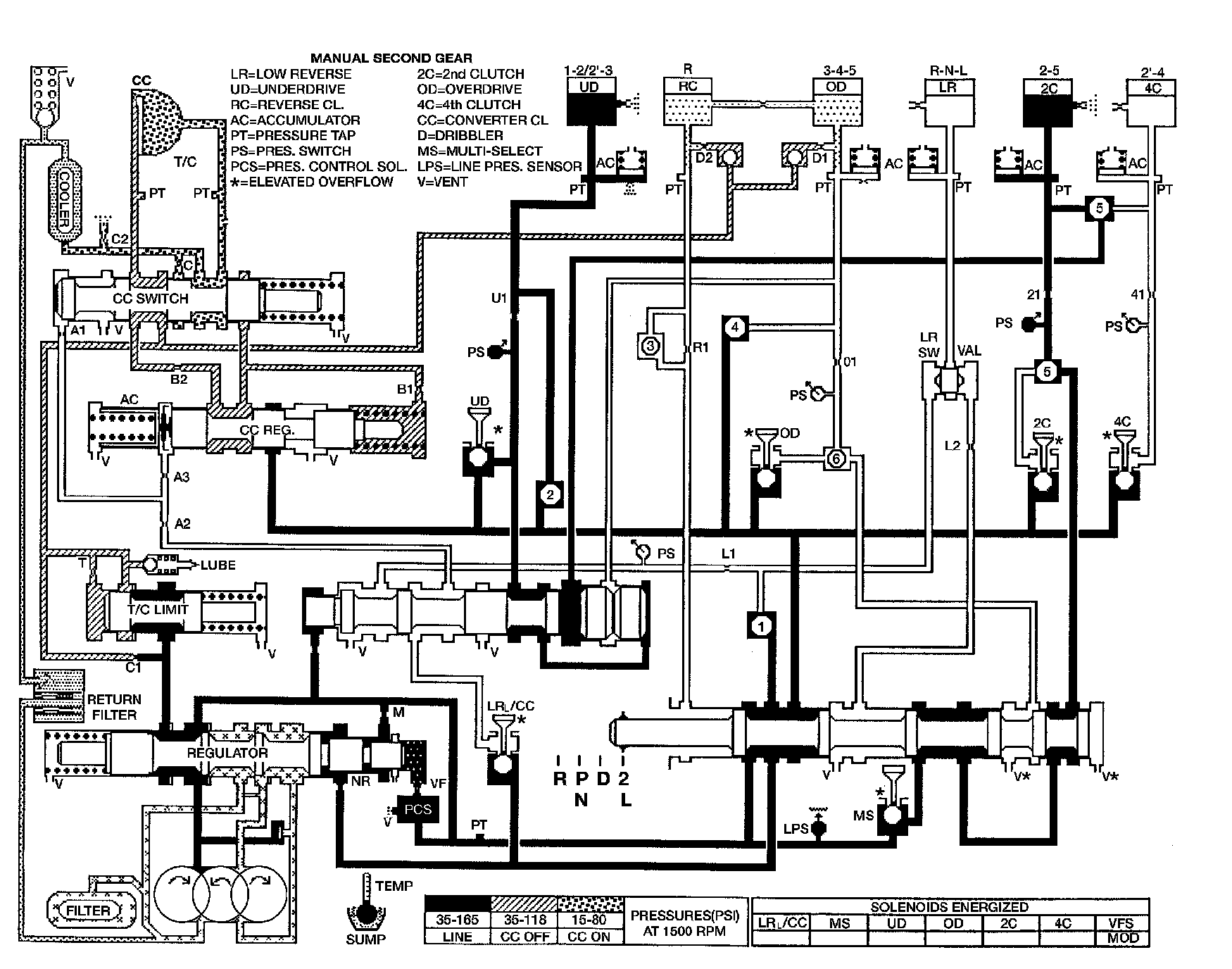

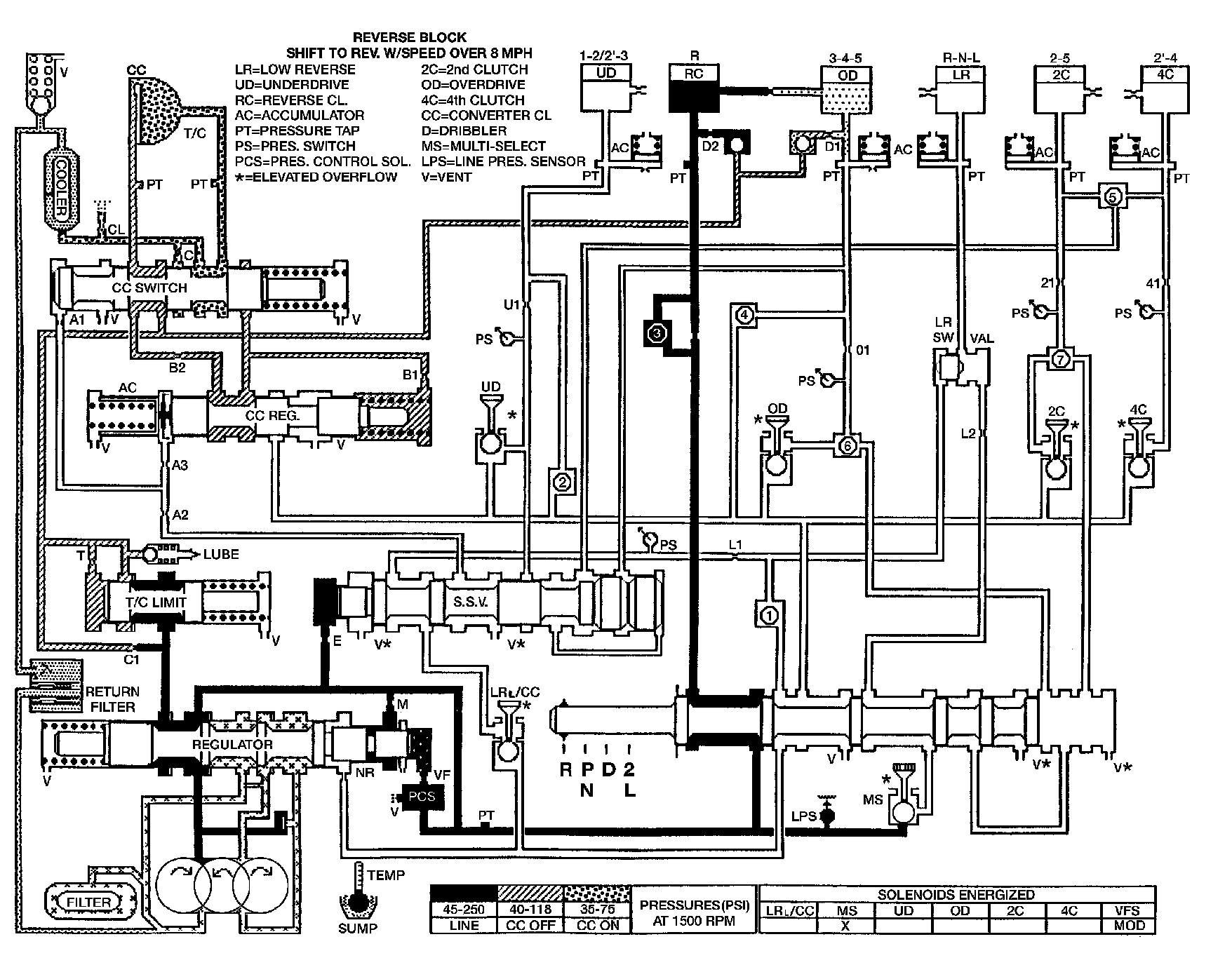

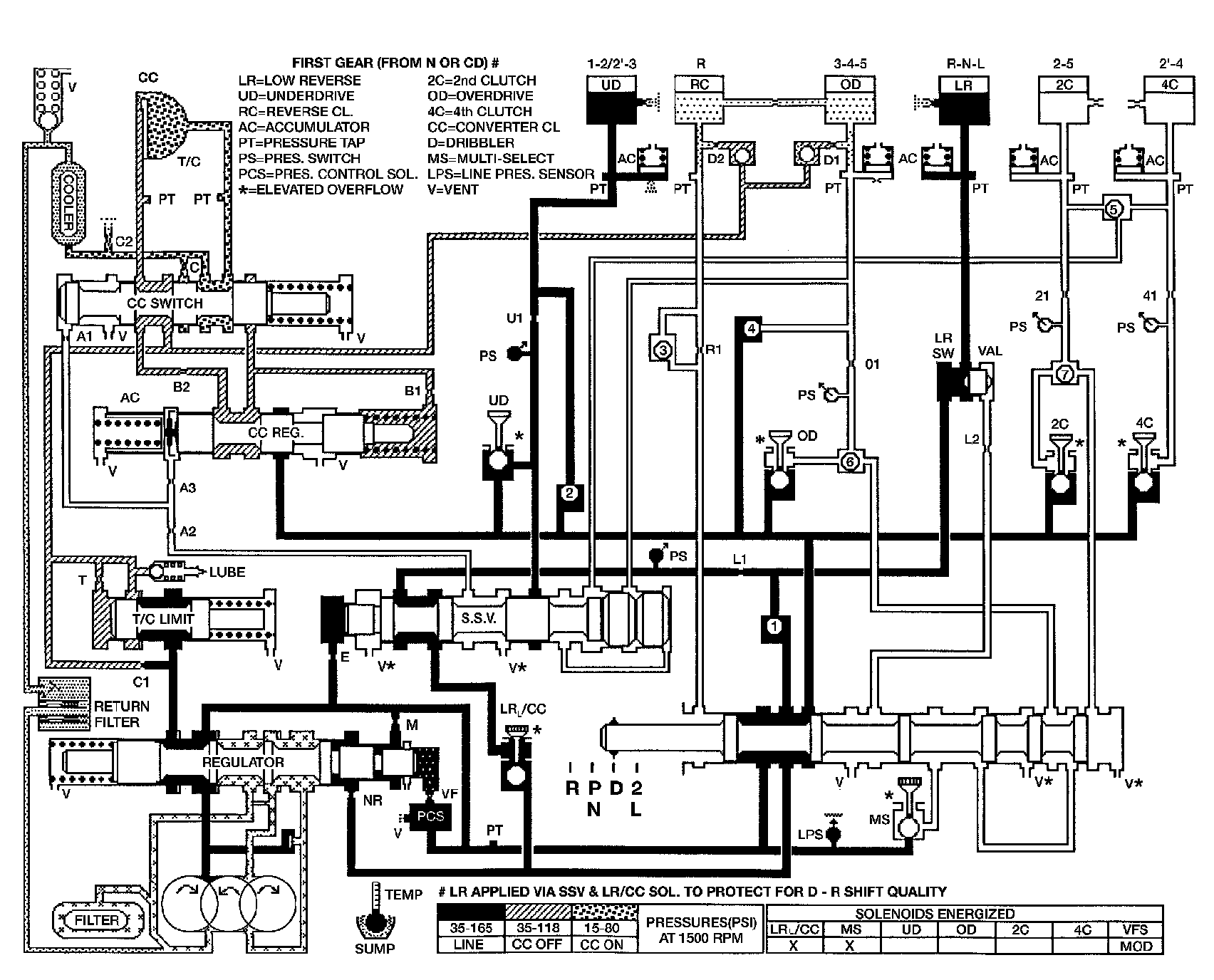

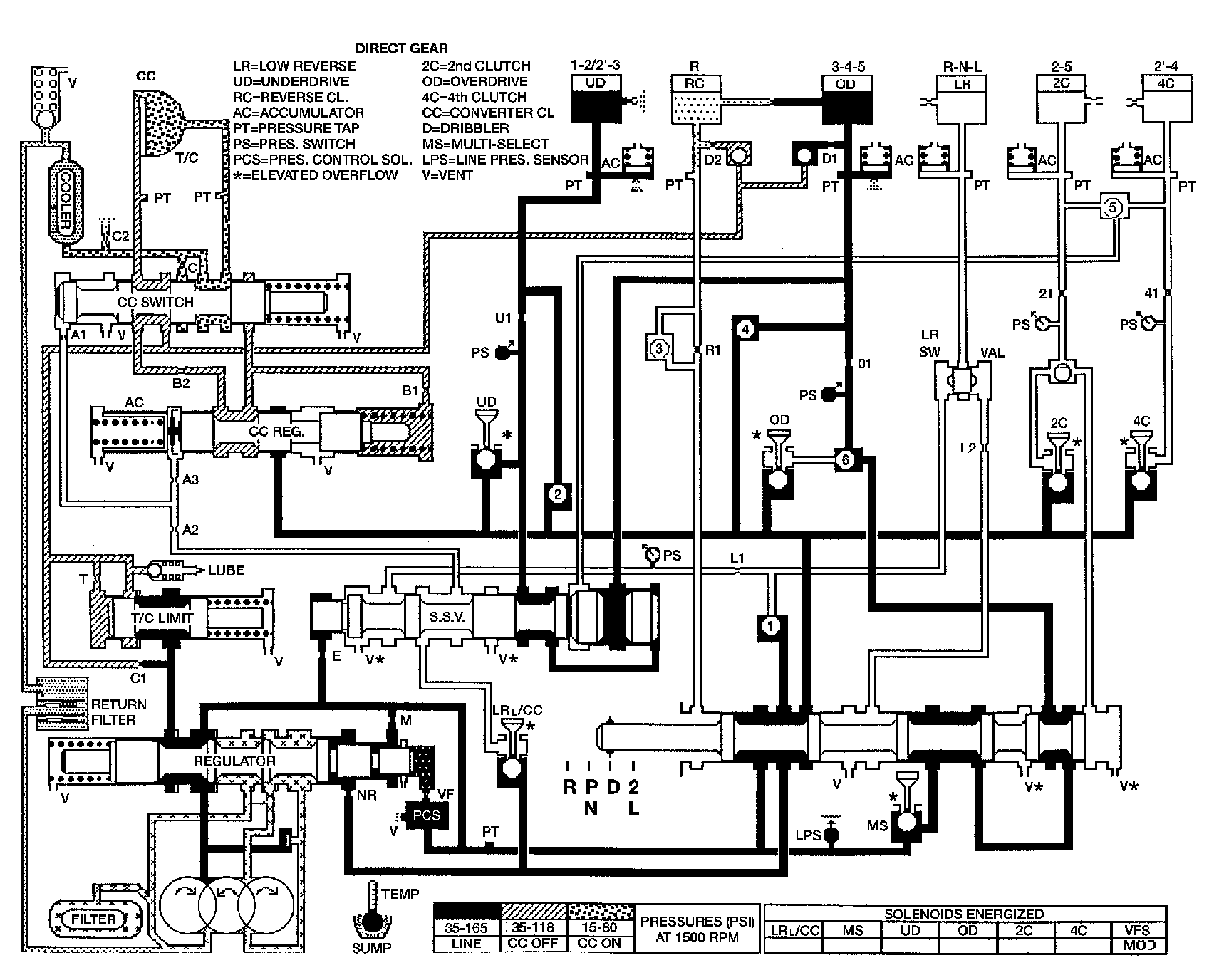

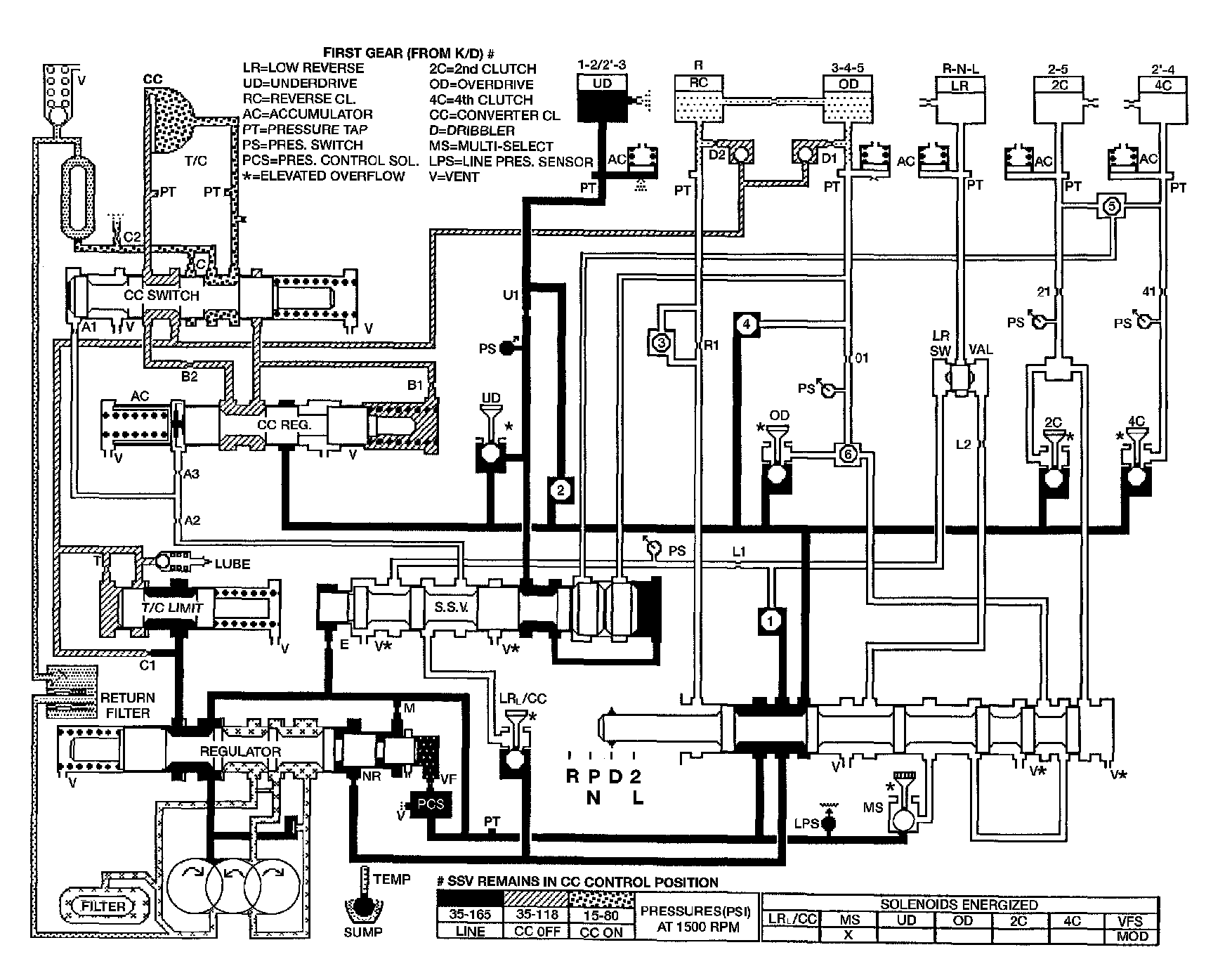

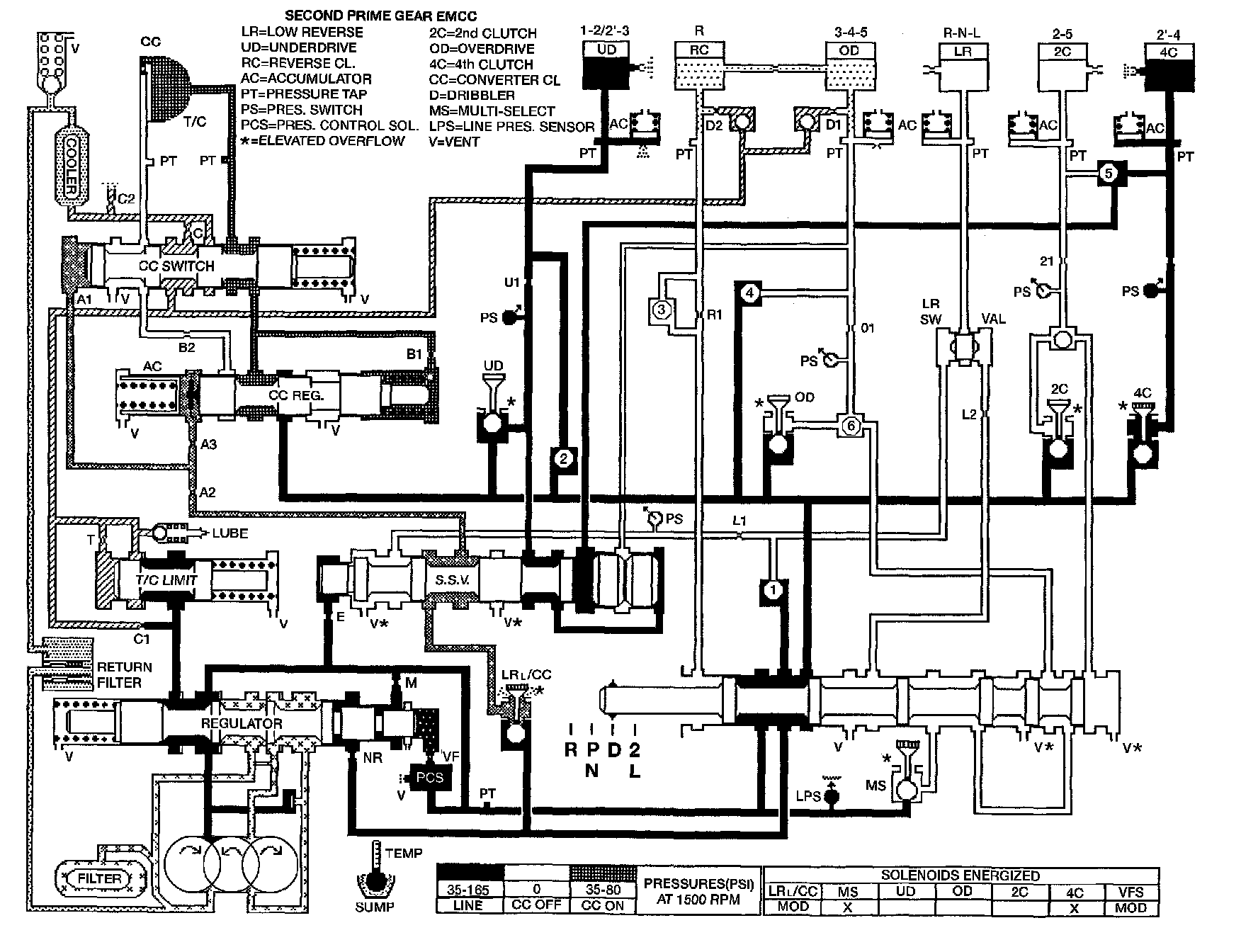

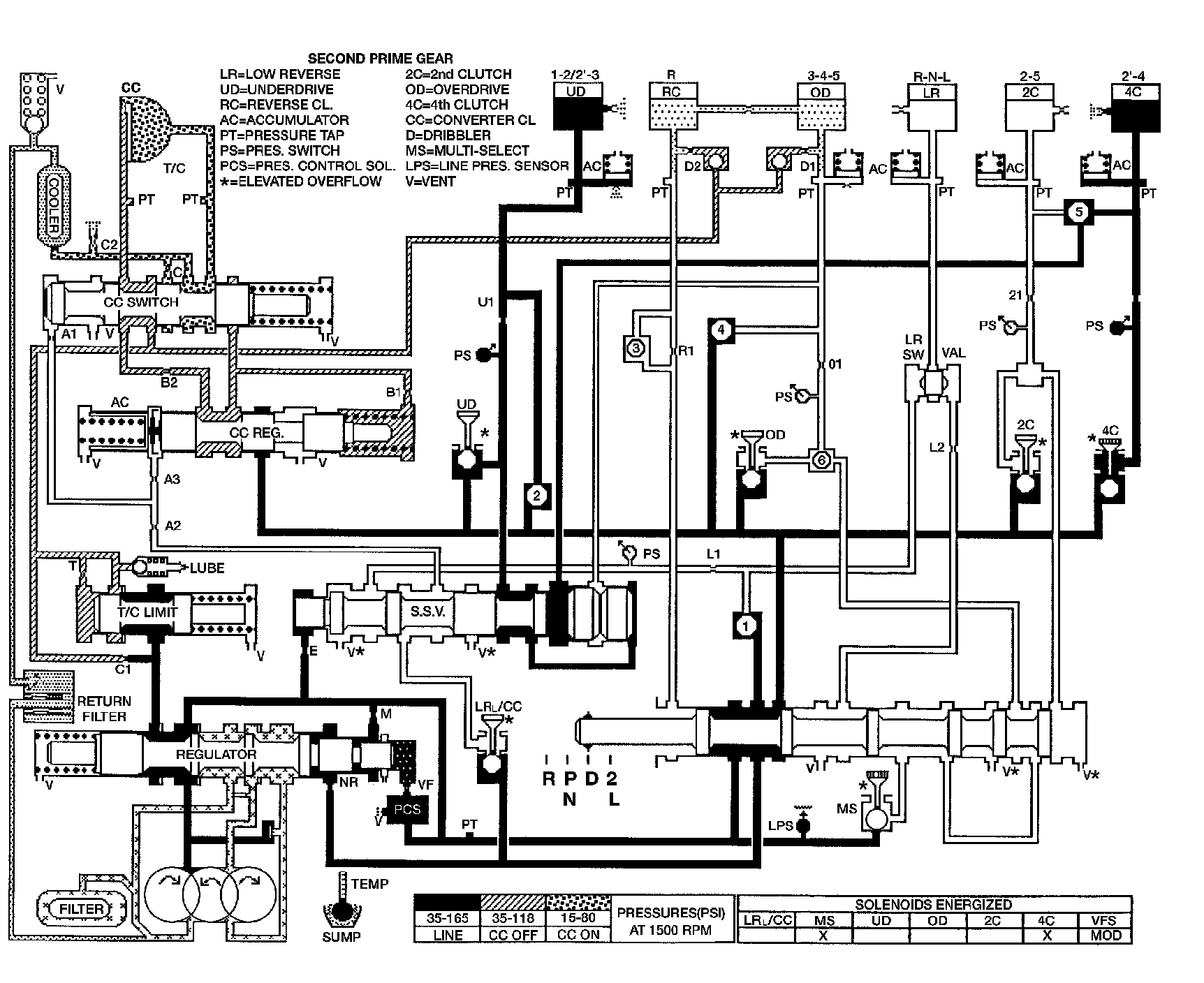

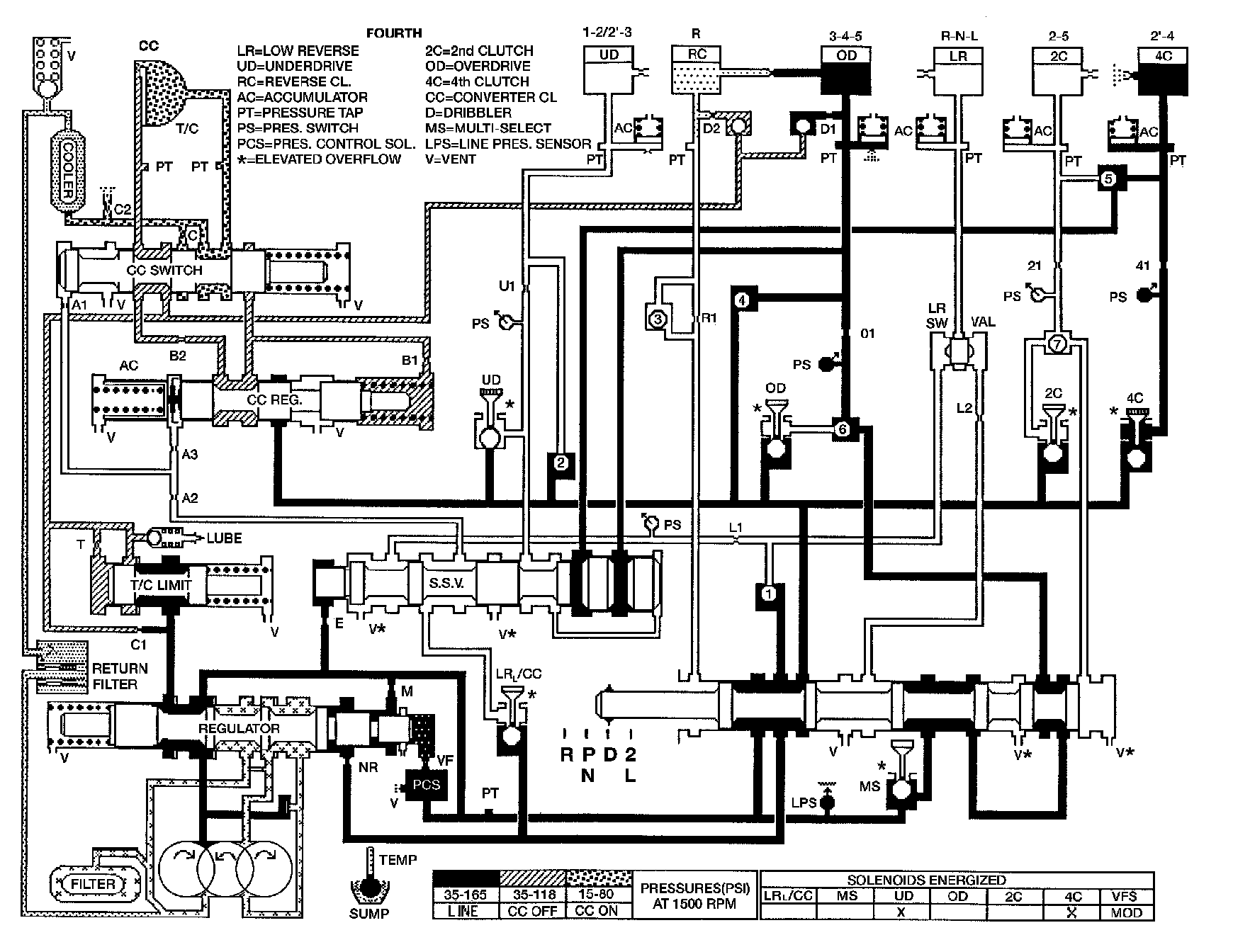

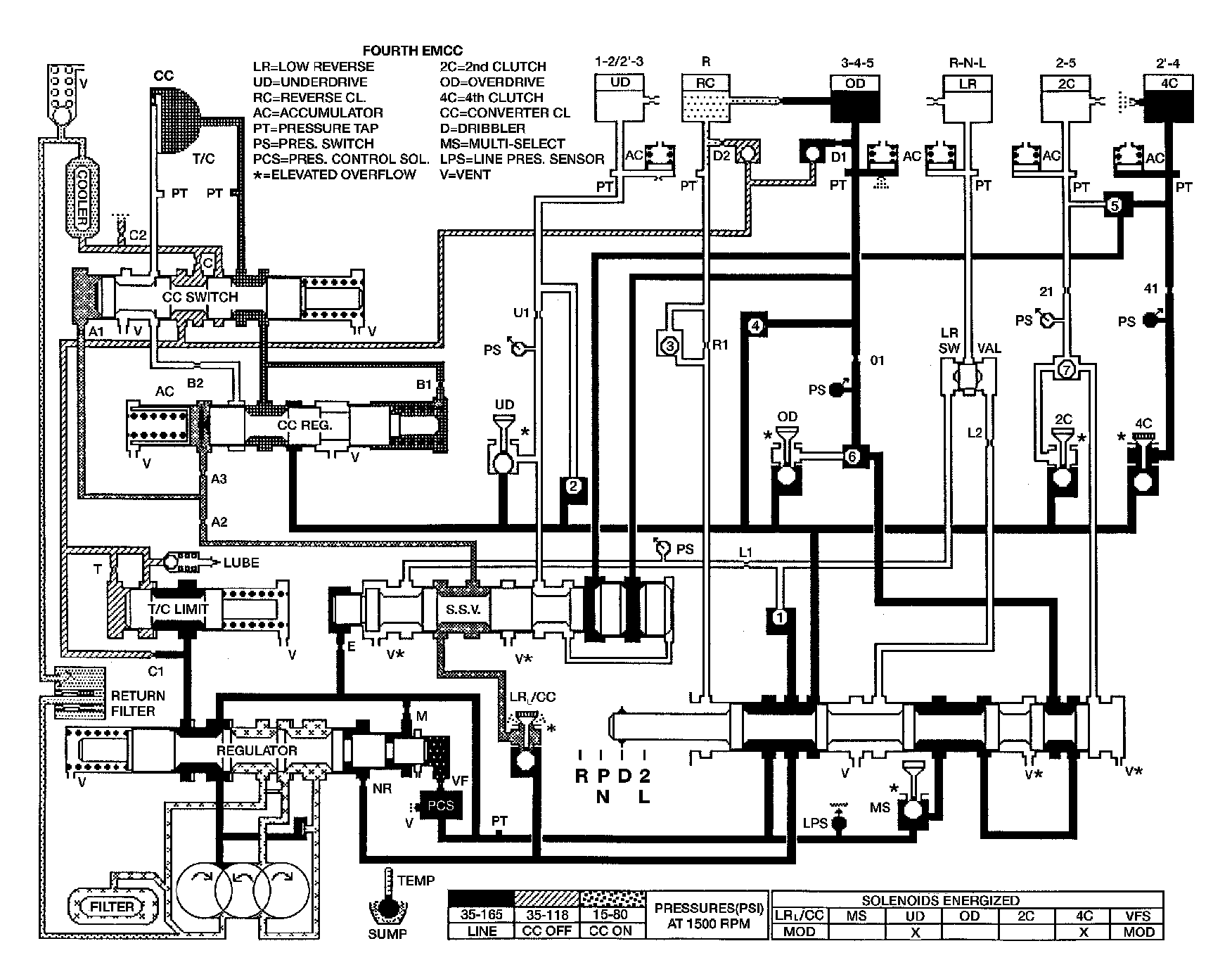

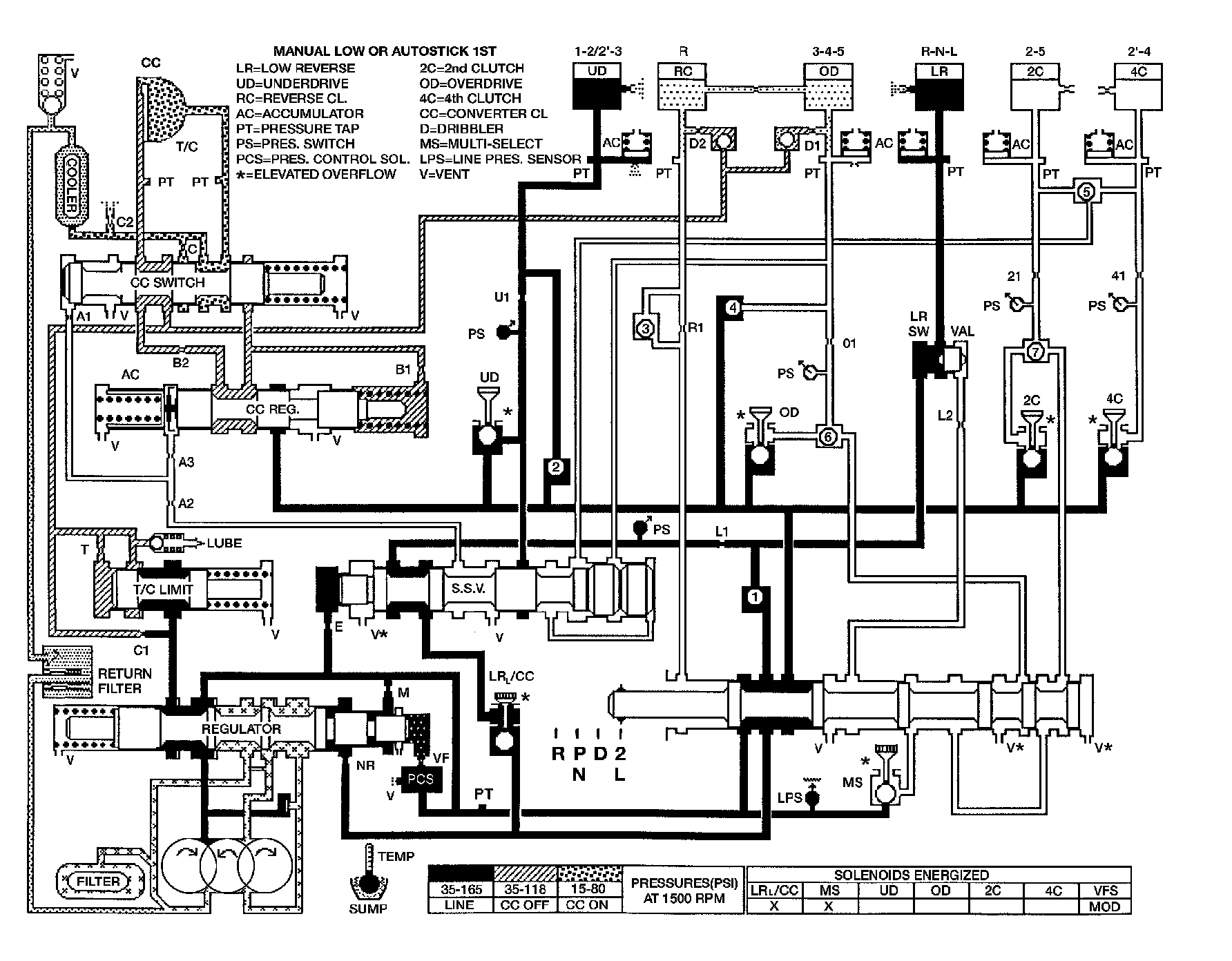

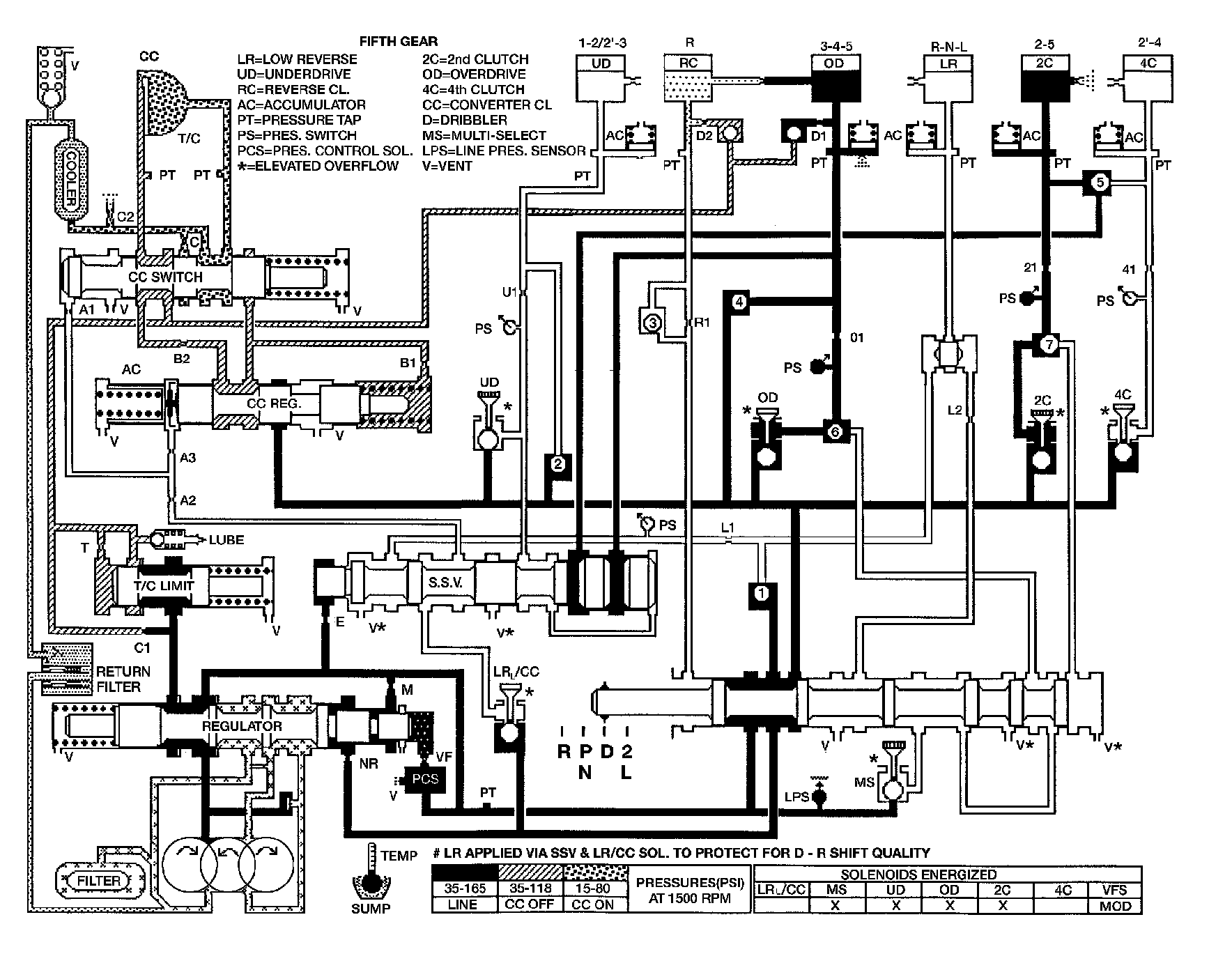

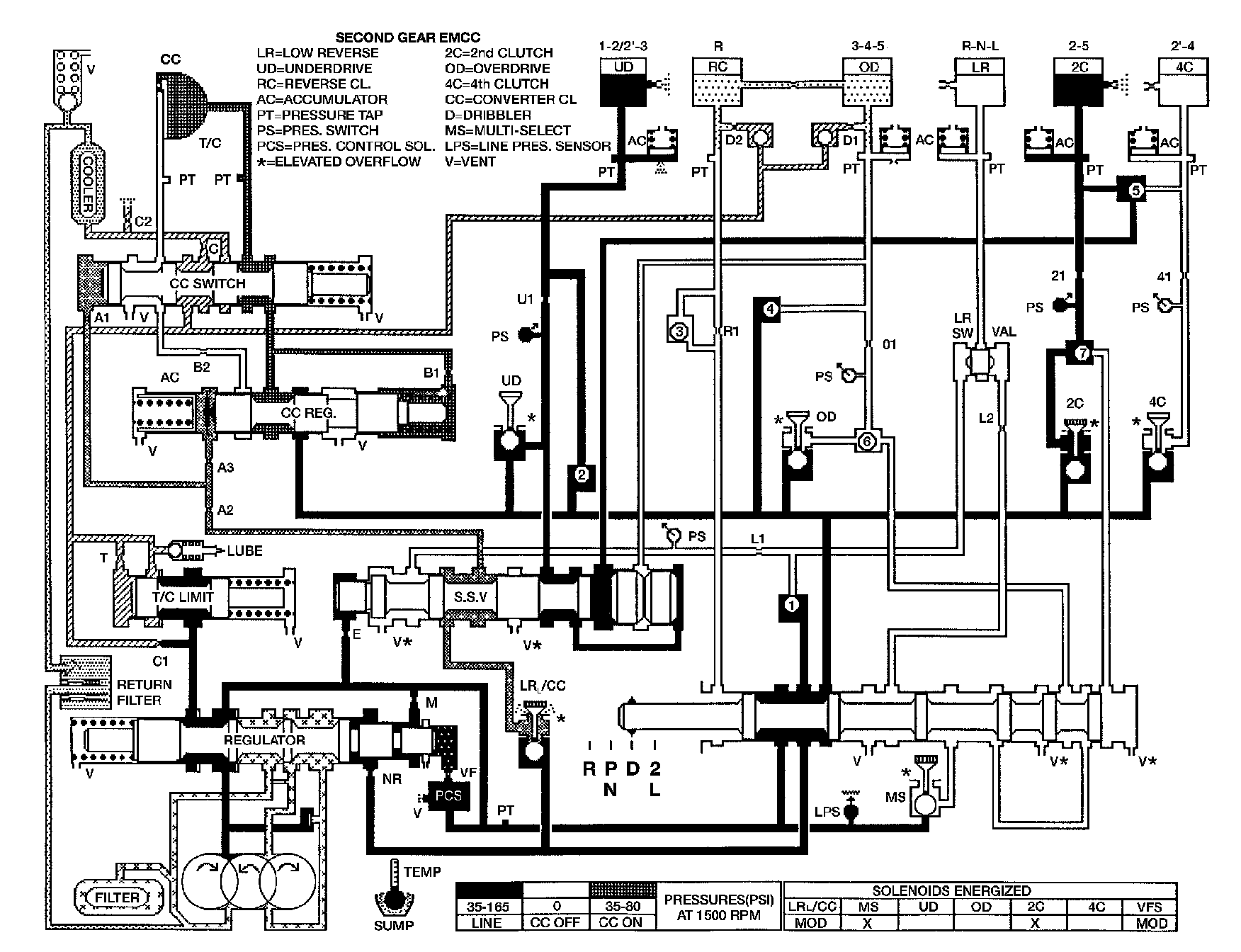

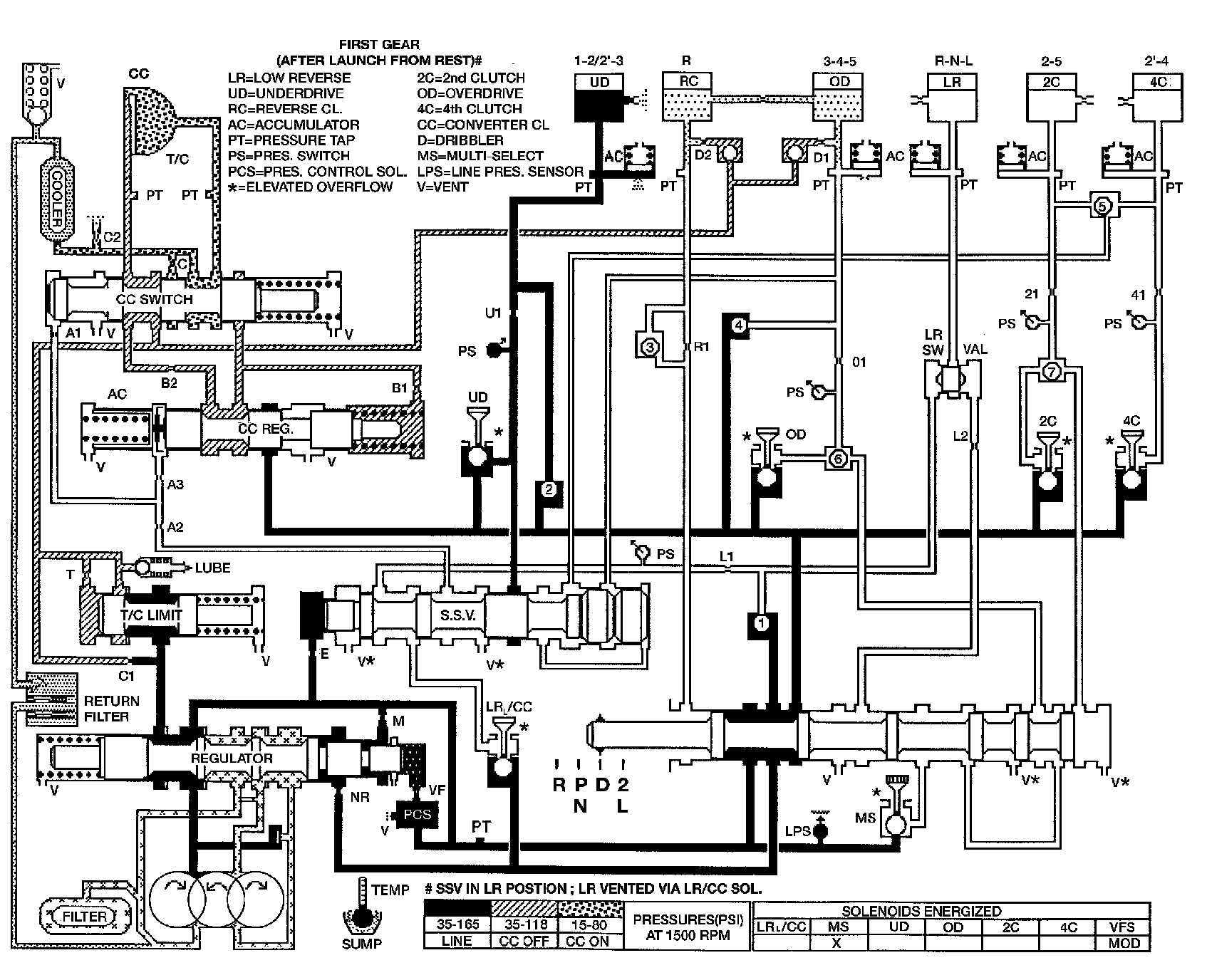

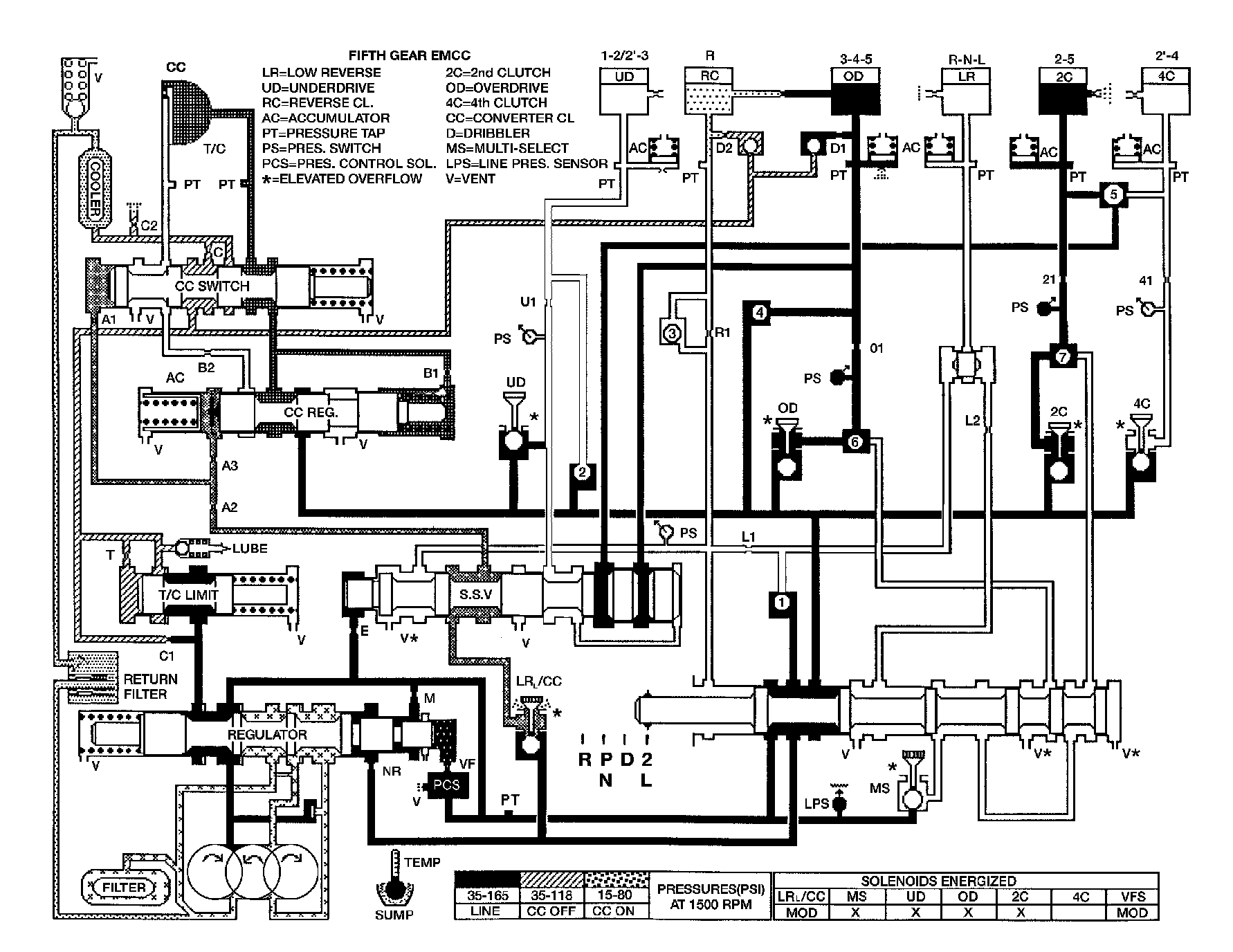

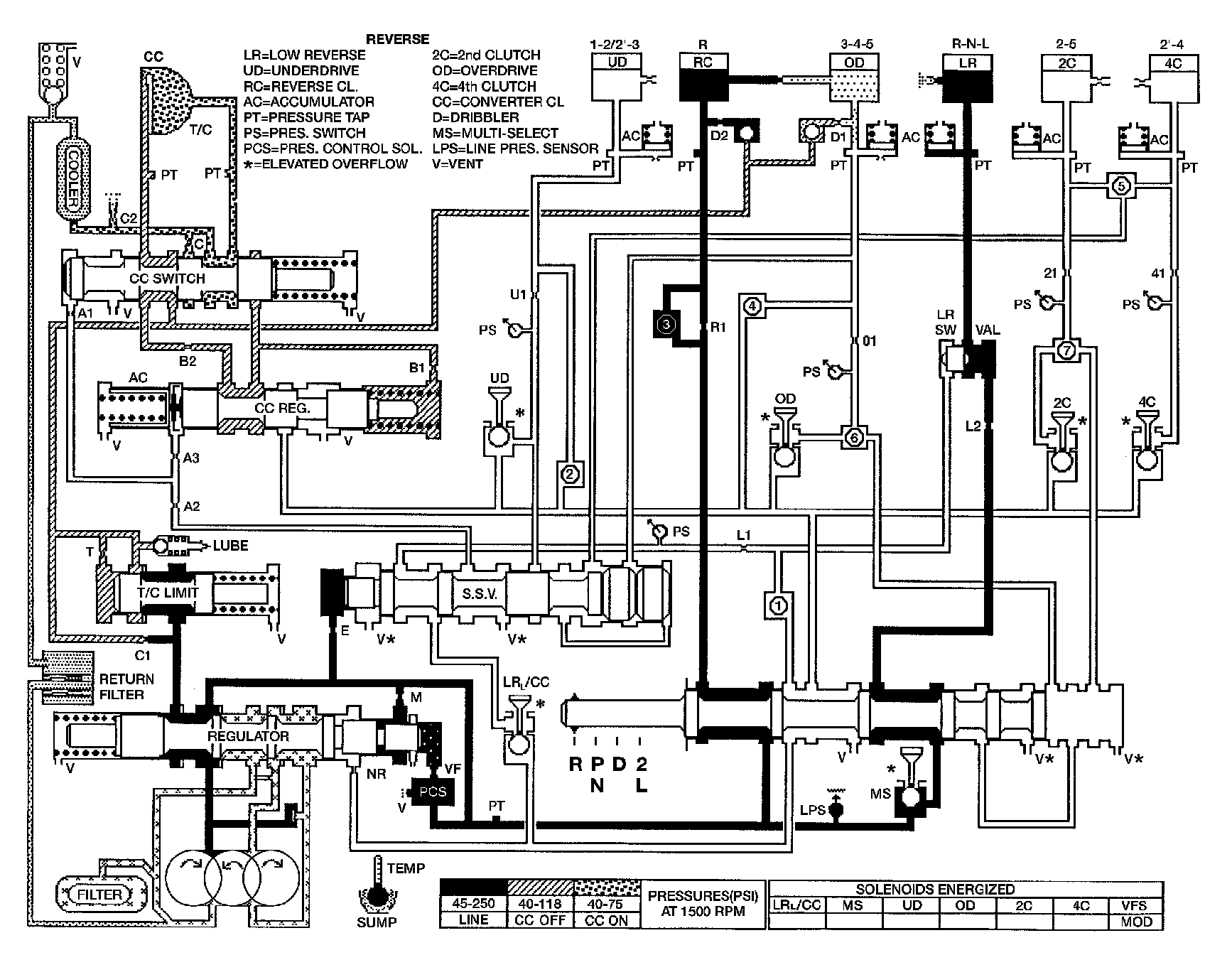

HYDRAULIC SCHEMATICS

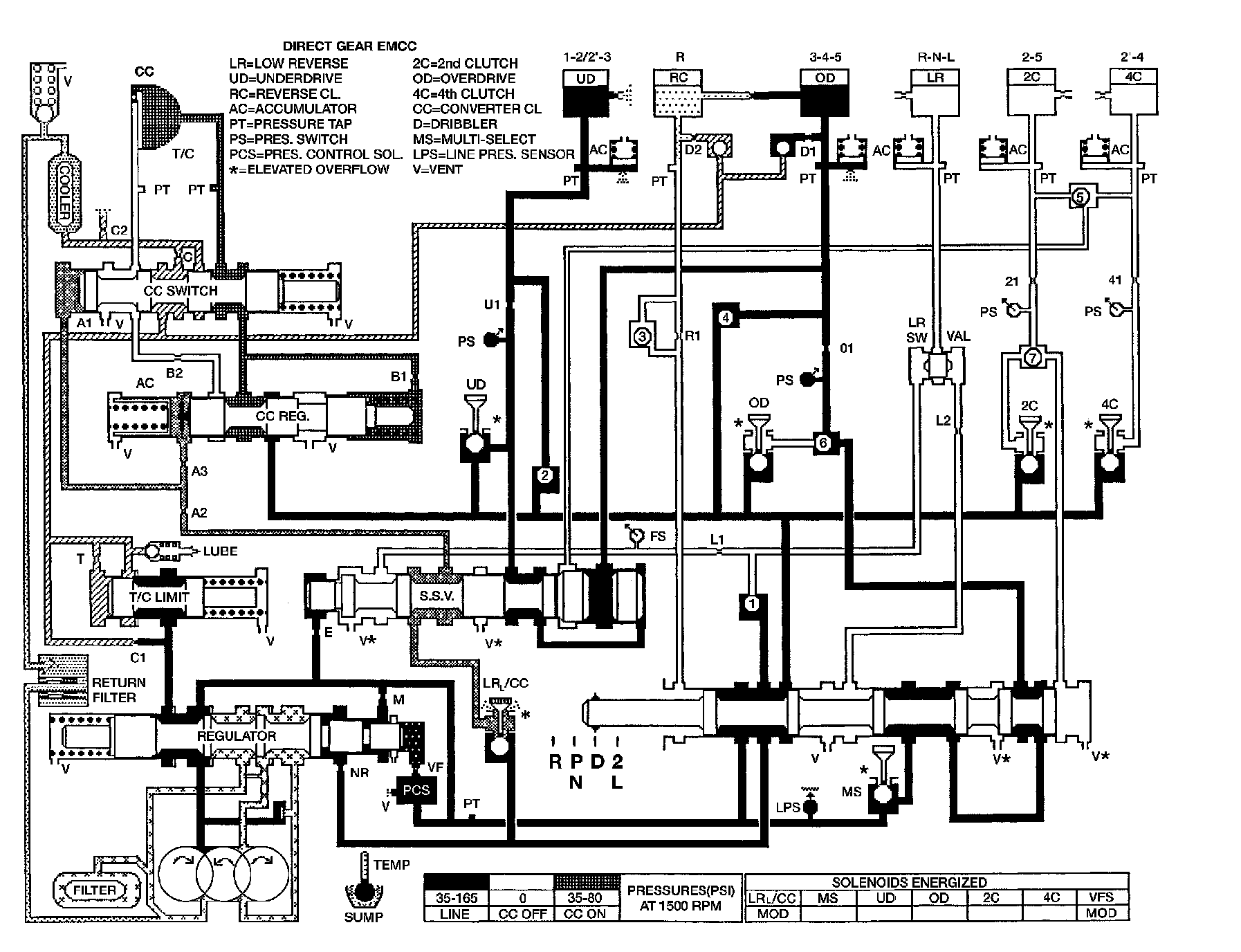

Part 1 of 21

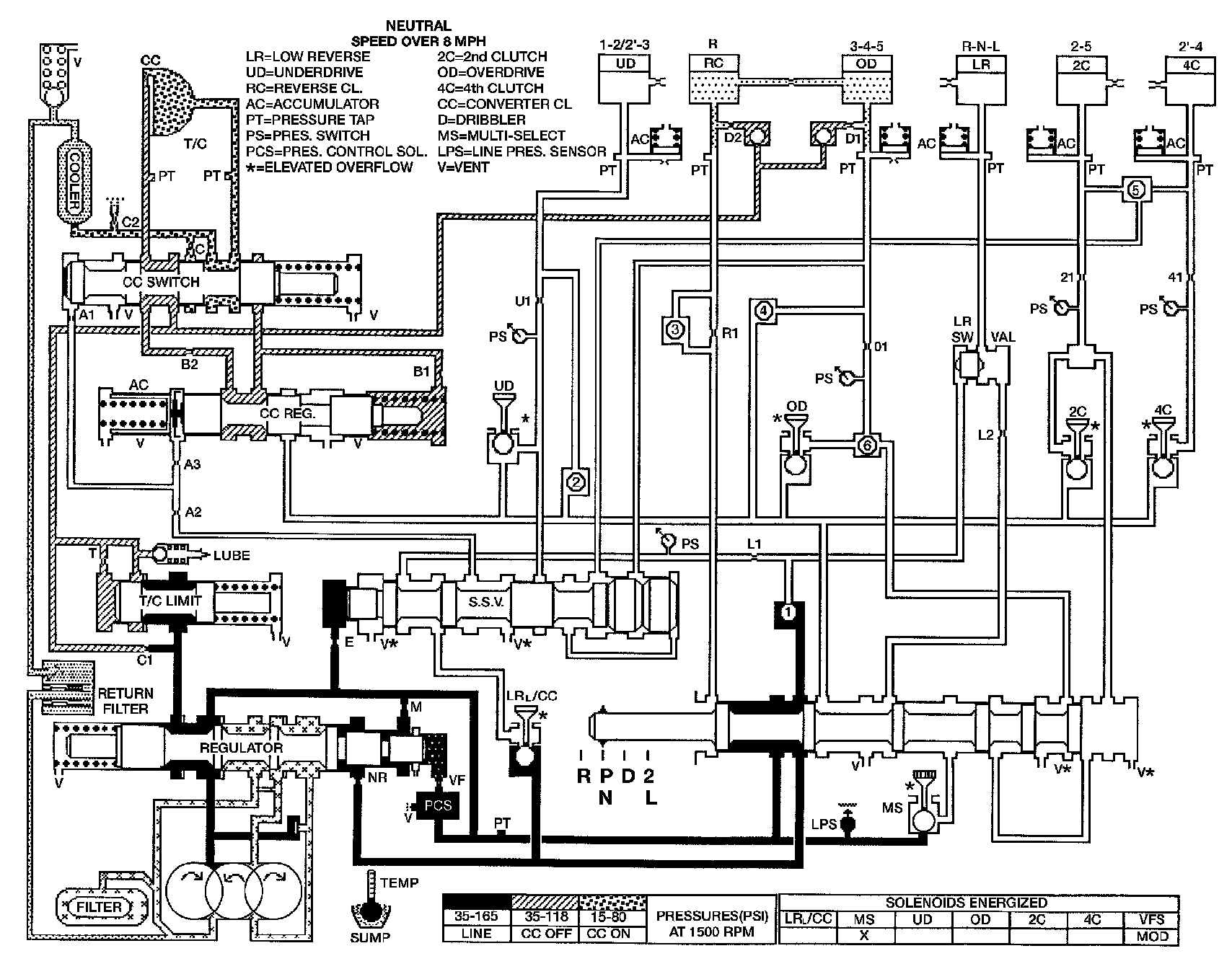

Part 2 of 21

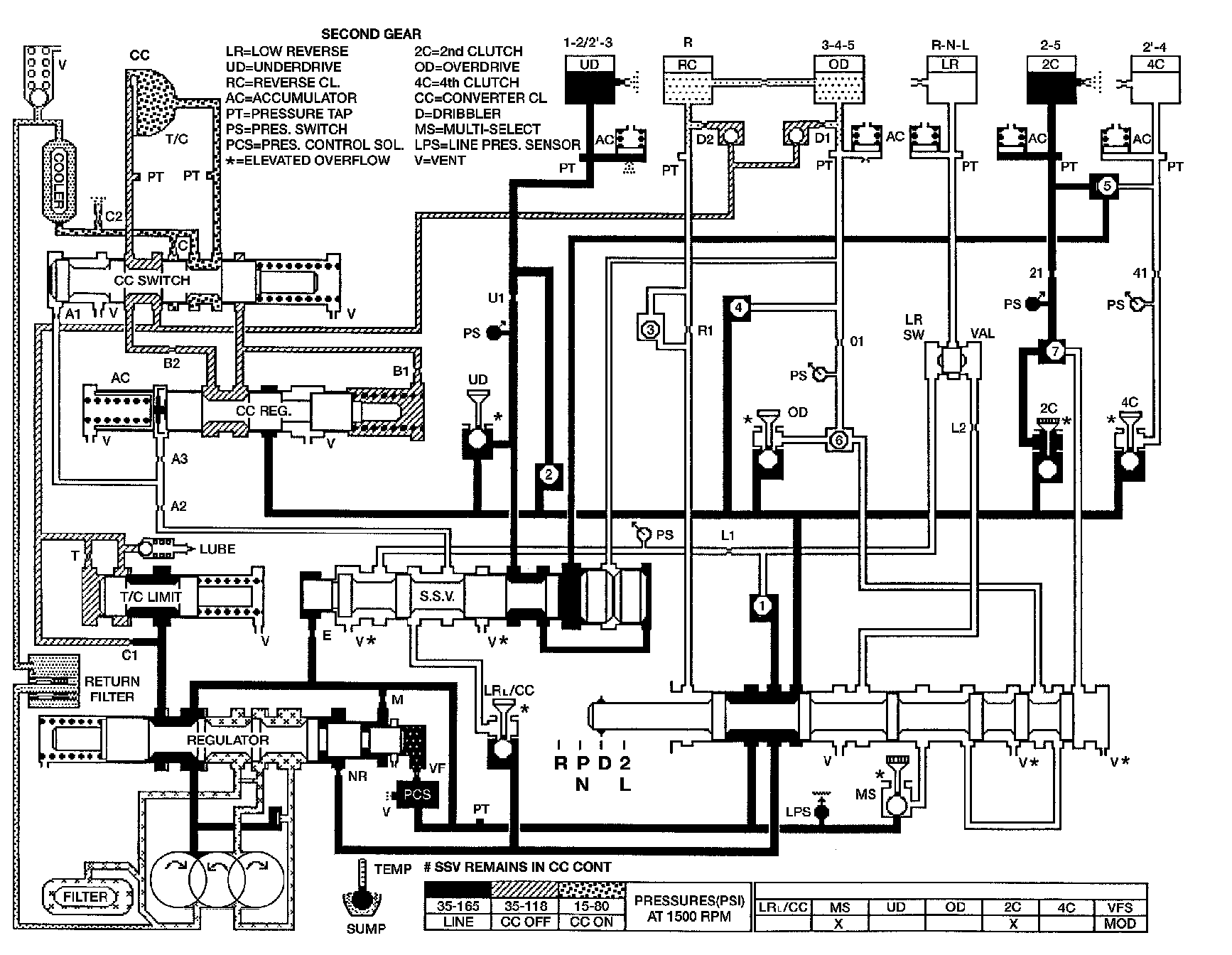

Part 3 of 21

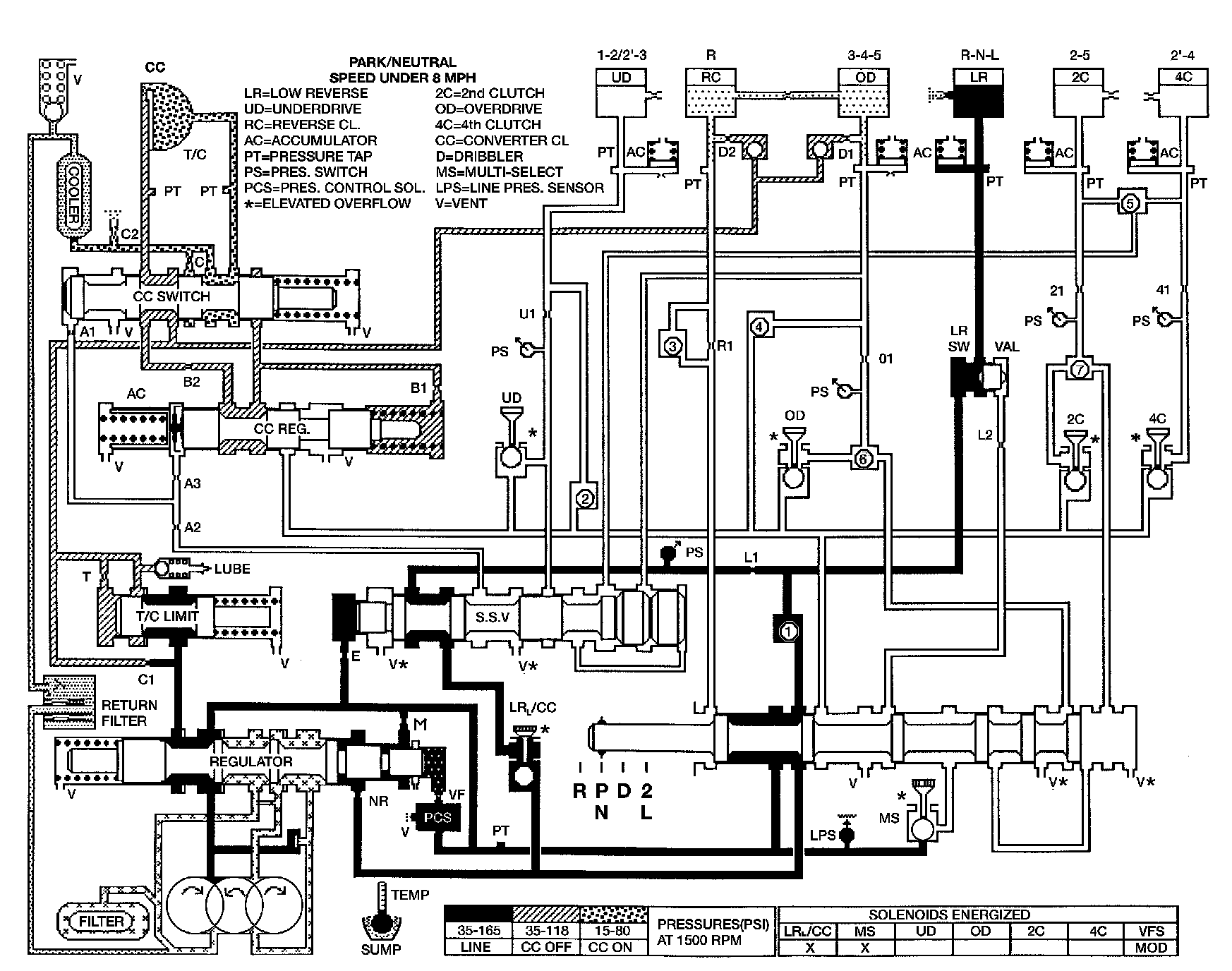

Part 4 of 21

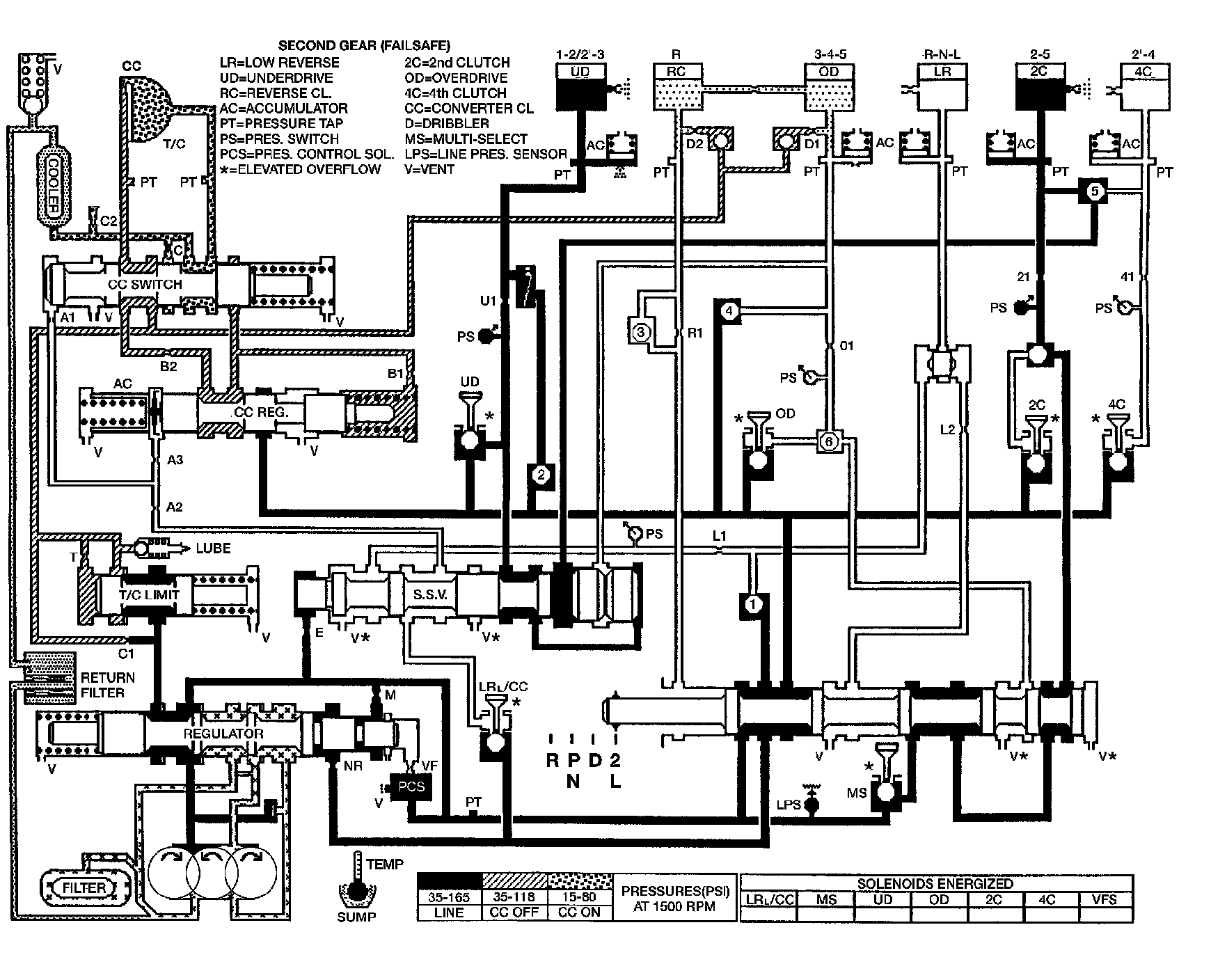

Part 5 of 21





Part 6 of 21





Part 7 of 21





Part 8 of 21





Part 9 of 21





Part 10 of 21





Part 11 of 21





Part 12 of 21





Part 13 of 21





Part 14 of 21





Part 15 of 21





Part 16 of 21





Part 17 of 21





Part 18 of 21





Part 19 of 21





Part 20 of 21





Part 21 of 21
