Grand Cherokee 2WD V8-4.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
System Schematics
System Schematics

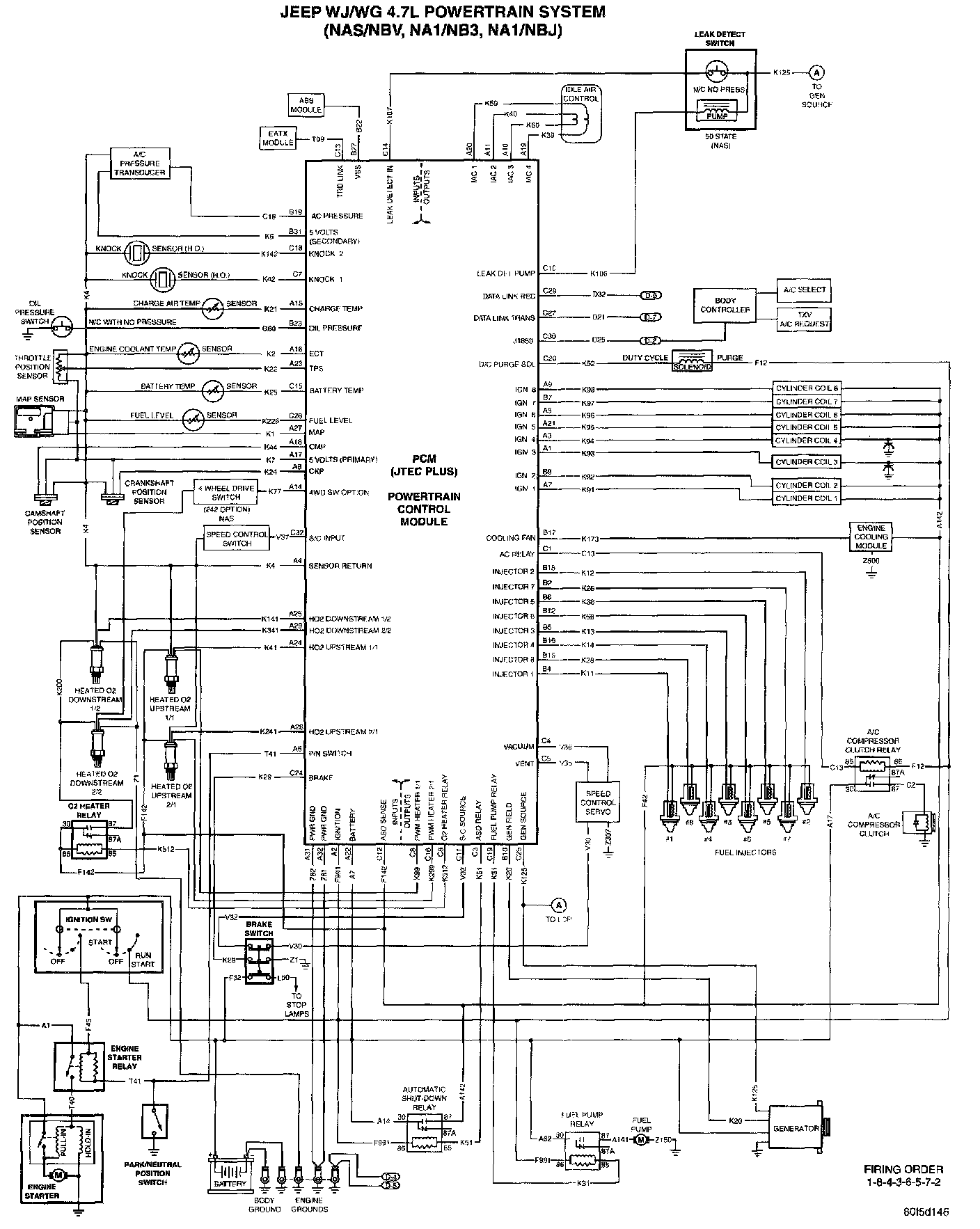

Jeep WJ/WG 4.7L Powertrain System (NAA/NVB, NAE/NBV, NA1/NBJ):

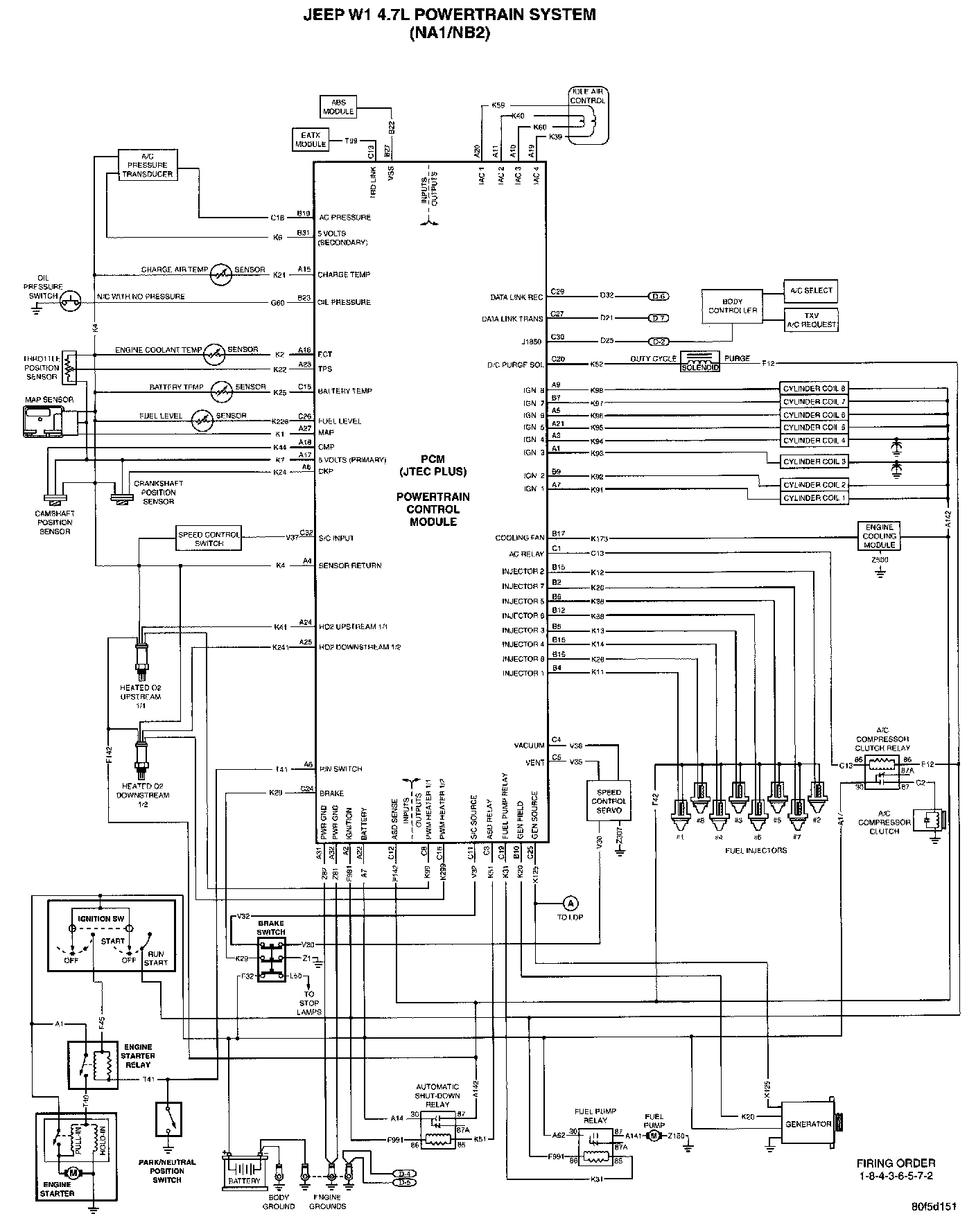

Jeep W1 4.7L Powertrain System (NA1/NB2):
