System Schematic
System Schematic

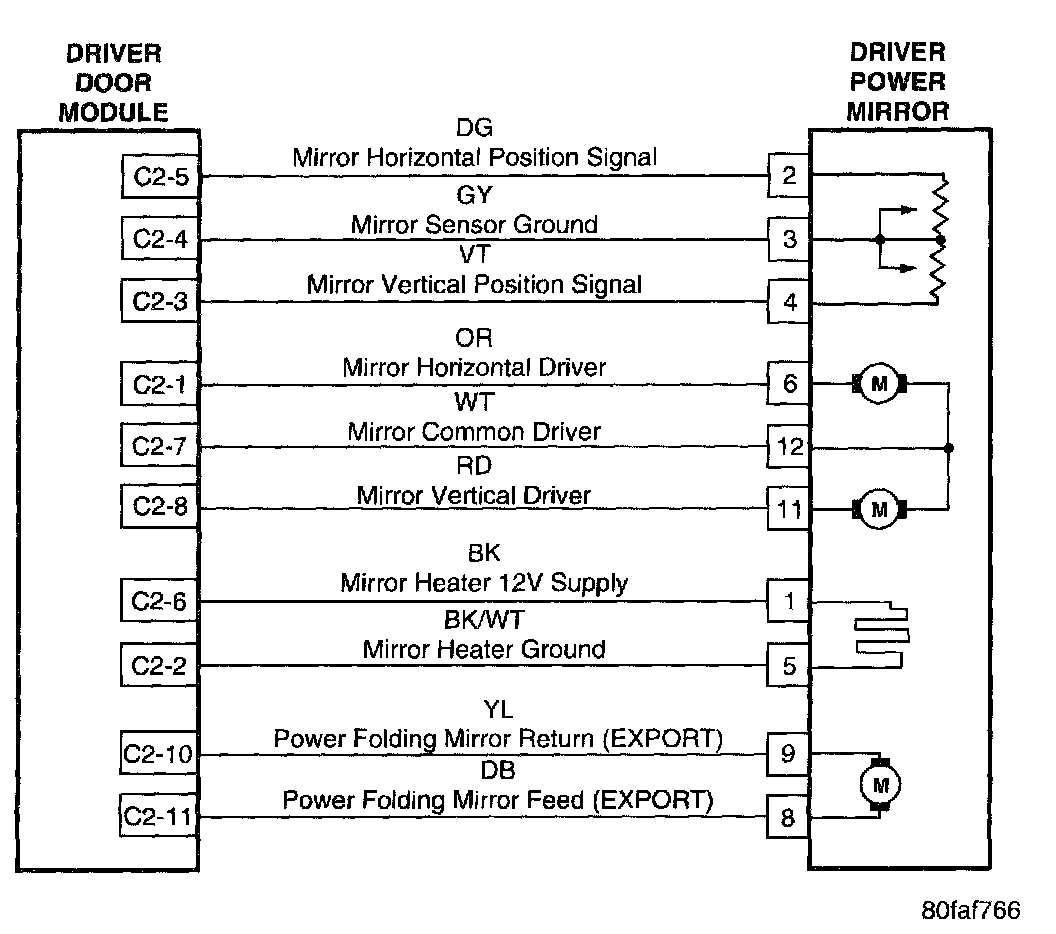

Power Mirror System - Driver Mirror:
Power Mirror System - Passenger Mirror:
