Group 8W-60 (Power Windows)
Group 8W-60 (Power Windows)

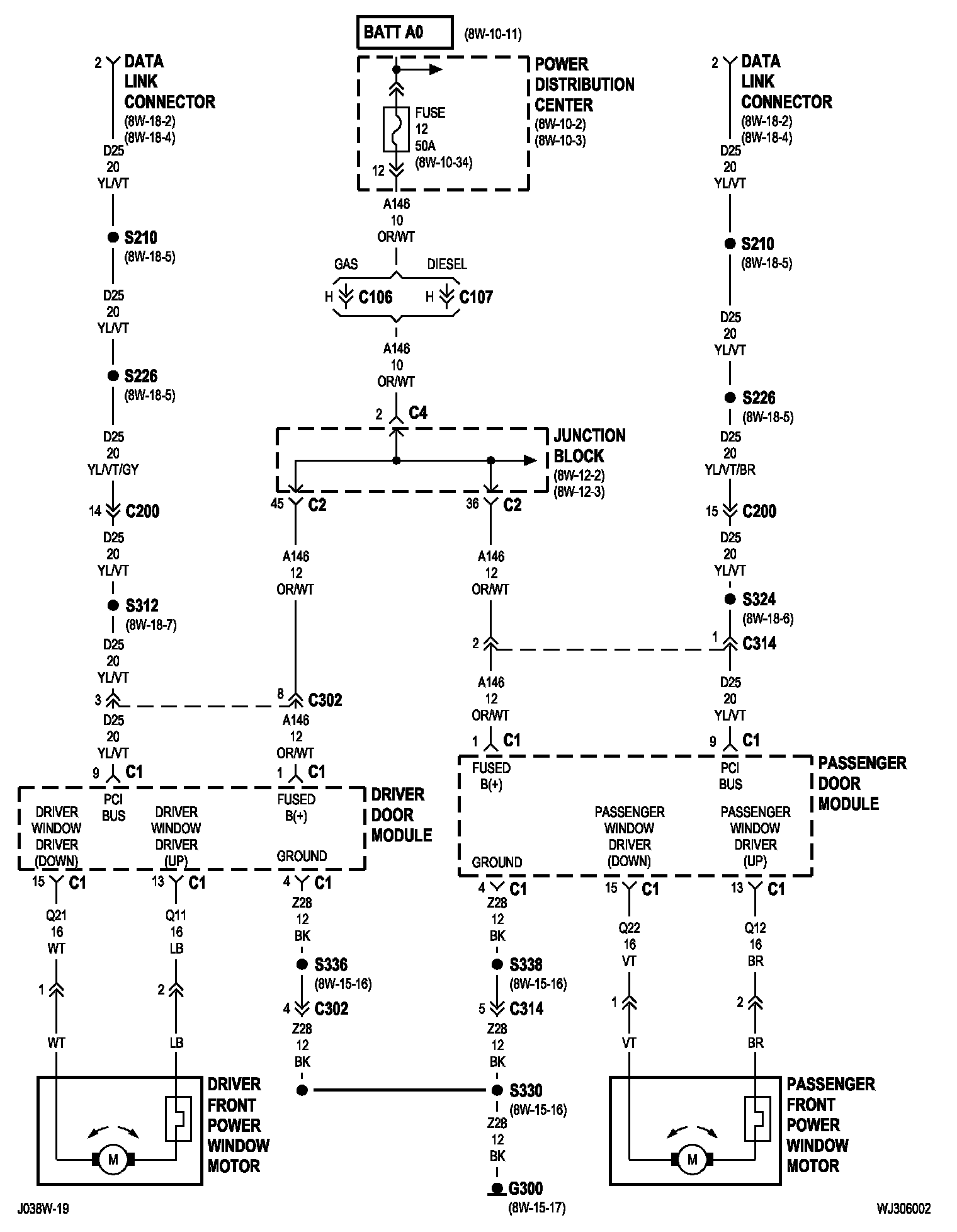

8w-60-2 (LHD):

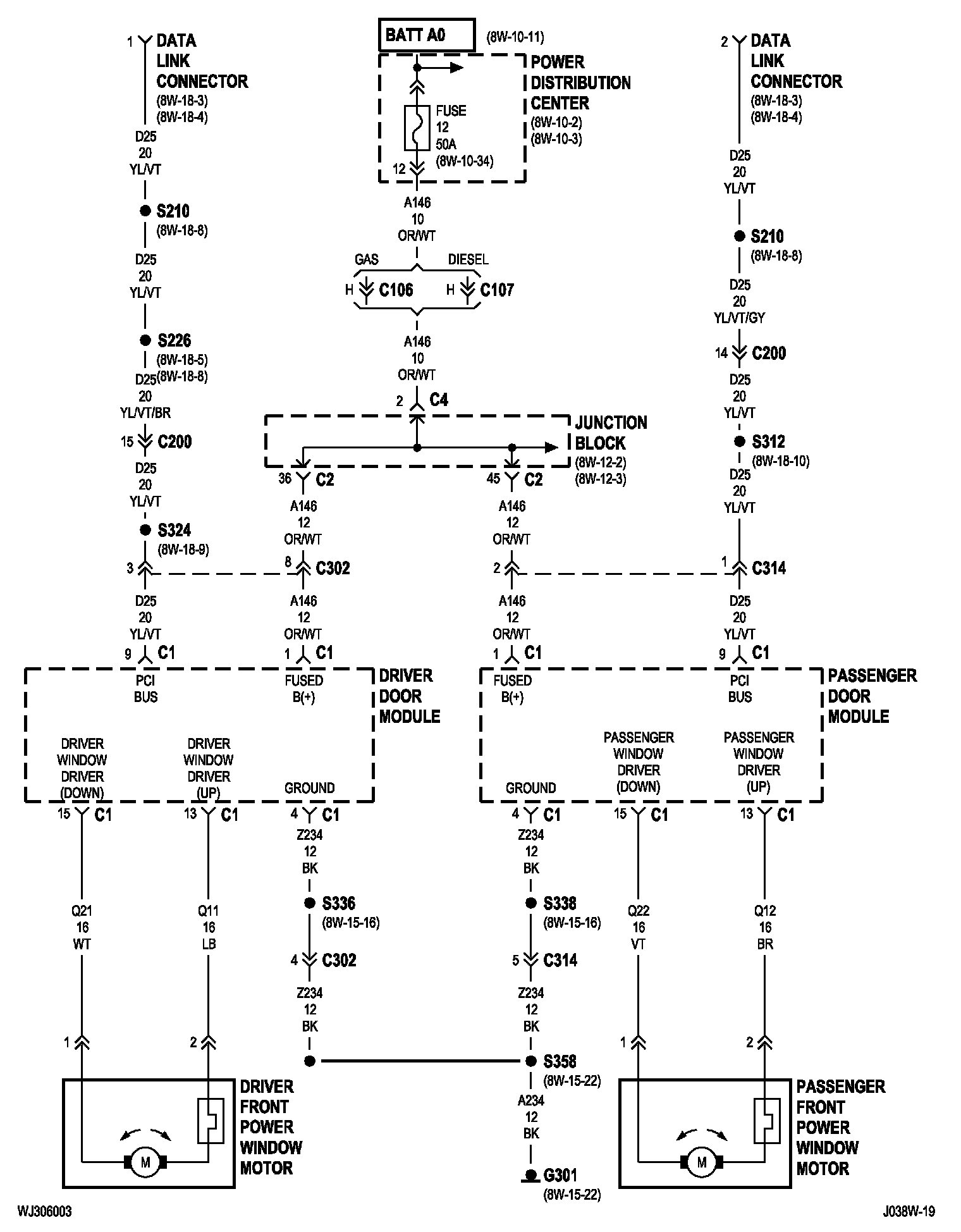

8w-60-3 (RHD):

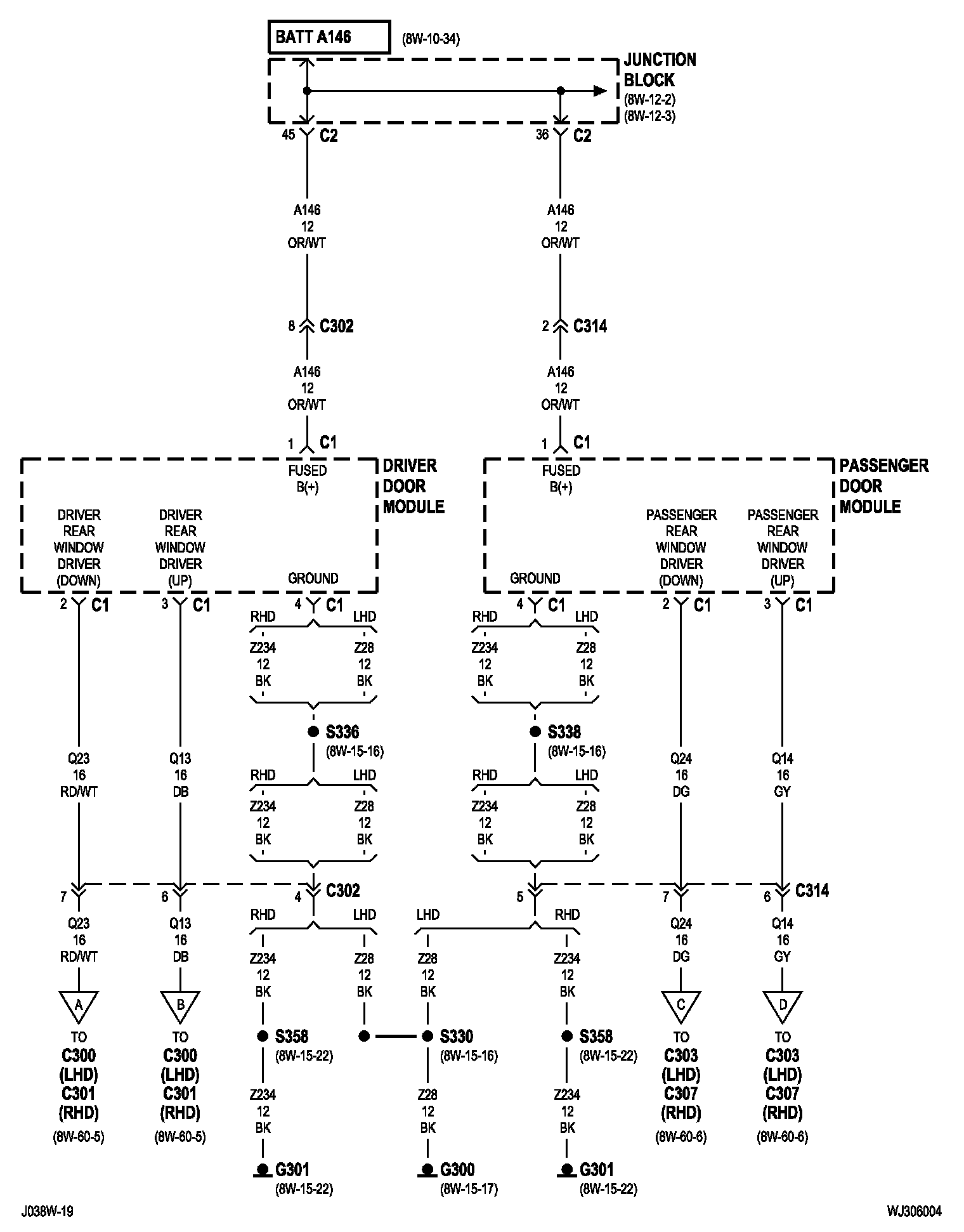

8w-60-4:

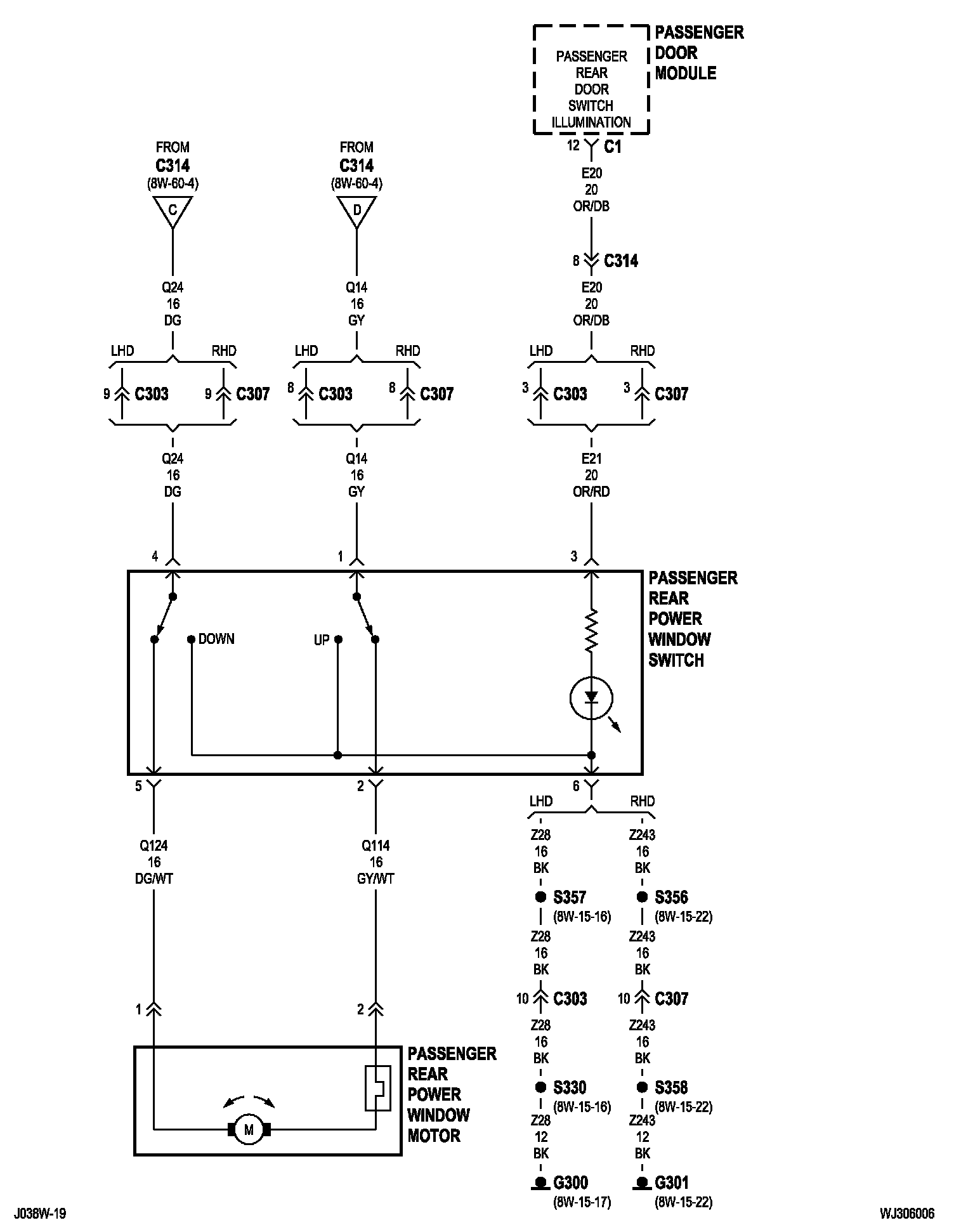

8w-60-5:

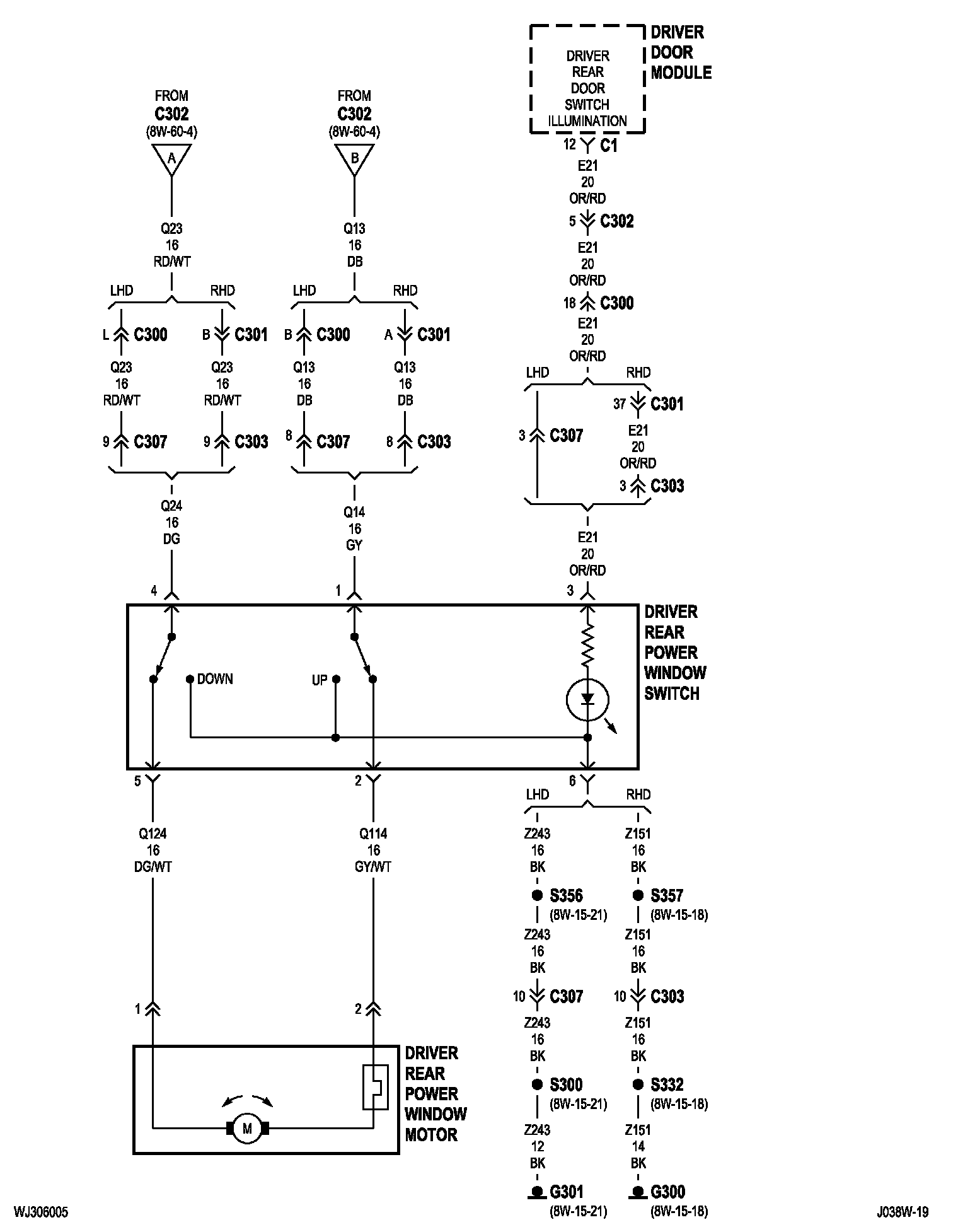

8w-60-6:
