Home >> Jeep >> 2003 >> Grand Cherokee 2WD V8-4.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Group 8W-53 (Wipers)

Group 8W-53 (Wipers)

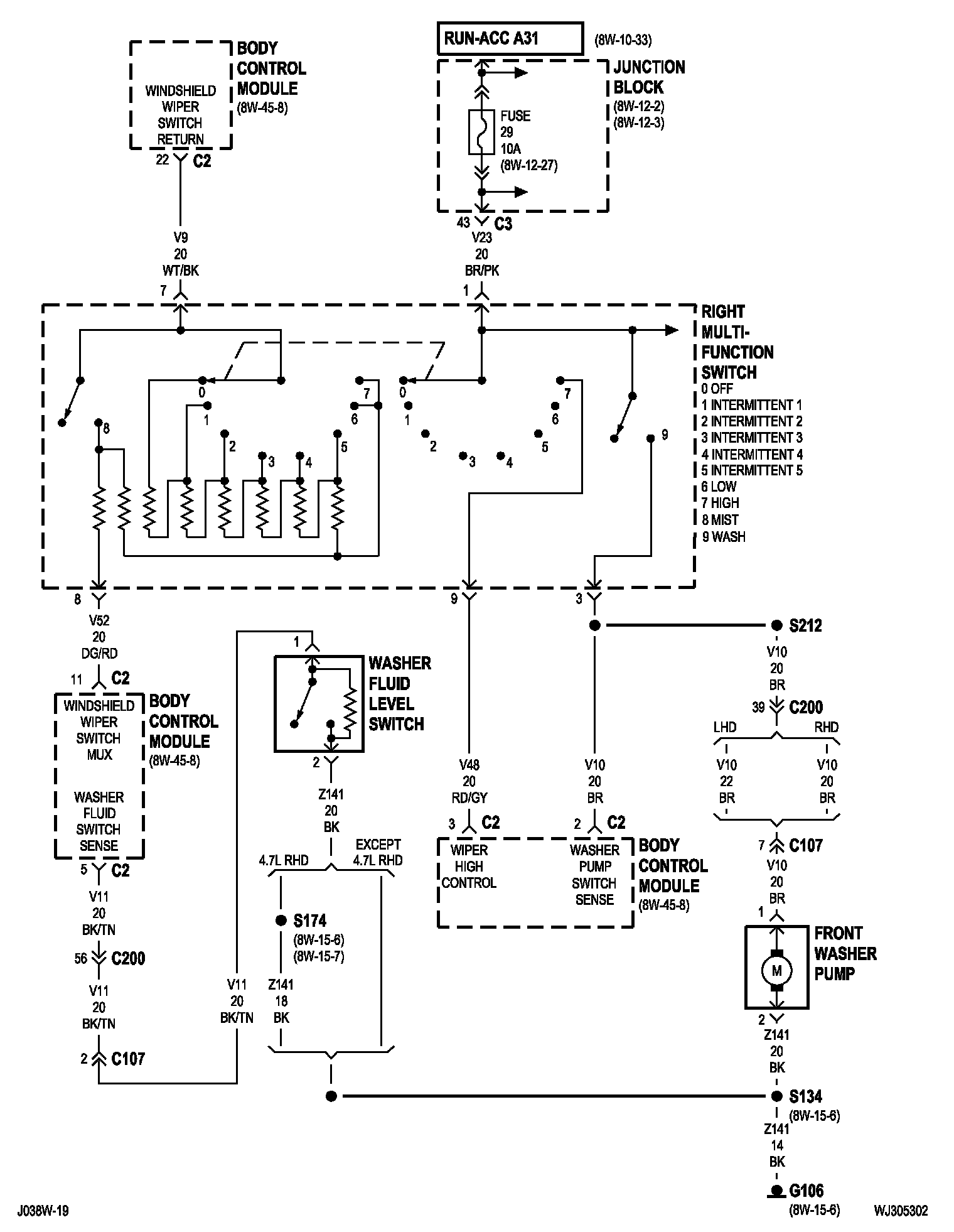

8w-53-2:

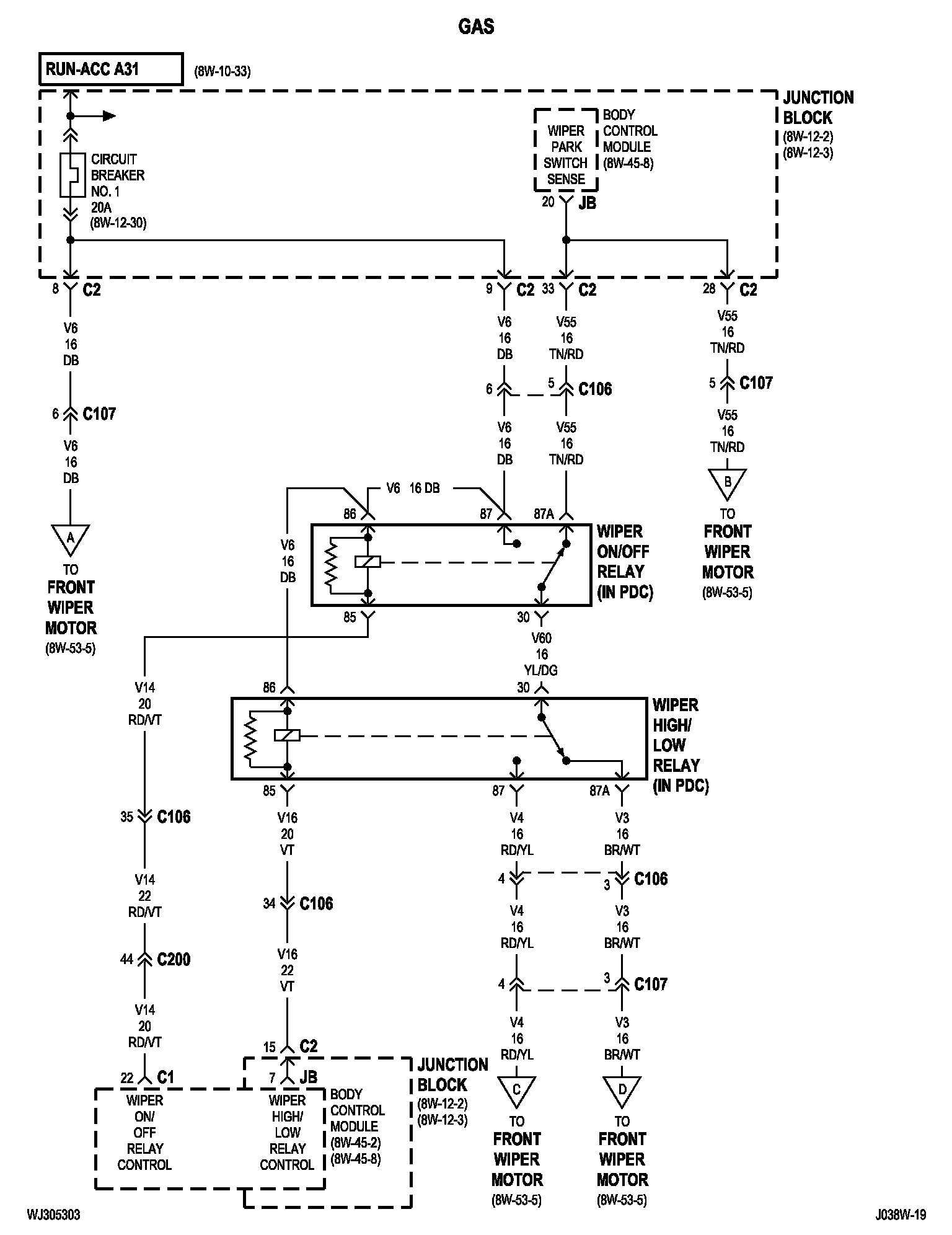

8w-53-3:

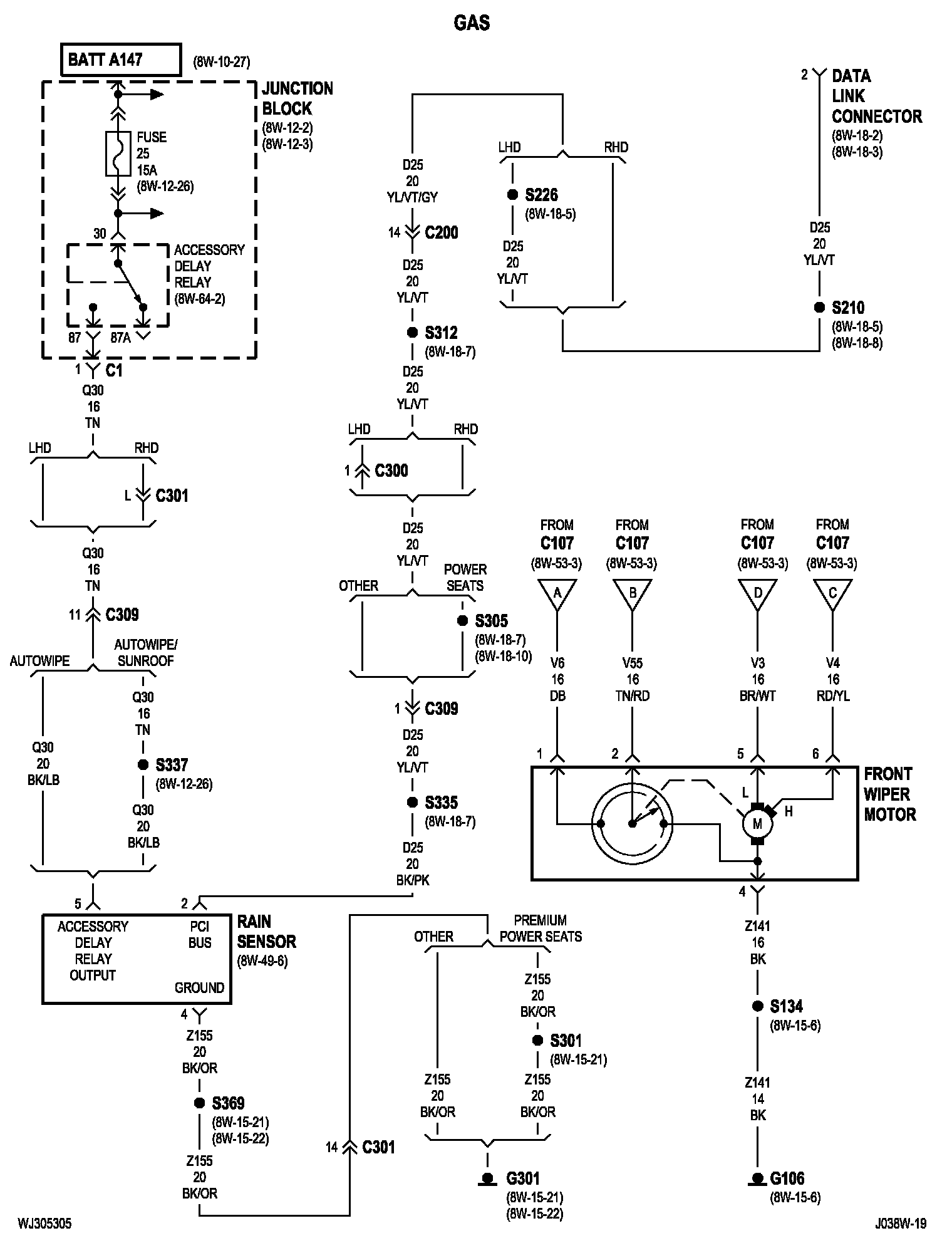

8w-53-5:

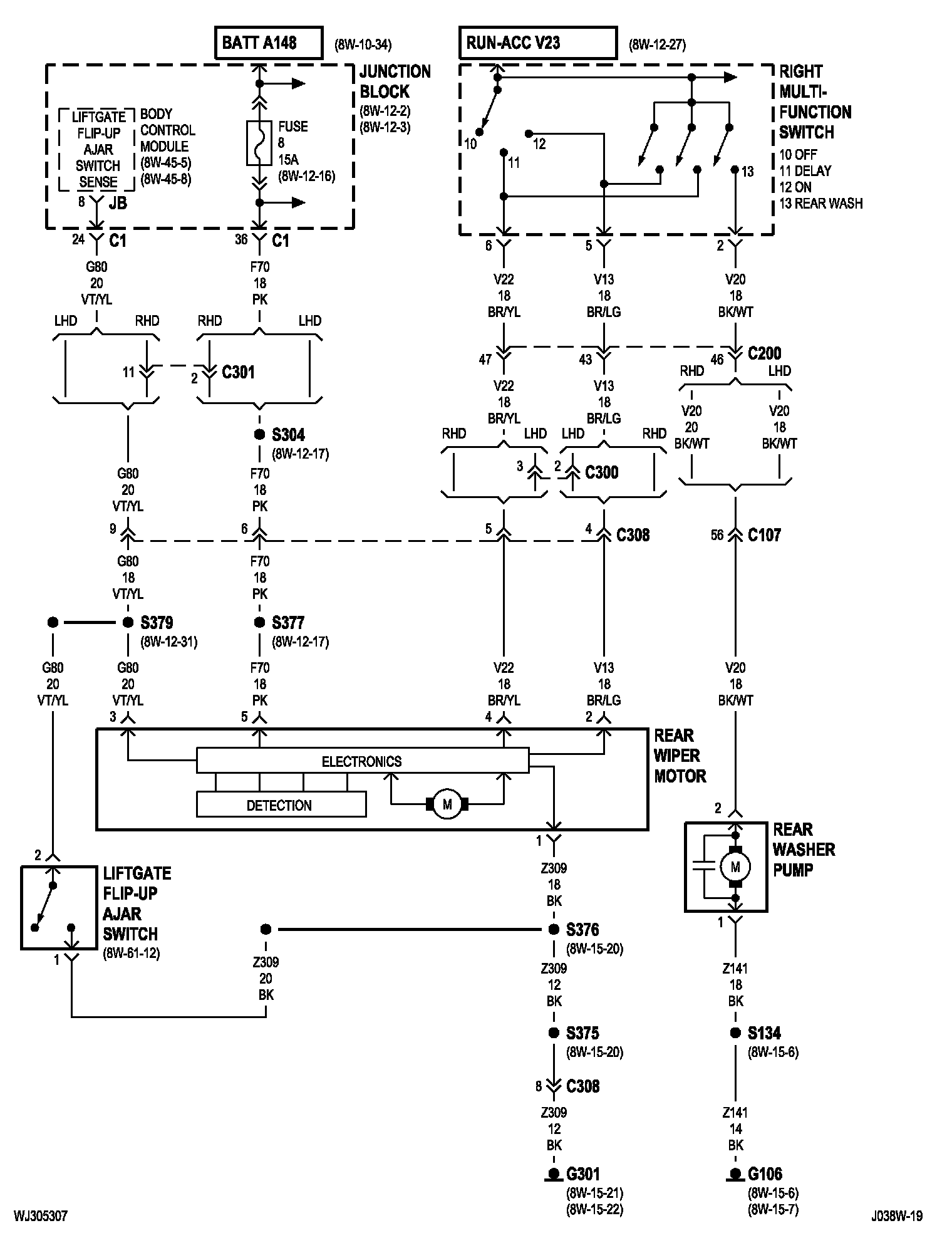

8w-53-7:
