Group 8W-44 (Interior Lighting)
Group 8W-44 (Interior Lighting)

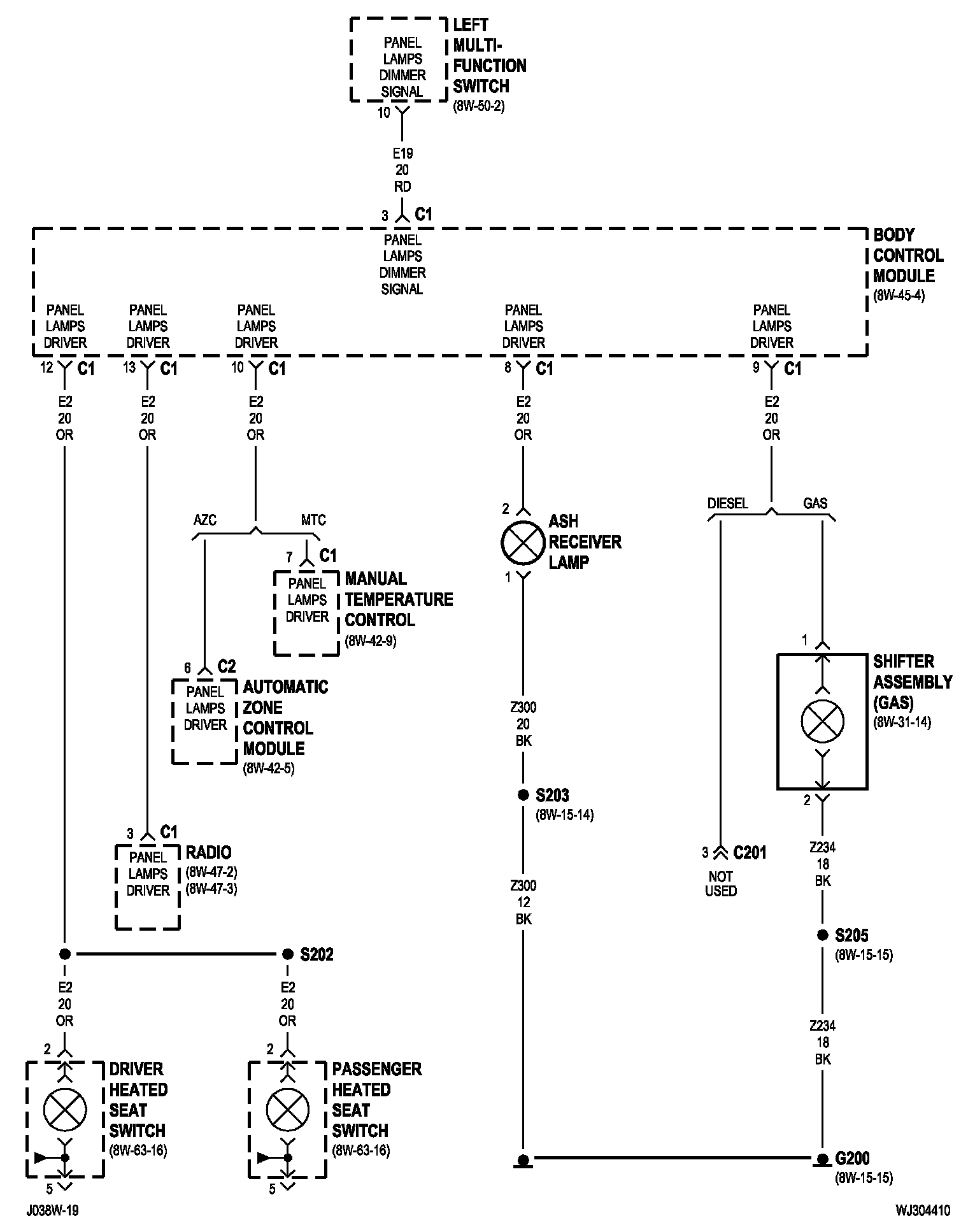

8w-44-2:

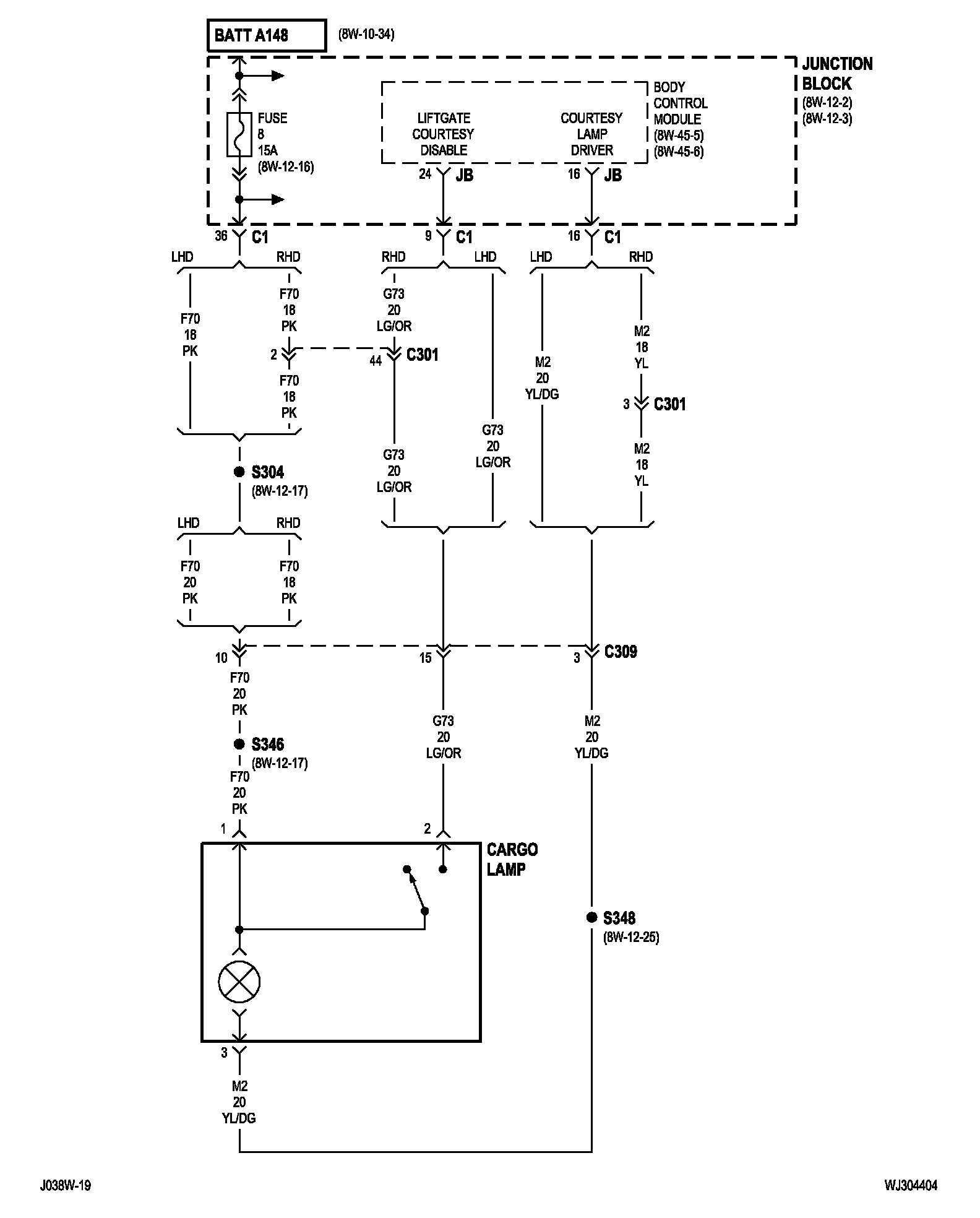

8w-44-3:

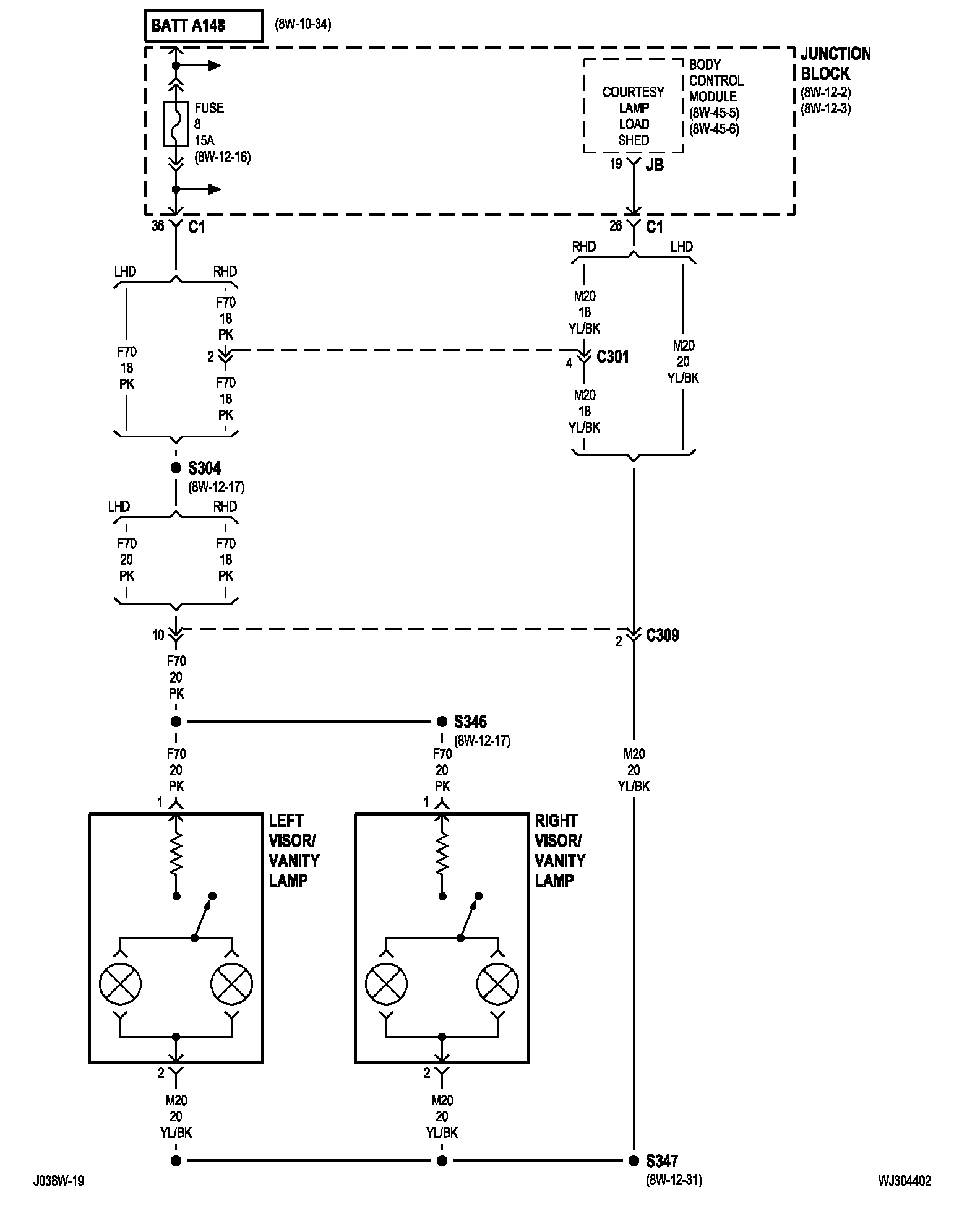

8w-44-4:

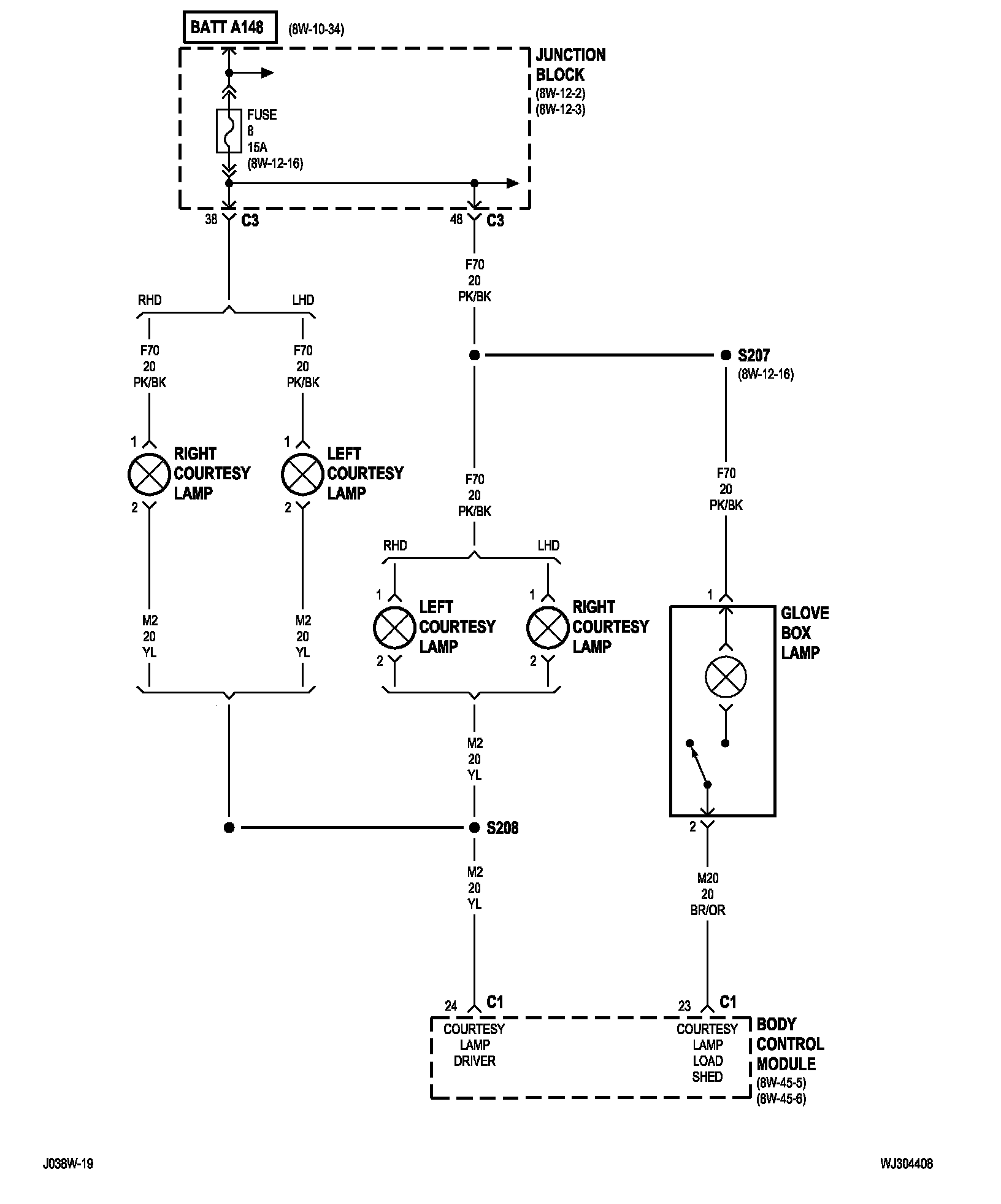

8w-44-5:

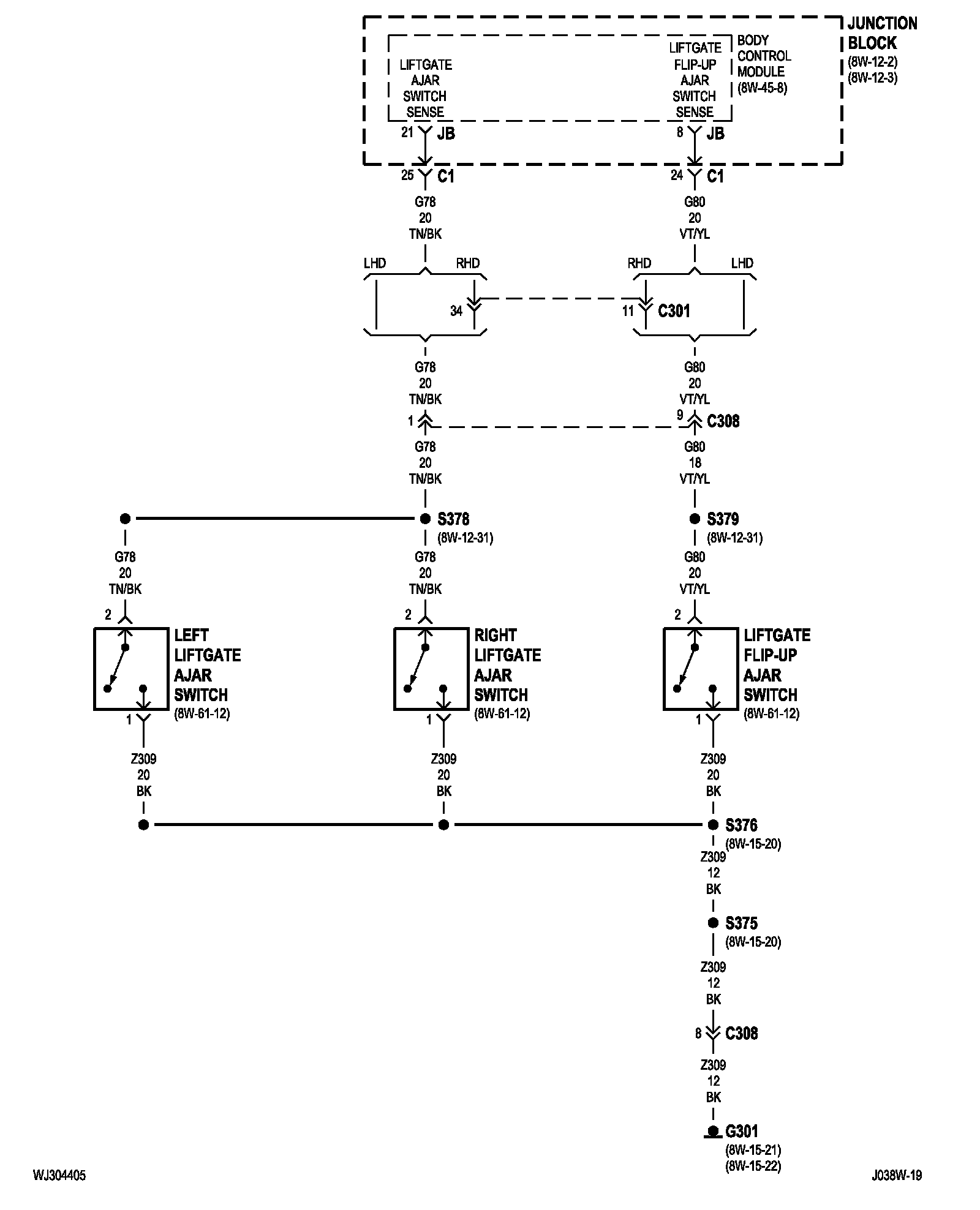

8w-44-6:

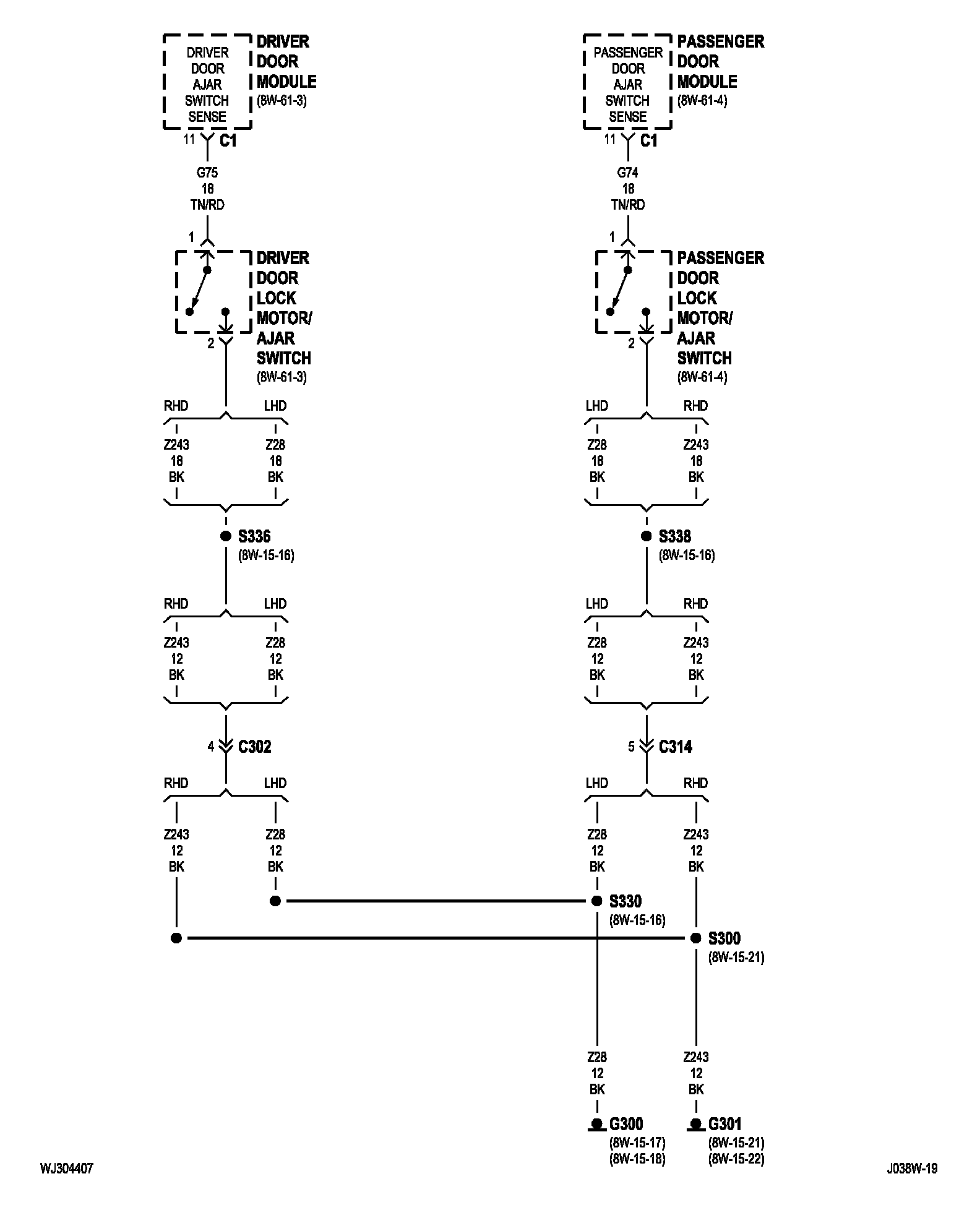

8w-44-7:

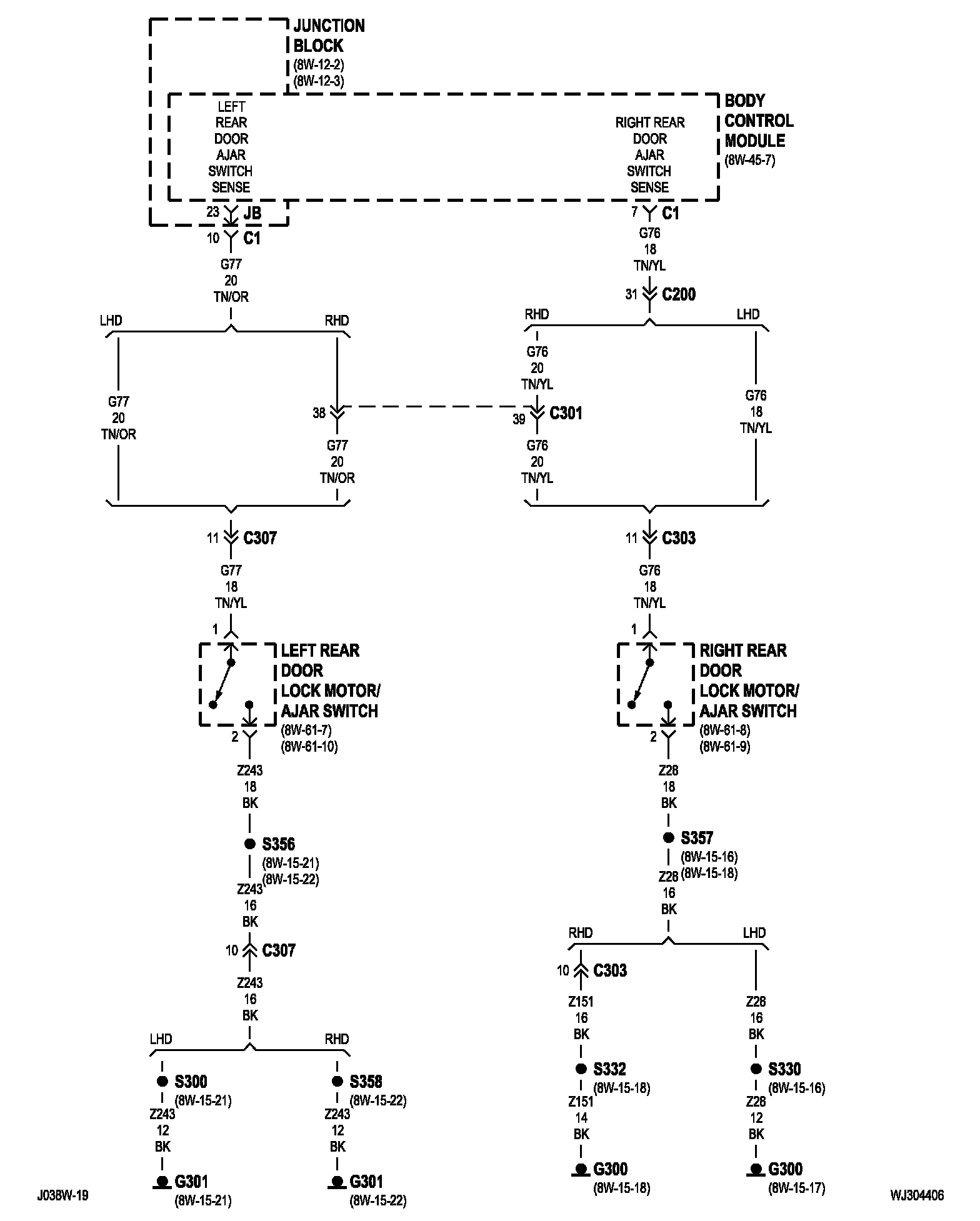

8w-44-8:

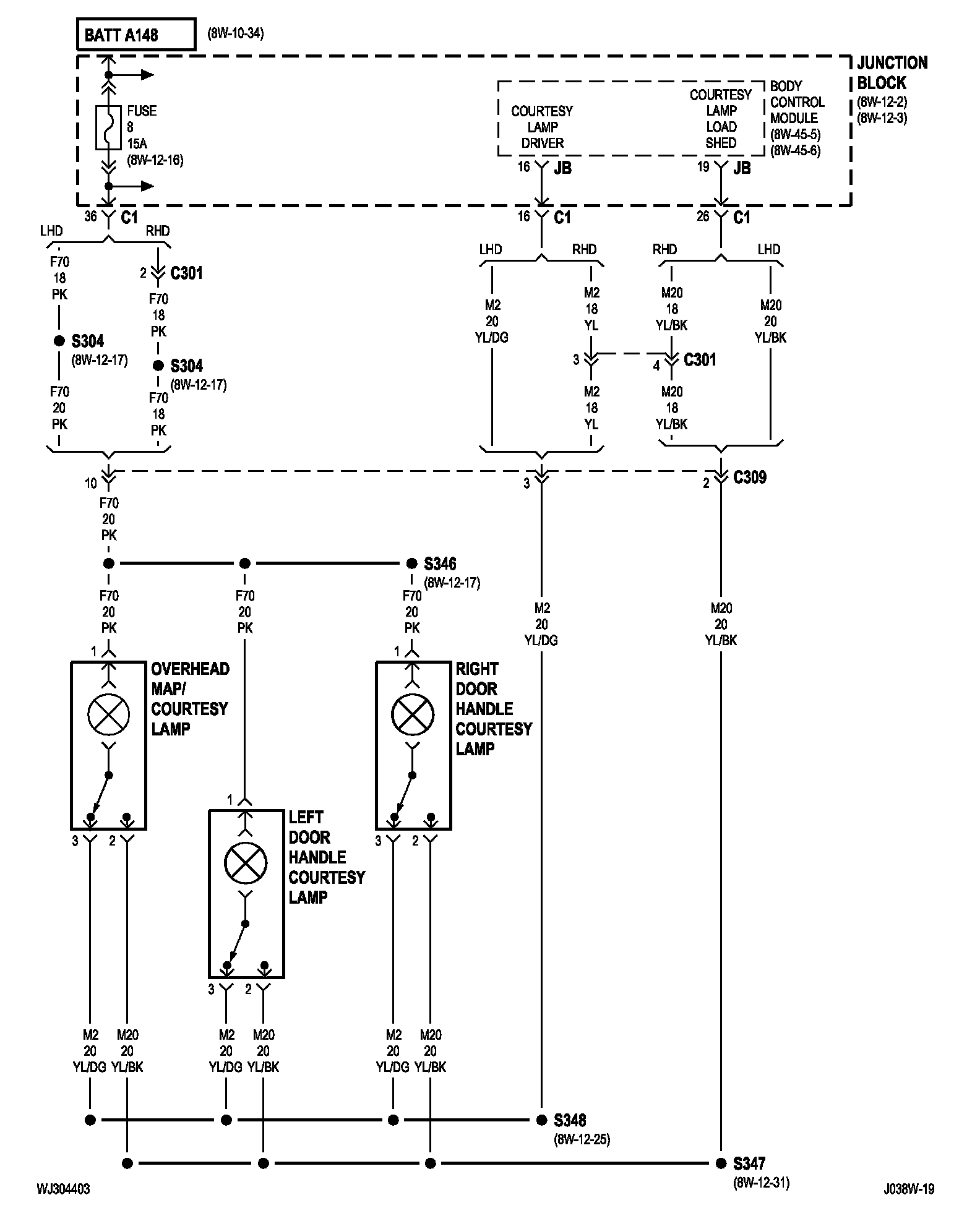

8w-44-9:
8w-44-10:
