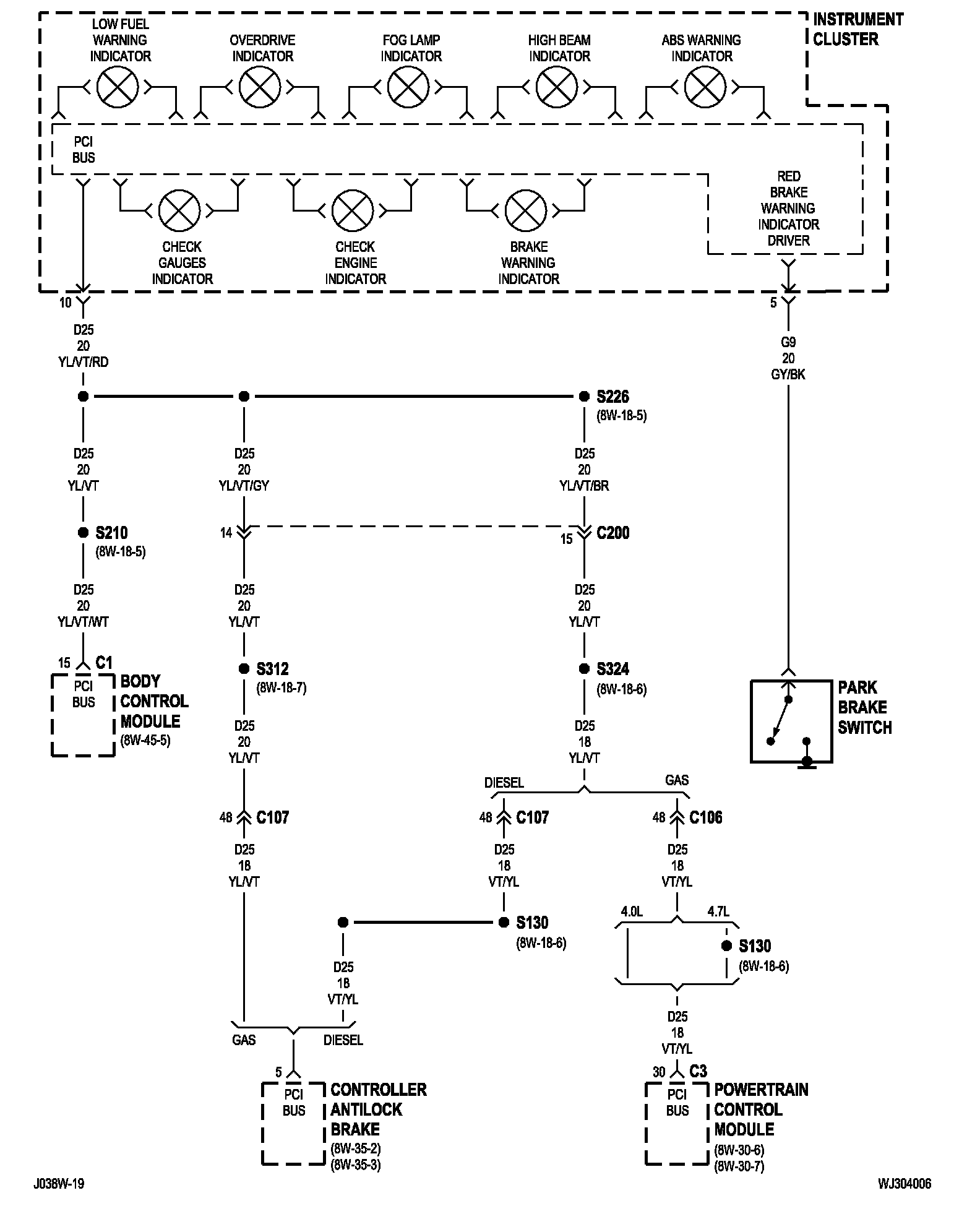

Group 8W-40 (Instrument Cluster)
Group 8W-40 (Instrument Cluster)
8w-40-2:
8w-40-3:
8w-40-4 (LHD):
8w-40-5 (RHD):
8w-40-6 (LHD):
8w-40-7 (RHD):
8w-40-8:
8w-40-10:
